Craftsman Ranch House Plan, 062H-0033

Plan 062H-0033
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

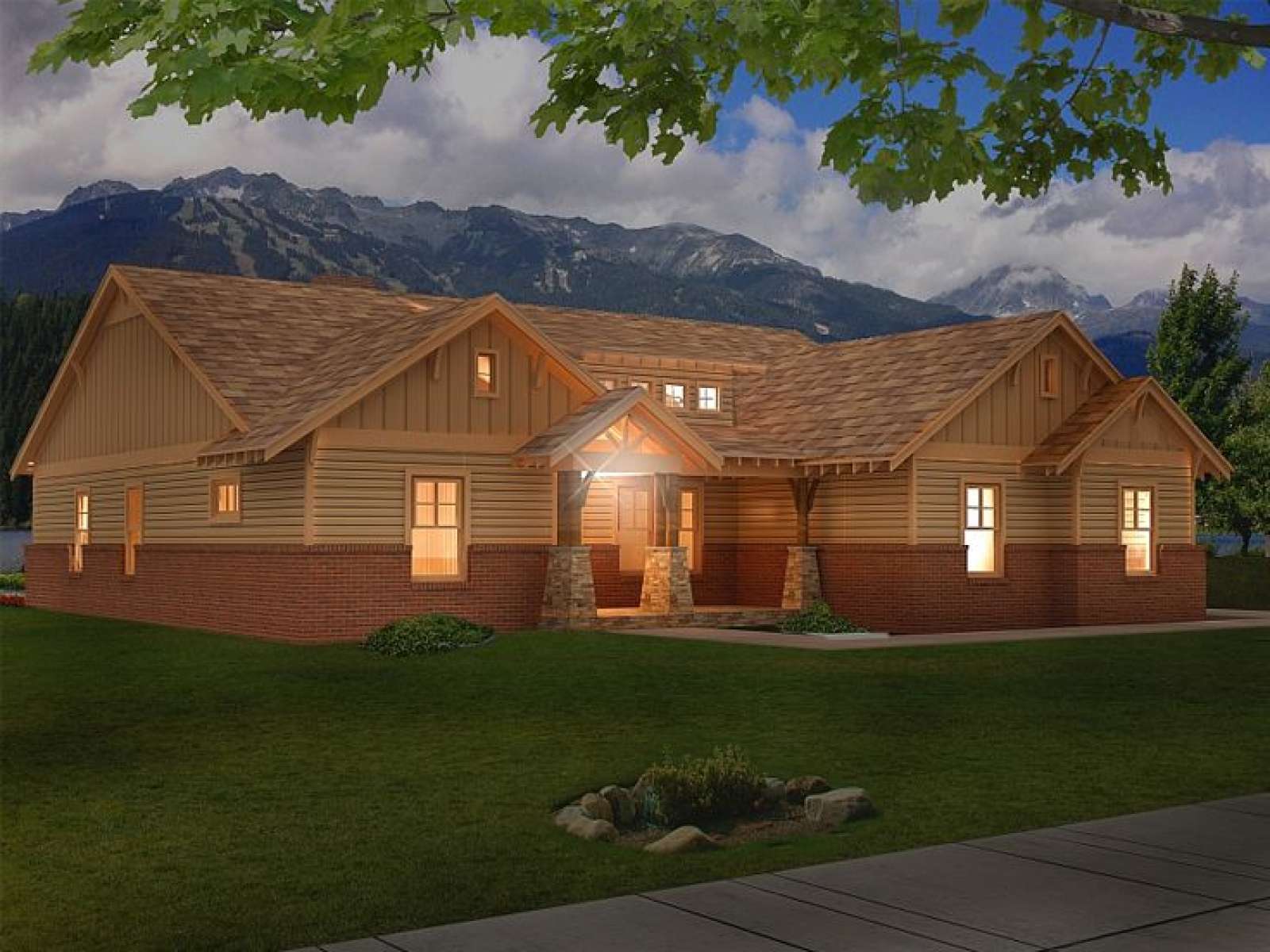

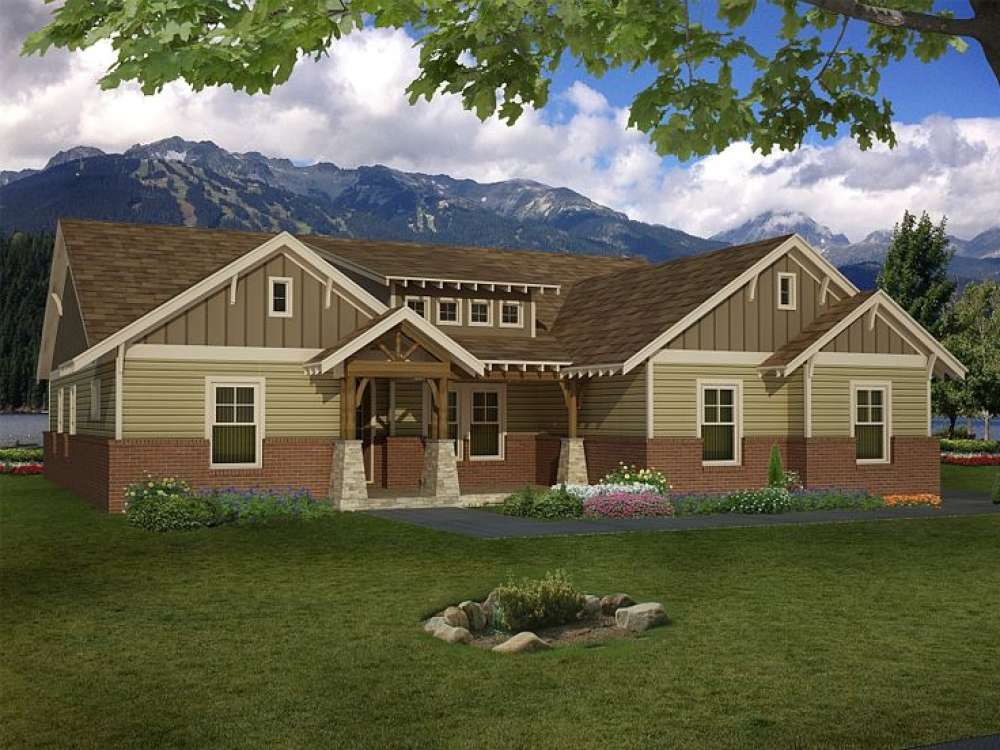

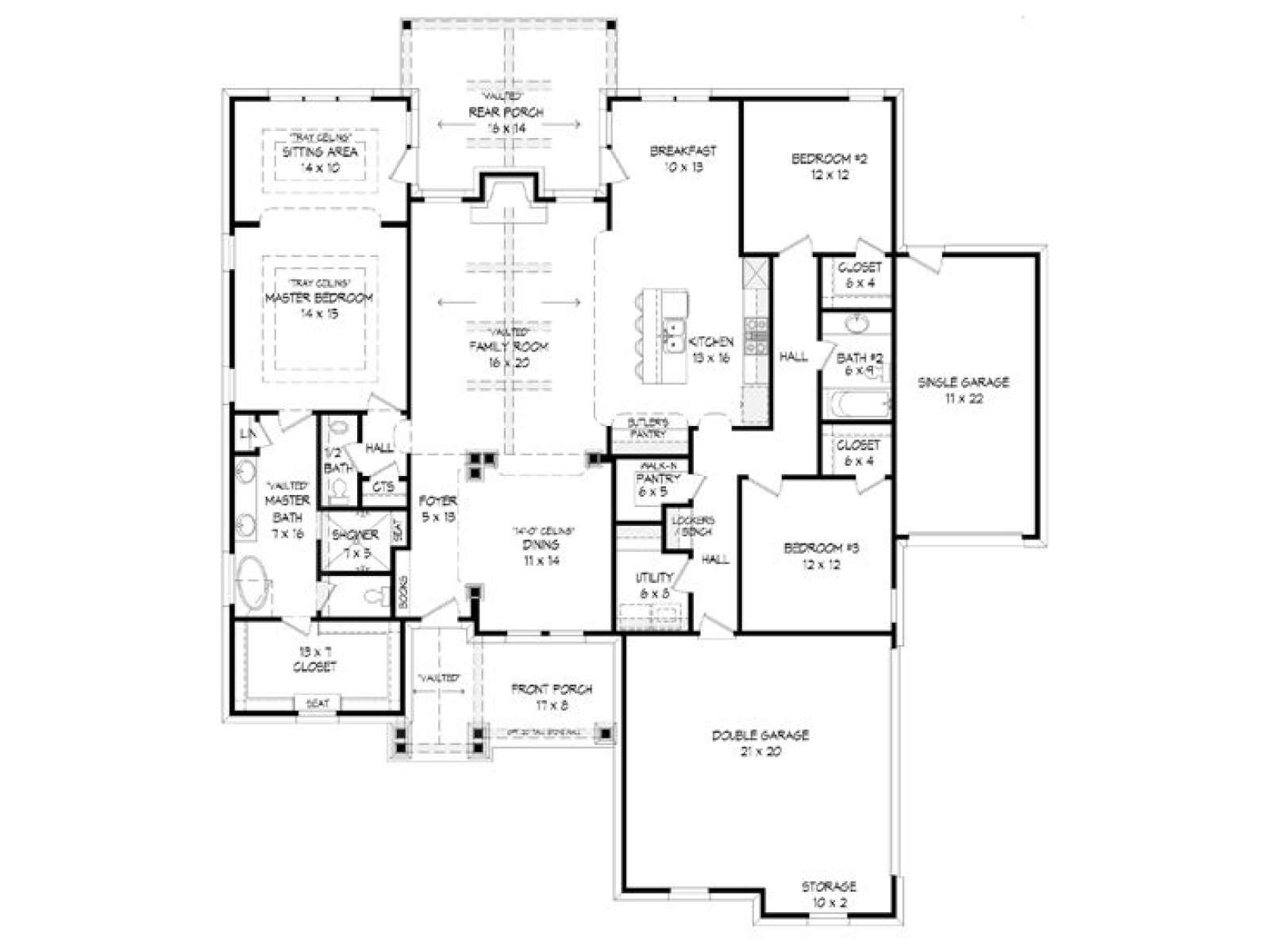

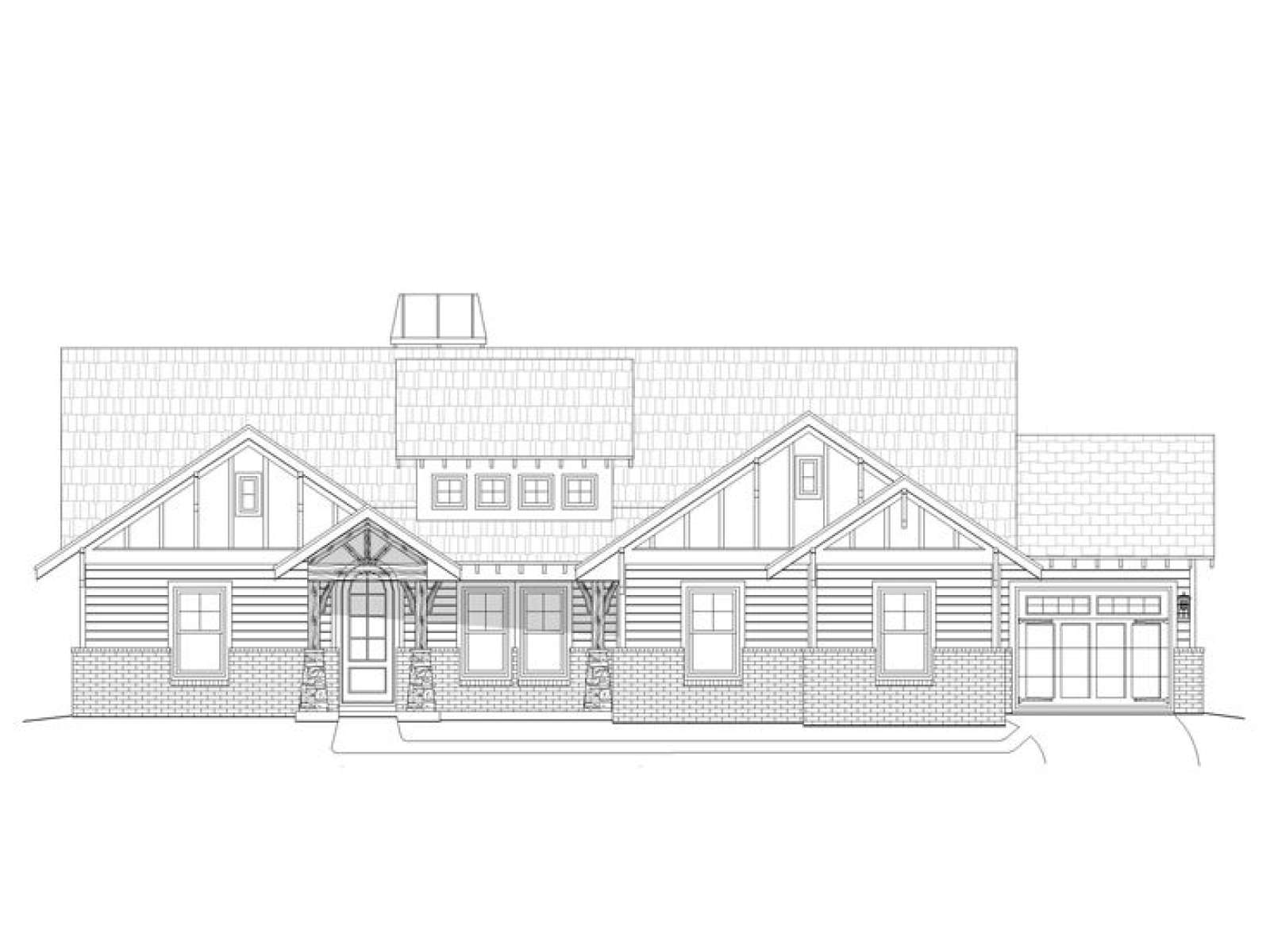

From exposed rafter tails and a shed dormer to porch columns atop pedestals, this stunning one-story home plan exudes Craftsman flavor. Inside you’ll find an elegant, yet family-friendly floor plan showcasing a formal dining room, highlighted with decorative columns and a 14’ ceiling, as well as a vaulted family room anchored by a radiant fireplace. The gourmet kitchen overlooks the family room where you’ll find special amenities like a meal-prep island with snack bar, an adjoining breakfast nook, butler’s pantry and a walk-in pantry. Enjoy conversation and after dinner drinks with friends and family on the rear vaulted porch. You’ll appreciate organizational features like the split garage offering a double bay and a single bay. Don’t miss the utility room and the lockers with dressing bench. Two secondary bedrooms are arranged behind the 2-car garage where each enjoys a large closet. A hall bath accommodates the children’s needs. The left side of the home is reserved for your lavish master bedroom. This pampering retreat showcases decorative ceiling treatments, a sunlit sitting area, walk-in closet, and a refreshing bath complete with soaking tub and separate shower. Rustic outside, and well-appointed inside, this Craftsman ranch house plan can’t be beat!

Heated Square Feet
First Floor 2300
Total 2300
Unheated Square Feet
Garage 770
Porch(es) 357
Bedrooms 3
Full Bathrooms 2
Half Bathrooms 1
Width 65 ft. 0 in.
Depth 72 ft. 0 in.
Approximate Height 20 ft. 6 in.
Ceiling Height
First Floor 9 ft. 0 in.
Roof Pitch 6/12 Main
Roof Pitch 8/12 Secondary
Roof Framing
  • Stick
Foundation Options
  • Slab
Exterior Wall Options
  • 2x4
  • 2x6
Kitchen Features
  • Island
  • Eating/Snack bar
  • Walk-in Pantry
  • Breakfast area/nook
Bedroom Features
  • Sitting area
  • Walk-in closet
  • Split bedrooms
Interior Features
  • Open floor plan
  • Family room
  • Vaulted/volume ceiling
  • Laundry
Exterior Features
  • Covered rear porch
  • Covered front porch
Special Features
  • Fireplace/Woodstove
Garage Features
  • Three car+

From exposed rafter tails and a shed dormer to porch columns atop pedestals, this stunning one-story home plan exudes Craftsman flavor. Inside you’ll find an elegant, yet family-friendly floor plan showcasing a formal dining room, highlighted with decorative columns and a 14’ ceiling, as well as a vaulted family room anchored by a radiant fireplace. The gourmet kitchen overlooks the family room where you’ll find special amenities like a meal-prep island with snack bar, an adjoining breakfast nook, butler’s pantry and a walk-in pantry. Enjoy conversation and after dinner drinks with friends and family on the rear vaulted porch. You’ll appreciate organizational features like the split garage offering a double bay and a single bay. Don’t miss the utility room and the lockers with dressing bench. Two secondary bedrooms are arranged behind the 2-car garage where each enjoys a large closet. A hall bath accommodates the children’s needs. The left side of the home is reserved for your lavish master bedroom. This pampering retreat showcases decorative ceiling treatments, a sunlit sitting area, walk-in closet, and a refreshing bath complete with soaking tub and separate shower. Rustic outside, and well-appointed inside, this Craftsman ranch house plan can’t be beat!

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $25 n/a n/a n/a
Priority 3 - 4 business days $40 n/a $55 n/a
Express 1 - 2 business days $55 n/a n/a n/a
Info

There are no reviews

View more
Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$1,355.00

Additional Options

A general listing of the quantities and sizes of materials needed for construction of your project. A general listing of the quantities and sizes of materials needed for construction of your project. This tool aids your builder in the estimating process. A material list cannot be sold without the simultaneous or prior purchase of a plan package of the same plan number. NOTE: Material lists only include materials for the base plan offered with the no charge foundation and wall framing options. The materials for alternate wall framing and foundation options available for an extra charge will not be included in the material list. [less] [more]

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] [more]
