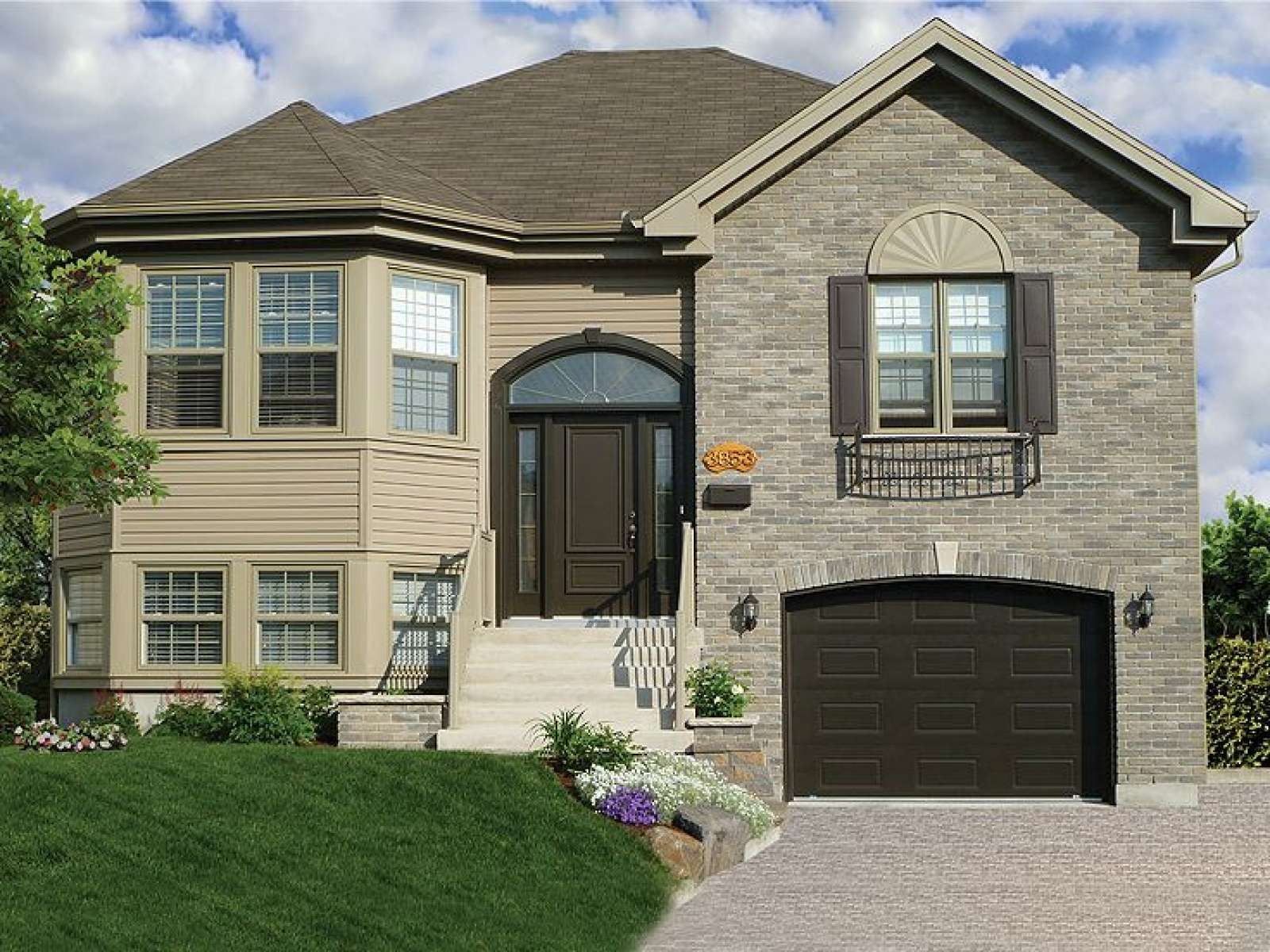

House Plan Photo, 027H-0210
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

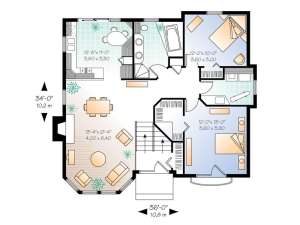

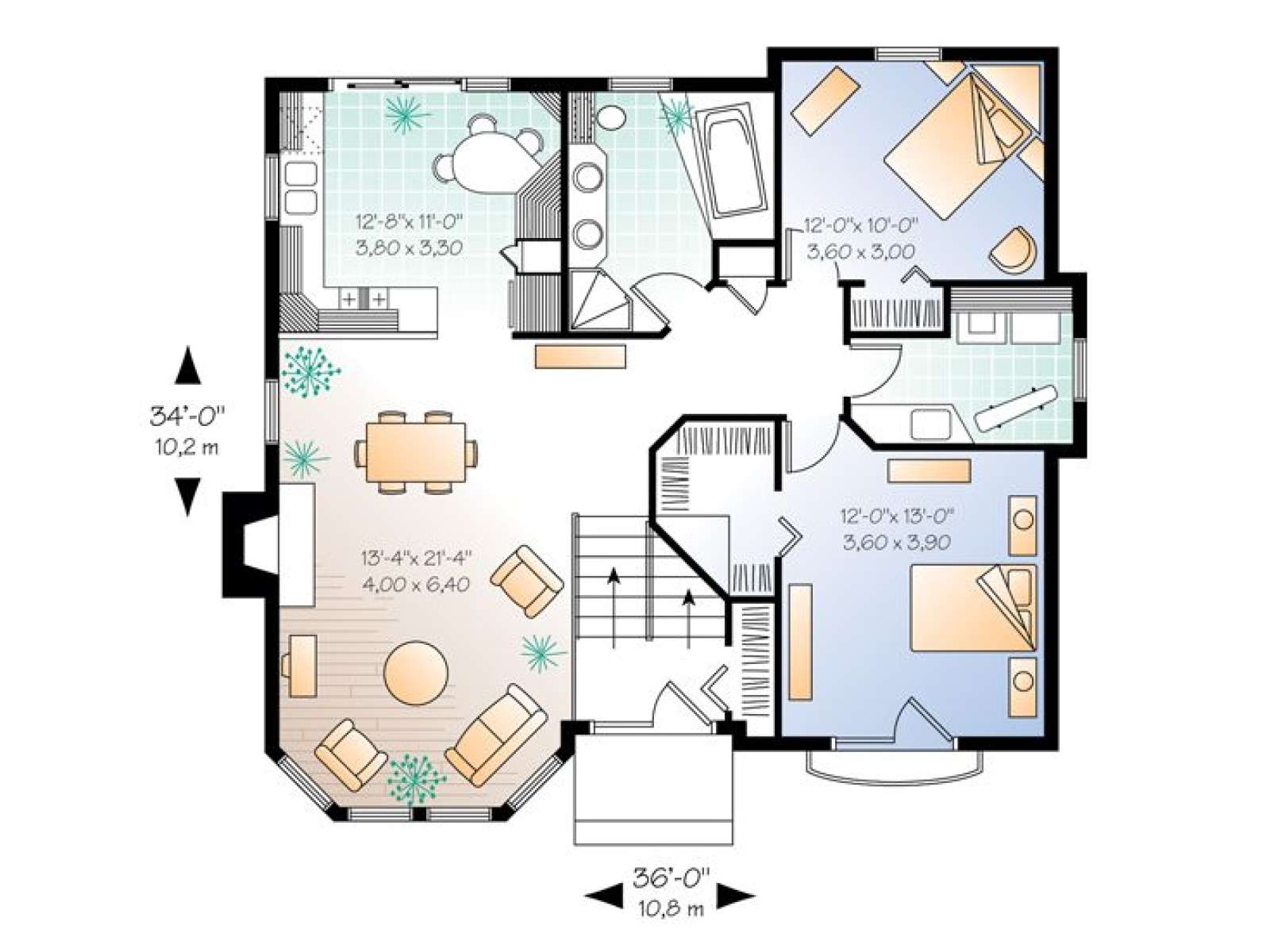

Designed for both a sloping and narrow lot, this split-level ranch house plan delivers comfort and style. The bayed great room features a fireplace and overlooks the front yard while connecting with the casual dining space and efficient kitchen. An eating bar is perfect for meals on the go. Your master bedroom boasts a walk-in closet and shares a full bath with a secondary bedroom. A soaking tub and separate shower are the highlights here. Finally, a laundry room is conveniently positioned between the two bedrooms. Designed to save space yet offer comfort, this one-story home plan can’t be beat!
| Heated Square Feet | |
| First Floor | 1174 |
| Total | 1174 |
| Bedrooms | 2 |
| Full Bathrooms | 1 |
| Width | 36 ft. 0 in. |
| Depth | 34 ft. 0 in. |
| Approximate Height | 28 ft. 8 in. |
| Ceiling Height | |
| First Floor | 8 ft. 0 in. |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Special Features |
|
| Garage Features |
|
Designed for both a sloping and narrow lot, this split-level ranch house plan delivers comfort and style. The bayed great room features a fireplace and overlooks the front yard while connecting with the casual dining space and efficient kitchen. An eating bar is perfect for meals on the go. Your master bedroom boasts a walk-in closet and shares a full bath with a secondary bedroom. A soaking tub and separate shower are the highlights here. Finally, a laundry room is conveniently positioned between the two bedrooms. Designed to save space yet offer comfort, this one-story home plan can’t be beat!
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | n/a | n/a | n/a | n/a |
| Priority 3 - 4 business days | $20 | $20 | $75 | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
