House Plan, 020H-0202
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

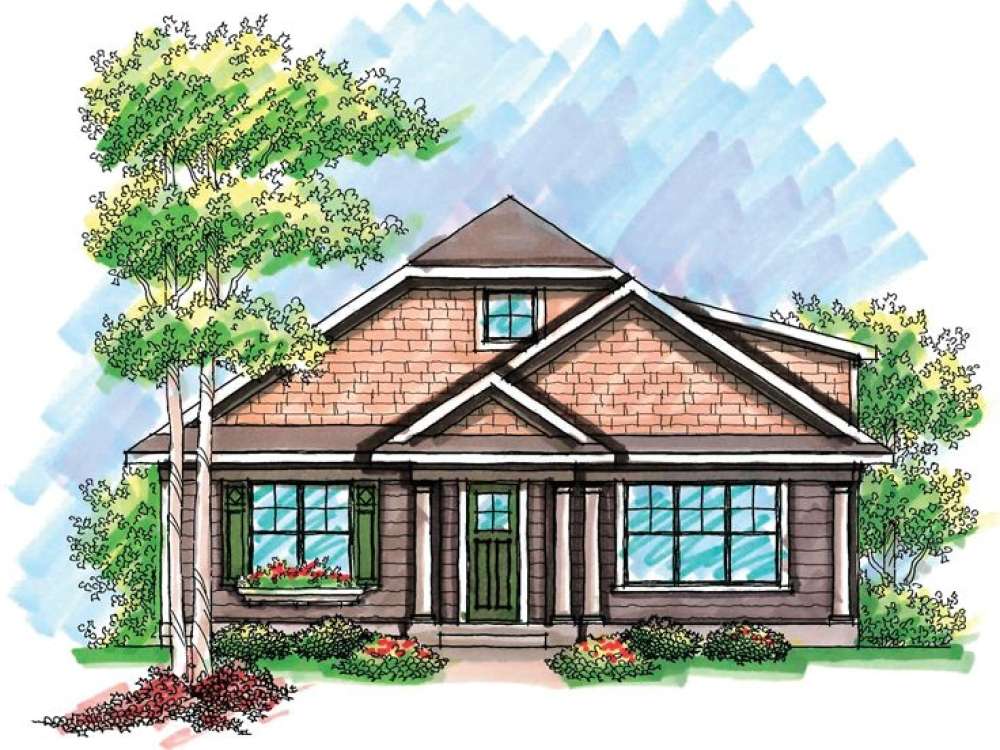

This cute, craftsman inspired ranch home plan packs a lot of living into just under 1600 square feet. Though designed for a narrow lot, the compact floor plan boasts plenty of surprises. A ten-foot, soffited ceiling greets all at the entry and directs traffic to the great room where soaring ceilings and large windows contribute to an open and airy feel. The dining room and kitchen join forces here as well allowing the living spaces to flow together easily accommodating everyday happenings. Thoughtful extras in the kitchen include a pantry and island sink. Your master suite lies to the front of the home and shows off a step ceiling, dual sinks, and a spacious walk-in closet. The second bedroom rests behind the master and hall bath stands at the ready. The two-stall, rear-load garage is accessed at the back of the home and enters the kitchen via a service hall. Ideal for narrow city lots, this small and affordable house plan reveals charm and comfort in an expertly executed and economical design.
| Heated Square Feet | |
| First Floor | 1585 |
| Total | 1585 |
| Unheated Square Feet | |
| Garage | 536 |
| Bedrooms | 2 |
| Full Bathrooms | 2 |
| Width | 40 ft. 0 in. |
| Depth | 66 ft. 0 in. |
| Approximate Height | 24 ft. 4 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Roof Pitch | 8/12 Main |
| Roof Pitch | 6/12 Other |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
| Garage Features |
|
This cute, craftsman inspired ranch home plan packs a lot of living into just under 1600 square feet. Though designed for a narrow lot, the compact floor plan boasts plenty of surprises. A ten-foot, soffited ceiling greets all at the entry and directs traffic to the great room where soaring ceilings and large windows contribute to an open and airy feel. The dining room and kitchen join forces here as well allowing the living spaces to flow together easily accommodating everyday happenings. Thoughtful extras in the kitchen include a pantry and island sink. Your master suite lies to the front of the home and shows off a step ceiling, dual sinks, and a spacious walk-in closet. The second bedroom rests behind the master and hall bath stands at the ready. The two-stall, rear-load garage is accessed at the back of the home and enters the kitchen via a service hall. Ideal for narrow city lots, this small and affordable house plan reveals charm and comfort in an expertly executed and economical design.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $65 | $115 | $115 | n/a |
| Priority 3 - 4 business days | $75 | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
