Name: 027M-0090
Brand: The House Plan Shop
SKU: 027M-0090
Price: 3320 USD
Availability: InStock

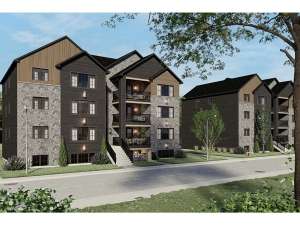

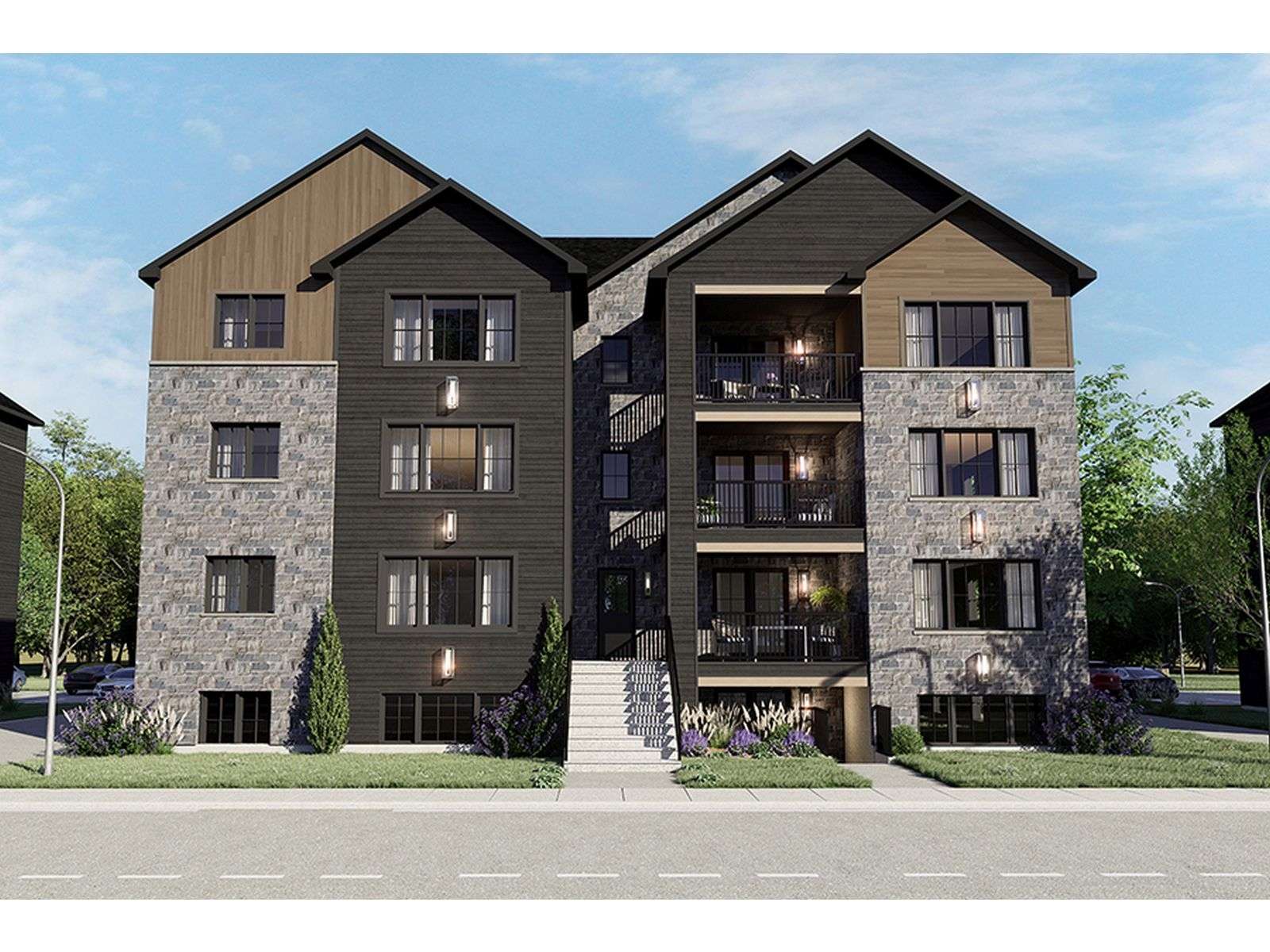

Apartment Plan, 027M-0090

Reverse All Images

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

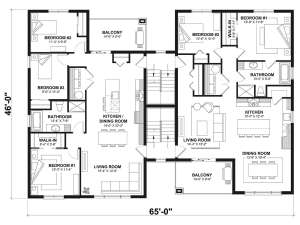

Basement Level : Left Unit ( 3 Bed, 1 Bath) - 1288 sf
Right Unit (2 Bed, Bath) - 1288 sf

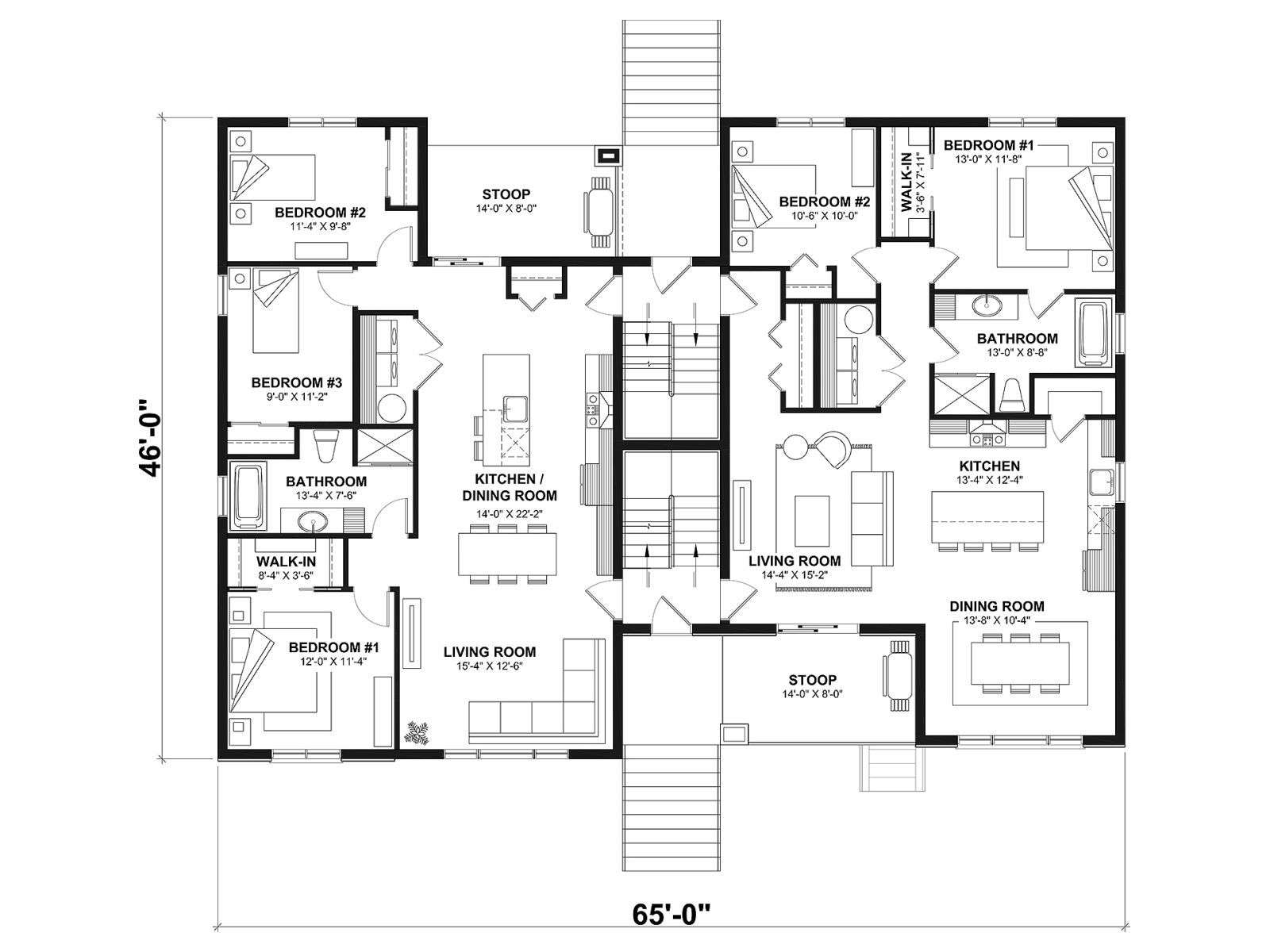

Main Level : Left Unit ( 3 Bed, 1 Bath) - 1288 sf
Right Unit (2 Bed, Bath) - 1288 sf

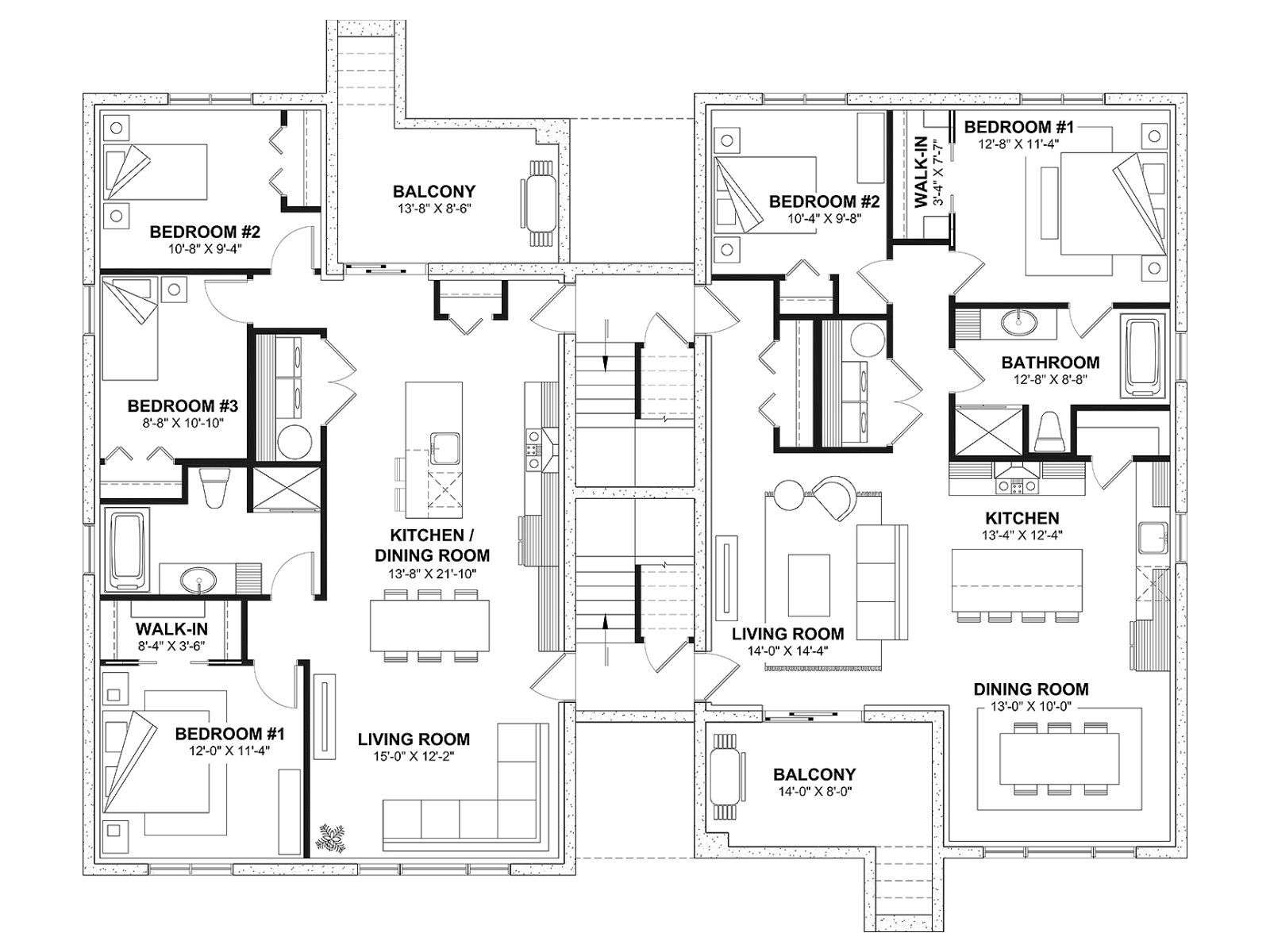

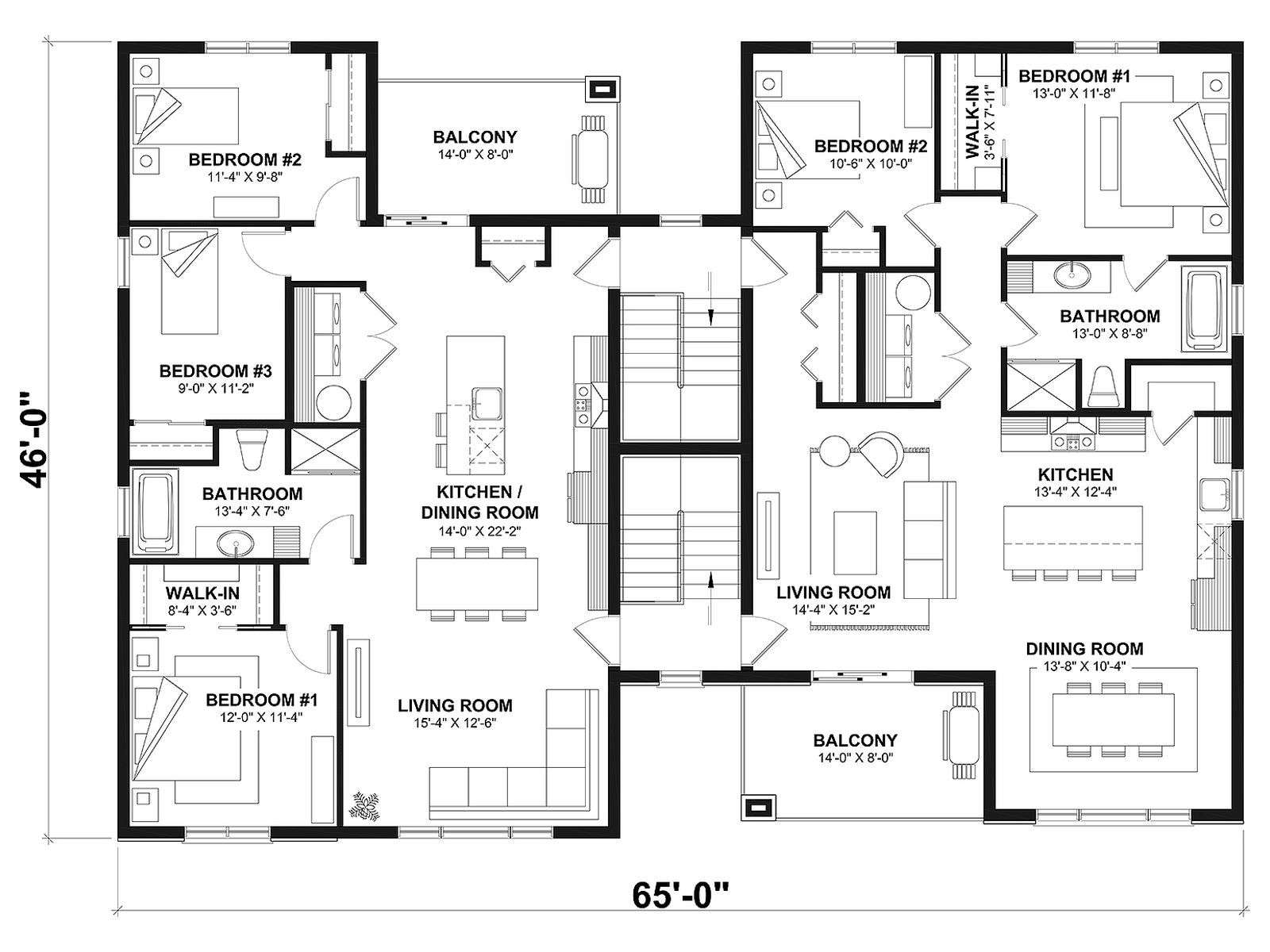

Second Level : Left Unit ( 3 Bed, 1 Bath) - 1288 sf
Right Unit (2 Bed, Bath) - 1288 sf
Third Level : Left Unit ( 3 Bed, 1 Bath) - 1288 sf
Right Unit (2 Bed, Bath) - 1288 sf

Heated Square Feet
First Floor	2576
Second Floor	2576
Third Floor	2576
Basement Level	2576
Total	10304
Width	65 ft. 0 in.
Depth	46 ft. 0 in.
Approximate Height	46 ft. 4 in.
Ceiling Height
First Floor	8 ft. 0 in.
Second Floor	8 ft. 0 in.
Third Floor	8 ft. 0 in.
Lower Level	8 ft. 0 in.
Roof Pitch	10/12 Primary
Foundation Options	Basement Crawl Space Slab Walkout Basement
Exterior Wall Options	2x6

Kitchen Features	Eating/Snack bar Island
Bedroom Features	Walk-in closet
Interior Features	Laundry Family room
Exterior Features	Balcony
Special Features	Two stairs to upper level

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	n/a	n/a	n/a	n/a
Priority 3 - 4 business days	$20	$20	$75	n/a
Express 1 - 2 business days	n/a	n/a	n/a	n/a

There are no reviews

Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Additional Set for 027M-0090: $75.00 ea.

Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets are available for purchase within 90 days of the original house plan purchase. [less] …[more]

Material List for 027M-0090: $365.00

A general listing of the quantities and sizes of materials needed for construction of your project. A general listing of the quantities and sizes of materials needed for construction of your project. This tool aids your builder in the estimating process. A material list cannot be sold without the simultaneous or prior purchase of a plan package of the same plan number. NOTE: Material lists only include materials for the base plan offered with the no charge foundation and wall framing options. The materials for alternate wall framing and foundation options available for an extra charge will not be included in the material list. [less] …[more]

Right Reading Reverse for 027M-0090: $265.00

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]
