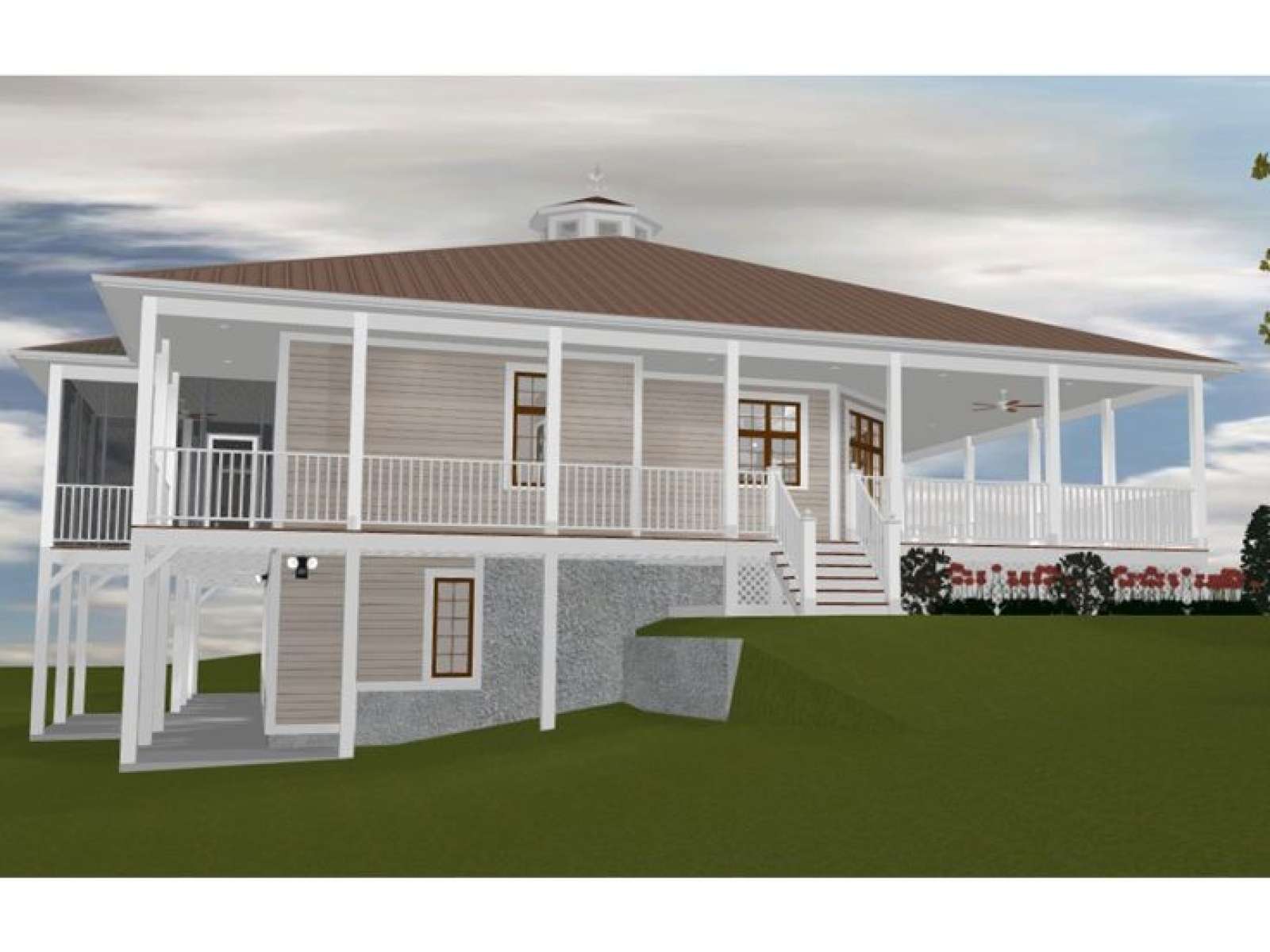

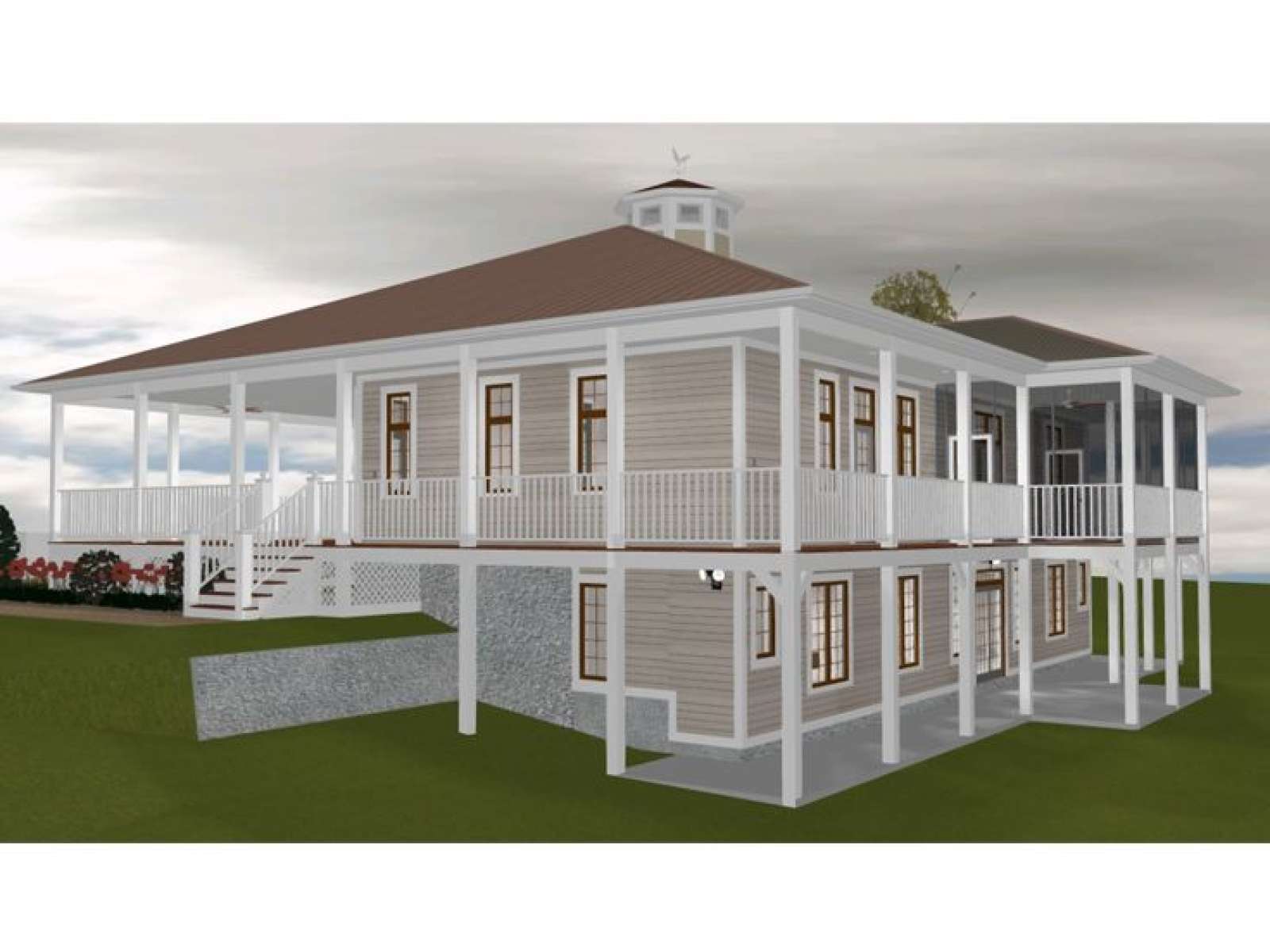

Waterfront House Plan, 087H-0001

Plan 087H-0001
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

Wall framing is 2x4 on the main level and 2x6 on the lower level

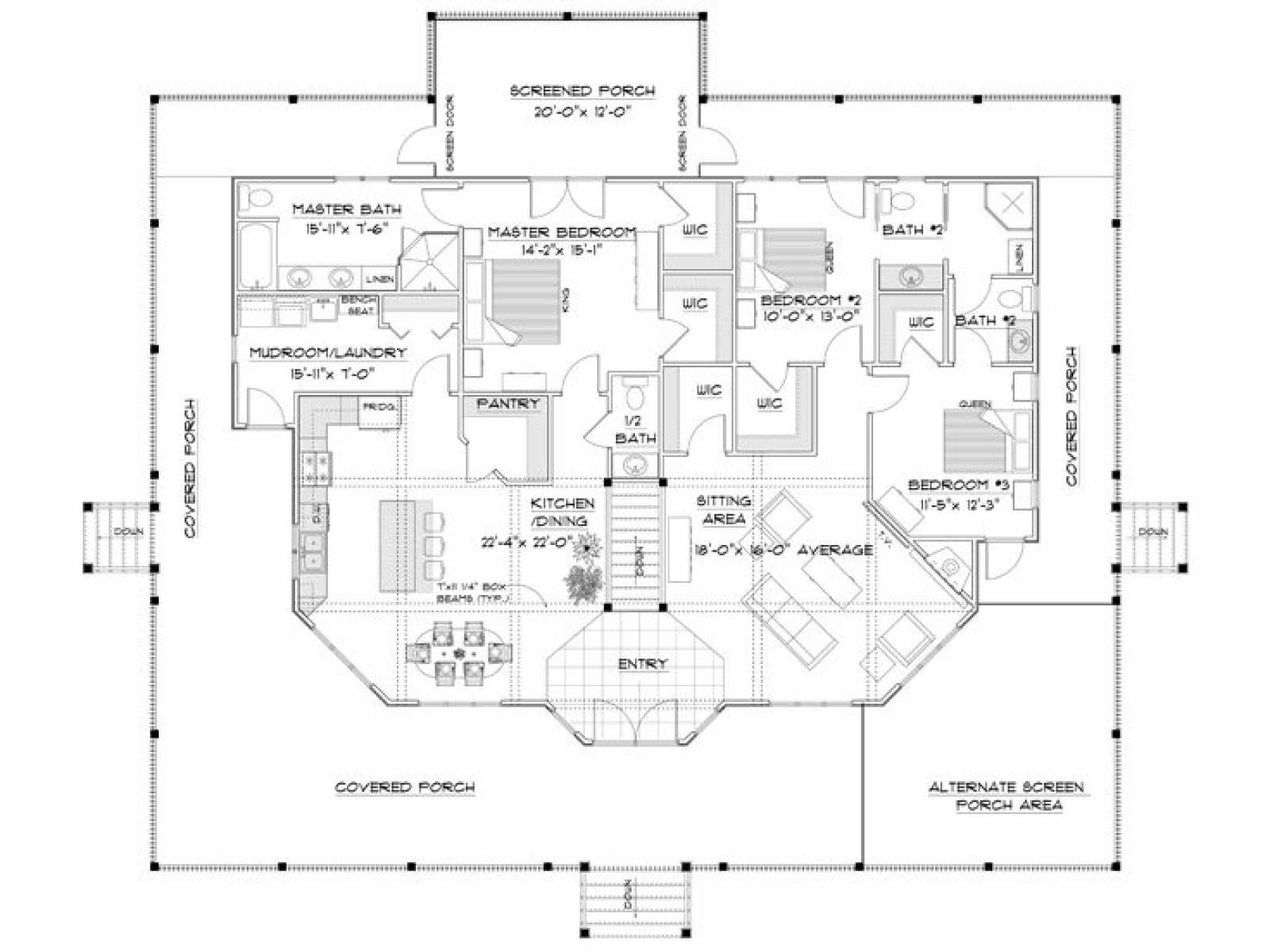

Heated Square Feet
First Floor 2045
Lower Level 1009
Total 3054
Bedrooms 3
Full Bathrooms 2
Half Bathrooms 1
Width 70 ft. 0 in.
Depth 62 ft. 0 in.
Approximate Height 26 ft. 10 in.
Ceiling Height
First Floor 10 ft. 0 in.
Lower Level 8 ft. 8 in.
Roof Pitch 5/12 Main
Roof Framing
  • Truss
Foundation Options
  • Walkout Basement
Exterior Wall Options
  • 2x4
Kitchen Features
  • Island
  • Eating/Snack bar
  • Walk-in Pantry
Bedroom Features
  • Walk-in closet
Interior Features
  • Hobby/rec room
  • Den/office/study
  • Laundry
Exterior Features
  • Covered side porch
  • Covered rear porch
  • Screened porch
  • Wrap-around porch
  • Covered front porch
Special Features
  • Fireplace/Woodstove
  • Finished lower level
  • Wet bar

Wall framing is 2x4 on the main level and 2x6 on the lower level

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $30 n/a n/a n/a
Priority 3 - 4 business days $55 n/a n/a n/a
Express 1 - 2 business days n/a n/a n/a n/a
Info

There are no reviews

View more
Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$1,800.00

Additional Options

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] [more]
