Carport Apartment Plan, 085G-0005

Plan 085G-0005
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

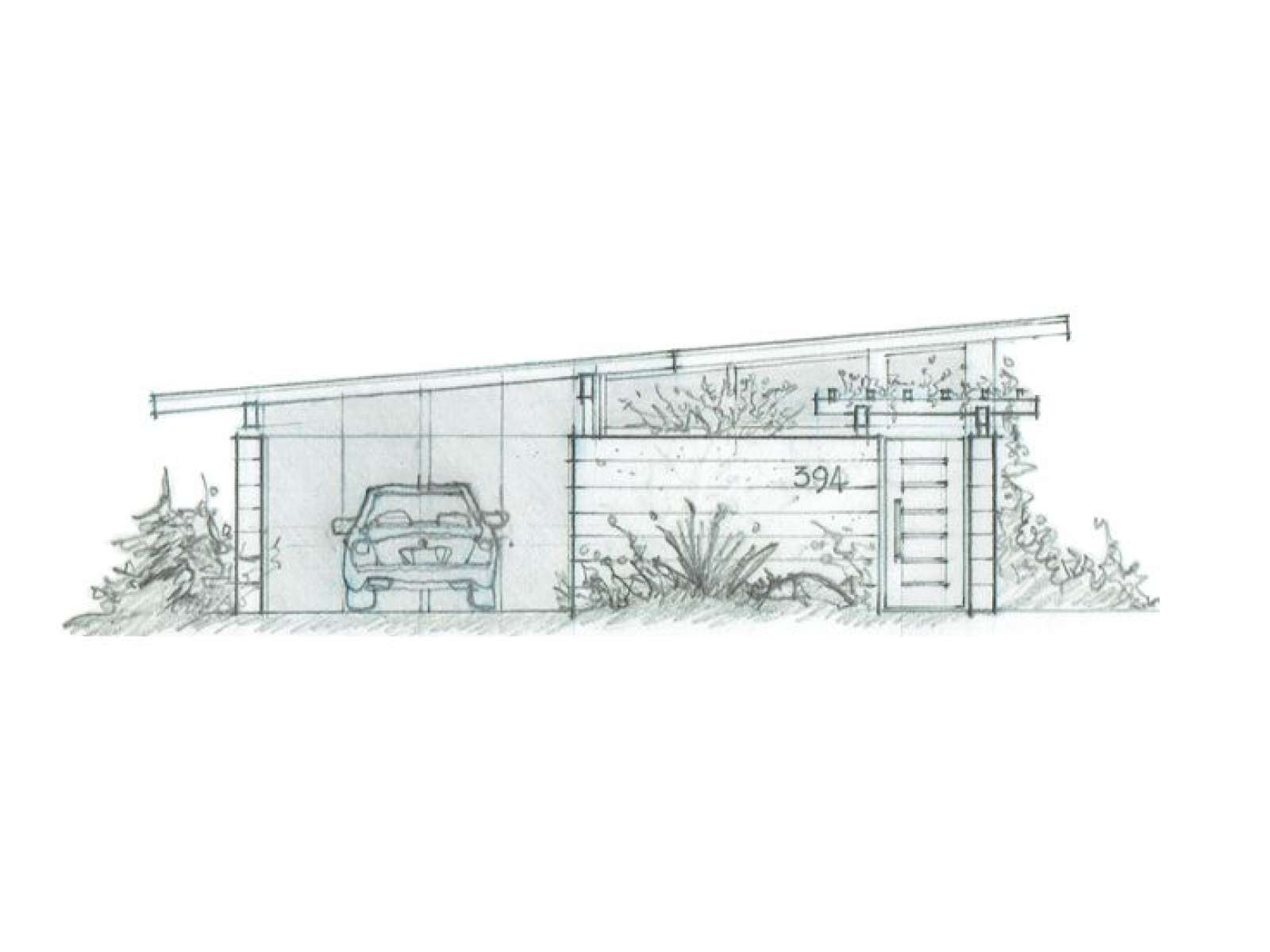

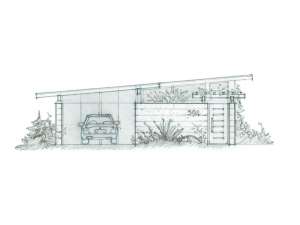

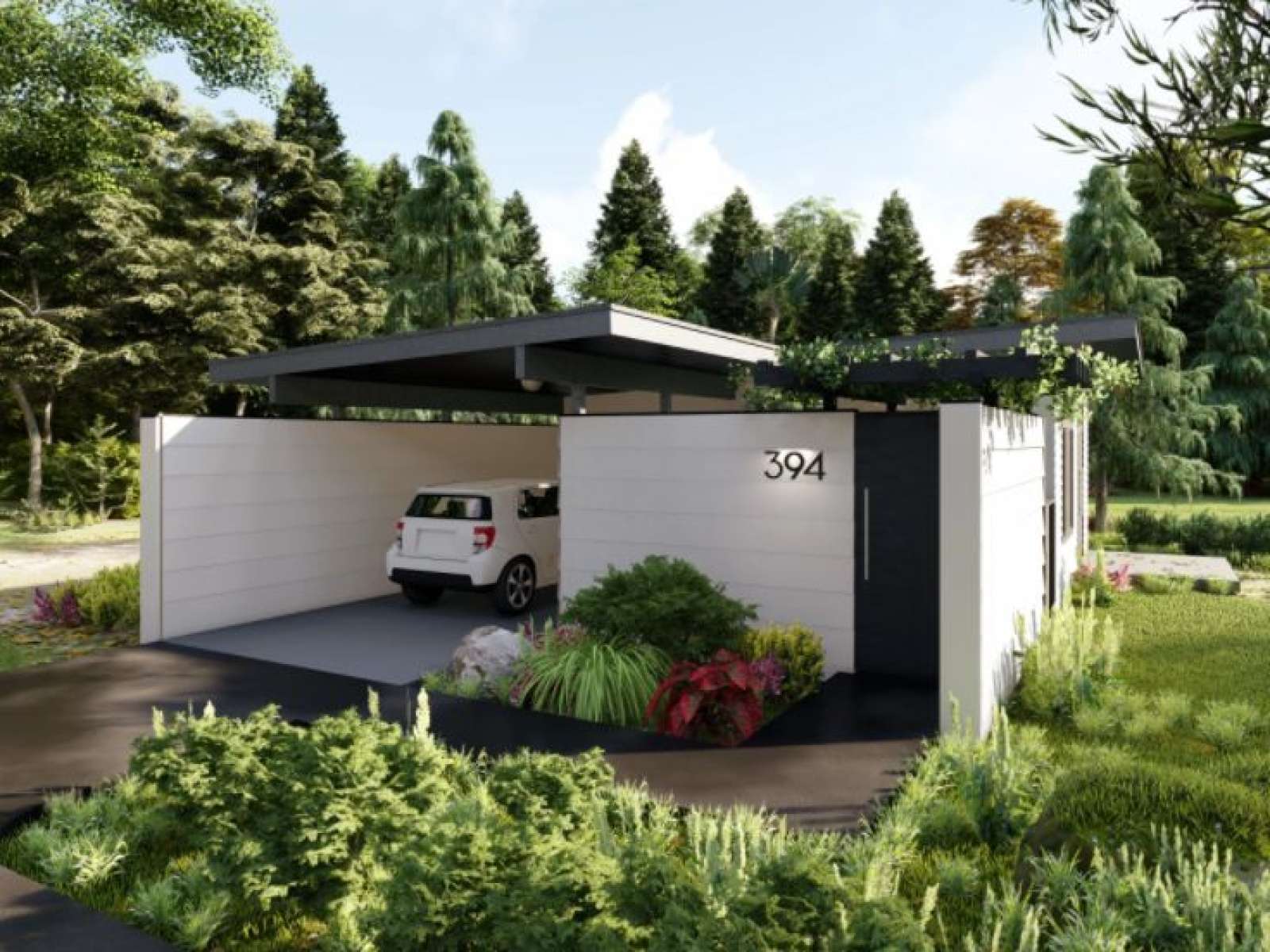

Unique modern carport plan features parking for one car plus a comfortable apartment
Carport includes a handy storage closet

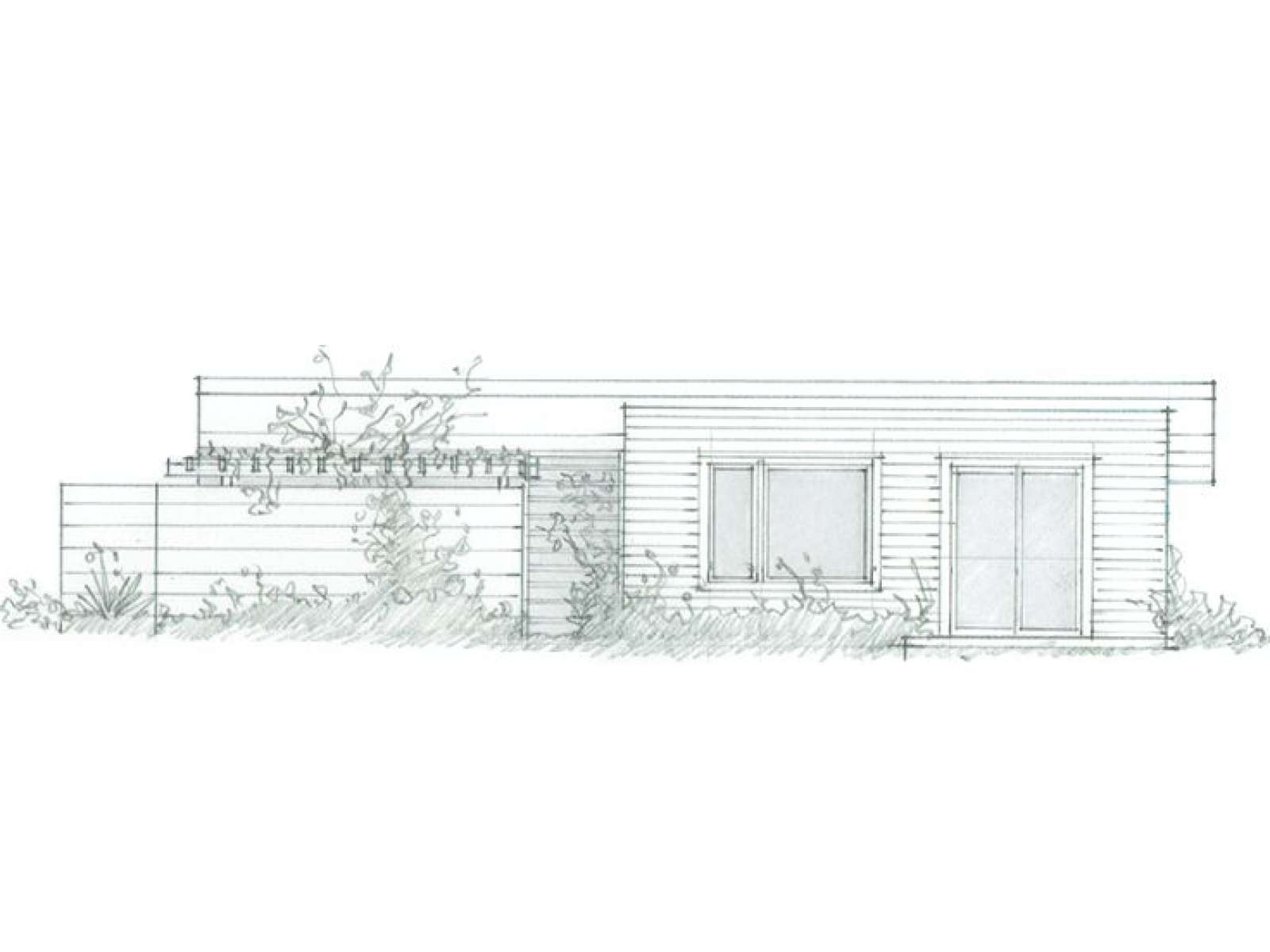

Living quarters feature a view of the relaxing garden and pergola

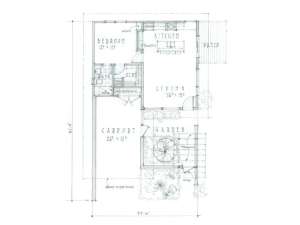

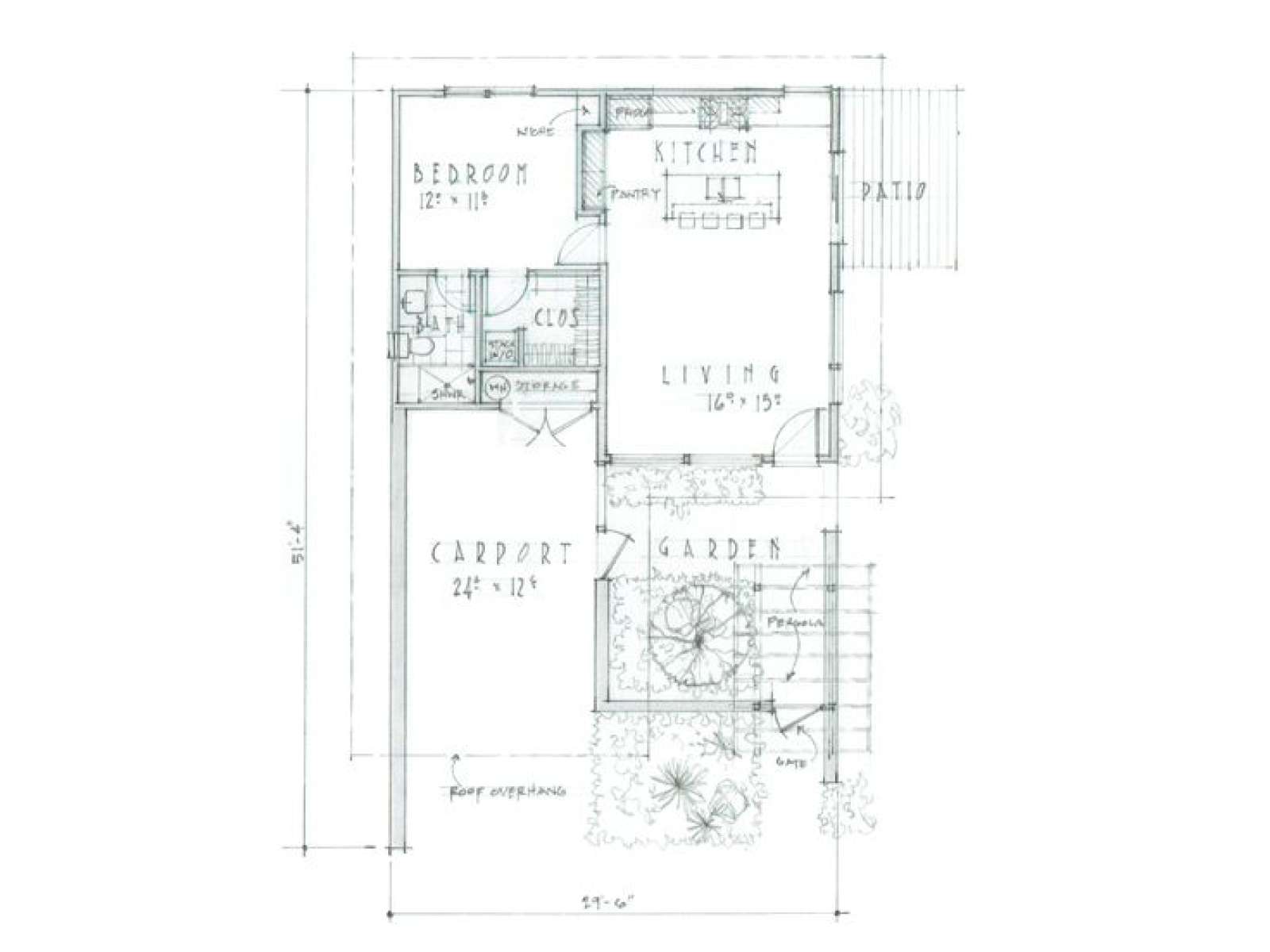

Apartment offers an open floor plan with kitchen island and snack bar, a comfortable bedroom, full bath, walk-in closet and room for a stackable washer/dryer
Wall framing for unheated areas calls for double 2x4s that are separated to achieve a 12” thickness
Apartment wall framing is 2x6
Plans not complete. Please allow 2-3 weeks for completion after ordering.





Heated Square Feet
First Floor 701
Total 701
Unheated Square Feet
Carport/Porte Cochere 287
Bedrooms 1
Full Bathrooms 1
Width 29 ft. 6 in.
Depth 51 ft. 4 in.
Approximate Height 10 ft. 6 in.
Roof Pitch 1/12 Msin
Roof Framing
  • Stick
Foundation Options
  • Slab
Exterior Wall Options
  • Other
Kitchen Features
  • Island
  • Eating/Snack bar
Bedroom Features
  • Walk-in closet
Interior Features
  • Open floor plan
Exterior Features
  • Courtyard
  • Patio/Terrace/Lanai

Unique modern carport plan features parking for one car plus a comfortable apartment
Carport includes a handy storage closet
Living quarters feature a view of the relaxing garden and pergola
Apartment offers an open floor plan with kitchen island and snack bar, a comfortable bedroom, full bath, walk-in closet and room for a stackable washer/dryer
Wall framing for unheated areas calls for double 2x4s that are separated to achieve a 12” thickness
Apartment wall framing is 2x6
Plans not complete. Please allow 2-3 weeks for completion after ordering.





Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days n/a n/a n/a n/a
Priority 3 - 4 business days n/a n/a n/a n/a
Express 1 - 2 business days n/a n/a n/a n/a
Info

There are no reviews

View more
Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$1,050.00
