Carriage House Plan, 084G-0027

Plan 084G-0027
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Heated Square Feet

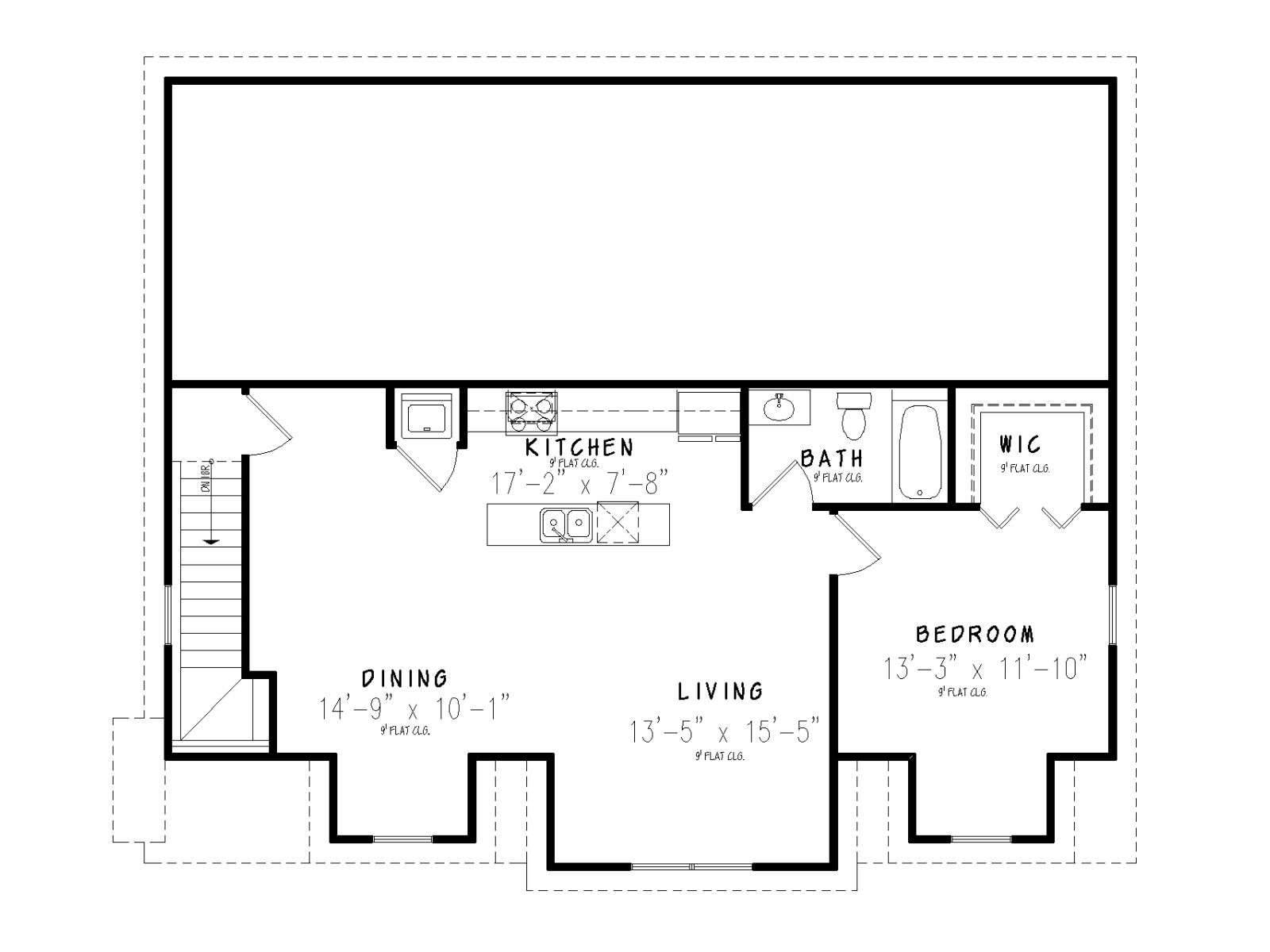

Second Floor 930
Total 930
Unheated Square Feet

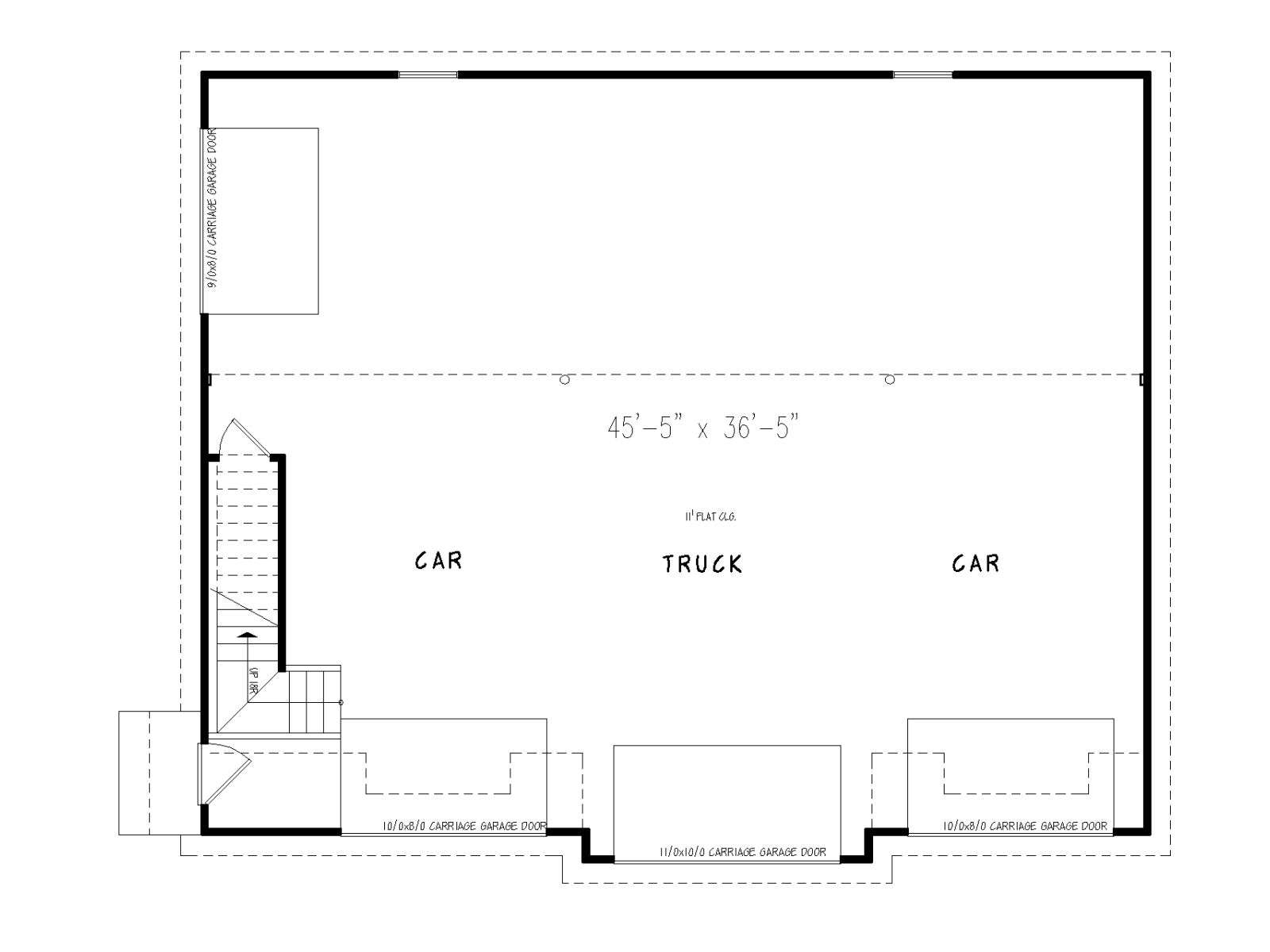

Garage 1720
Bedrooms 1
Full Bathrooms 1
Width 46 ft. 0 in.
Depth 38 ft. 4 in.
Approximate Height 30 ft. 8 in.
Ceiling Height
First Floor 11 ft. 0 in.
Second Floor 9 ft. 0 in.
Roof Framing
  • N/A
Garage Door Size(s) 11x10
Garage Door Size(s) 10x8 (2)
Garage Door Size(s) 9x8
Foundation Options
  • Slab
Exterior Wall Options
  • 2x4
Kitchen Features
  • Island
Bedroom Features
  • Walk-in closet
Interior Features
  • Laundry
  • Open floor plan
No description.
Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $25 $45 n/a n/a
Priority 3 - 4 business days $35 $90 $55 n/a
Express 1 - 2 business days $40 n/a n/a n/a
Info

There are no reviews

View more
Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$1,200.00

Additional Options

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] [more]
