Vacation House Plan, 062H-0507

Plan 062H-0507
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

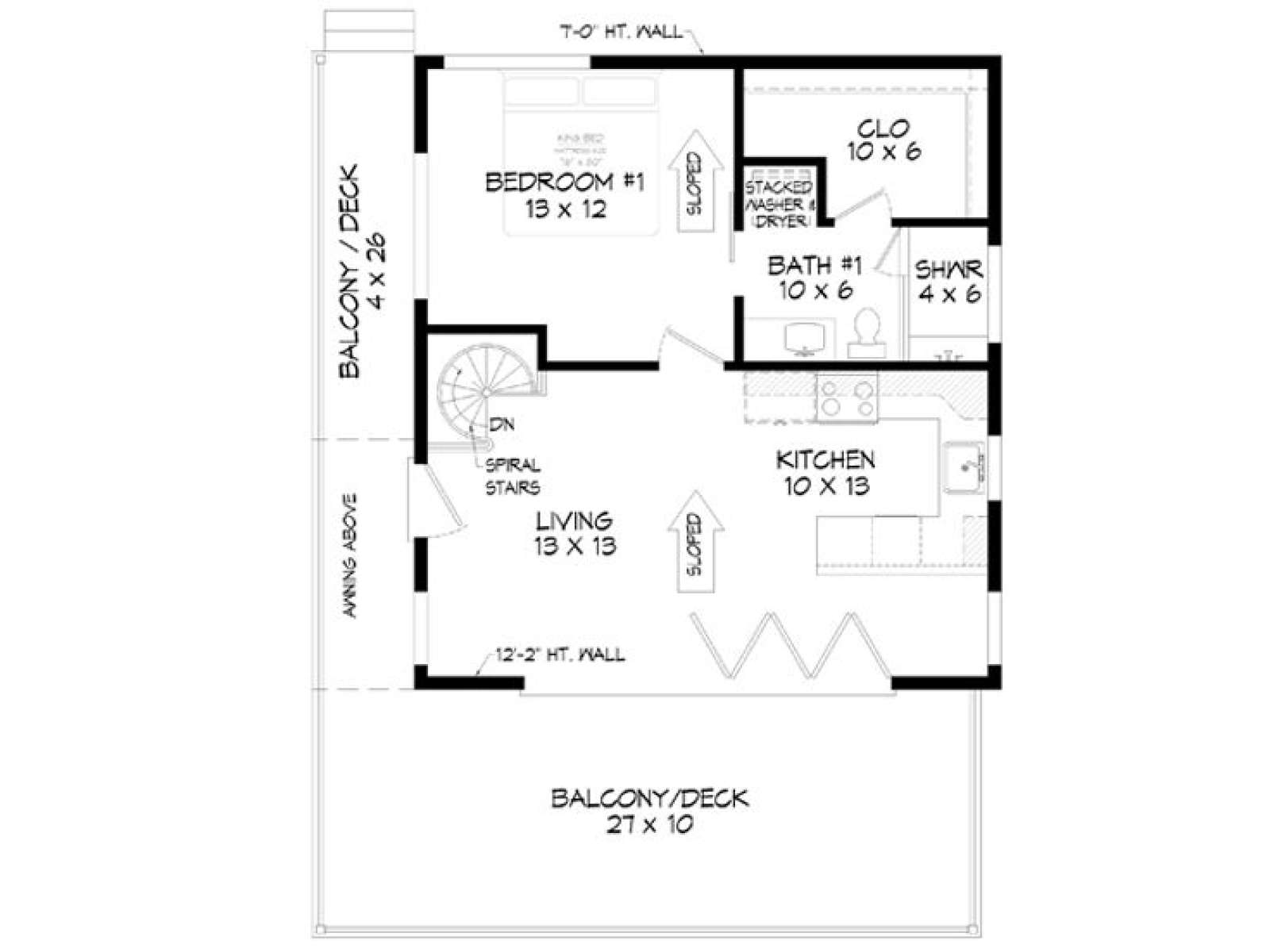

Main floor ceiling slopes up from 7’ to 12’-2”

Heated Square Feet
First Floor 624

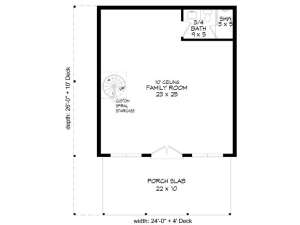

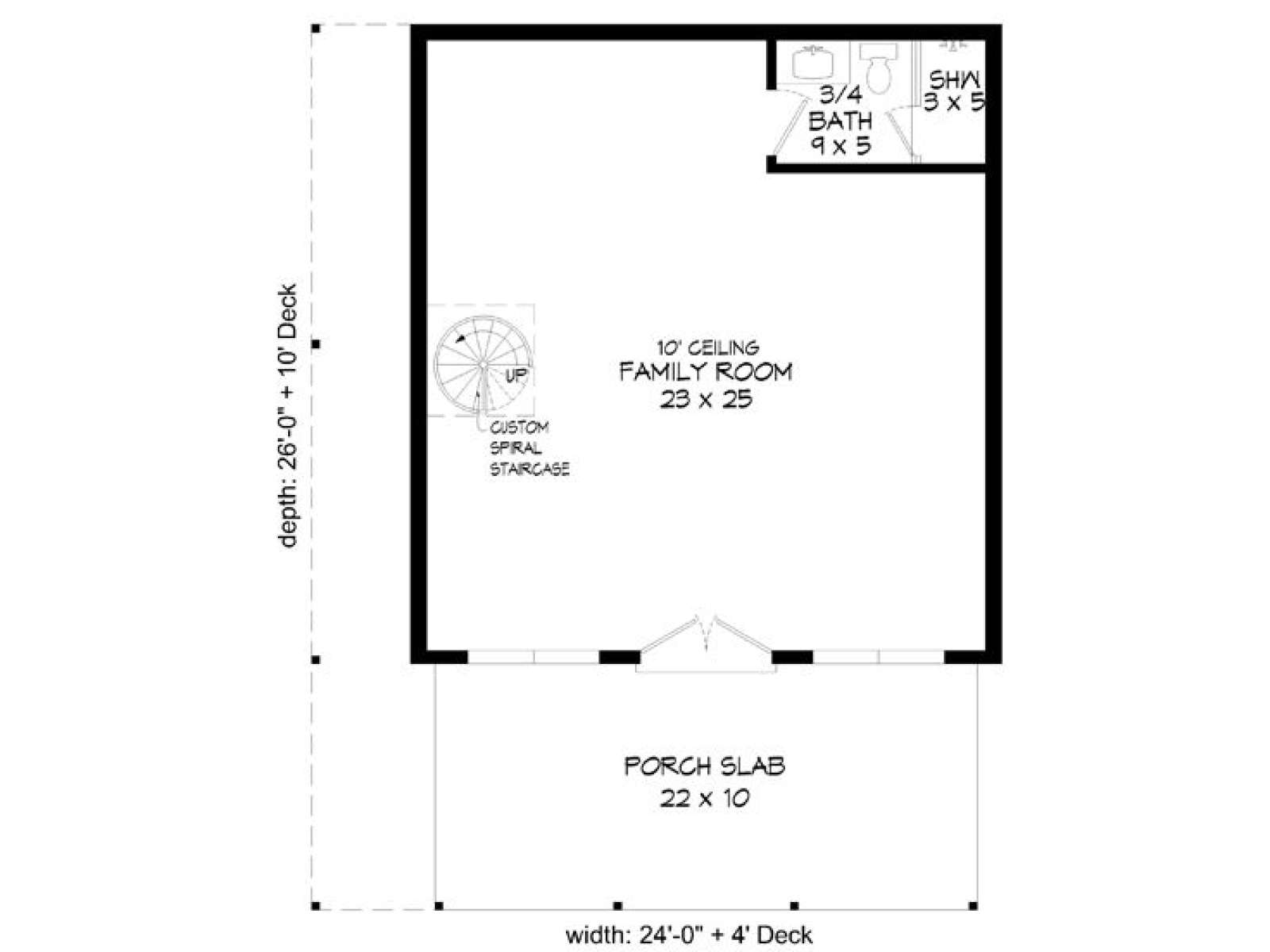

Lower Level 624
Total 1248
Unheated Square Feet
Deck/Balcony 374
Patio/Terrace/Lanai 220
Bedrooms 1
Full Bathrooms 2
Width 28 ft. 0 in.
Depth 36 ft. 0 in.
Approximate Height 14 ft. 0 in.
Ceiling Height
Lower Level 10 ft. 0 in.
Roof Pitch 2.5/12 Main
Roof Framing
  • Stick
Foundation Options
  • Walkout Basement
Exterior Wall Options
  • 2x6
Bedroom Features
  • Walk-in closet
Interior Features
  • Family room
  • Laundry
  • Open floor plan
Exterior Features
  • Deck
  • Patio/Terrace/Lanai
Special Features
  • Finished lower level

Main floor ceiling slopes up from 7’ to 12’-2”

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $25 n/a n/a n/a
Priority 3 - 4 business days $40 n/a $55 n/a
Express 1 - 2 business days $55 n/a n/a n/a
Info

There are no reviews

View more
Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$975.00

Additional Options

A general listing of the quantities and sizes of materials needed for construction of your project. A general listing of the quantities and sizes of materials needed for construction of your project. This tool aids your builder in the estimating process. A material list cannot be sold without the simultaneous or prior purchase of a plan package of the same plan number. NOTE: Material lists only include materials for the base plan offered with the no charge foundation and wall framing options. The materials for alternate wall framing and foundation options available for an extra charge will not be included in the material list. [less] [more]

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] [more]
