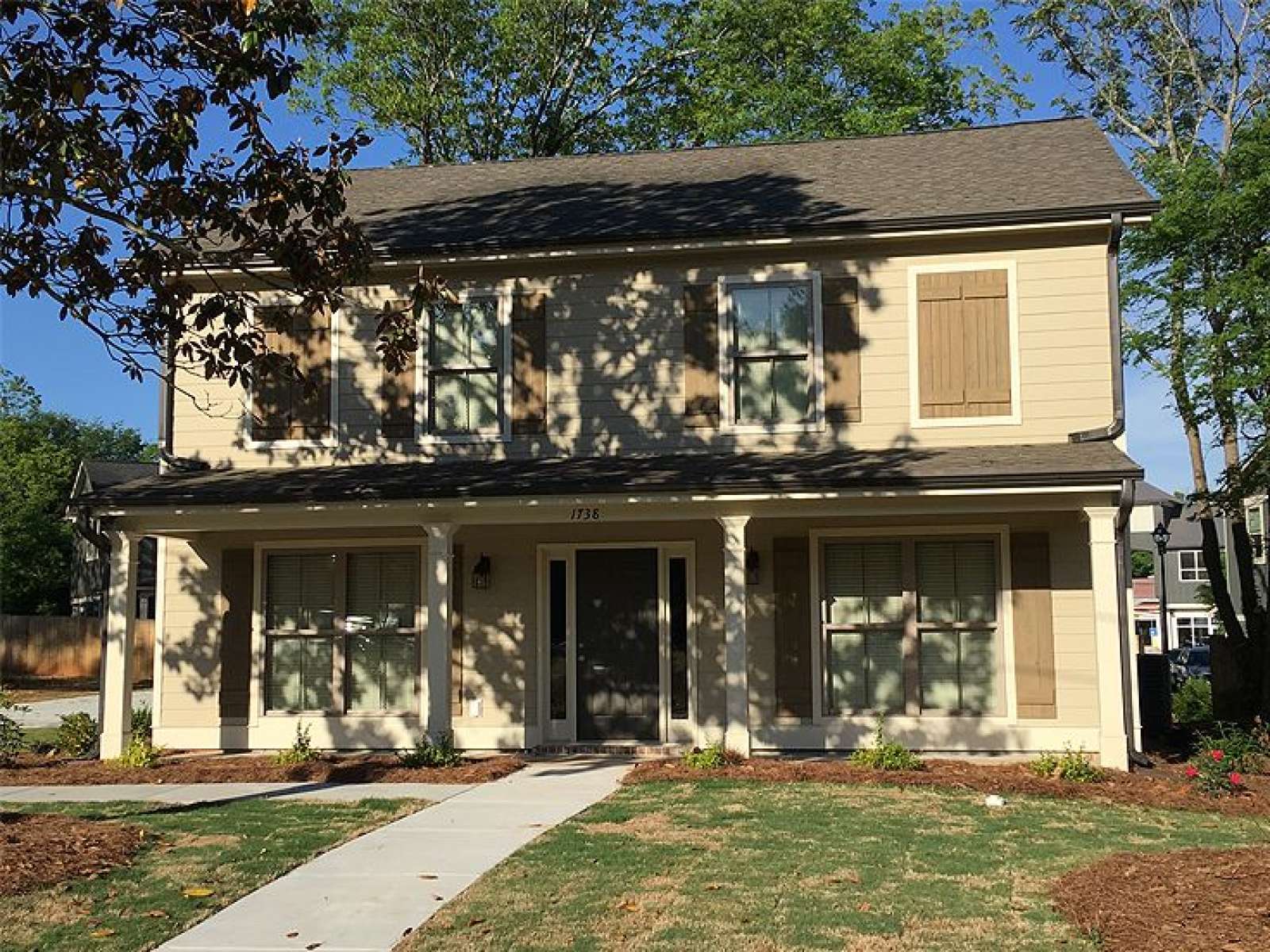

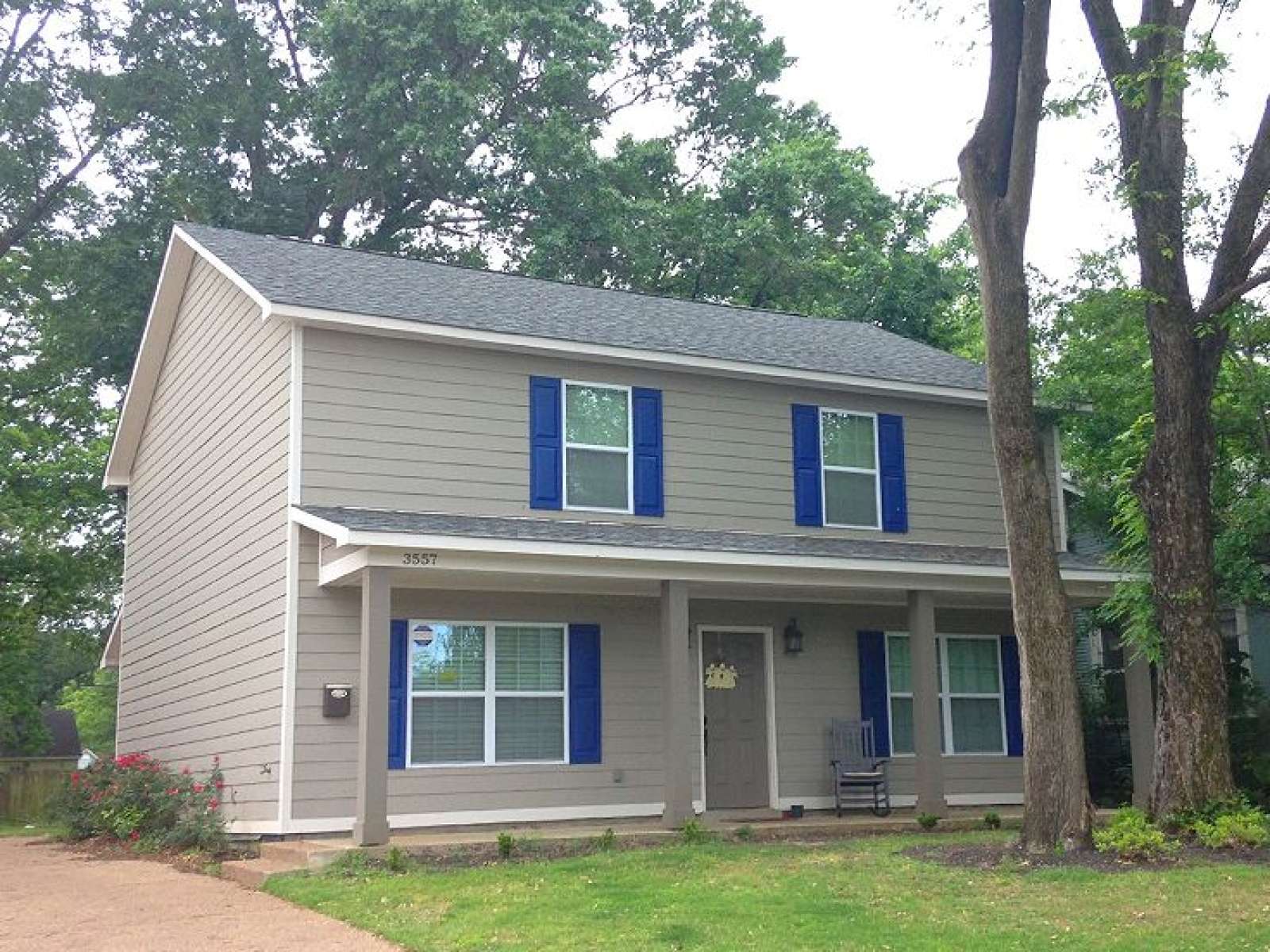

Narrow Lot House Plan Photo, 062H-0090

Plan 062H-0090
Reverse All Images
Plan 062H-0090
Plan 062H-0090
Plan 062H-0090
Plan 062H-0090
Plan 062H-0090
Plan 062H-0090
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

Narrow lot, two-story house plan boasts five bedrooms and five baths
Master bedroom positioned on the first floor
For family bedrooms with private baths located upstairs
Open floor plan features and island kitchen overlooking the dining room



Plan Details Shipping Reviews (0)
Heated Square Feet

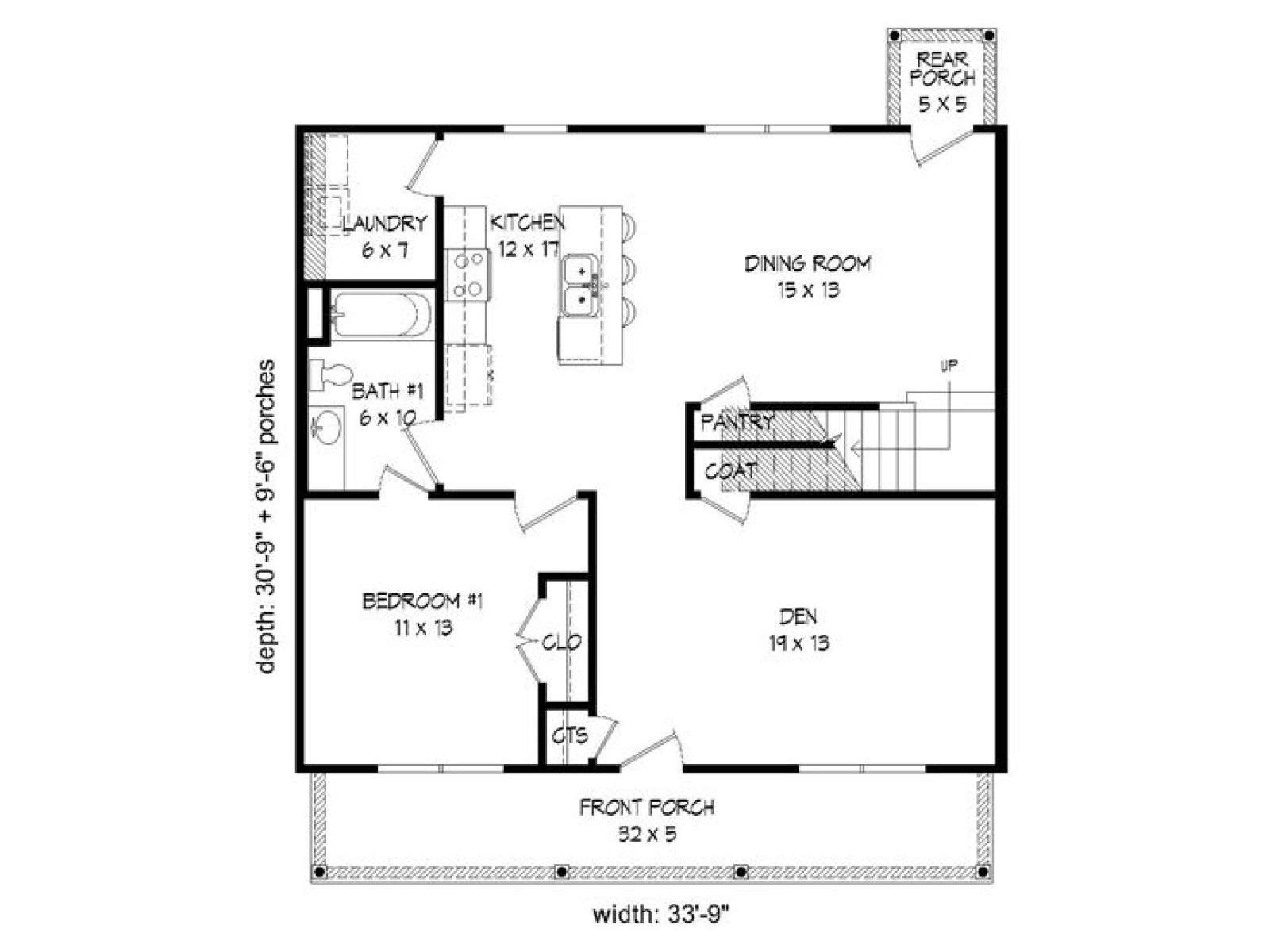

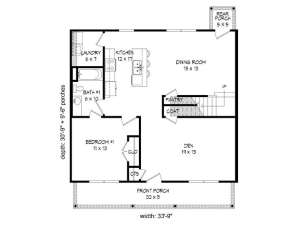

First Floor 1038

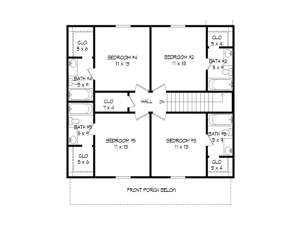

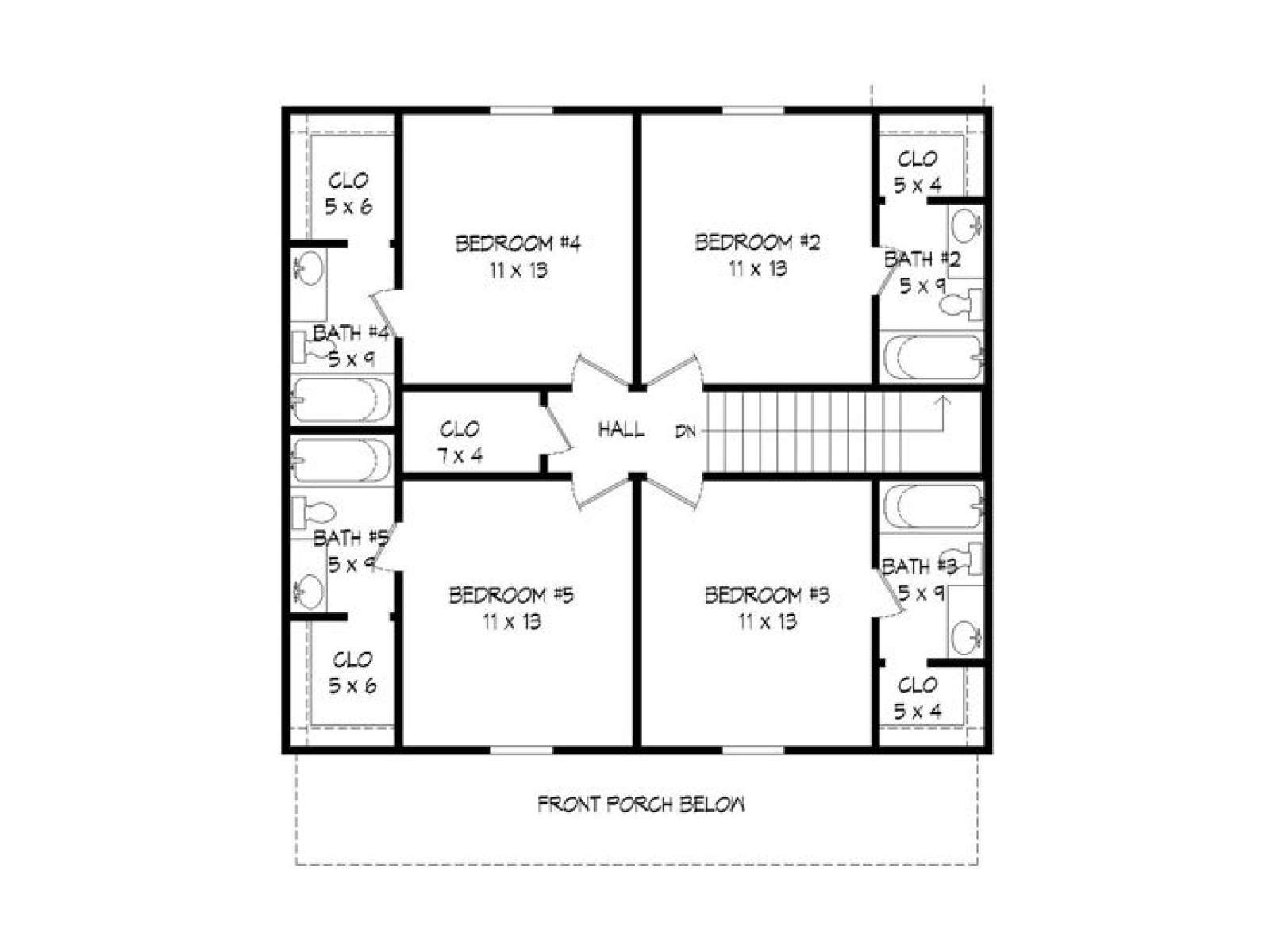

Second Floor 1008
Total 2046
Unheated Square Feet
Porch(es) 182
Bedrooms 5
Full Bathrooms 5
Width 33 ft. 9 in.
Depth 40 ft. 3 in.
Approximate Height 25 ft. 4 in.
Roof Pitch 6/12 Main
Roof Framing
  • Stick
Foundation Options
  • Slab
Exterior Wall Options
  • 2x4
  • 2x6
Kitchen Features
  • Island
  • Eating/Snack bar
Bedroom Features
  • Main floor master bedroom
Interior Features
  • Den/office/study
  • Laundry
  • Open floor plan
Exterior Features

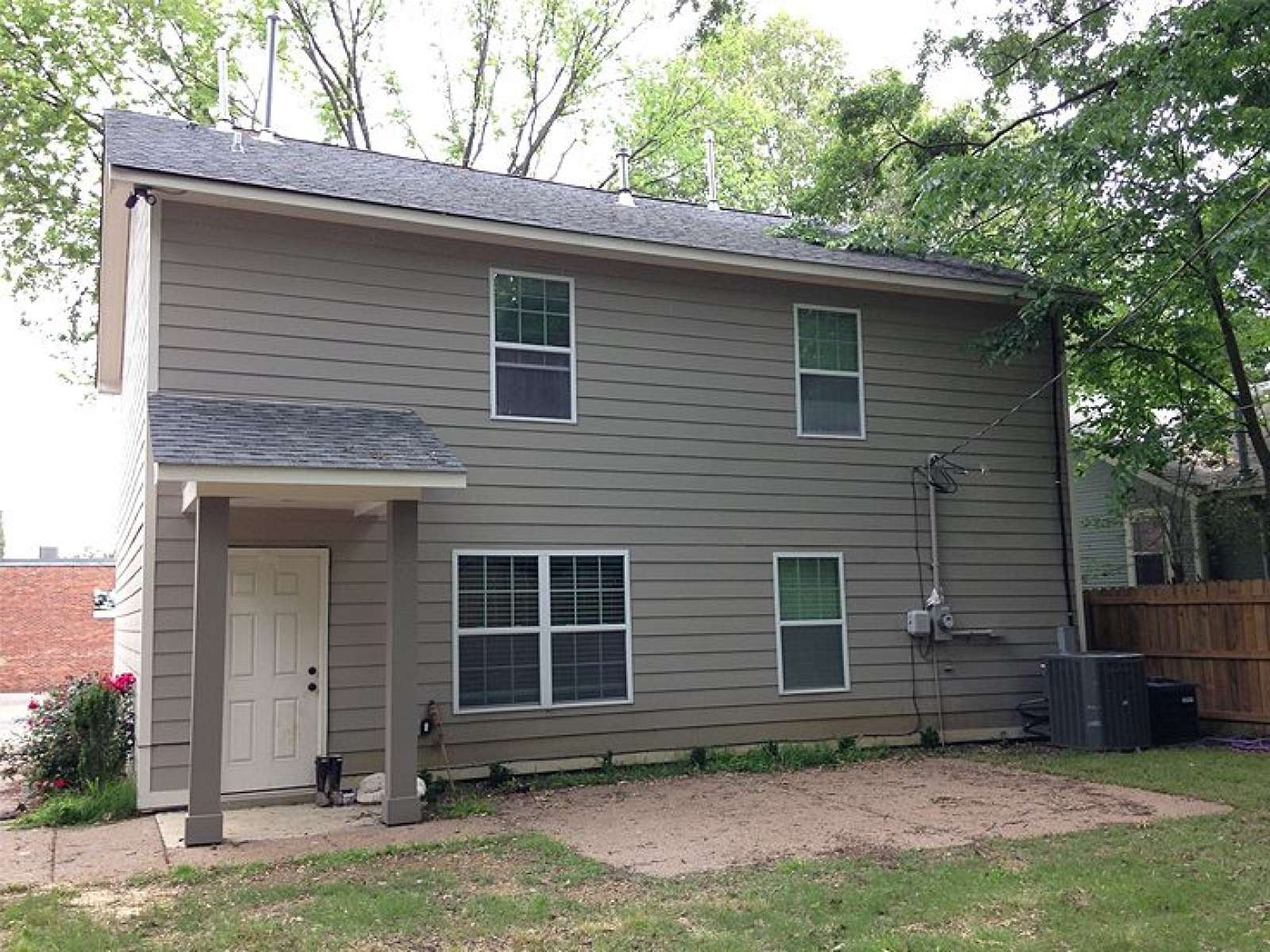

  • Covered rear porch
  • Covered front porch

Narrow lot, two-story house plan boasts five bedrooms and five baths
Master bedroom positioned on the first floor
For family bedrooms with private baths located upstairs
Open floor plan features and island kitchen overlooking the dining room



Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $25 n/a n/a n/a
Priority 3 - 4 business days $40 n/a $55 n/a
Express 1 - 2 business days $55 n/a n/a n/a
Info

There are no reviews

View more
Add your review
0 Reviews Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

 $1,280.00

Additional Options

A general listing of the quantities and sizes of materials needed for construction of your project. A general listing of the quantities and sizes of materials needed for construction of your project. This tool aids your builder in the estimating process. A material list cannot be sold without the simultaneous or prior purchase of a plan package of the same plan number. NOTE: Material lists only include materials for the base plan offered with the no charge foundation and wall framing options. The materials for alternate wall framing and foundation options available for an extra charge will not be included in the material list. [less] …[more]

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]
