Carriage House Plan, 062G-0556

Plan 062G-0556
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

The storage room is included in the first floor heated square footage
Second floor ceiling slopes up from 9’-5” to 16’-9”
The walkout basement is the garage level



Heated Square Feet

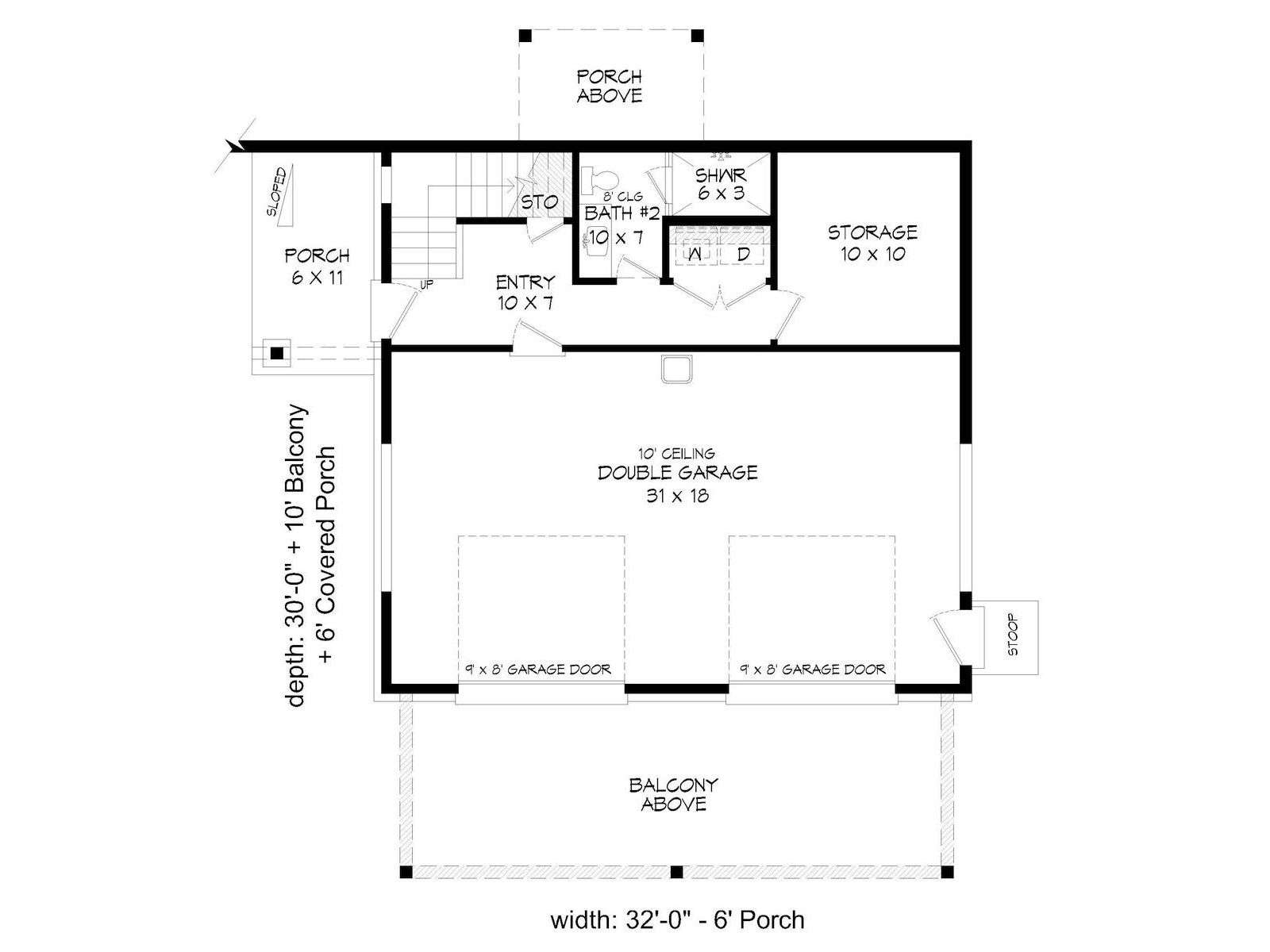

First Floor 367

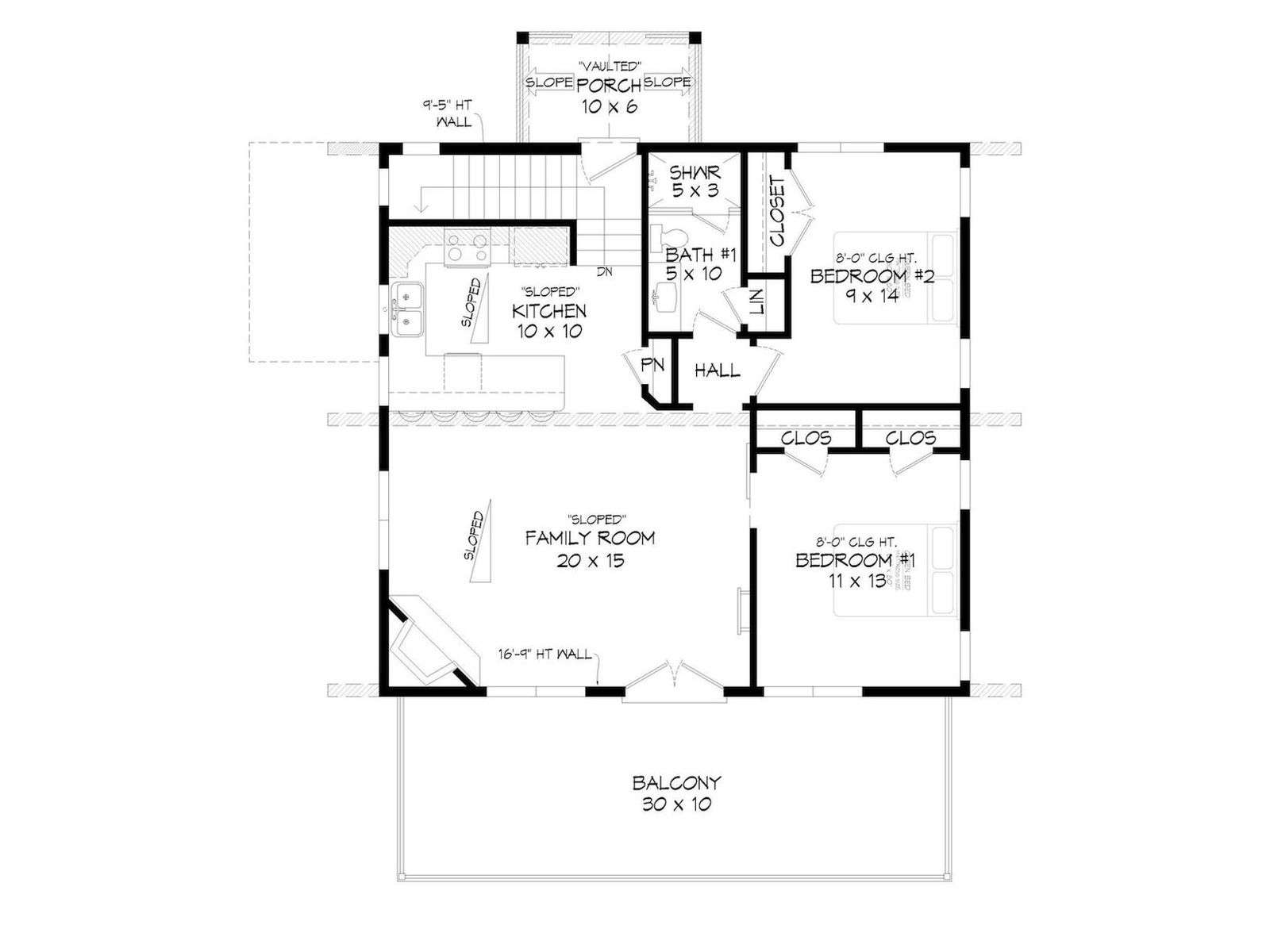

Second Floor 960

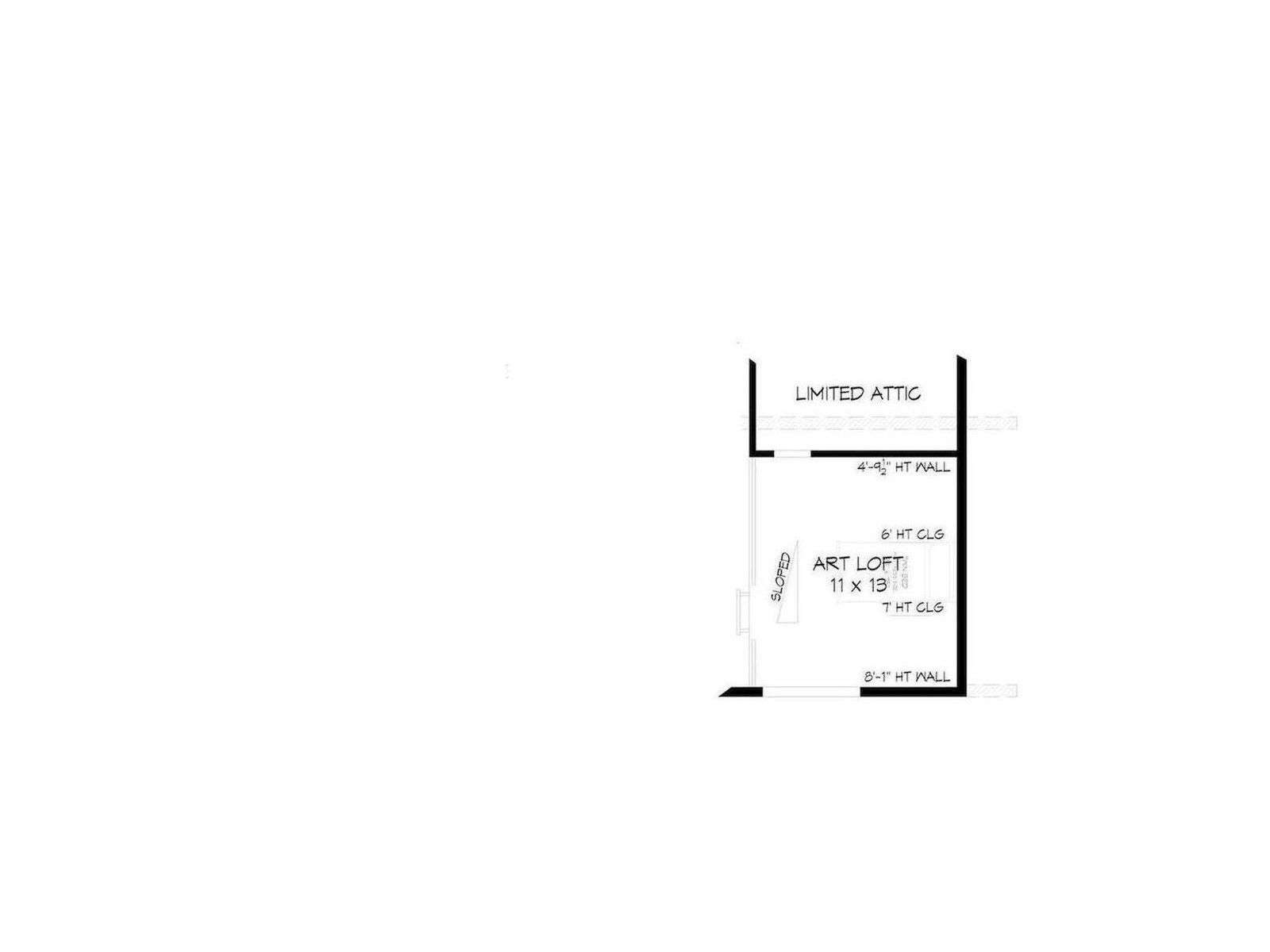

Third Floor 161
Total 1488
Unheated Square Feet
Deck/Balcony 300
Garage 593
Porch(es) 144
Bedrooms 2
Full Bathrooms 2
Width 38 ft. 0 in.
Depth 46 ft. 0 in.
Approximate Height 31 ft. 2 in.
Ceiling Height
First Floor 10 ft. 0 in.
Roof Pitch 3/12 Main
Roof Pitch 8/12 Other
Roof Framing
  • Stick
Garage Door Size(s) 9x8 (2)
Foundation Options
  • Walkout Basement
Exterior Wall Options
  • 2x6
Kitchen Features
  • Eating/Snack bar
Bedroom Features
  • Upstairs master bedroom
Interior Features
  • Loft/balcony
  • Laundry
  • Open floor plan
  • Vaulted/volume ceiling
  • Family room
Exterior Features
  • Covered side porch
  • Covered rear porch
  • Balcony
Special Features
  • Fireplace/Woodstove

The storage room is included in the first floor heated square footage
Second floor ceiling slopes up from 9’-5” to 16’-9”
The walkout basement is the garage level



Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $25 n/a $55 n/a
Priority 3 - 4 business days $40 n/a $65 n/a
Express 1 - 2 business days $55 n/a n/a n/a
