Carriage House Plan, 062G-0153

Plan 062G-0153
Reverse All Images

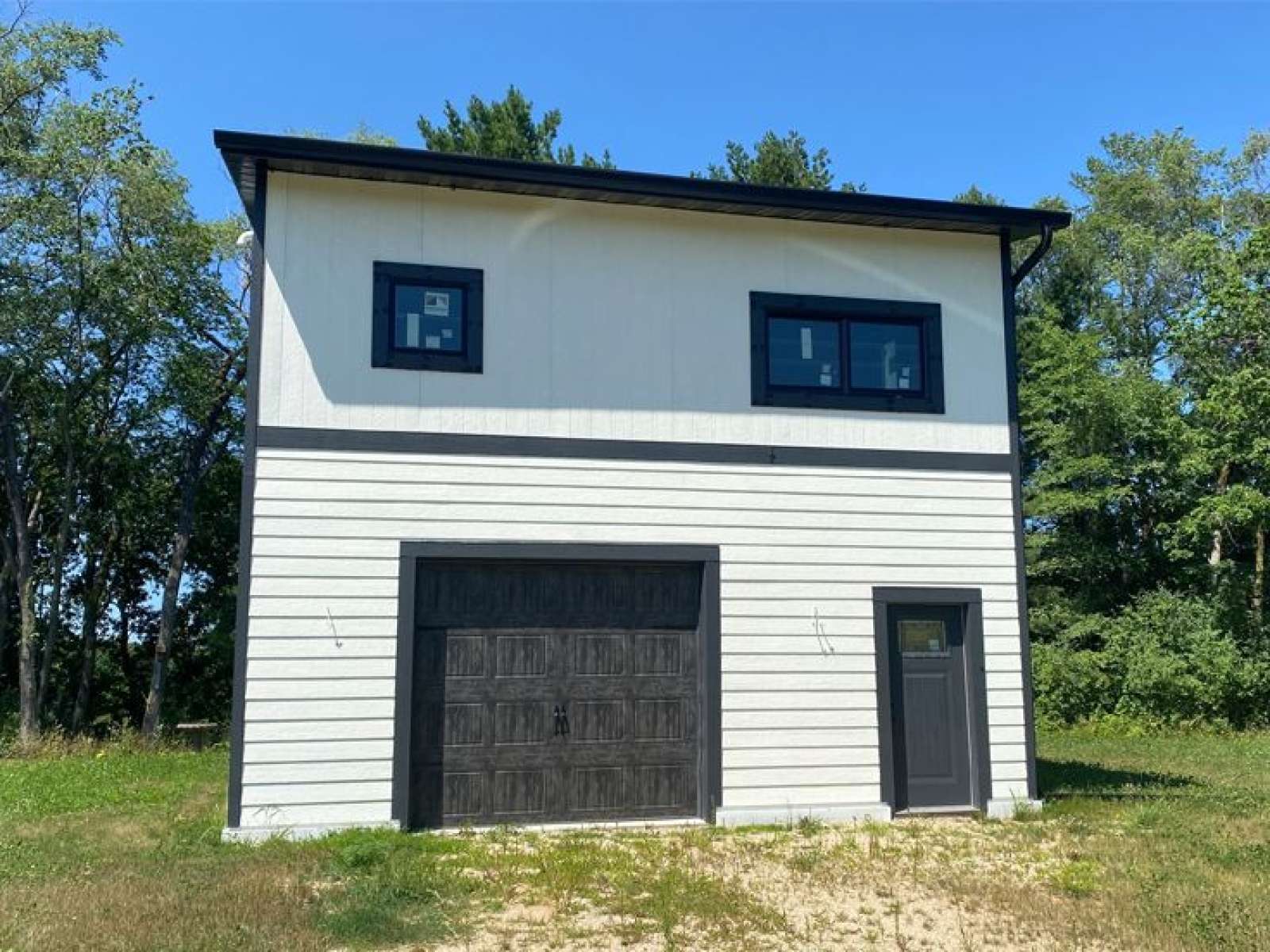

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

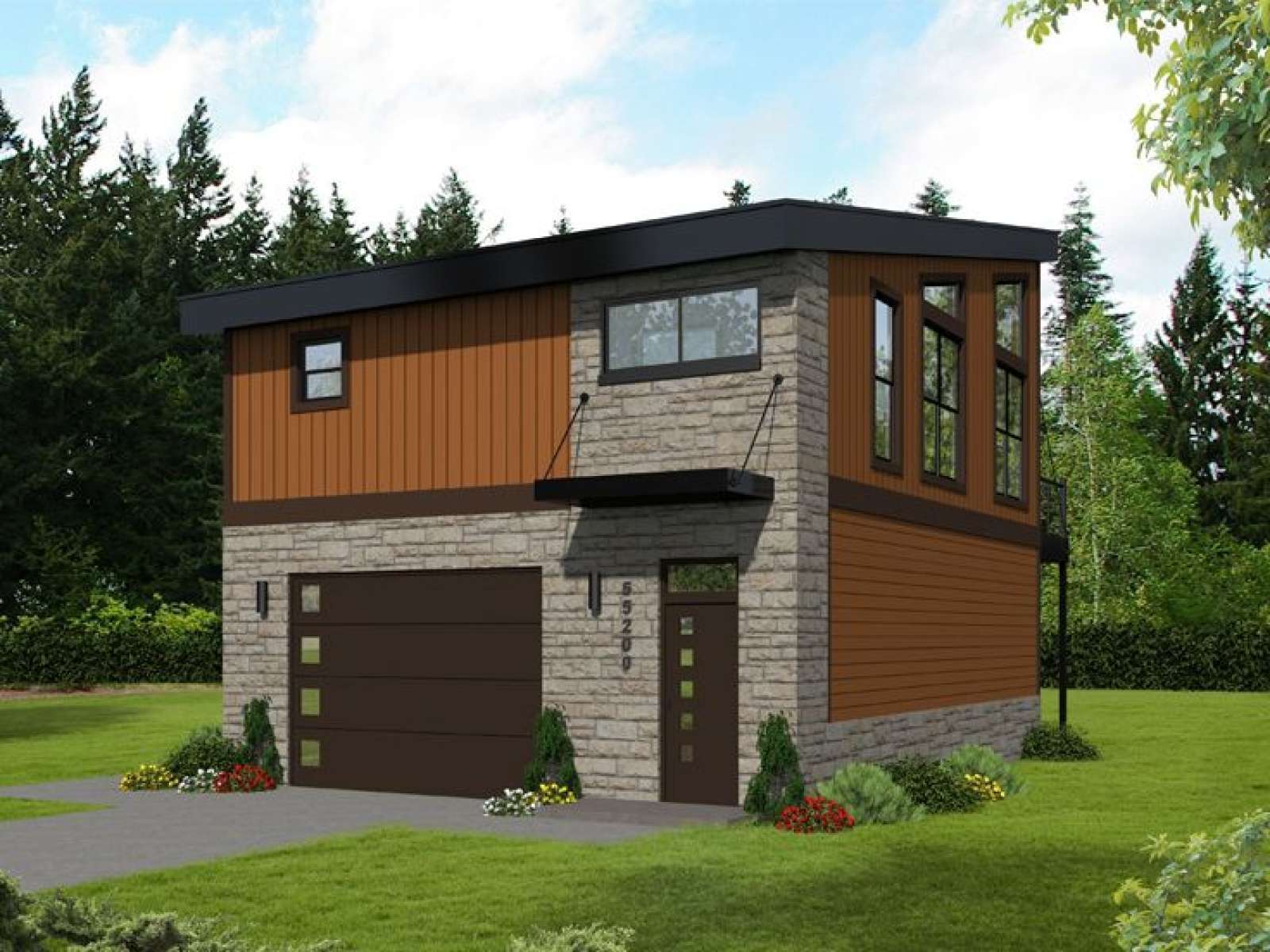

Modern garage apartment plan makes a nice weekend retreat or guest house
Extra-deep two-car garage can accommodate boat storage and features two service entries
Second-floor living quarters offer one bedroom, one bath, a laundry closet, and an open floor plan

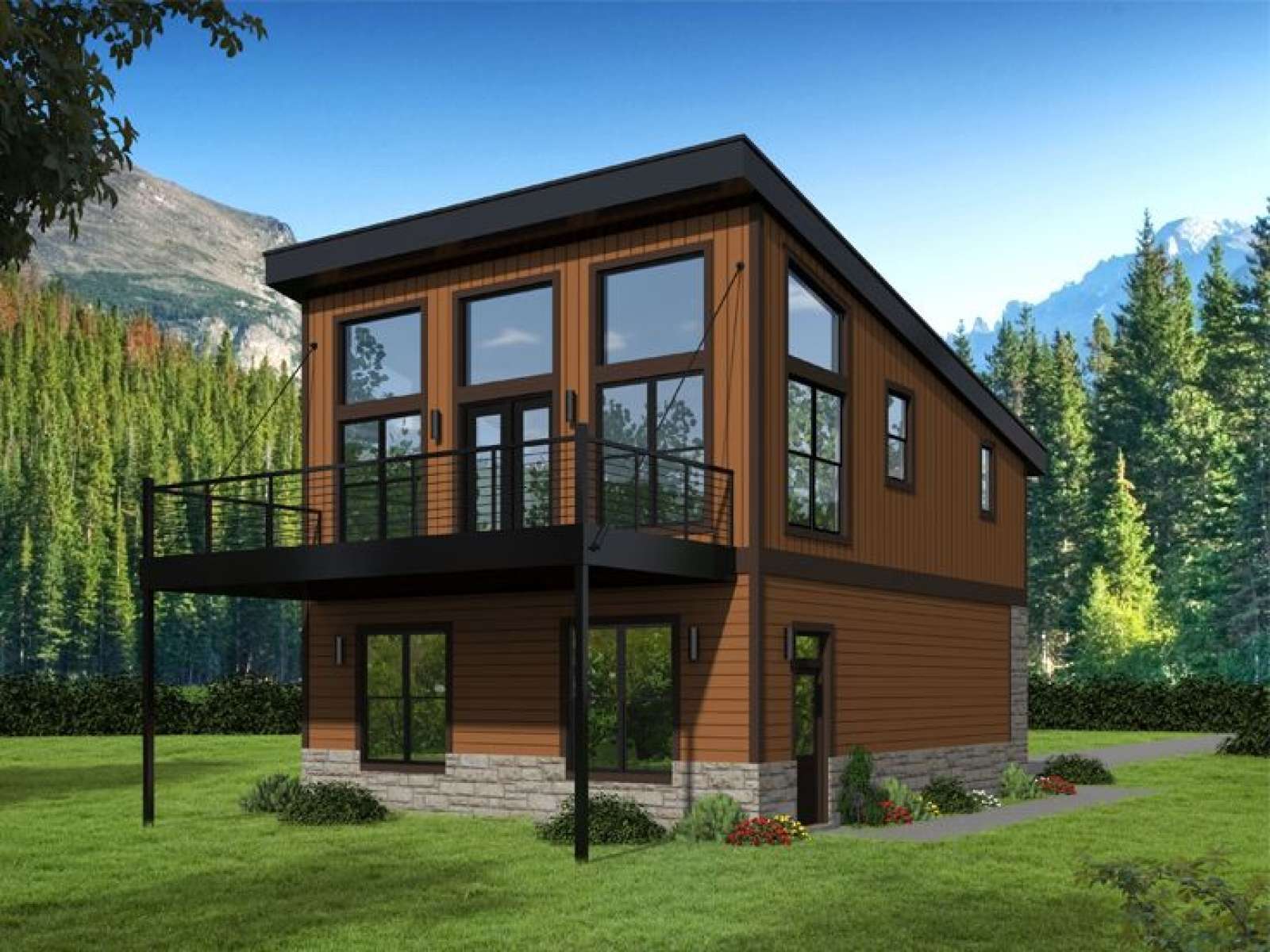

Plenty of windows and a balcony afford stunning views
See similar plan 062G-0458

Heated Square Feet
First Floor 75
Second Floor 750
Total 825
Unheated Square Feet
Deck/Balcony 230
Garage 675
Porch(es) 25
Bedrooms 1
Full Bathrooms 1
Width 25 ft. 0 in.
Depth 30 ft. 0 in.
Approximate Height 26 ft. 0 in.
Ceiling Height
First Floor 10 ft. 0 in.
Second Floor 9 ft. 0 in.
Roof Pitch 2.5/12 Main
Roof Framing
  • Truss
Garage Door Size(s) 12x8
Foundation Options
  • Slab
Exterior Wall Options
  • 2x6
Interior Features
  • Vaulted/volume ceiling
  • Open floor plan
Exterior Features
  • Covered front porch
  • Deck

Modern garage apartment plan makes a nice weekend retreat or guest house
Extra-deep two-car garage can accommodate boat storage and features two service entries
Second-floor living quarters offer one bedroom, one bath, a laundry closet, and an open floor plan
Plenty of windows and a balcony afford stunning views
See similar plan 062G-0458

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $25 n/a n/a n/a
Priority 3 - 4 business days $40 n/a $55 n/a
Express 1 - 2 business days $55 n/a n/a n/a
Info

There are no reviews

View more
Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$880.00

Additional Options

A general listing of the quantities and sizes of materials needed for construction of your project. A general listing of the quantities and sizes of materials needed for construction of your project. This tool aids your builder in the estimating process. A material list cannot be sold without the simultaneous or prior purchase of a plan package of the same plan number. NOTE: Material lists only include materials for the base plan offered with the no charge foundation and wall framing options. The materials for alternate wall framing and foundation options available for an extra charge will not be included in the material list. [less] [more]

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] [more]
