Beach House Plan, 052H-0175

Plan 052H-0175
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

Listed overall depth includes the stairs
Depth without the stairs is 78’-8”
First floor is 12’ above grade
Other/covered parking: 1416 sf

Heated Square Feet
First Floor 1128

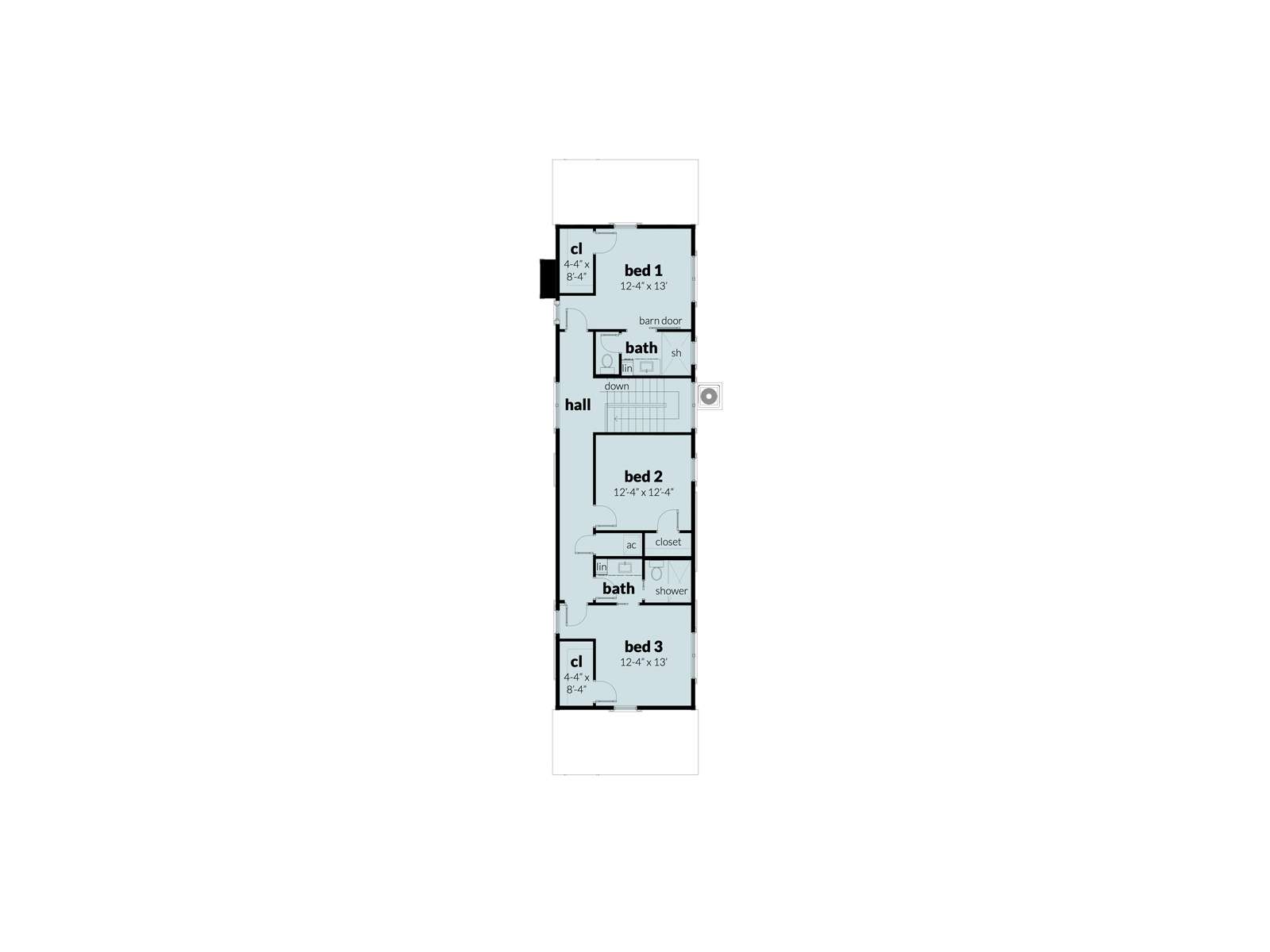

Second Floor 1128
Total 2256
Unheated Square Feet
Porch(es) 288
Other 1416
Bedrooms 3
Full Bathrooms 2
Half Bathrooms 1
Width 20 ft. 0 in.
Depth 111 ft. 10 in.
Approximate Height 43 ft. 8 in.
Ceiling Height
First Floor 10 ft. 0 in.
Second Floor 10 ft. 0 in.
Roof Pitch 12/12 Main
Roof Pitch Flat Porches
Roof Framing
  • Truss
Foundation Options
  • Piling
Exterior Wall Options
  • 2x6
Kitchen Features
  • Eating/Snack bar
  • Island
Bedroom Features
  • Upstairs master bedroom
  • Walk-in closet
Interior Features
  • Family room
  • Laundry
  • Open floor plan
Exterior Features
  • Covered front porch
  • Covered rear porch
Special Features
  • Fireplace/Woodstove

Listed overall depth includes the stairs
Depth without the stairs is 78’-8”
First floor is 12’ above grade
Other/covered parking: 1416 sf

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days n/a n/a n/a n/a
Priority 3 - 4 business days n/a n/a n/a n/a
Express 1 - 2 business days n/a n/a n/a n/a
Info

There are no reviews

View more
Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$2,430.00

Additional Options

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] [more]
