Duplex House Plan, 051M-0038

Plan 051M-0038
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

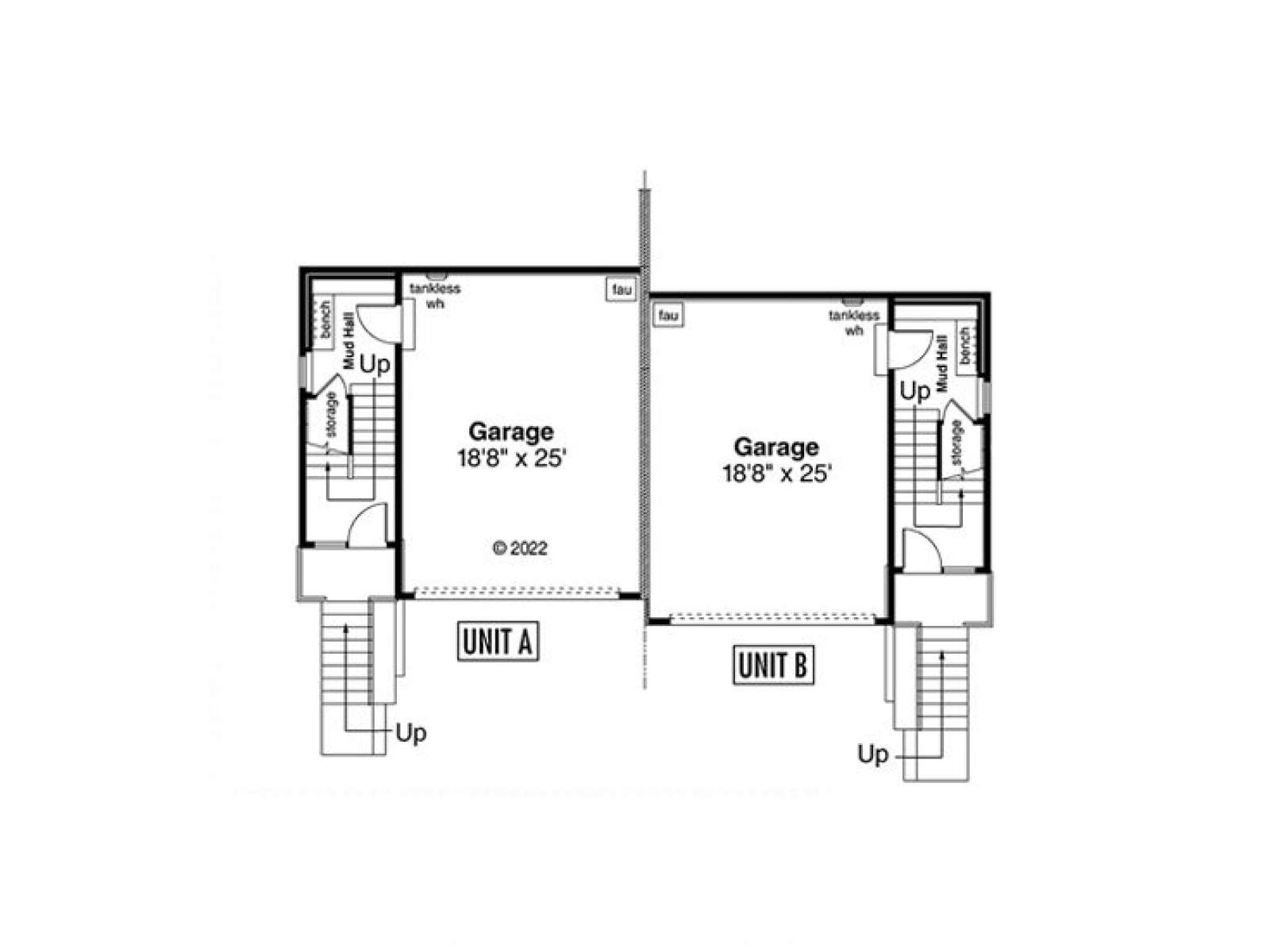

Units A & B: 1st Floor – 704 sf, 2nd Floor – 947 sf, 3rd Floor – 821 sf, Total – 2472 sf, 5 bedrooms, 5 baths, 1-car garage – 310 sf

Heated Square Feet
First Floor 2418
Second Floor 1166
Lower Level 352
Total 3936
Width 54 ft. 0 in.
Depth 51 ft. 0 in.
Approximate Height 35 ft. 5 in.
Ceiling Height
First Floor 9 ft. 0 in.
Second Floor 8 ft. 0 in.
Roof Pitch 2/12 Main
Roof Framing
  • Truss
Garage Door Size(s) 16x8 (2)
Foundation Options
  • Basement
Exterior Wall Options
  • 2x6
Kitchen Features
  • Island
  • Eating/Snack bar
Bedroom Features
  • Walk-in closet
  • Main floor master bedroom
Interior Features
  • Vaulted/volume ceiling
  • Great room
  • Laundry
  • Loft/balcony
  • Open floor plan
Exterior Features
  • Covered front porch
  • Patio/Terrace/Lanai

Units A & B: 1st Floor – 704 sf, 2nd Floor – 947 sf, 3rd Floor – 821 sf, Total – 2472 sf, 5 bedrooms, 5 baths, 1-car garage – 310 sf

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $30 n/a n/a n/a
Priority 3 - 4 business days $70 n/a n/a n/a
Express 1 - 2 business days n/a n/a n/a n/a
Info

There are no reviews

View more
Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$3,800.00

Additional Options

Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets are available for purchase within 90 days of the original house plan purchase. [less] [more]

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] [more]
