Multi-Family House Plan, 051M-0027
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Craftsman details highlight the exterior of this multi-family plan and stylish curb appeal allows it to blend nicely in many neighborhoods
Two different floor plans accommodate different types of tenants

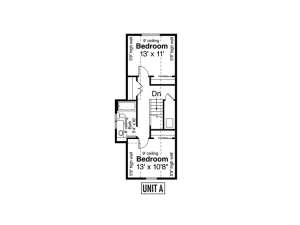

Unit A is ideal for family living with an open floor plan, main floor master suite and two family bedrooms upstairs
Unit B is suitable for retirees with an open floor plan, two bedrooms and laundry room all arranged on one level
Unit A: 1st Floor – 1078 sf, 2nd Floor – 569 sf, Total – 1647 sf, 3 bedrooms, 2 ½ baths, 2-car garage – 395 sf
Unit B: 1st Floor – 1123 sf, Total – 1123 sf, 2 bedrooms, 1 bath, 1-car garage – 284 sf
| Heated Square Feet | |
| First Floor | 2201 |
| Second Floor | 569 |
| Total | 2770 |
| Width | 77 ft. 0 in. |
| Depth | 58 ft. 0 in. |
| Approximate Height | 22 ft. 9 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Roof Pitch | 10/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
Craftsman details highlight the exterior of this multi-family plan and stylish curb appeal allows it to blend nicely in many neighborhoods
Two different floor plans accommodate different types of tenants
Unit A is ideal for family living with an open floor plan, main floor master suite and two family bedrooms upstairs
Unit B is suitable for retirees with an open floor plan, two bedrooms and laundry room all arranged on one level
Unit A: 1st Floor – 1078 sf, 2nd Floor – 569 sf, Total – 1647 sf, 3 bedrooms, 2 ½ baths, 2-car garage – 395 sf
Unit B: 1st Floor – 1123 sf, Total – 1123 sf, 2 bedrooms, 1 bath, 1-car garage – 284 sf
