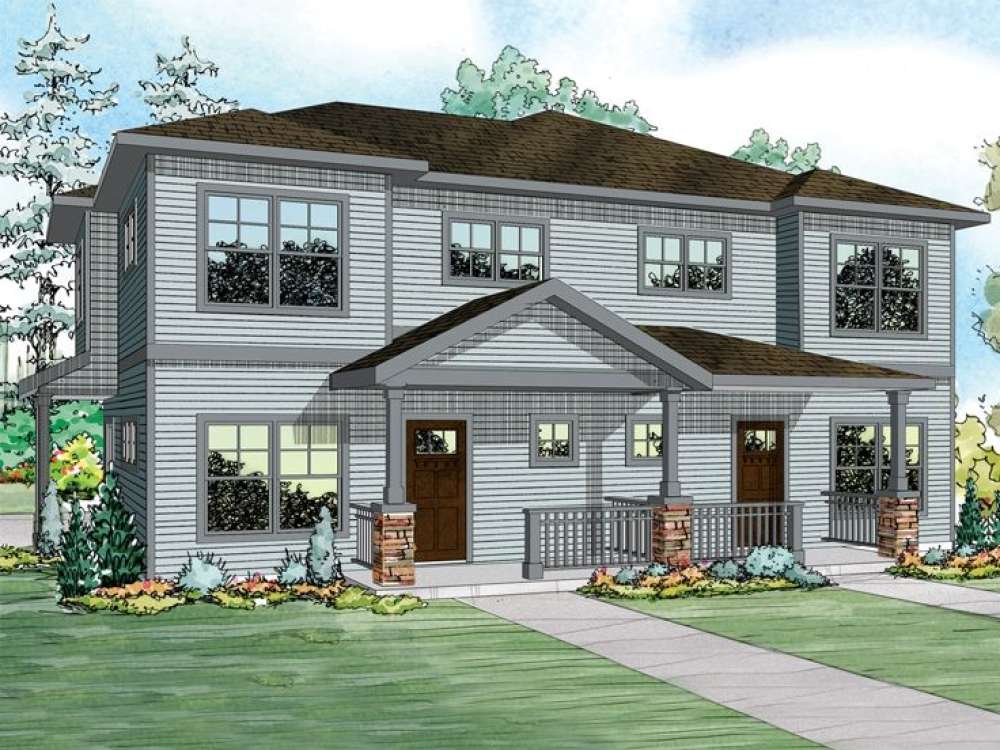

Duplex House Plan, 051M-0024
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Duplex house plan offers two comfortable living units
Main floor offers a step-saver kitchen, an open floor plan, convenient utility room, and access to the porch and patio
Owner’s suite boasts a private bath and walk-in closet
Two family bedrooms share a hall bath
Unit A: 1st Floor – 688 sf, 2nd Floor – 748 sf, Total – 1436 sf, 3 bedrooms, 2 ½ baths, 1-car garage – 312 sf
Unit B: 1st Floor – 662 sf, 2nd Floor – 783 sf, Total – 1445 sf, 3 bedrooms, 2 ½ baths, 1-car garage – 288 sf
| Heated Square Feet | |
| First Floor | 1350 |
| Second Floor | 1531 |
| Total | 2881 |
| Width | 49 ft. 0 in. |
| Depth | 65 ft. 0 in. |
| Approximate Height | 28 ft. 6 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Roof Pitch | 6/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
Duplex house plan offers two comfortable living units
Main floor offers a step-saver kitchen, an open floor plan, convenient utility room, and access to the porch and patio
Owner’s suite boasts a private bath and walk-in closet
Two family bedrooms share a hall bath
Unit A: 1st Floor – 688 sf, 2nd Floor – 748 sf, Total – 1436 sf, 3 bedrooms, 2 ½ baths, 1-car garage – 312 sf
Unit B: 1st Floor – 662 sf, 2nd Floor – 783 sf, Total – 1445 sf, 3 bedrooms, 2 ½ baths, 1-car garage – 288 sf
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $30 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $70 | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
