Split-Level House Plan, 051H-0176

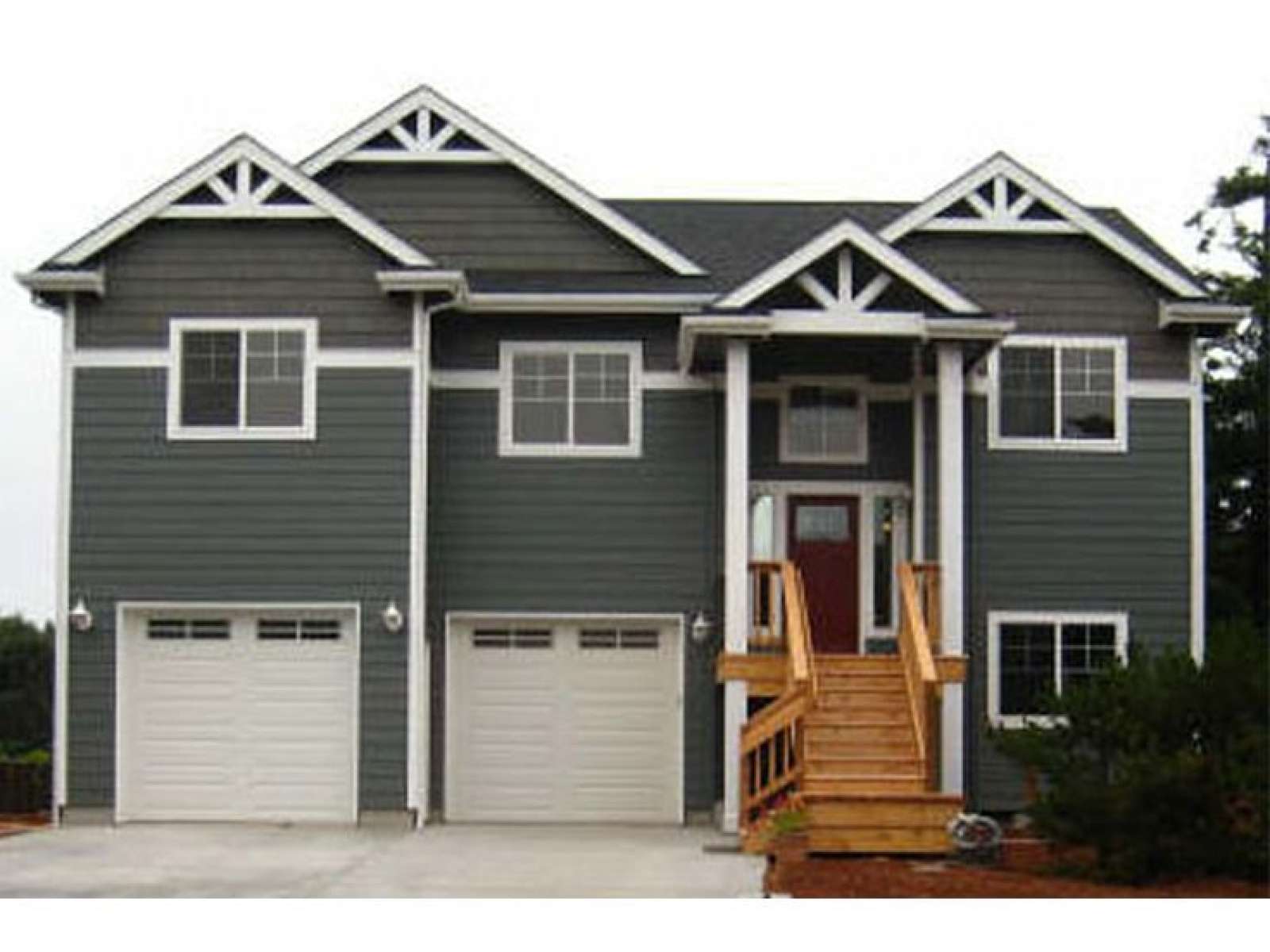

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

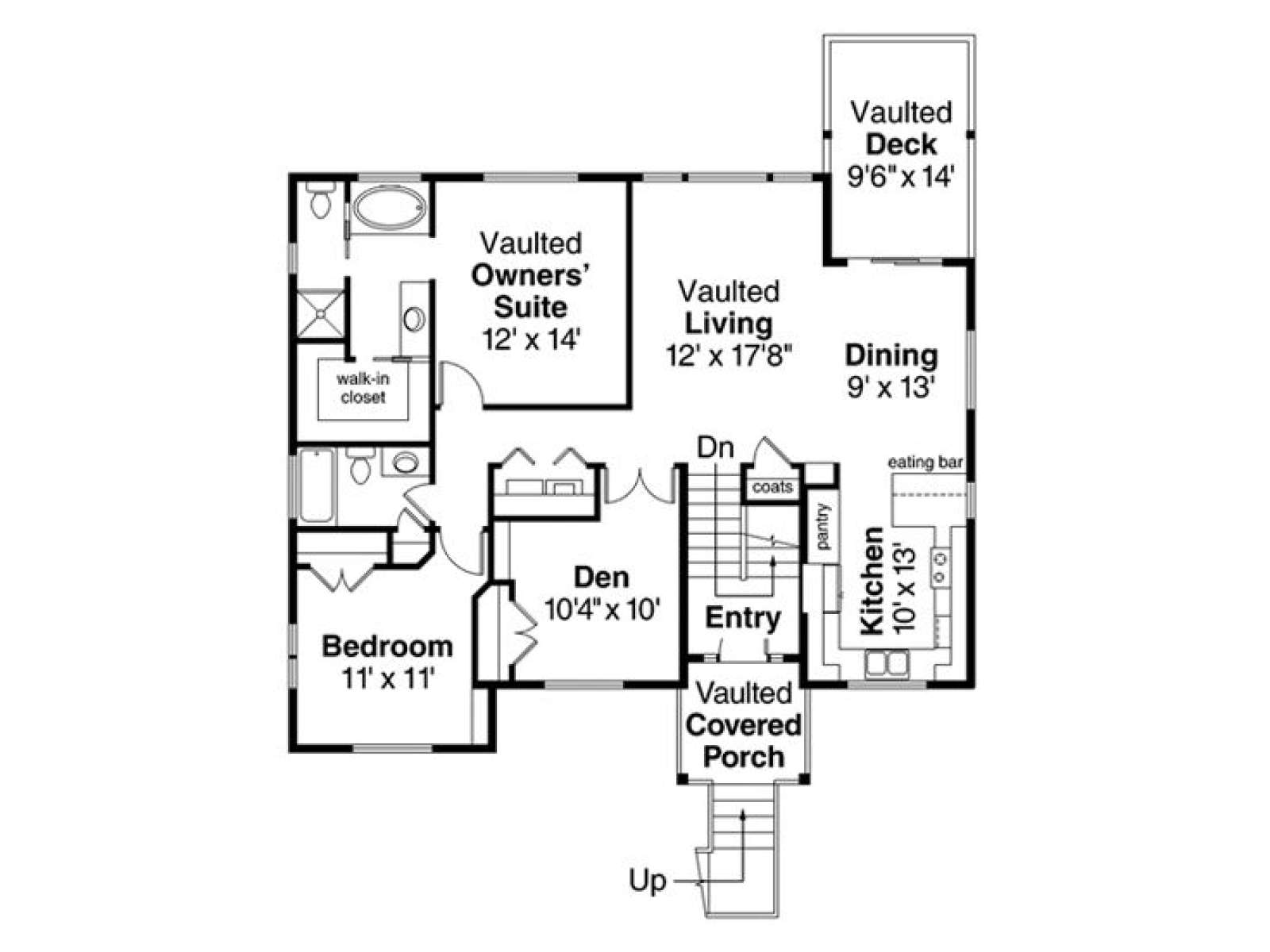

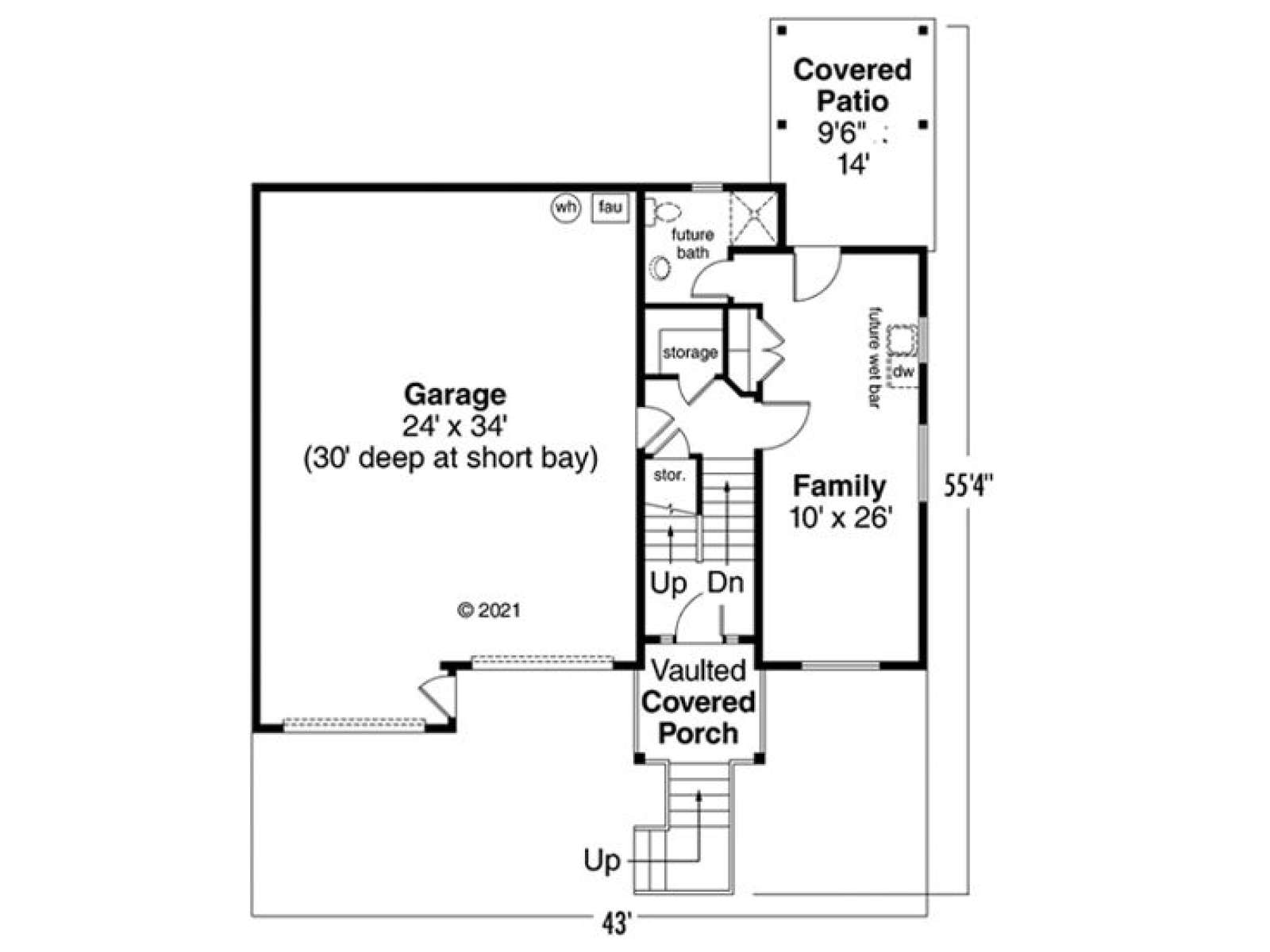

Gable-end brackets and wood shingles give this split-level house plan Craftsman styling. Ideal for a front sloping lot, the home features a 2-car, drive under garage and stairs leading to the covered front porch. Stepping inside, the split-entry leads the way to the main level where the vaulted living room reveals stunning views of the rear yard through a wall of windows. Nearby, the efficient U-shaped kitchen and dining room connect. A sliding door opens to the rear deck providing a great place for grilling and outdoor meals. Double doors open to the quiet den, complete with built-ins. Use this space for a home office or convert it to a bedroom if desired. The laundry closet is right where it should be, near the bedrooms saving steps on washday. Your owner’s suite delivers a vaulted ceiling, deluxe bath and walk-in closet. Ample closet space enhances the secondary bedroom and a full bath is just steps away. Downstairs, you’ll find a generously sized family room, storage closet and access to a covered patio. If you are looking for a home that fits well on a sloping lot, you’ve found it with this Craftsman style ranch home plan.
| Heated Square Feet | |
| First Floor | 1383 |
| Lower Level | 437 |
| Total | 1820 |
| Unheated Square Feet | |
| Garage | 812 |
| Bedrooms | 2 |
| Full Bathrooms | 2 |
| Width | 43 ft. 0 in. |
| Depth | 41 ft. 0 in. |
| Approximate Height | 28 ft. 4 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Roof Pitch | 8/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
| Garage Features |
|
Gable-end brackets and wood shingles give this split-level house plan Craftsman styling. Ideal for a front sloping lot, the home features a 2-car, drive under garage and stairs leading to the covered front porch. Stepping inside, the split-entry leads the way to the main level where the vaulted living room reveals stunning views of the rear yard through a wall of windows. Nearby, the efficient U-shaped kitchen and dining room connect. A sliding door opens to the rear deck providing a great place for grilling and outdoor meals. Double doors open to the quiet den, complete with built-ins. Use this space for a home office or convert it to a bedroom if desired. The laundry closet is right where it should be, near the bedrooms saving steps on washday. Your owner’s suite delivers a vaulted ceiling, deluxe bath and walk-in closet. Ample closet space enhances the secondary bedroom and a full bath is just steps away. Downstairs, you’ll find a generously sized family room, storage closet and access to a covered patio. If you are looking for a home that fits well on a sloping lot, you’ve found it with this Craftsman style ranch home plan.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $30 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $70 | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
