Unique Garage Workshop, 035G-0006

Plan 035G-0006
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

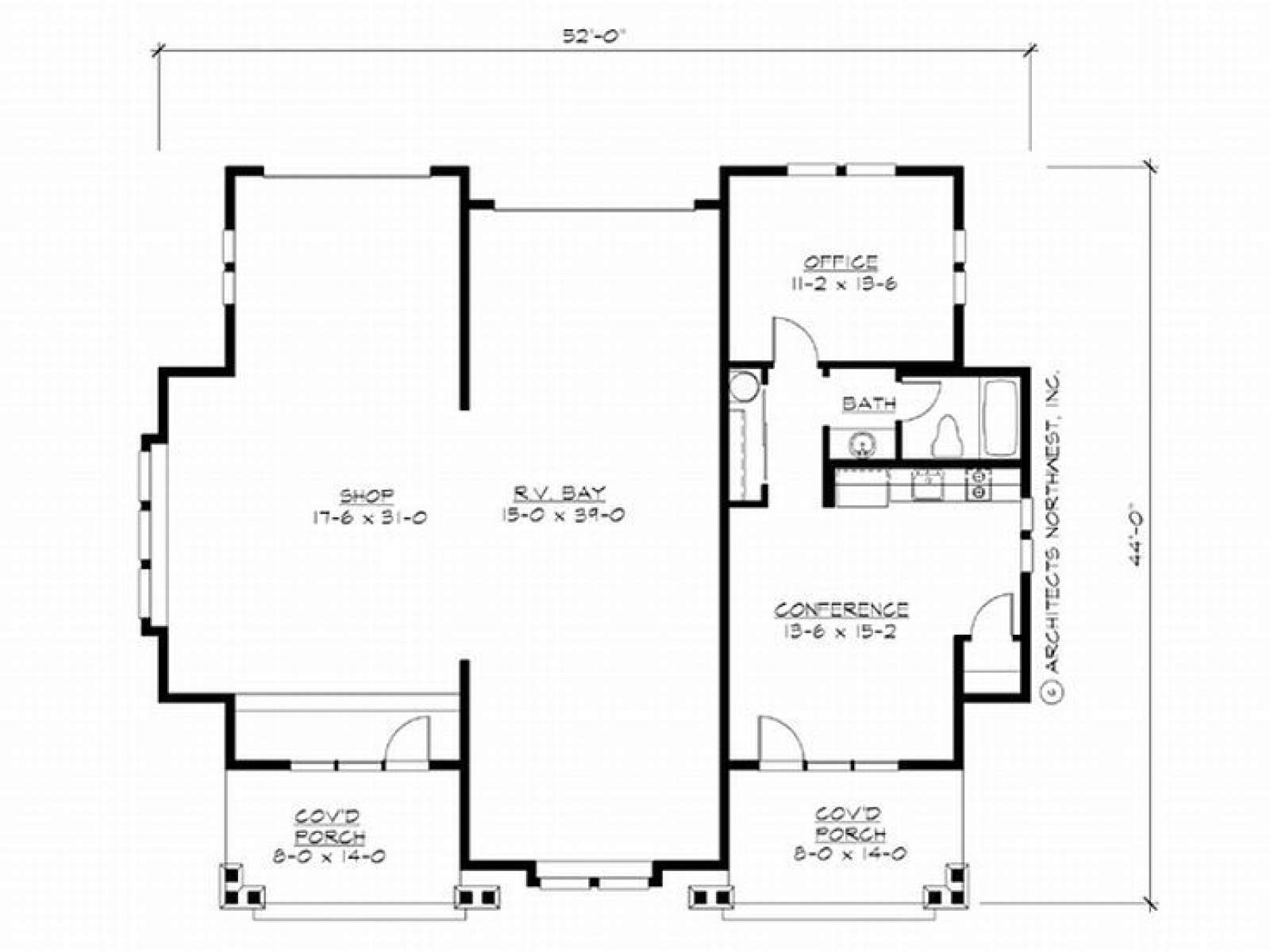

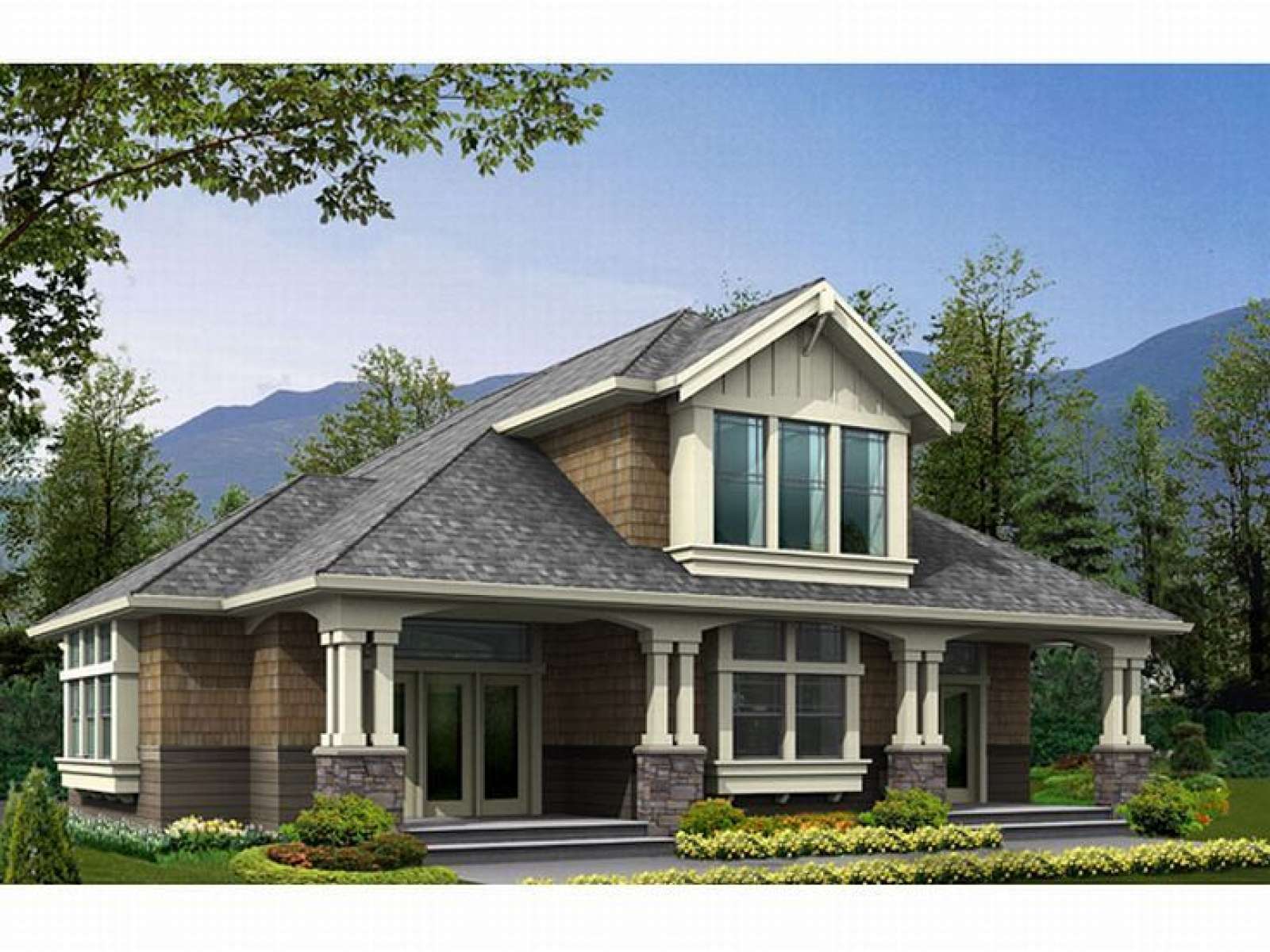

A design far more versatile than traditional carriage house plans, this Northwestern flavored garage apartment delivers a very flexible floor plan and features that are more than you could ask for. Take a look at the handsome exterior. A multi-material façade, columned porches and stone accents, all characteristic of Craftsman styling lend striking curb appeal. Now take a look at the floor plan. Two garage doors open to the workshop and RV or boat storage area offering 1225 square feet of unfinished space. This area also works well for storing two vehicles, motorcycles or lawn and garden equipment. For your home away from home, the RV bay is positioned in the center of the design with the workshop/storage area on one side providing a space to store your motor home and a space for tools or other necessary equipment if you opt for storage rather than a workshop. Finished living space is found on the other side of the RV stall. Entering from one of the covered front porches, the conference room with kitchenette, a full bath and an office line in procession, the perfect arrangement for a home based business delivering a place to meet with clients and a private space for bookkeeping and paperwork. In other instances, you might choose to finish this space as a modest apartment with living area and bedroom for overnight guests, the maid or a student home from college for the summer. Thoughtfully planned with function, comfort and flexibility, this garage apartment plan with RV or boat storage, workshop and living space will satisfy many needs.

Heated Square Feet
First Floor 585
Total 585
Unheated Square Feet
Garage 1225
Full Bathrooms 1
Width 52 ft. 0 in.
Depth 44 ft. 0 in.
Approximate Height 25 ft. 4 in.
Roof Pitch 8/12 Main
Roof Framing
  • Truss
Foundation Options
  • Slab
Exterior Wall Options
  • 2x6
Interior Features
  • Open floor plan
Exterior Features
  • Covered front porch

A design far more versatile than traditional carriage house plans, this Northwestern flavored garage apartment delivers a very flexible floor plan and features that are more than you could ask for. Take a look at the handsome exterior. A multi-material façade, columned porches and stone accents, all characteristic of Craftsman styling lend striking curb appeal. Now take a look at the floor plan. Two garage doors open to the workshop and RV or boat storage area offering 1225 square feet of unfinished space. This area also works well for storing two vehicles, motorcycles or lawn and garden equipment. For your home away from home, the RV bay is positioned in the center of the design with the workshop/storage area on one side providing a space to store your motor home and a space for tools or other necessary equipment if you opt for storage rather than a workshop. Finished living space is found on the other side of the RV stall. Entering from one of the covered front porches, the conference room with kitchenette, a full bath and an office line in procession, the perfect arrangement for a home based business delivering a place to meet with clients and a private space for bookkeeping and paperwork. In other instances, you might choose to finish this space as a modest apartment with living area and bedroom for overnight guests, the maid or a student home from college for the summer. Thoughtfully planned with function, comfort and flexibility, this garage apartment plan with RV or boat storage, workshop and living space will satisfy many needs.

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days n/a n/a n/a n/a
Priority 3 - 4 business days n/a n/a n/a n/a
Express 1 - 2 business days n/a n/a n/a n/a
Info

There are no reviews

View more
Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$2,400.00

Additional Options

A general listing of the quantities and sizes of materials needed for construction of your project. A general listing of the quantities and sizes of materials needed for construction of your project. This tool aids your builder in the estimating process. A material list cannot be sold without the simultaneous or prior purchase of a plan package of the same plan number. NOTE: Material lists only include materials for the base plan offered with the no charge foundation and wall framing options. The materials for alternate wall framing and foundation options available for an extra charge will not be included in the material list. [less] [more]

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] [more]

Purchase Restrictions:

NOTE: This plan is not available for construction in the state of Washington.
