Luxury House Plan, 031H-0509

Plan 031H-0509
Reverse All Images
Plan 031H-0509
Plan 031H-0509
Plan 031H-0509
Plan 031H-0509
Plan 031H-0509
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Plan Details Shipping Reviews (0)
Heated Square Feet

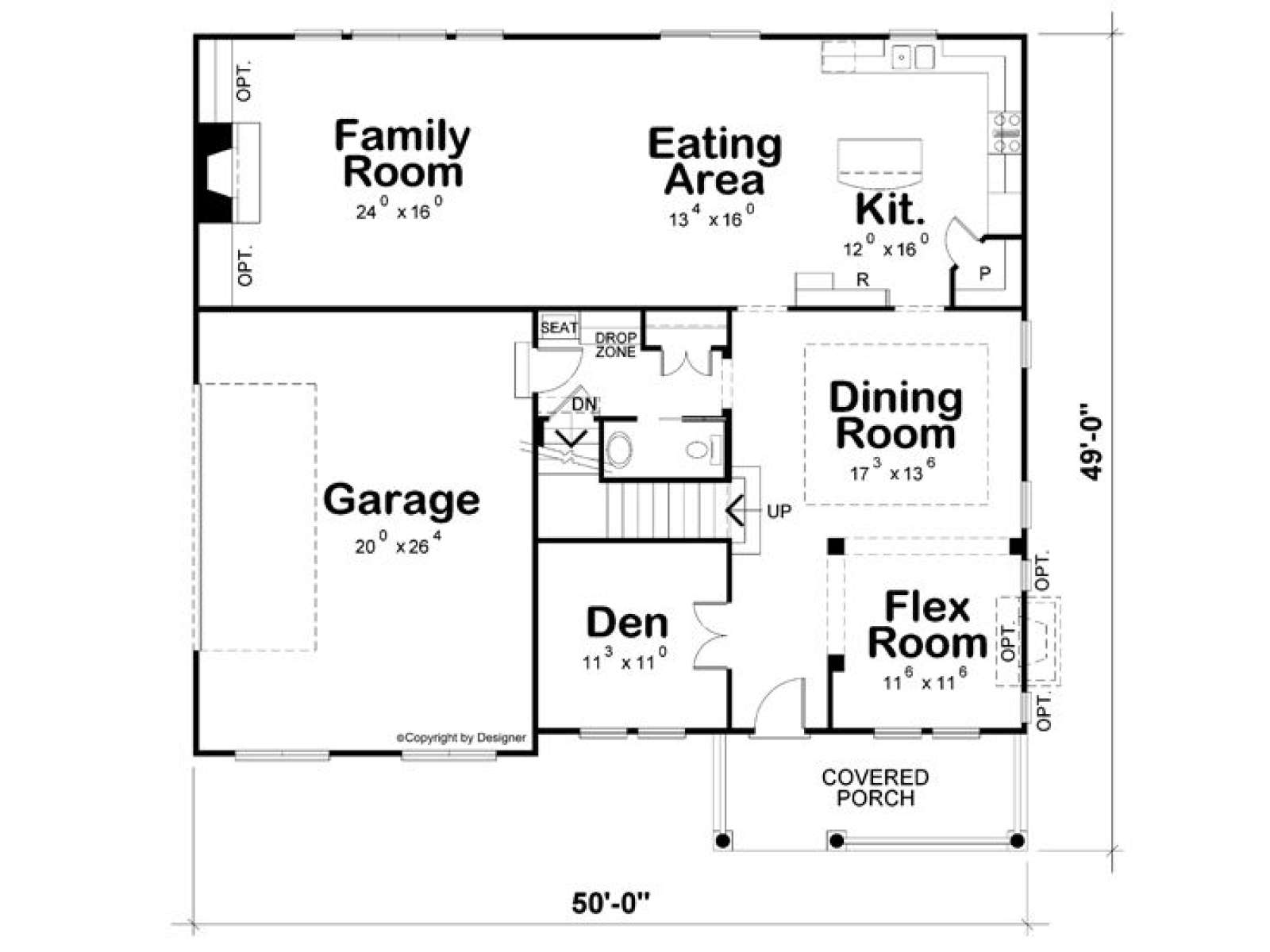

First Floor 1585

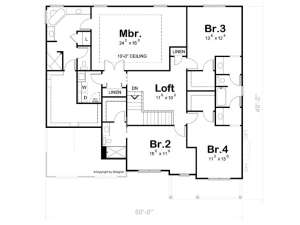

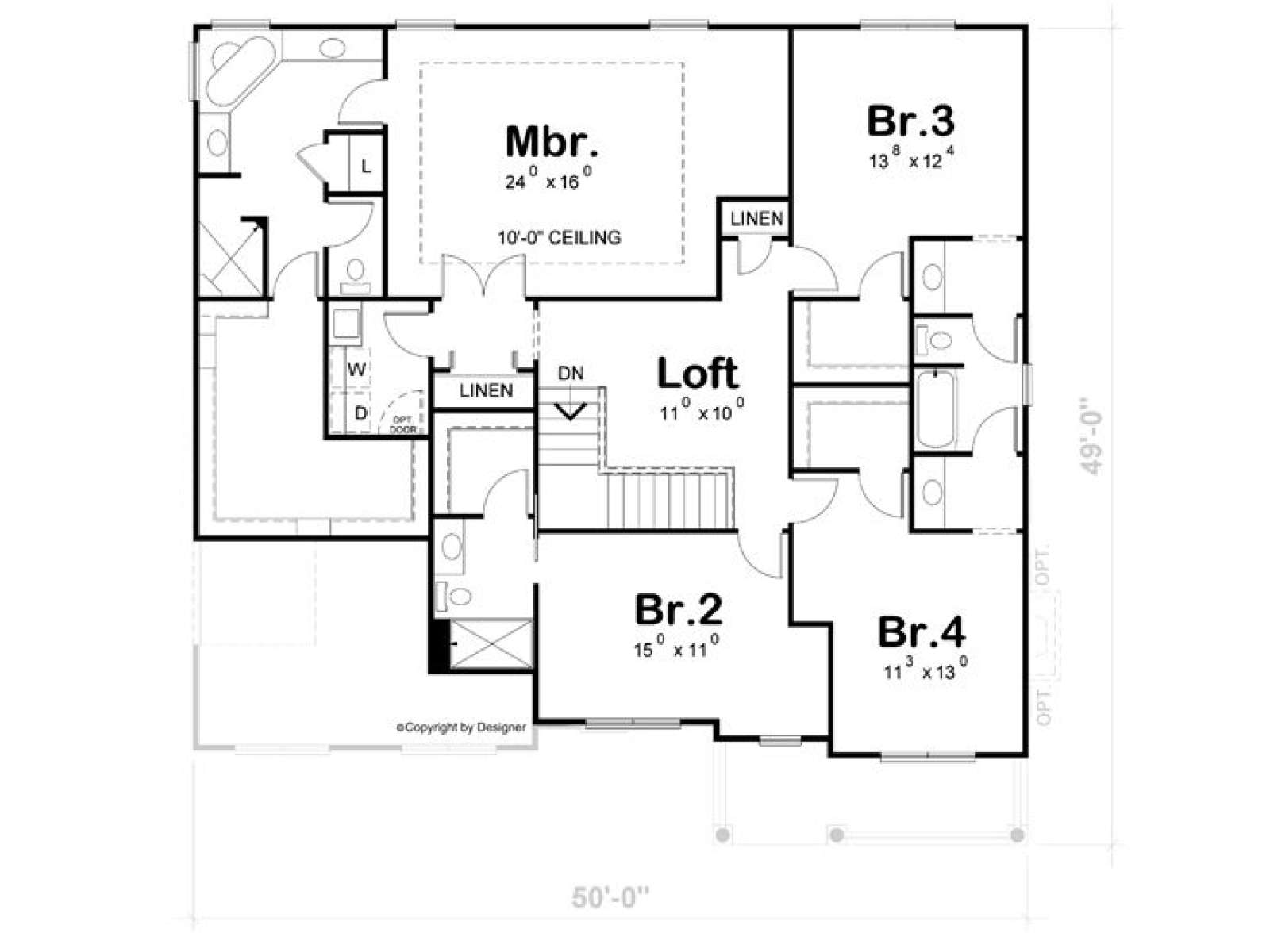

Second Floor 1901

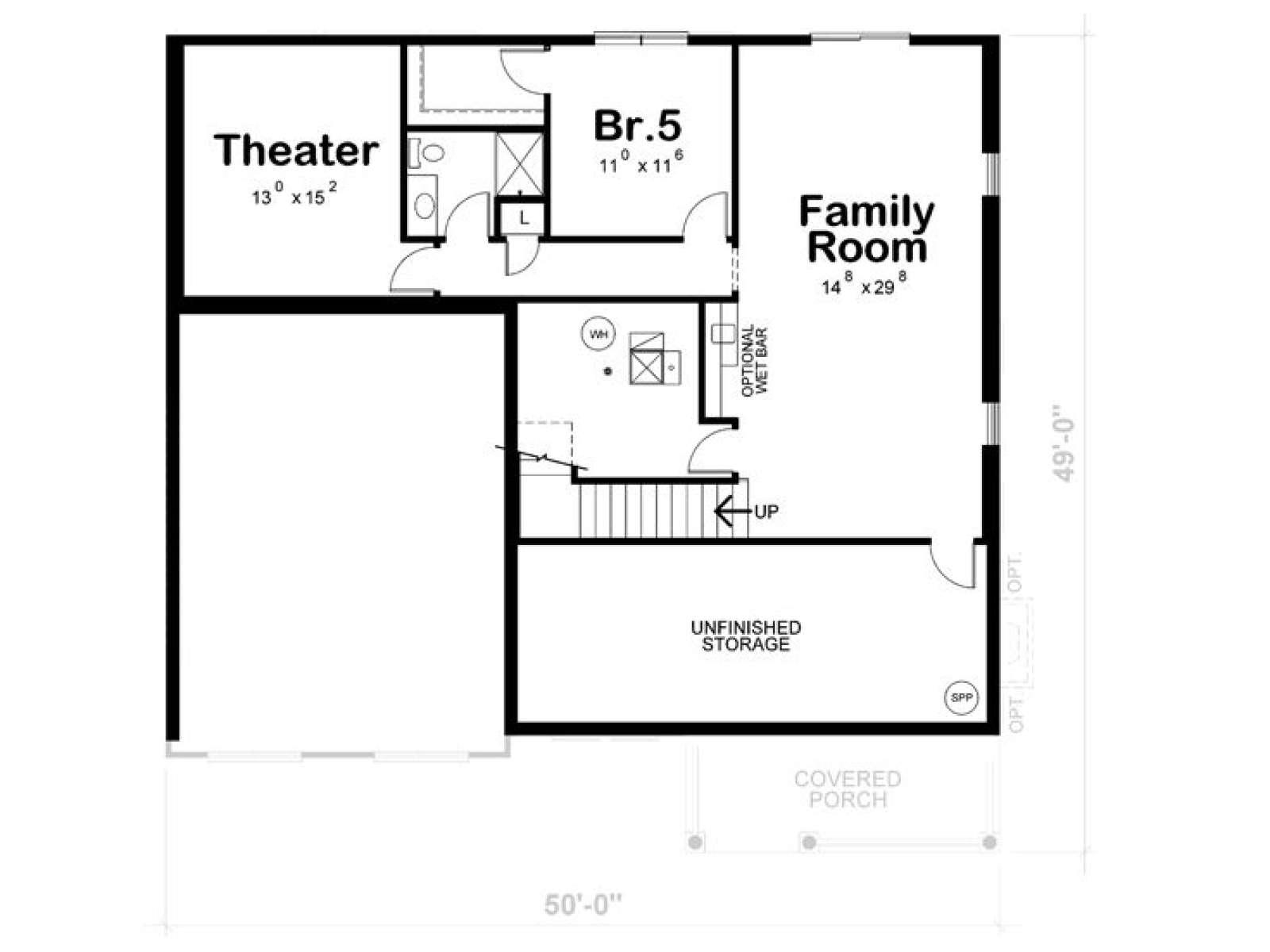

Lower Level 1012
Total 4498
Unheated Square Feet
Garage 525
Bedrooms 5
Full Bathrooms 4
Half Bathrooms 1
Width 50 ft. 0 in.
Depth 49 ft. 0 in.
Ceiling Height
First Floor 9 ft. 0 in.
Second Floor 8 ft. 0 in.
Lower Level 9 ft. 0 in.
Roof Pitch 6/12 Front to Back
Roof Framing
  • N/A
Foundation Options
  • Basement
Exterior Wall Options
  • 2x4
  • 2x6
Kitchen Features
  • Island
  • Eating/Snack bar
  • Walk-in Pantry
Bedroom Features
  • Walk-in closet
  • Upstairs master bedroom
Interior Features
  • Vaulted/volume ceiling
  • Den/office/study
  • Laundry
  • Loft/balcony
  • Open floor plan
  • Flex space/room
  • Family room
  • Media room
Exterior Features
  • Covered front porch
Special Features
  • Fireplace/Woodstove
  • Finished lower level
Garage Features
  • Two car
  • Side-entry
No description.
Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days n/a n/a n/a n/a
Priority 3 - 4 business days n/a n/a n/a n/a
Express 1 - 2 business days n/a n/a n/a n/a
Info

There are no reviews

View more
Add your review
0 Reviews Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

 $3,265.00

Additional Options

A general listing of the quantities and sizes of materials needed for construction of your project. A general listing of the quantities and sizes of materials needed for construction of your project. This tool aids your builder in the estimating process. A material list cannot be sold without the simultaneous or prior purchase of a plan package of the same plan number. NOTE: Material lists only include materials for the base plan offered with the no charge foundation and wall framing options. The materials for alternate wall framing and foundation options available for an extra charge will not be included in the material list. [less] …[more]

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]
