Multi-Family House Plan, 027M-0085
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

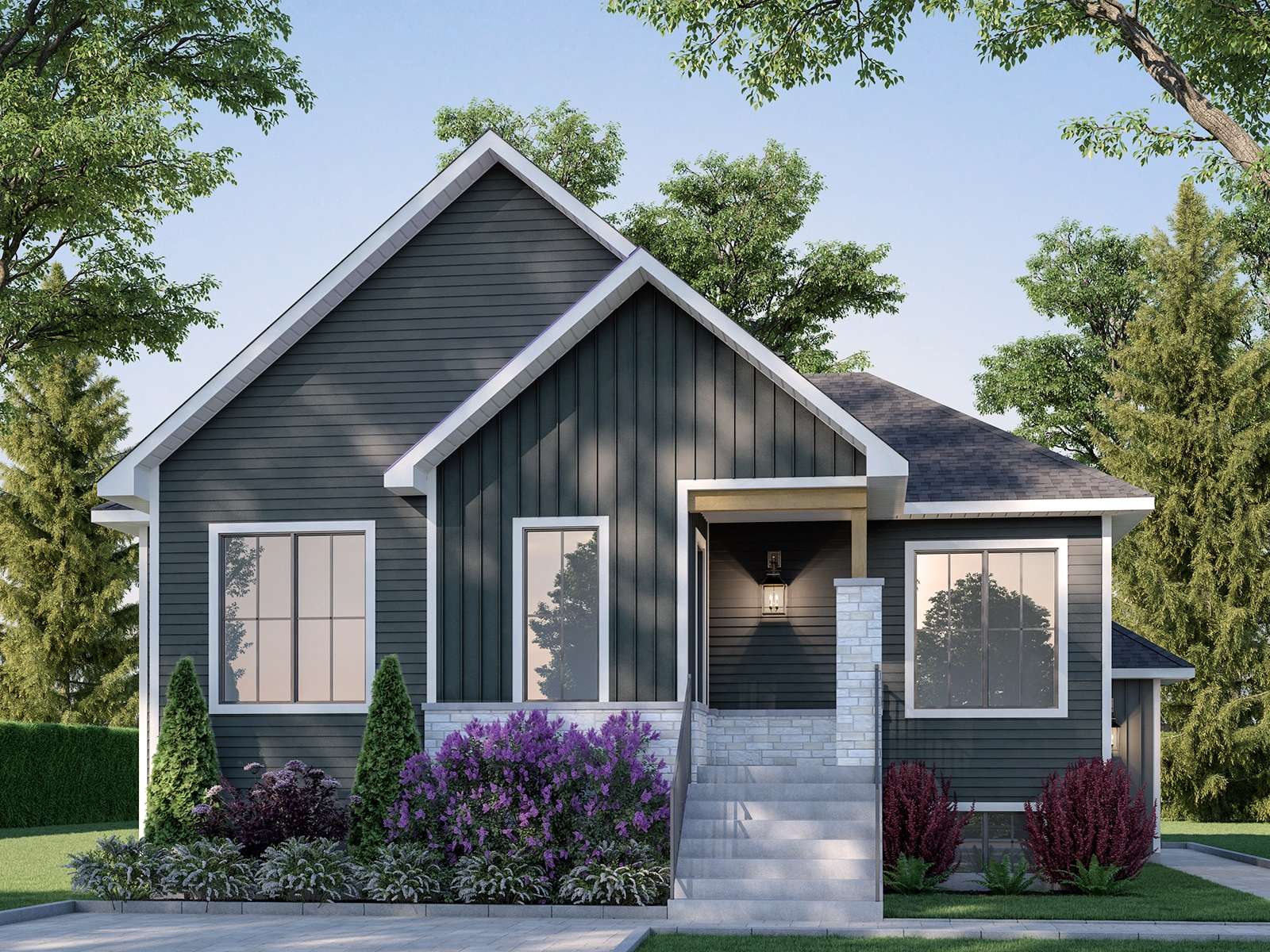

Multi-family or multi-generational home plan features a main home and a bachelor apartment while presenting the outward appearance of a single-family home

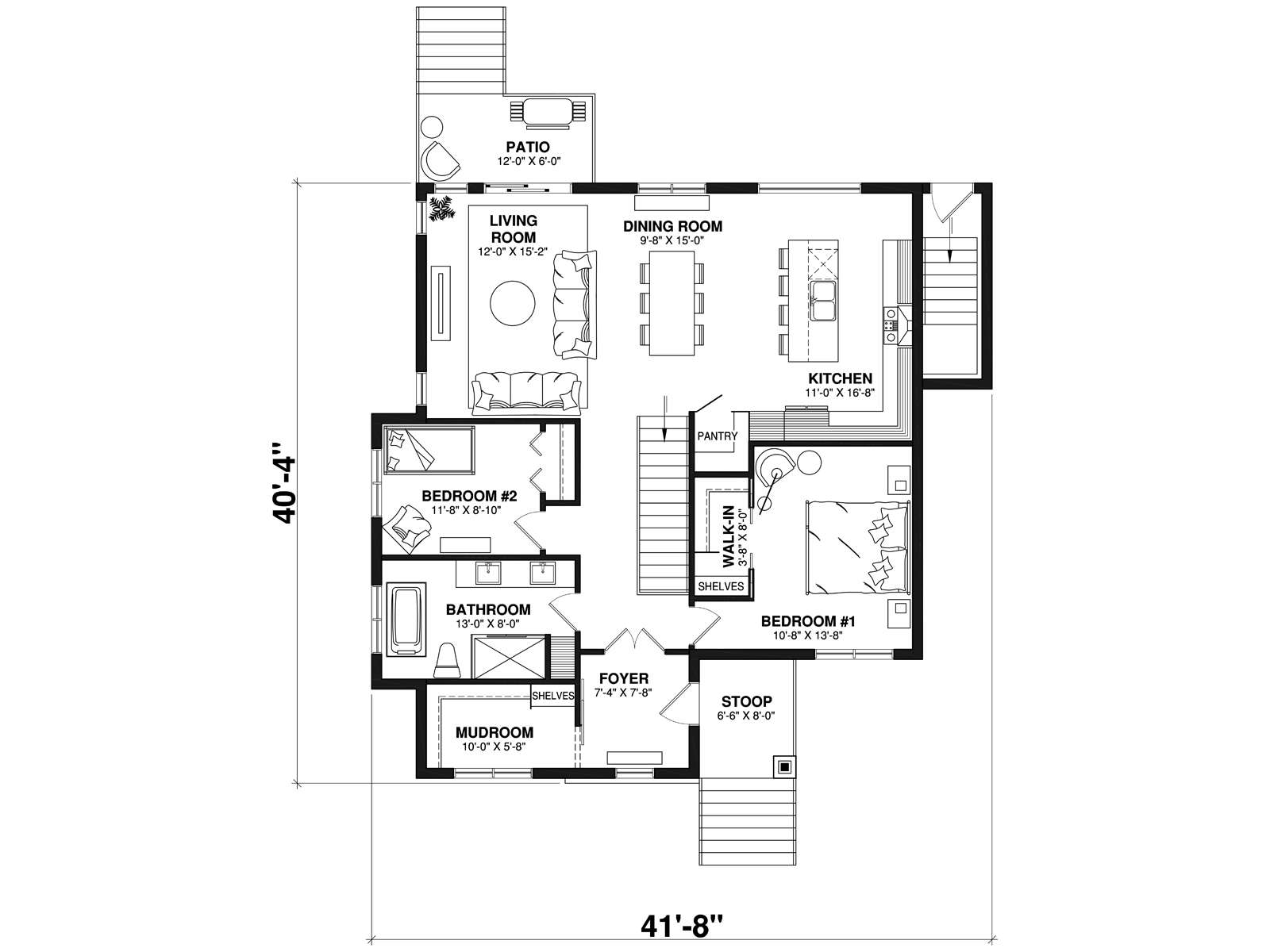

The main home features an open floor plan with special extras like a kitchen island, walk-in pantry, and mud room

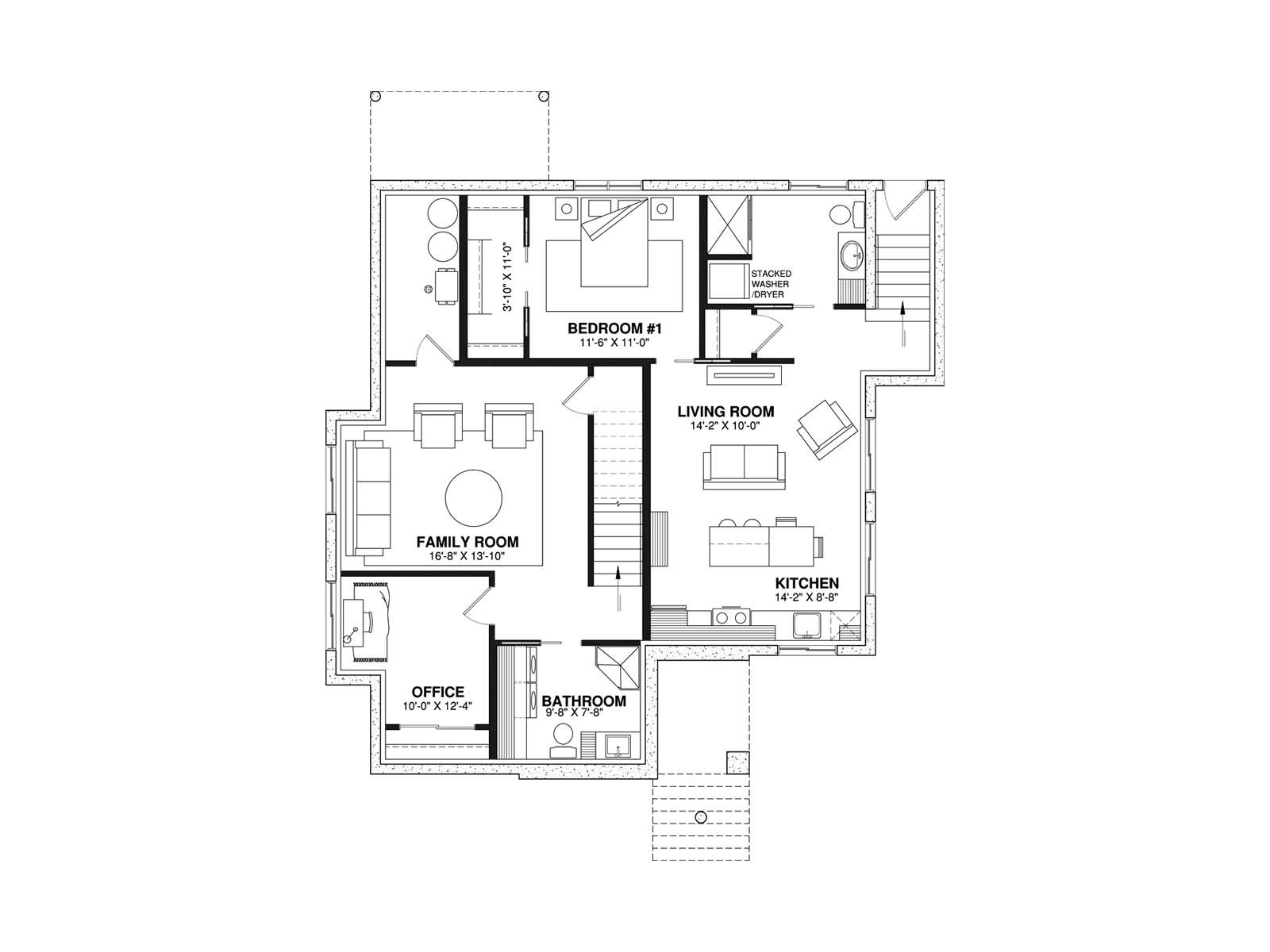

Private access leads to a compact but comfortable bachelor apartment in the basement
Ideal design for two separate families, but perfect for mom and dad and their college student who wants a little independence
Unit A: 1st floor – 1301 sf, Lower Level – 704 sf, Total 2005 sf, 2 bedrooms, 2 baths
Unit B: Lower Level/Bachelor Apartment – 664 sf Total, 1 bedroom, 1 bath
| Heated Square Feet | |
| First Floor | 1301 |
| Lower Level | 1368 |
| Total | 2669 |
| Width | 41 ft. 8 in. |
| Depth | 40 ft. 4 in. |
| Approximate Height | 25 ft. 5 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Lower Level | 8 ft. 0 in. |
| Roof Pitch | 10/12 Main |
| Roof Pitch | 6/12 Other |
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
Multi-family or multi-generational home plan features a main home and a bachelor apartment while presenting the outward appearance of a single-family home
The main home features an open floor plan with special extras like a kitchen island, walk-in pantry, and mud room
Private access leads to a compact but comfortable bachelor apartment in the basement
Ideal design for two separate families, but perfect for mom and dad and their college student who wants a little independence
Unit A: 1st floor – 1301 sf, Lower Level – 704 sf, Total 2005 sf, 2 bedrooms, 2 baths
Unit B: Lower Level/Bachelor Apartment – 664 sf Total, 1 bedroom, 1 bath
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | n/a | n/a | n/a | n/a |
| Priority 3 - 4 business days | $20 | $20 | $75 | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
