Four-Plex Design, 027M-0067

Plan 027M-0067
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

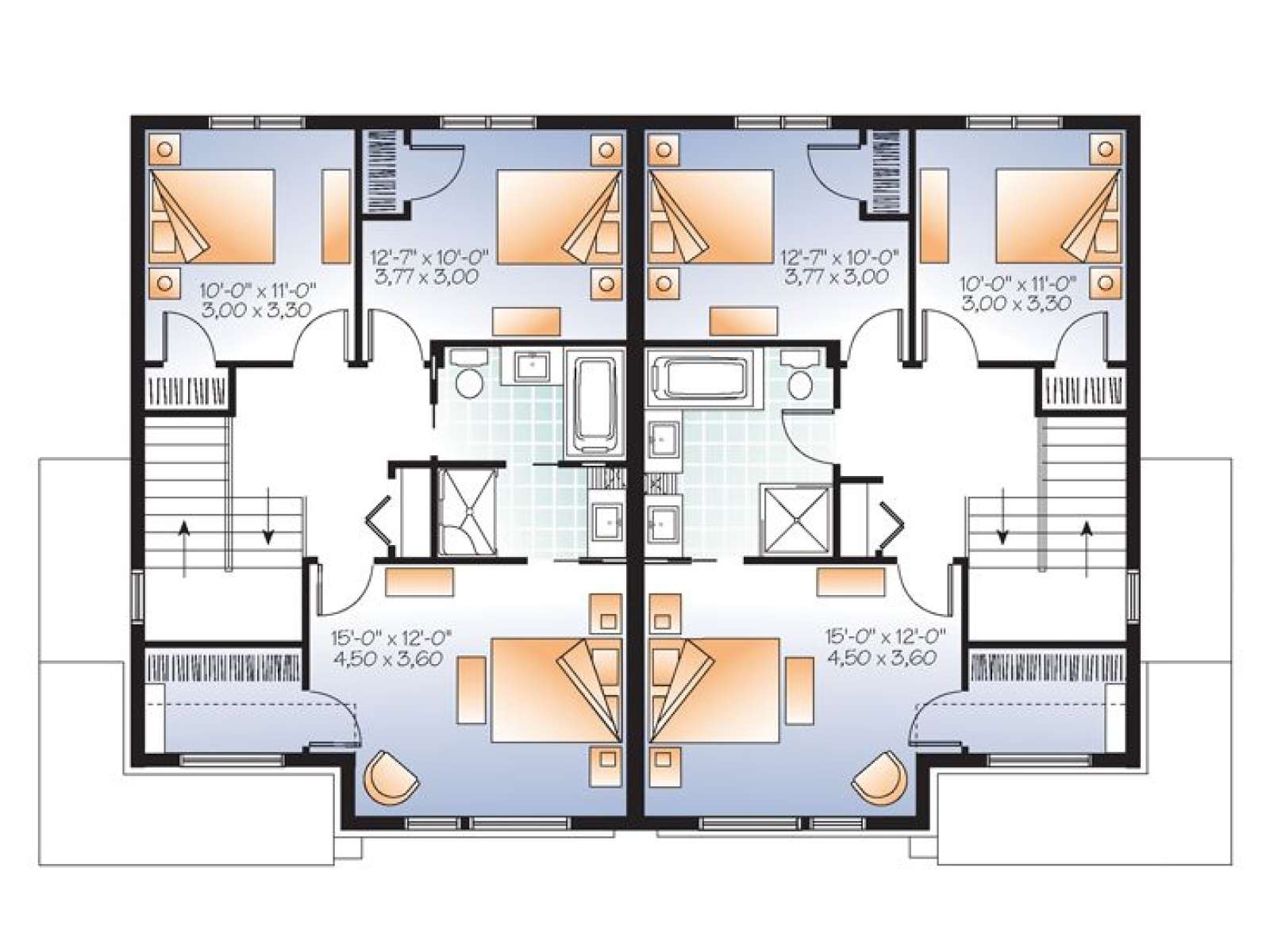

Units A & B (main and upper levels): 1st floor – 774 sf, 2nd floor – 797 sf, Total – 1571 sf, 3 bedrooms, 1.5 baths
Units C & D (lower level): 734 sf, 1 bedroom, 1 bath





Heated Square Feet
First Floor 1548
Second Floor 1594
Lower Level 1468
Total 4610
Width 48 ft. 8 in.
Depth 34 ft. 4 in.
Approximate Height 32 ft. 8 in.
Roof Framing
  • Truss
Foundation Options
  • Basement
  • Crawl Space
  • Floating/Stem Wall Slab
  • Monolithic Slab
Exterior Wall Options
  • 2x6
Interior Features
  • Laundry

Units A & B (main and upper levels): 1st floor – 774 sf, 2nd floor – 797 sf, Total – 1571 sf, 3 bedrooms, 1.5 baths
Units C & D (lower level): 734 sf, 1 bedroom, 1 bath





Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days n/a n/a n/a n/a
Priority 3 - 4 business days $20 $20 $75 n/a
Express 1 - 2 business days n/a n/a n/a n/a
Info

There are no reviews

View more
Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$2,810.00

Additional Options

Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are available for purchase within 90 days of the original purchase. [less] [more]

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] [more]
