Split-Level House Plan, 027H-0304
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

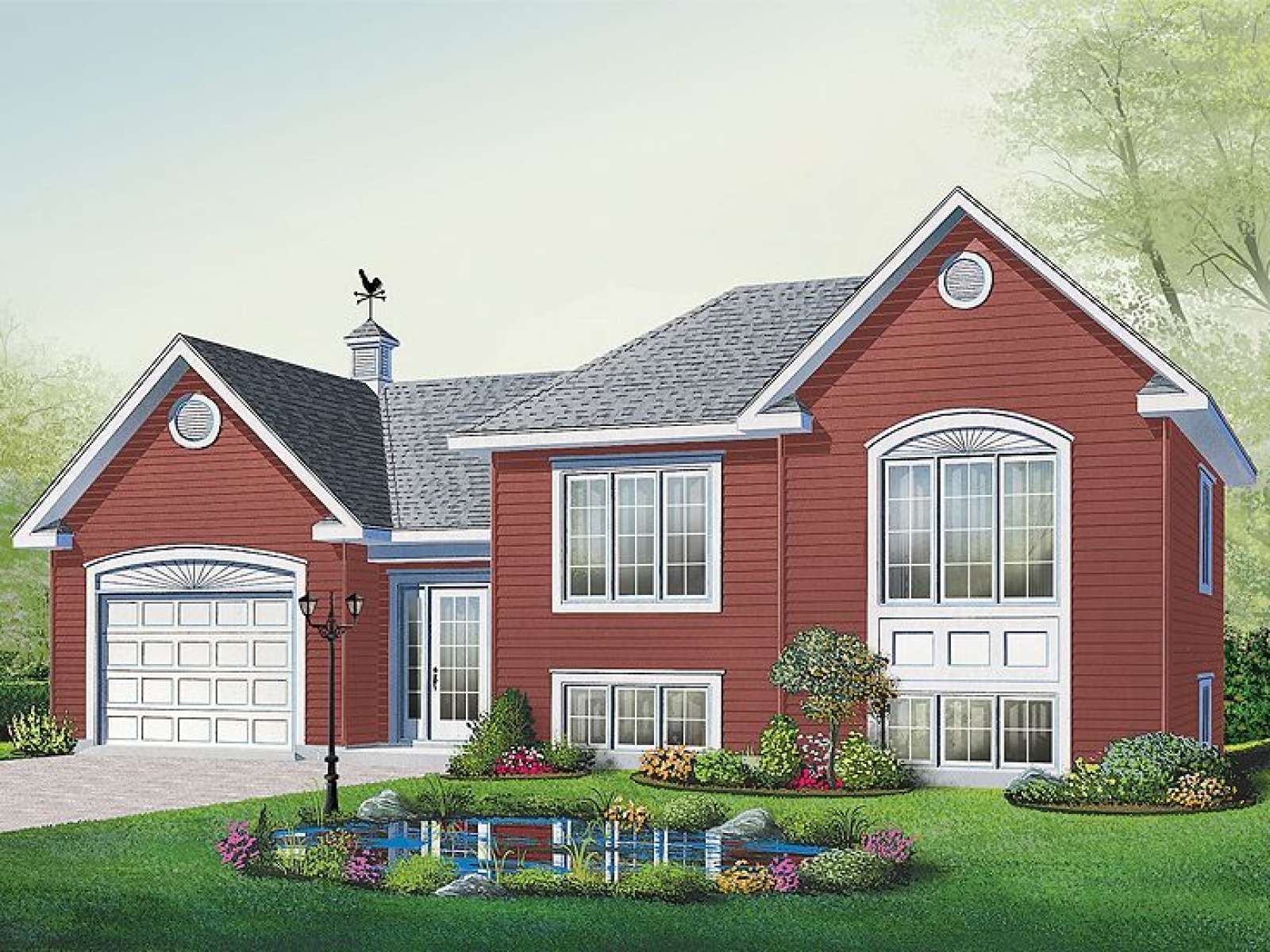

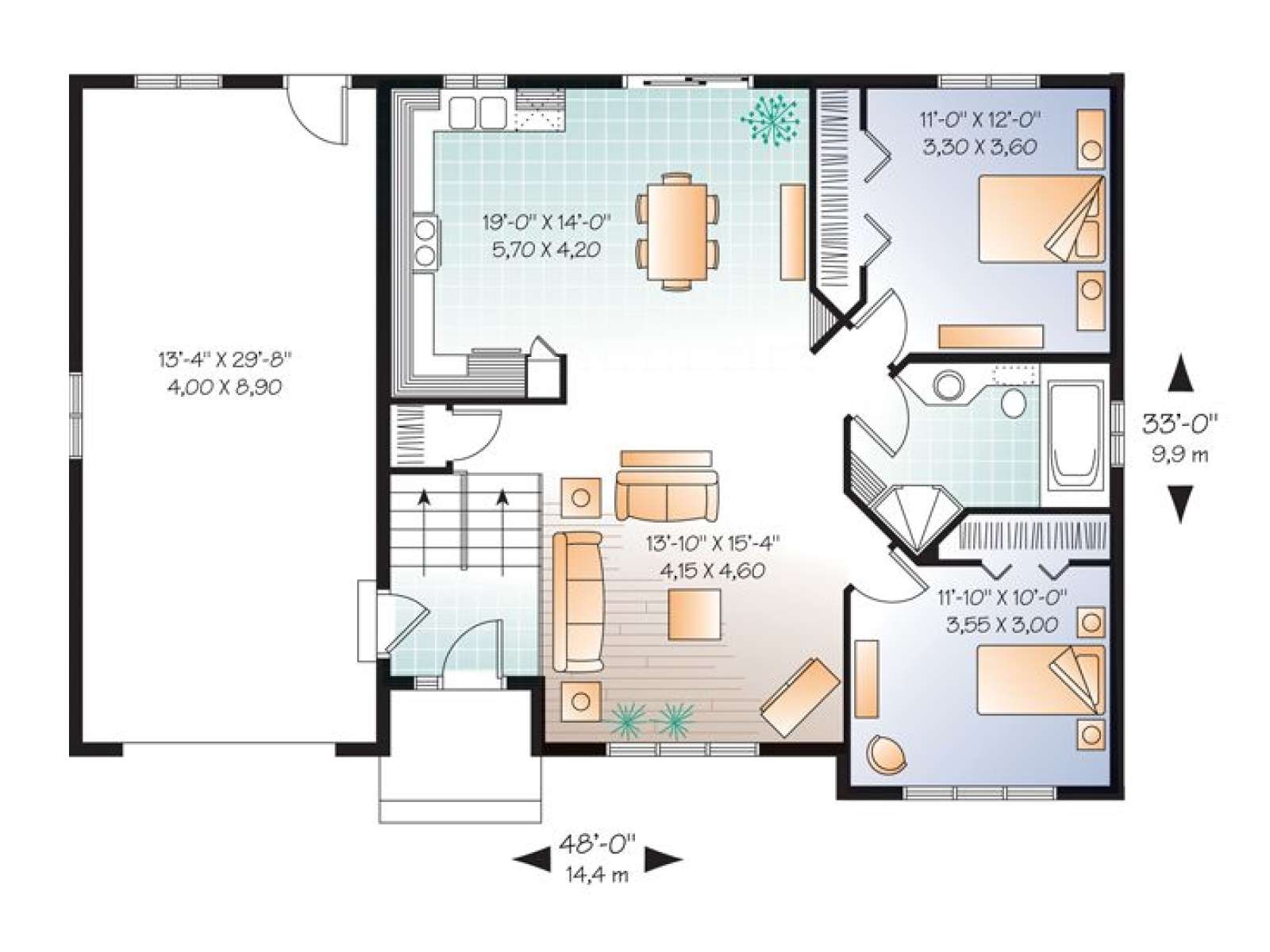

Here is a split-level ranch house plan with great architectural details. Notice how the treatment above the front windows is echoed above the attached tandem garage door. Who could resist mounting a weather vane atop the cupola? Although the front entrance is street level, you’ll find a split-foyer inside with access to both upper and lower levels. One side of the living area includes the great room and an eat-in kitchen. Two bedrooms on the other side are separated by a full bath that has space at the vanity for doing make-up. Notice the interesting placement of the interior doors at the corners of the rooms. Interesting to look at and comfortable to live in, this small and affordable home plan is a gem.
| Heated Square Feet | |
| First Floor | 1059 |
| Total | 1059 |
| Unheated Square Feet | |
| Garage | 436 |
| Bedrooms | 2 |
| Full Bathrooms | 1 |
| Width | 48 ft. 0 in. |
| Depth | 33 ft. 0 in. |
| Approximate Height | 21 ft. 1 in. |
| Ceiling Height | |
| First Floor | 8 ft. 0 in. |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Interior Features |
|
| Garage Features |
|
Here is a split-level ranch house plan with great architectural details. Notice how the treatment above the front windows is echoed above the attached tandem garage door. Who could resist mounting a weather vane atop the cupola? Although the front entrance is street level, you’ll find a split-foyer inside with access to both upper and lower levels. One side of the living area includes the great room and an eat-in kitchen. Two bedrooms on the other side are separated by a full bath that has space at the vanity for doing make-up. Notice the interesting placement of the interior doors at the corners of the rooms. Interesting to look at and comfortable to live in, this small and affordable home plan is a gem.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | n/a | n/a | n/a | n/a |
| Priority 3 - 4 business days | $20 | $20 | $75 | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
