Narrow Lot House Plan, 027H-0249
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

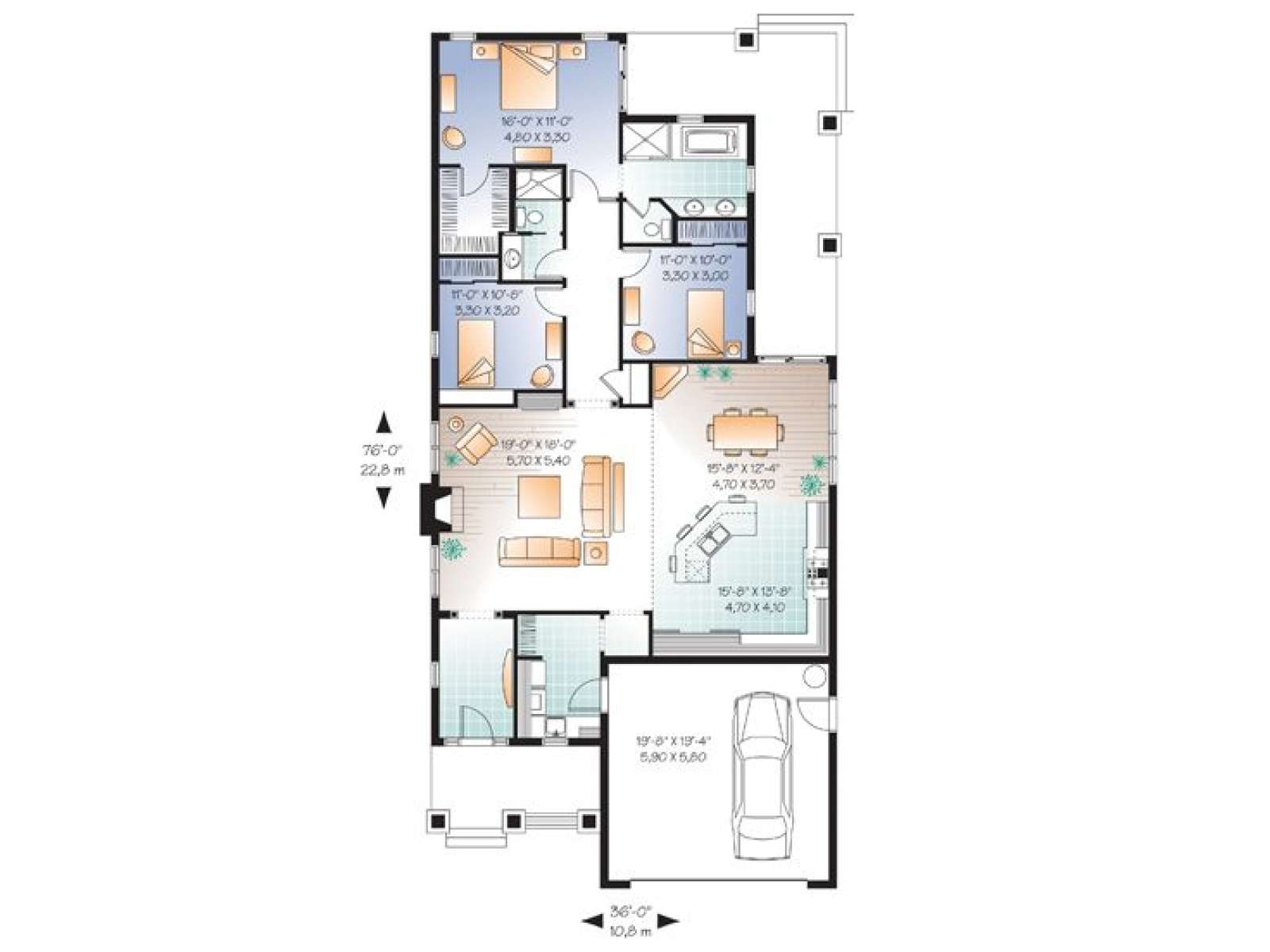

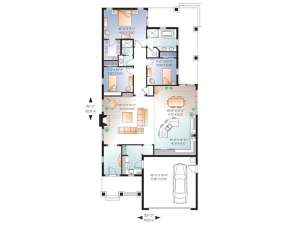

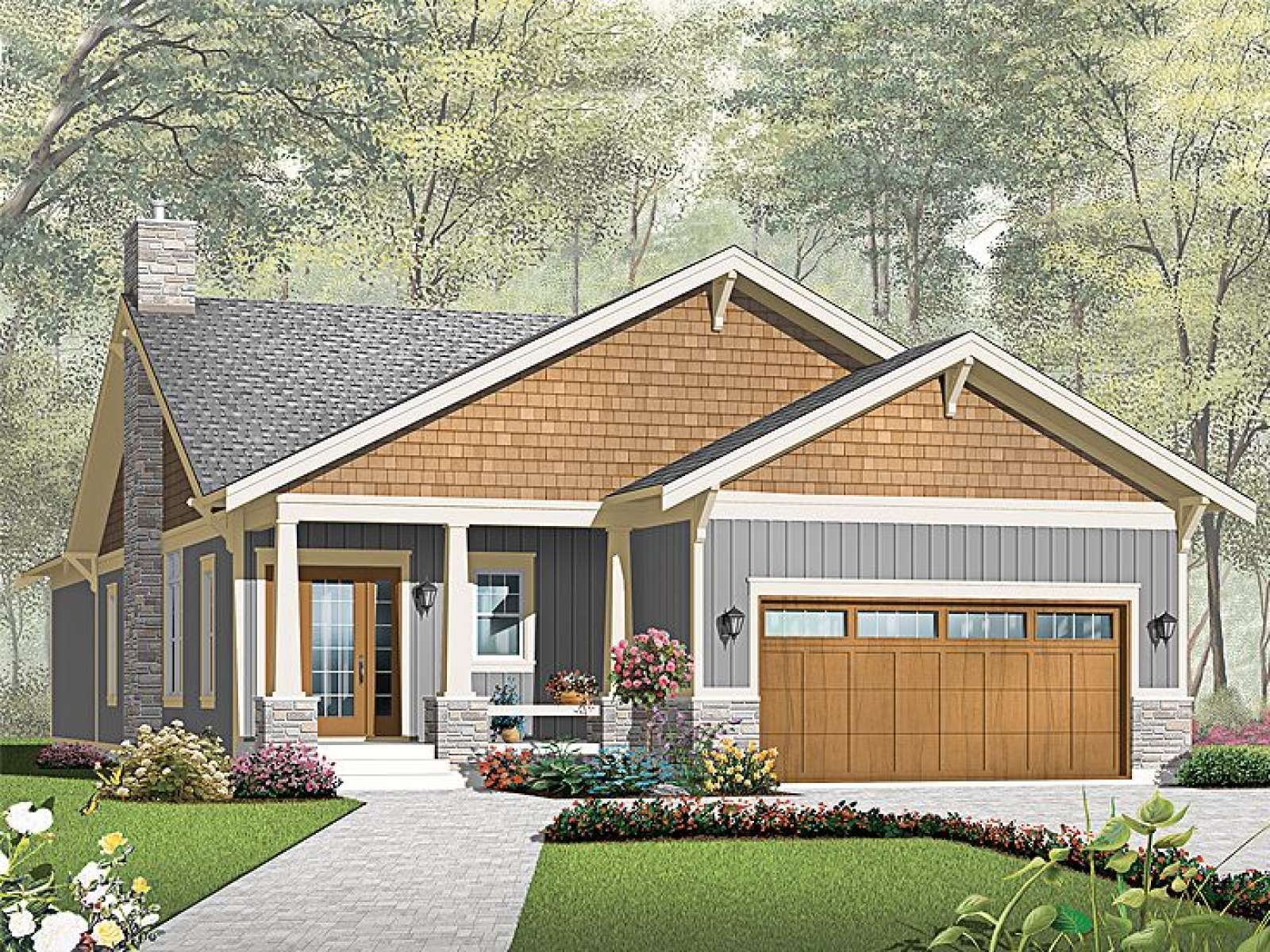

Challenged by the restrictions of a narrow lot? This Craftsman ranch home plan is family-friendly and comfortable all the while accommodating a long and lean piece of property. Beyond the covered front porch and foyer, the great room showcases a fireplace flanked with windows as it connects with the island kitchen and dining area. An abundance of windows fills the gathering spaces with cheerful sunlight. You’ll appreciate the eating bar, easy access to the laundry room and 2-car garage not to mention the rear porch, perfect for grilling. At the back of the home, three bedrooms are secluded for privacy. The children’s bedrooms offer ample closet space and share a hall bath. Your master retreat reveals a walk-in closet, refreshing bath and access to the rear porch. Well suited for today’s families and delivering some of today’s most requested features, this one-story narrow lot house plan packs quite a punch!
| Heated Square Feet | |
| First Floor | 1838 |
| Total | 1838 |
| Bedrooms | 3 |
| Full Bathrooms | 2 |
| Width | 36 ft. 0 in. |
| Depth | 76 ft. 0 in. |
| Approximate Height | 22 ft. 1 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
| Special Features |
|
| Garage Features |
|
Challenged by the restrictions of a narrow lot? This Craftsman ranch home plan is family-friendly and comfortable all the while accommodating a long and lean piece of property. Beyond the covered front porch and foyer, the great room showcases a fireplace flanked with windows as it connects with the island kitchen and dining area. An abundance of windows fills the gathering spaces with cheerful sunlight. You’ll appreciate the eating bar, easy access to the laundry room and 2-car garage not to mention the rear porch, perfect for grilling. At the back of the home, three bedrooms are secluded for privacy. The children’s bedrooms offer ample closet space and share a hall bath. Your master retreat reveals a walk-in closet, refreshing bath and access to the rear porch. Well suited for today’s families and delivering some of today’s most requested features, this one-story narrow lot house plan packs quite a punch!
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | n/a | n/a | n/a | n/a |
| Priority 3 - 4 business days | $20 | $20 | $75 | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
