Multi-Family Home Plan, 025M-0073

Plan 025M-0073
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

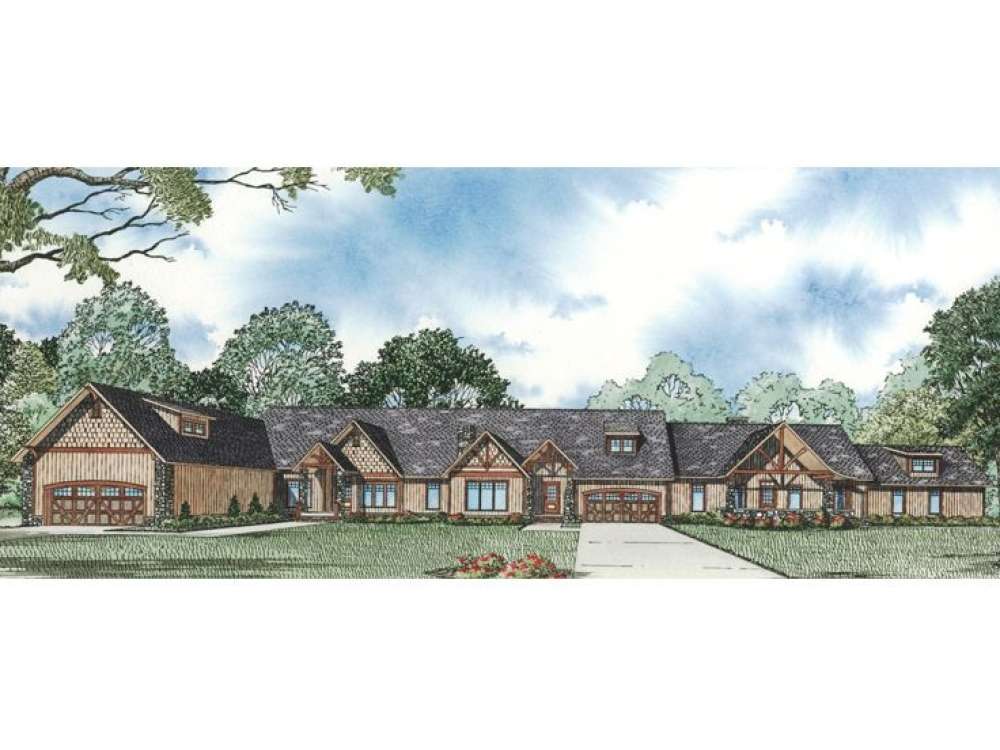

This triplex home plan offers three efficient and functional units, each with the comforts of a single-family home. For starters, each unit features three bedrooms and two baths. The master suites boast walk-in closets and deluxe baths equipped with whirlpool tubs. Open floor plans with the kitchens overlooking spacious the great rooms, serve as the centers of activity. Raised ceilings and rear porches extending the living areas contributing to an open and airy feel. Other thoughtful extras enhance each unit like bonus rooms, walk-in pantries, snack bars and fireplaces. Ideal for new families or retired couples, this multi-family house plan works well as investment property.
Unit 1: 2062 sf, Garage - 618 sf, Porches - 235 sf, Bonus Room - 412 sf, 3 bedrooms, 2 baths, 2-car garage
Unit 2: 2232 sf, Garage - 455 sf, Porches - 216 sf, Bonus Room - 514 sf, 3 bedrooms, 2 baths, 2-car garage
Unit 3: 2213 sf, Porches - 319 sf, 3 bedrooms, 2 baths, 2-car drive-under garage

Heated Square Feet
First Floor 6507
Total 6507
Unheated Square Feet
Bonus 926
Width 191 ft. 8 in.
Depth 80 ft. 8 in.
Approximate Height 26 ft. 7 in.
Ceiling Height
First Floor 9 ft. 0 in.
Second Floor 8 ft. 0 in.
Roof Pitch 10/12 Main
Roof Framing
  • Stick
Foundation Options
  • Crawl Space
  • Slab
Exterior Wall Options
  • 2x4
Bedroom Features
  • Walk-in closet
  • Split bedrooms
Interior Features
  • Vaulted/volume ceiling
  • Great room
  • Laundry
  • Open floor plan
Exterior Features
  • Covered front porch
Special Features
  • Fireplace/Woodstove
Garage Features
  • Two car

This triplex home plan offers three efficient and functional units, each with the comforts of a single-family home. For starters, each unit features three bedrooms and two baths. The master suites boast walk-in closets and deluxe baths equipped with whirlpool tubs. Open floor plans with the kitchens overlooking spacious the great rooms, serve as the centers of activity. Raised ceilings and rear porches extending the living areas contributing to an open and airy feel. Other thoughtful extras enhance each unit like bonus rooms, walk-in pantries, snack bars and fireplaces. Ideal for new families or retired couples, this multi-family house plan works well as investment property.
Unit 1: 2062 sf, Garage - 618 sf, Porches - 235 sf, Bonus Room - 412 sf, 3 bedrooms, 2 baths, 2-car garage
Unit 2: 2232 sf, Garage - 455 sf, Porches - 216 sf, Bonus Room - 514 sf, 3 bedrooms, 2 baths, 2-car garage
Unit 3: 2213 sf, Porches - 319 sf, 3 bedrooms, 2 baths, 2-car drive-under garage
