Duplex Home Design, 025M-0011
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

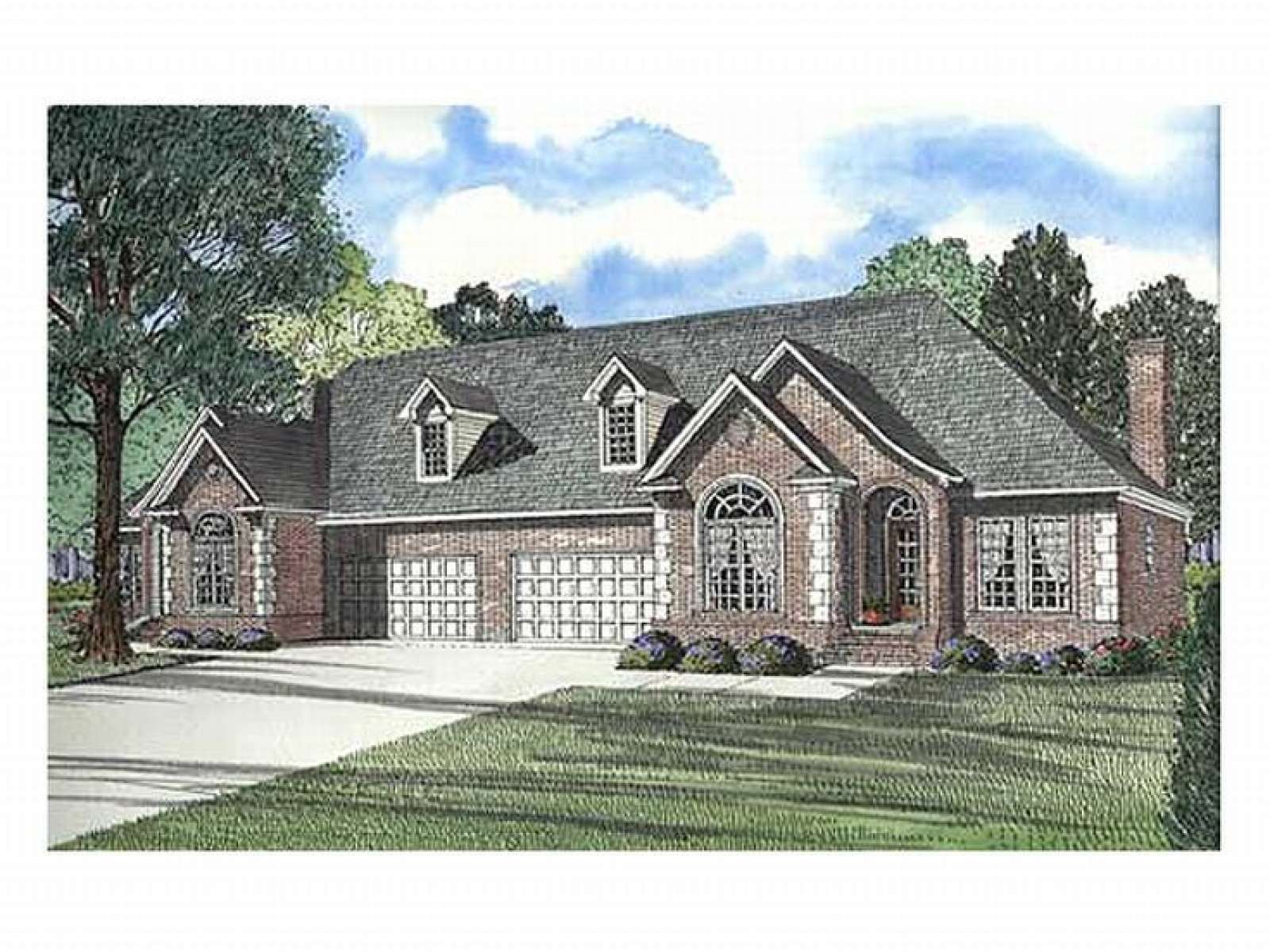

This elegant duplex home plan features large round top windows and tiered gables providing great street appeal. An arched porch welcomes you into a well designed split-level floor plan offering several family areas. The eating bar and pantry add functionality and convenience in the kitchen. The breakfast and formal dining rooms are at the front of the house leaving the great room and master suite much appreciated privacy in the rear. A large laundry room is centrally located for added convenience. Upstairs you’ll find a full bathroom and two additional bedrooms with creative ceilings heights. A two-car front entry garage completes this multi-family house plan.

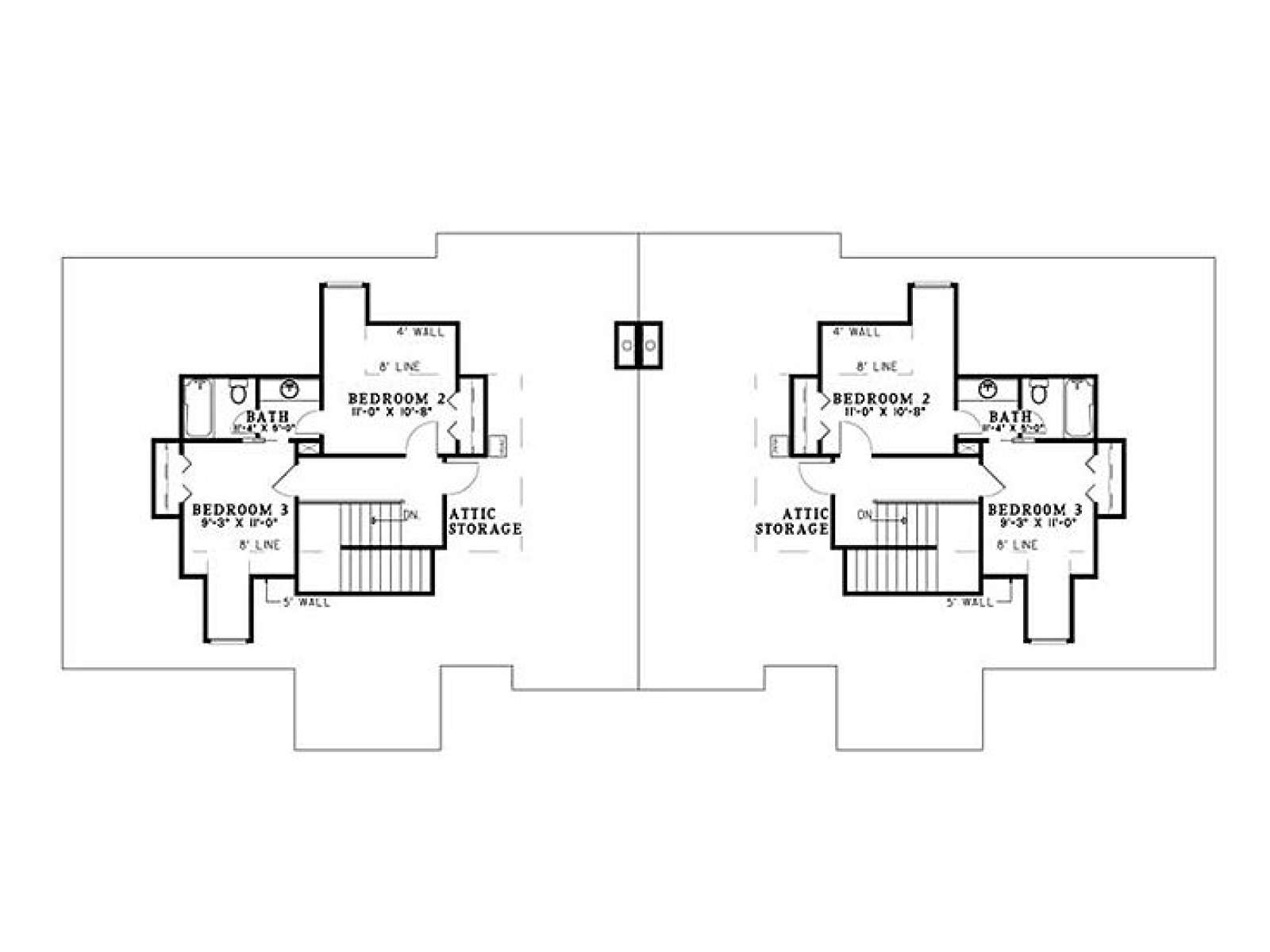

Units A & B: 1st Floor - 1369 sf, 2nd Floor – 441 sf, Total – 1810 sf, 3 bedrooms, 2 ½ bathrooms, 2-car garage
| Heated Square Feet | |
| First Floor | 2738 |
| Second Floor | 882 |
| Total | 3620 |
| Width | 96 ft. 0 in. |
| Depth | 43 ft. 0 in. |
| Approximate Height | 27 ft. 0 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 10/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
| Special Features |
|
| Garage Features |
|
This elegant duplex home plan features large round top windows and tiered gables providing great street appeal. An arched porch welcomes you into a well designed split-level floor plan offering several family areas. The eating bar and pantry add functionality and convenience in the kitchen. The breakfast and formal dining rooms are at the front of the house leaving the great room and master suite much appreciated privacy in the rear. A large laundry room is centrally located for added convenience. Upstairs you’ll find a full bathroom and two additional bedrooms with creative ceilings heights. A two-car front entry garage completes this multi-family house plan.
Units A & B: 1st Floor - 1369 sf, 2nd Floor – 441 sf, Total – 1810 sf, 3 bedrooms, 2 ½ bathrooms, 2-car garage
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $65 | n/a | n/a | n/a |
| Express 1 - 2 business days | $85 | n/a | n/a | n/a |
