Multi-Family House Plan, 021M-0016
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

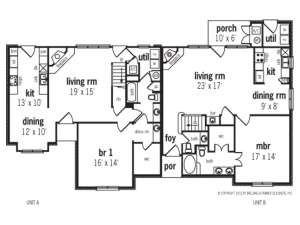

This stylish duplex will blend in with any neighborhood offering elegant street appeal. Each unit enjoys a spacious living room warmed by a corner fireplace, a main floor bedroom with large walk-in closet and bathroom access, efficient kitchen, and laundry facilities. This multi-family house plan provides two different floor plans designed for family living.
Unit A: 1st Floor - 1097 sf, 2nd Floor – 541 sf, Total – 1638 sf, 2 bedrooms, 2 baths
Unit B: 1st Floor - 1087 sf, 2nd Floor – 616 sf, Total – 1703 sf, 3 bedrooms, 2 ½ baths
| Heated Square Feet | |
| First Floor | 2184 |
| Second Floor | 1157 |
| Total | 3341 |
| Width | 70 ft. 0 in. |
| Depth | 41 ft. 0 in. |
| Approximate Height | 34 ft. 0 in. |
| Ceiling Height | |
| First Floor | 8 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 10/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
| Special Features |
|
This stylish duplex will blend in with any neighborhood offering elegant street appeal. Each unit enjoys a spacious living room warmed by a corner fireplace, a main floor bedroom with large walk-in closet and bathroom access, efficient kitchen, and laundry facilities. This multi-family house plan provides two different floor plans designed for family living.
Unit A: 1st Floor - 1097 sf, 2nd Floor – 541 sf, Total – 1638 sf, 2 bedrooms, 2 baths
Unit B: 1st Floor - 1087 sf, 2nd Floor – 616 sf, Total – 1703 sf, 3 bedrooms, 2 ½ baths
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $30 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $40 | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
