Duplex House Plan, 020M-0007
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

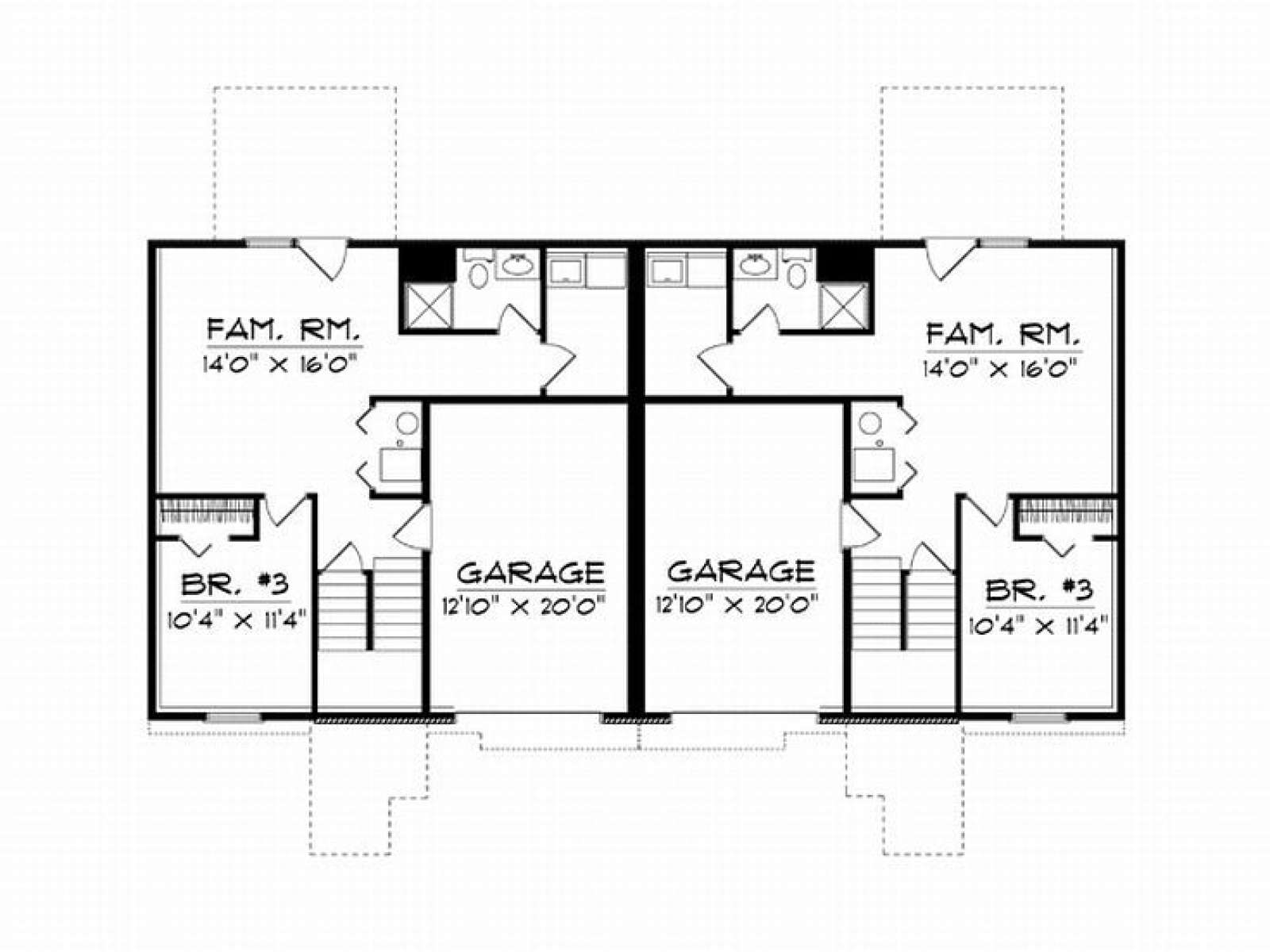

Ideal for a sloping lot, this split-level duplex design offers comfort and livability. Inside, a galley-style kitchen overlooks the combined dining and living rooms creating an open floor plan. A wood deck provides an outdoor space to relax at the end of the day. Two bedrooms share a hall bath on the main level. On the lower level, a large family room creates and ideal space for family activities. Another bedroom and bathroom, laundry facilities and a one-car garage complete this level. This multi-family house plan is perfect for rental property.
Units A & B: 1st Floor - 950 sf, Lower Level – 593 sf, Total – 1543 sf, 3 bedrooms, 2 baths, 1-Car Garage – 263 sf
| Heated Square Feet | |
| First Floor | 1900 |
| Lower Level | 1186 |
| Total | 3086 |
| Width | 61 ft. 4 in. |
| Depth | 32 ft. 0 in. |
| Approximate Height | 27 ft. 5 in. |
| Roof Pitch | 8/12 Main |
| Roof Pitch | 6/12 Secondary |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
| Garage Features |
|
Ideal for a sloping lot, this split-level duplex design offers comfort and livability. Inside, a galley-style kitchen overlooks the combined dining and living rooms creating an open floor plan. A wood deck provides an outdoor space to relax at the end of the day. Two bedrooms share a hall bath on the main level. On the lower level, a large family room creates and ideal space for family activities. Another bedroom and bathroom, laundry facilities and a one-car garage complete this level. This multi-family house plan is perfect for rental property.
Units A & B: 1st Floor - 950 sf, Lower Level – 593 sf, Total – 1543 sf, 3 bedrooms, 2 baths, 1-Car Garage – 263 sf
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $45 | $100 | $100 | n/a |
| Priority 3 - 4 business days | $60 | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
