Craftsman Home Design, 020H-0163
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

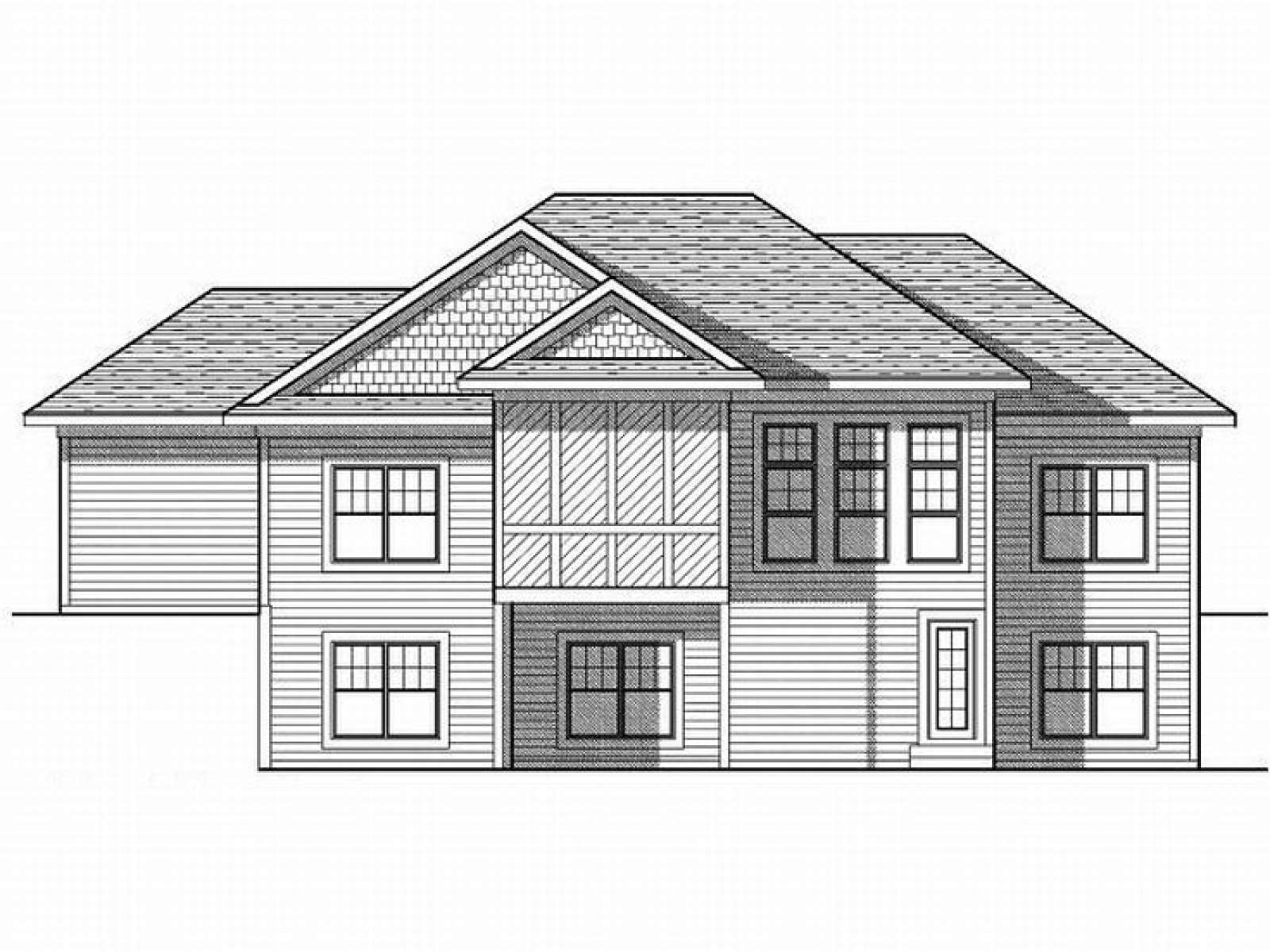

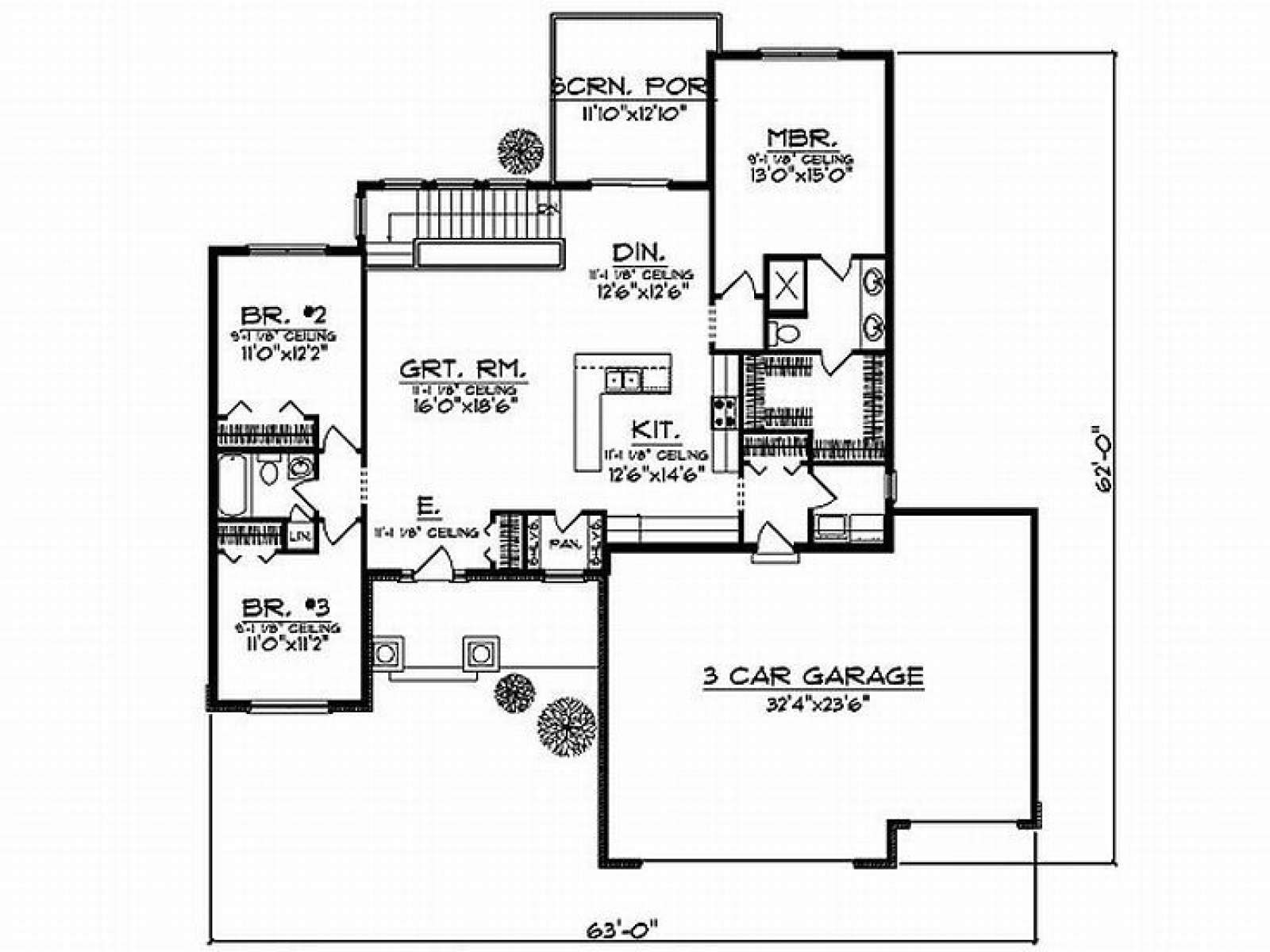

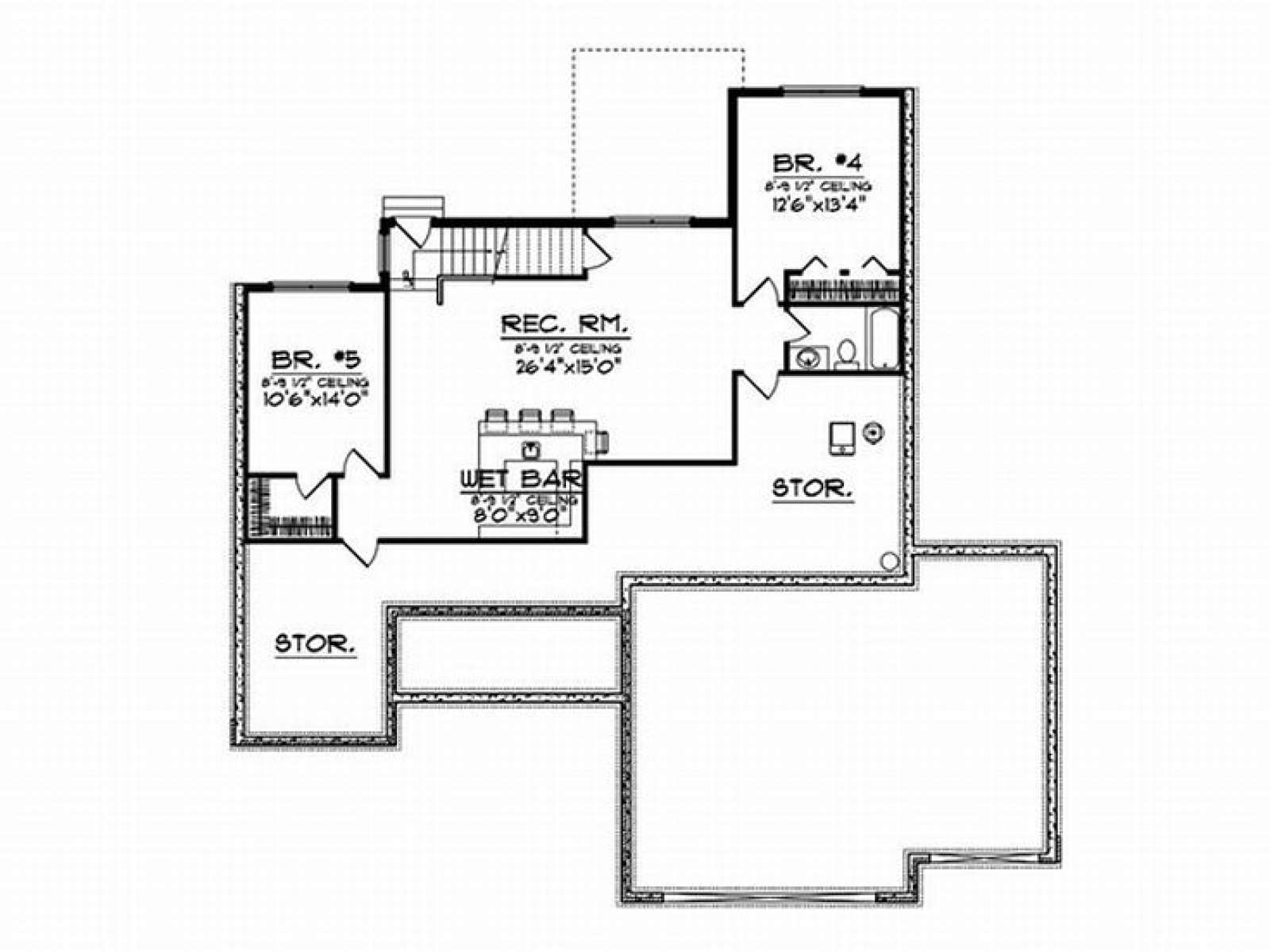

Designed on a walkout basement, this ranch home plan is perfect for a sloping lot. The covered front porch opens to a roomy entry with dramatic 11’ ceiling and introduces the open floor plan. Boasting a walk-in pantry, the kitchen combines with the comfortable dining area and great room with radiant fireplace creating a spacious living area, all beneath an 11’ ceiling. Beams of sunlight shine thru the atrium window wall brightening the living areas and bringing the outdoors in. A screened porch extends the living areas outdoors, ideal for evening conversation with neighbors. Split bedrooms provide privacy to the master bedroom sporting a private bath and walk-in closet. Ample closet space enhances the secondary bedrooms as they share a hall bath. Downstairs, ample closet space accommodates Bedrooms 4 and 5 as they share a full bath. Ideal for get-togethers, the spacious rec room provides room for the kids to roam and plenty of space for socializing with a full-featured wet bar. A triple-car garage rounds out this Craftsman house plan offering comfortable living with a classy twist.
| Heated Square Feet | |
| First Floor | 1720 |
| Lower Level | 996 |
| Total | 2716 |
| Unheated Square Feet | |
| Garage | 792 |
| Bedrooms | 5 |
| Full Bathrooms | 3 |
| Width | 63 ft. 0 in. |
| Depth | 62 ft. 0 in. |
| Approximate Height | 21 ft. 11 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Roof Pitch | 8/12 Main |
| Roof Pitch | 6/12 Other |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
| Special Features |
|
| Garage Features |
|
Designed on a walkout basement, this ranch home plan is perfect for a sloping lot. The covered front porch opens to a roomy entry with dramatic 11’ ceiling and introduces the open floor plan. Boasting a walk-in pantry, the kitchen combines with the comfortable dining area and great room with radiant fireplace creating a spacious living area, all beneath an 11’ ceiling. Beams of sunlight shine thru the atrium window wall brightening the living areas and bringing the outdoors in. A screened porch extends the living areas outdoors, ideal for evening conversation with neighbors. Split bedrooms provide privacy to the master bedroom sporting a private bath and walk-in closet. Ample closet space enhances the secondary bedrooms as they share a hall bath. Downstairs, ample closet space accommodates Bedrooms 4 and 5 as they share a full bath. Ideal for get-togethers, the spacious rec room provides room for the kids to roam and plenty of space for socializing with a full-featured wet bar. A triple-car garage rounds out this Craftsman house plan offering comfortable living with a classy twist.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $65 | $115 | $115 | n/a |
| Priority 3 - 4 business days | $75 | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
