1-Story House, 020H-0047
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

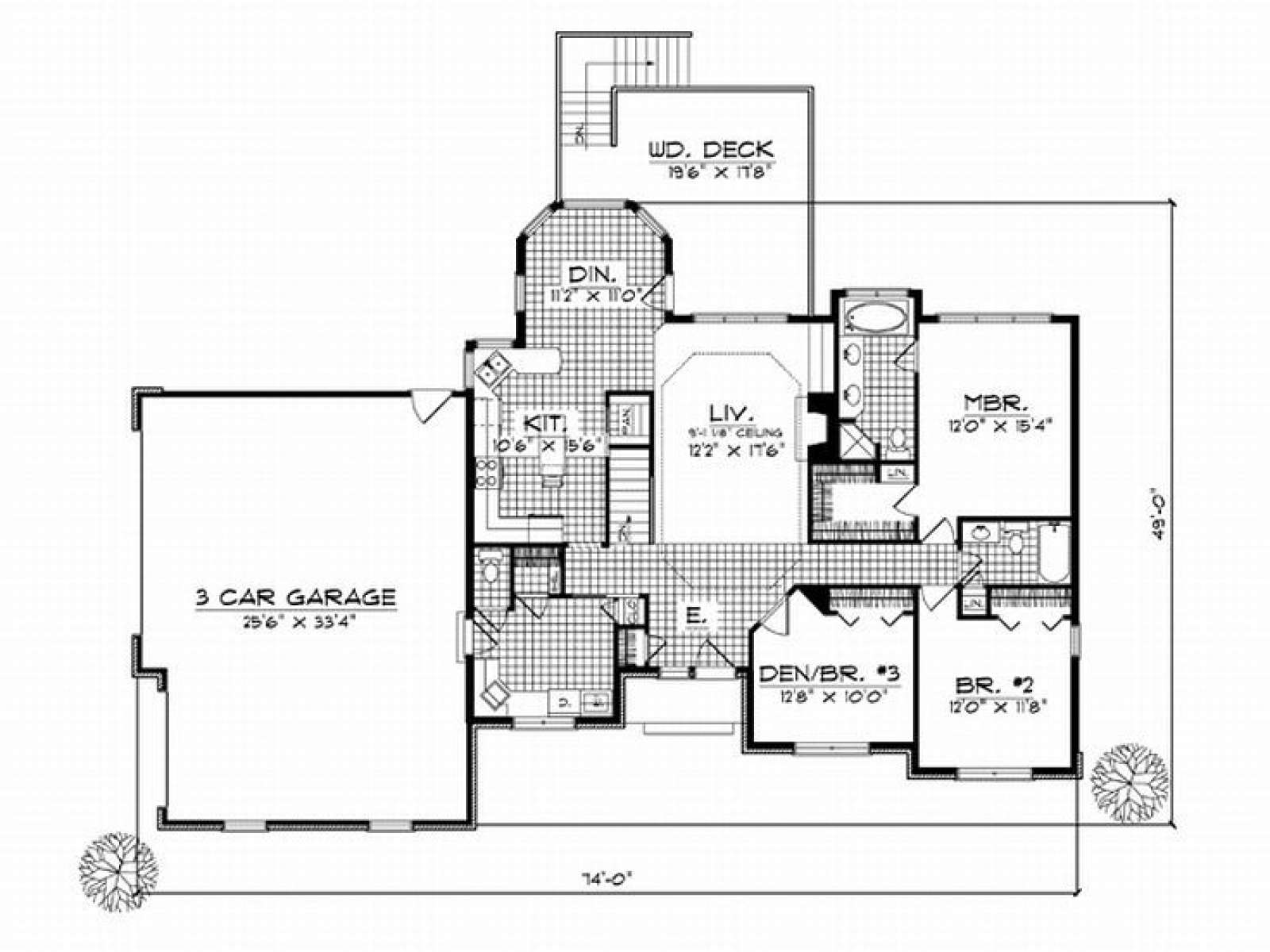

Brick quoins and stone keys above the double hung windows highlight this splendid ranch house plan. The open floor plan of this small and affordable design makes it easy to access any room in the house. The large living room houses a cozy fireplace and bright windows that overlook the rear deck while the island kitchen is open to the dining area. Quiet and cozy, the den offers the ideal space for a home office and easily converts to an extra bedroom. The master suite is perfect for relaxing and features a private bath with whirlpool tub and a spacious walk-in closet. Bedroom 2 enjoys ample closet space and accesses the hall bath. Your family will appreciate the convenient 3-car garage and extra-large laundry area. Decked with traditional charm and a practical layout, this ranch home plan is sure to please you.
| Heated Square Feet | |
| First Floor | 1700 |
| Total | 1700 |
| Unheated Square Feet | |
| Garage | 850 |
| Bedrooms | 2 |
| Full Bathrooms | 2 |
| Width | 74 ft. 0 in. |
| Depth | 49 ft. 0 in. |
| Approximate Height | 24 ft. 4 in. |
| Ceiling Height | |
| First Floor | 8 ft. 0 in. |
| Roof Pitch | 9/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
| Special Features |
|
| Garage Features |
|
Brick quoins and stone keys above the double hung windows highlight this splendid ranch house plan. The open floor plan of this small and affordable design makes it easy to access any room in the house. The large living room houses a cozy fireplace and bright windows that overlook the rear deck while the island kitchen is open to the dining area. Quiet and cozy, the den offers the ideal space for a home office and easily converts to an extra bedroom. The master suite is perfect for relaxing and features a private bath with whirlpool tub and a spacious walk-in closet. Bedroom 2 enjoys ample closet space and accesses the hall bath. Your family will appreciate the convenient 3-car garage and extra-large laundry area. Decked with traditional charm and a practical layout, this ranch home plan is sure to please you.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $65 | $115 | $115 | n/a |
| Priority 3 - 4 business days | $75 | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
