1-Story House Plan, 016H-0016
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

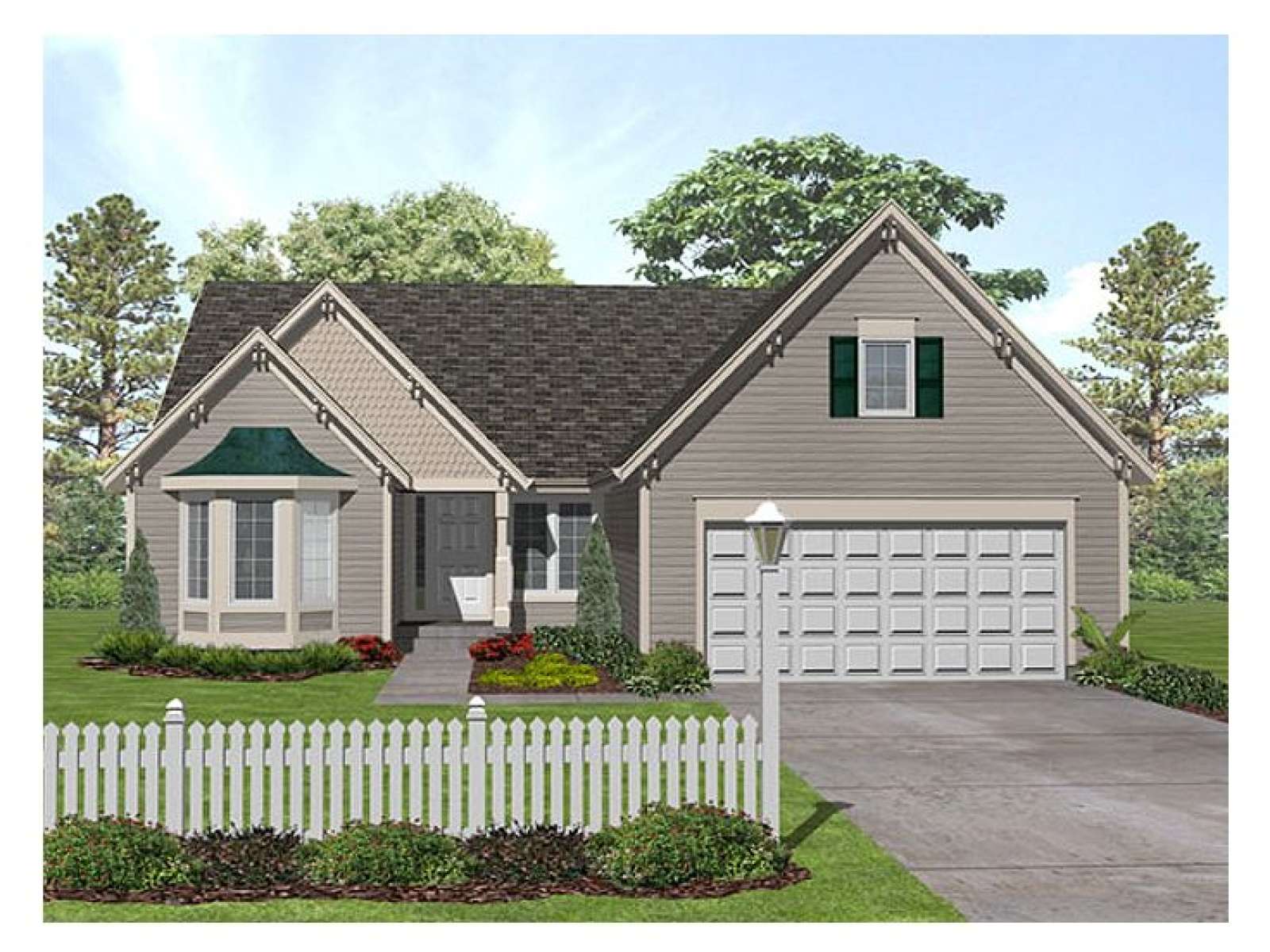

Quaint detailing lends to Victorian flair with this ranch home plan. Inside, windows brighten the living and dining rooms. The den serves as a quiet space for reading. The kitchen with sprawling island, bayed breakfast nook and cozy family room enjoy the open floor plan, perfect for entertaining. A laundry alcove is situated near the bedrooms and accesses the two-car garage. A recessed ceiling, walk-in closet and deluxe bath, complete with splashy whirlpool tub, double bowl vanity and separate shower enhance the master retreat. Modest in size, this single story home plan is sure to surprise you.
| Heated Square Feet | |
| First Floor | 1913 |
| Total | 1913 |
| Bedrooms | 3 |
| Full Bathrooms | 2 |
| Width | 46 ft. 0 in. |
| Depth | 65 ft. 0 in. |
| Approximate Height | 22 ft. 10 in. |
| Ceiling Height | |
| First Floor | 8 ft. 0 in. |
| Roof Pitch | Main 8/12 |
| Roof Pitch | Front Gable 12/12 |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
| Special Features |
|
| Garage Features |
|
Quaint detailing lends to Victorian flair with this ranch home plan. Inside, windows brighten the living and dining rooms. The den serves as a quiet space for reading. The kitchen with sprawling island, bayed breakfast nook and cozy family room enjoy the open floor plan, perfect for entertaining. A laundry alcove is situated near the bedrooms and accesses the two-car garage. A recessed ceiling, walk-in closet and deluxe bath, complete with splashy whirlpool tub, double bowl vanity and separate shower enhance the master retreat. Modest in size, this single story home plan is sure to surprise you.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | n/a | n/a | n/a | n/a |
| Priority 3 - 4 business days | n/a | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
