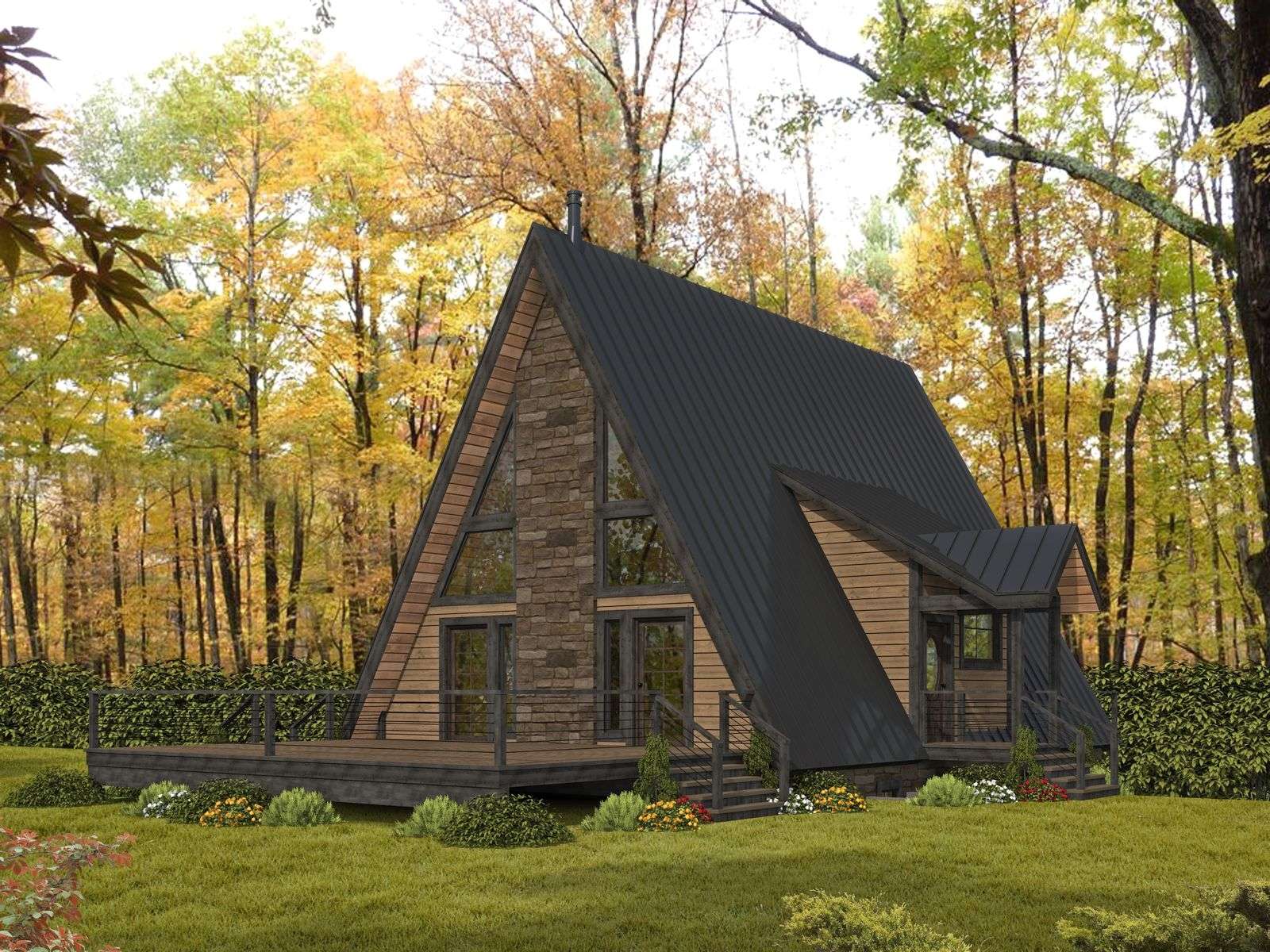

A-Frame House Plan, 012H-0343

Reverse All Images

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

Listed overall dimensions include the porches
Overall dimensions without the porches are 32’-8”x40’
First floor ceiling slopes up from 8’ to 24’-6”
Second floor ceiling slopes up from 8’ to 15’-6”
Front and rear wall framing is 2x6, side walls are SIPS
The roof framing is a combination of stick framing and SIPS

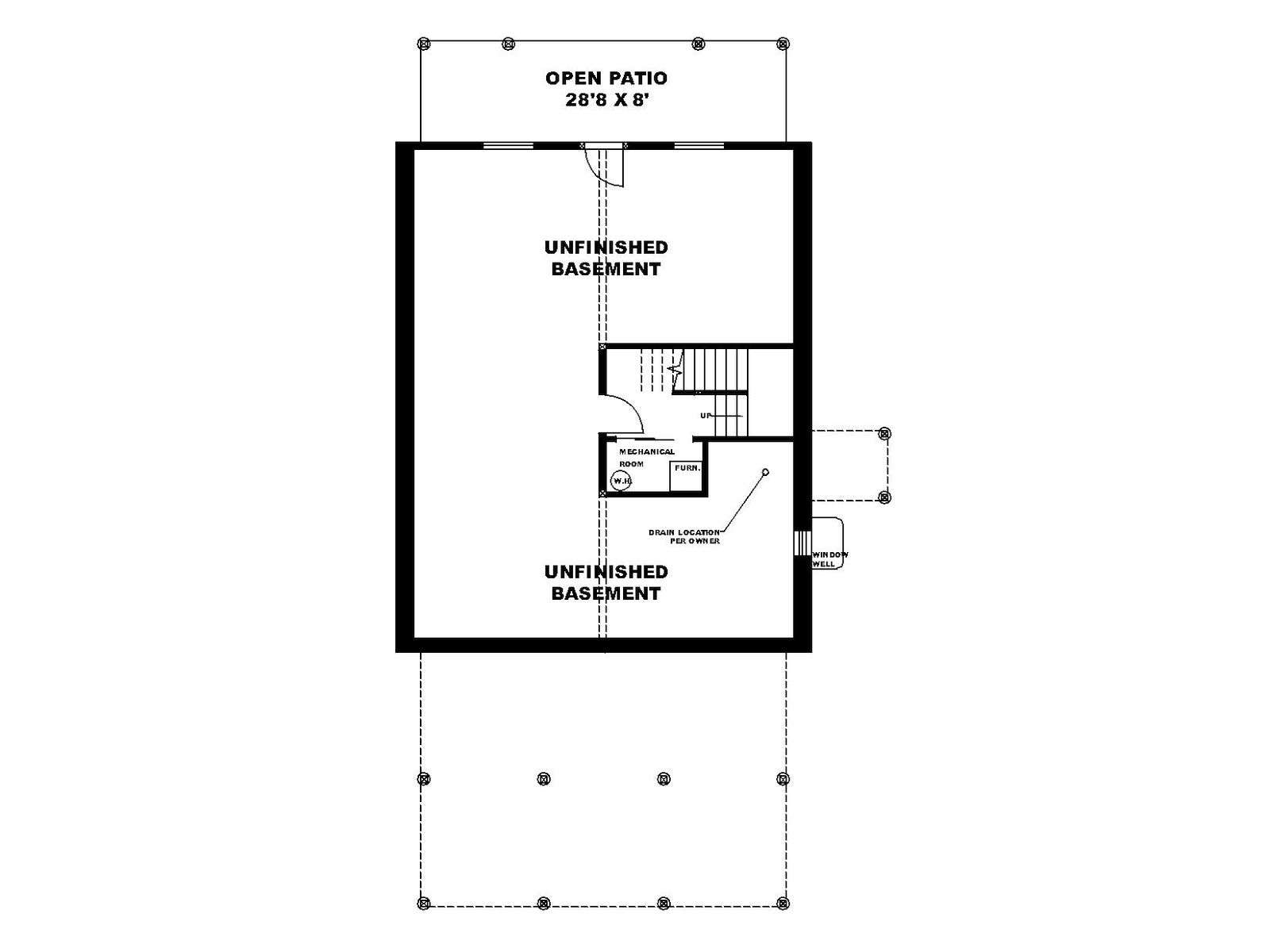

Other/Unfinished basement: 1307 sf

Heated Square Feet

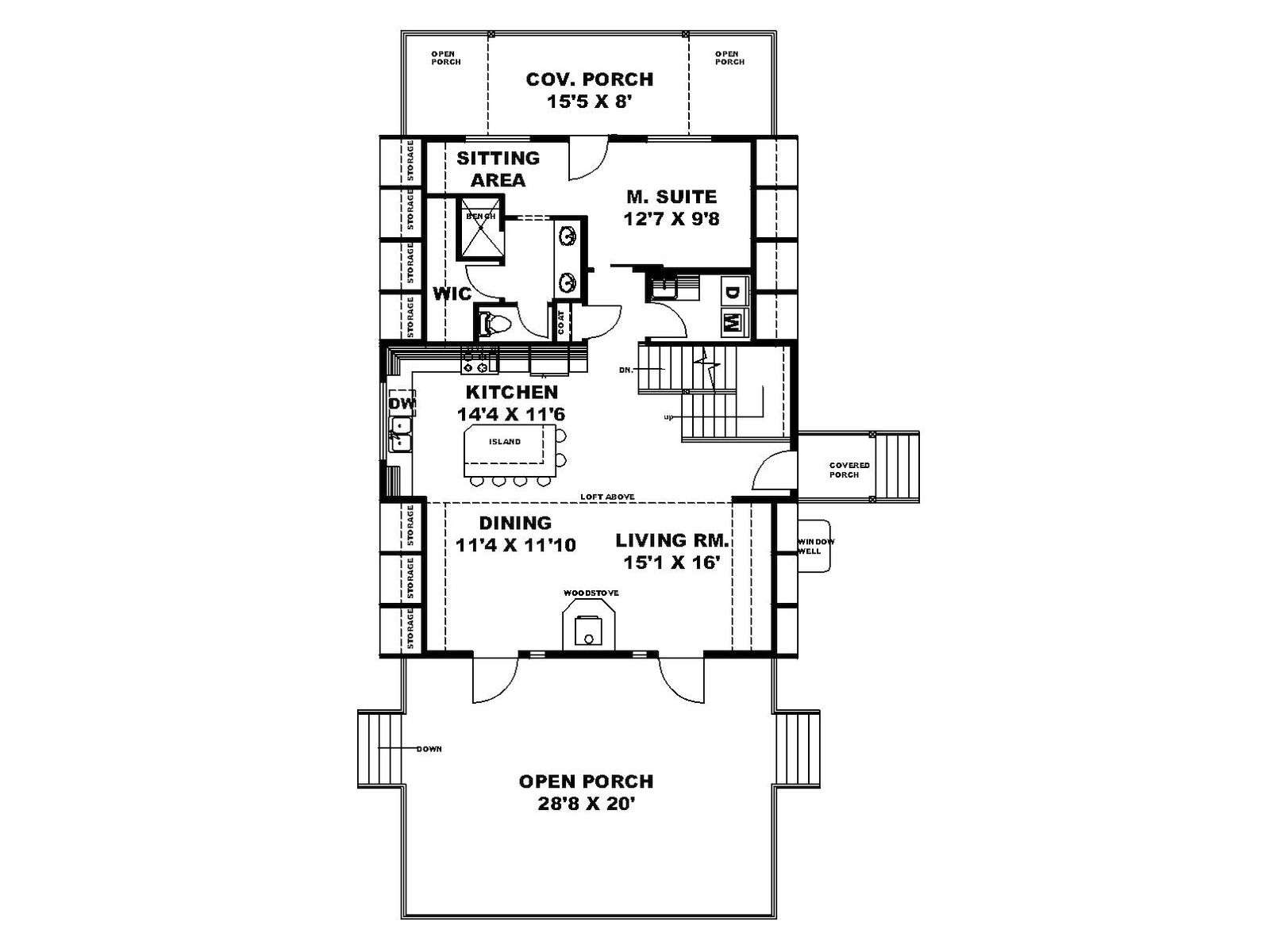

First Floor	1190

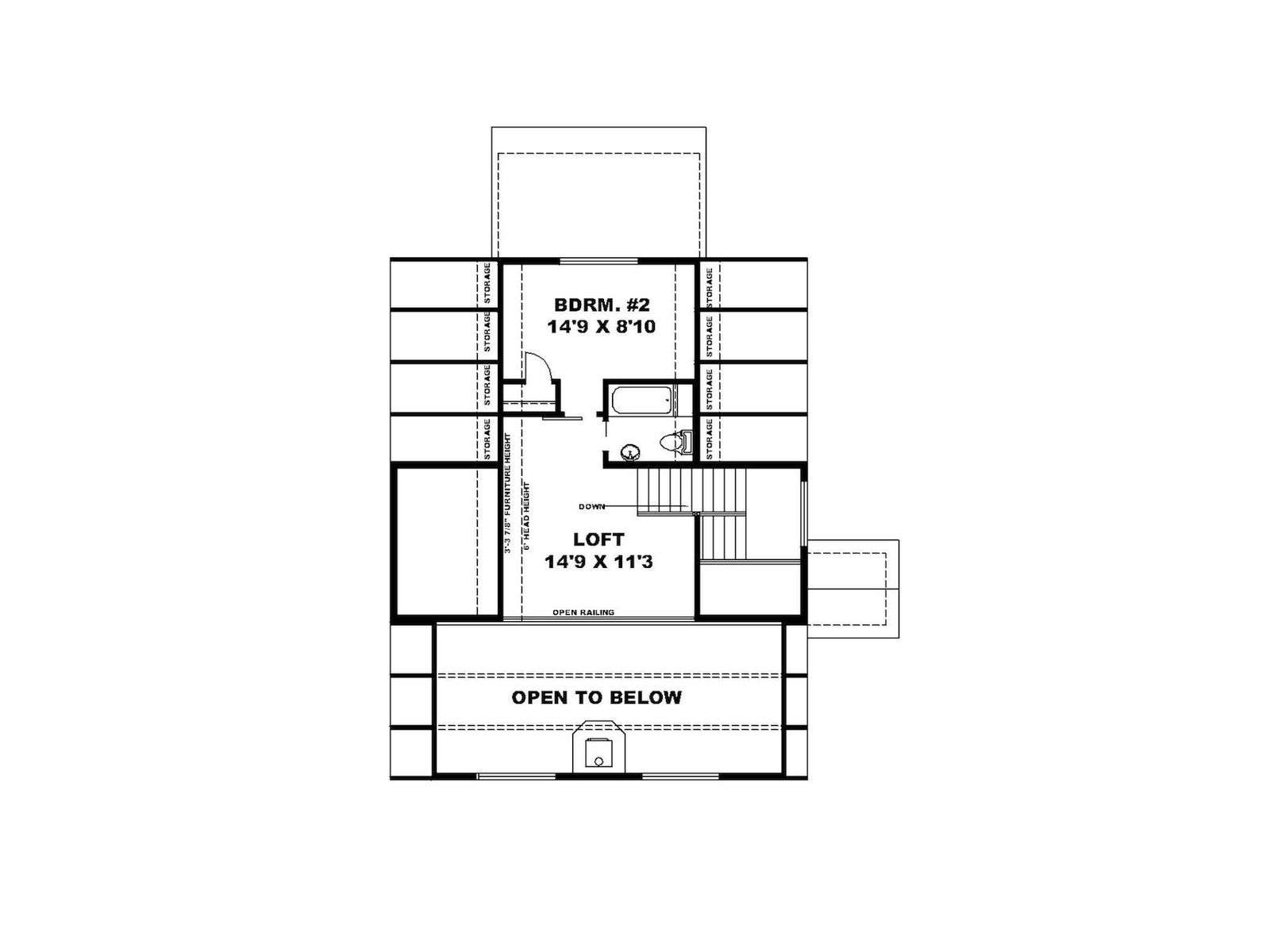

Second Floor	437
Total	1627
Unheated Square Feet
Other	1307
Bedrooms	2
Full Bathrooms	2
Width	38 ft. 0 in.
Depth	68 ft. 0 in.
Approximate Height	31 ft. 3 in.
Ceiling Height
First Floor	8 ft. 0 in.
Second Floor	8 ft. 0 in.
Lower Level	8 ft. 0 in.
Roof Pitch	21/12 Main
Roof Pitch	7/12 Other
Roof Pitch	12/12 Other
Roof Framing	N/A
Foundation Options	Walkout Basement
Exterior Wall Options	Other

Kitchen Features	Eating/Snack bar Island
Bedroom Features	Sitting area Walk-in closet Main floor master bedroom
Interior Features	Open floor plan Vaulted/volume ceiling Loft/balcony Laundry
Exterior Features	Covered rear porch Covered side porch
Special Features	Fireplace/Woodstove

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	$30	n/a	n/a	n/a
Priority 3 - 4 business days	n/a	n/a	n/a	n/a
Express 1 - 2 business days	n/a	n/a	n/a	n/a

There are no reviews

Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Additional Set for Plan 012H-0343: $50.00 ea.

Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets are available for purchase within 90 days of the original house plan purchase. [less] …[more]

Right Reading Reverse for Plan 012H-0343: $195.00

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]
