Northwest House Plan, 012H-0331

Plan 012H-0331
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

Great room ceiling vaults to 25’-9”

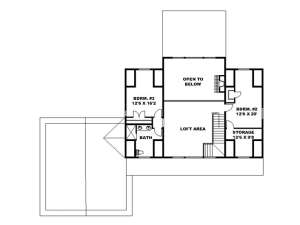

Second floor ceiling slopes up from 6’ to 14’-8”
Listed overall depth includes deck
Overall depth without deck is 53’

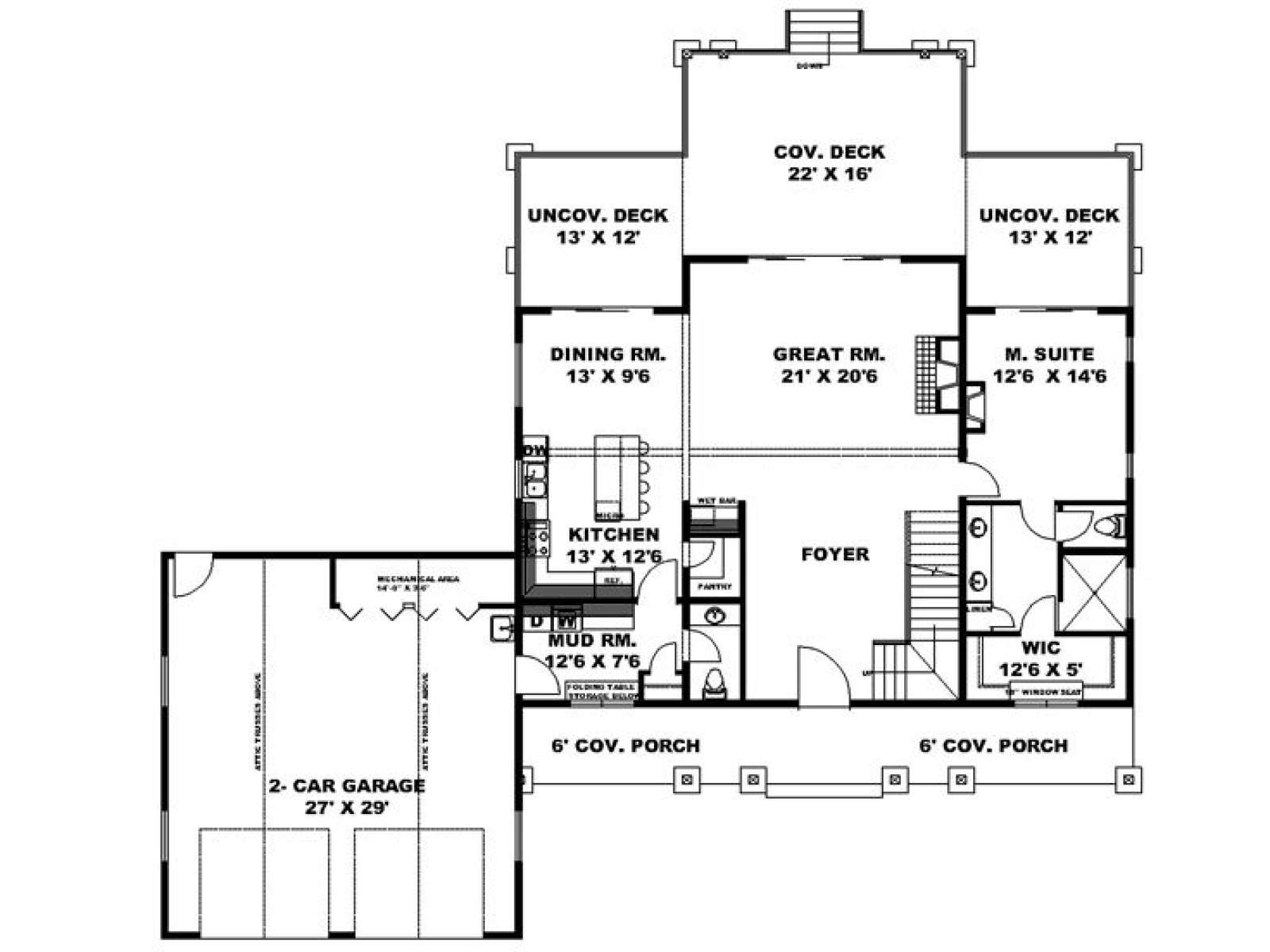

Heated Square Feet
First Floor 1576
Second Floor 1037
Total 2613
Unheated Square Feet
Garage 834
Bedrooms 3
Full Bathrooms 2
Half Bathrooms 1
Width 75 ft. 6 in.
Depth 69 ft. 0 in.
Approximate Height 28 ft. 10 in.
Ceiling Height
First Floor 10 ft. 1 in.
Roof Framing
  • N/A
Foundation Options
  • Crawl Space
Exterior Wall Options
  • 2x6
Garage Features
  • Two car
  • Front-entry

Great room ceiling vaults to 25’-9”
Second floor ceiling slopes up from 6’ to 14’-8”
Listed overall depth includes deck
Overall depth without deck is 53’

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $30 n/a n/a n/a
Priority 3 - 4 business days n/a n/a n/a n/a
Express 1 - 2 business days n/a n/a n/a n/a
Info

There are no reviews

View more
Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$1,245.00

Additional Options

Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets are available for purchase within 90 days of the original house plan purchase. [less] [more]

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] [more]
