House Plan, 012H-0057
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

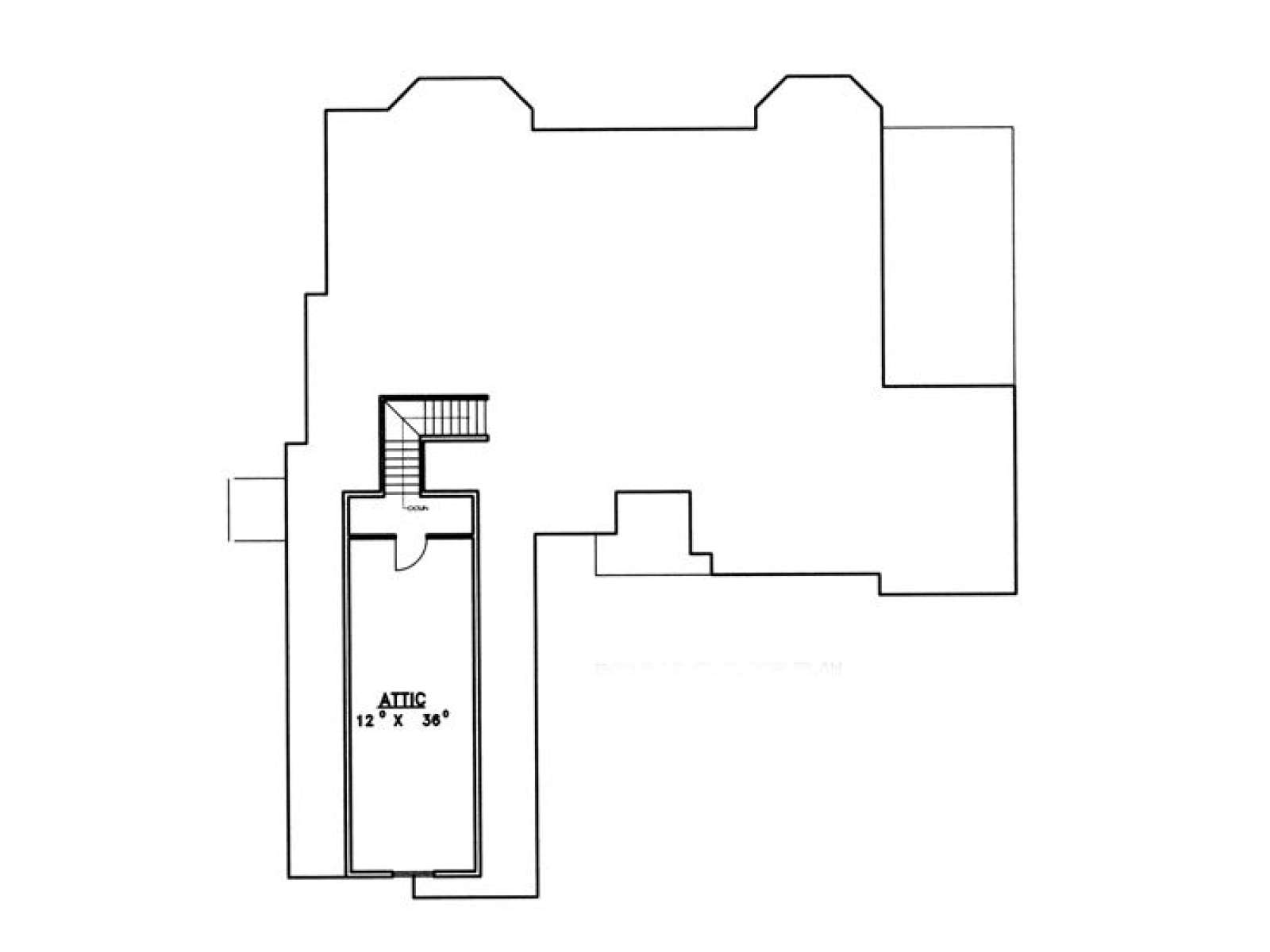

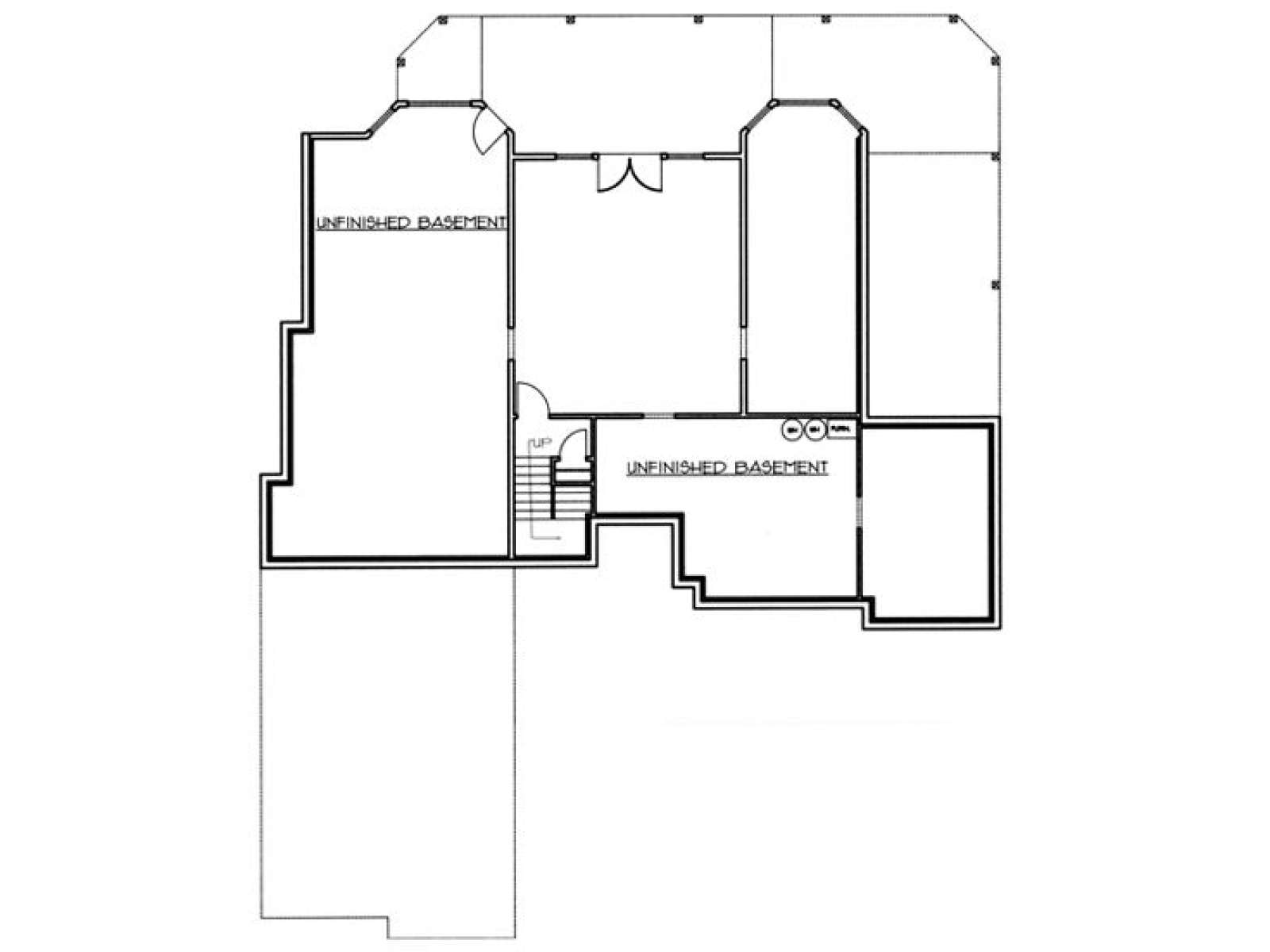

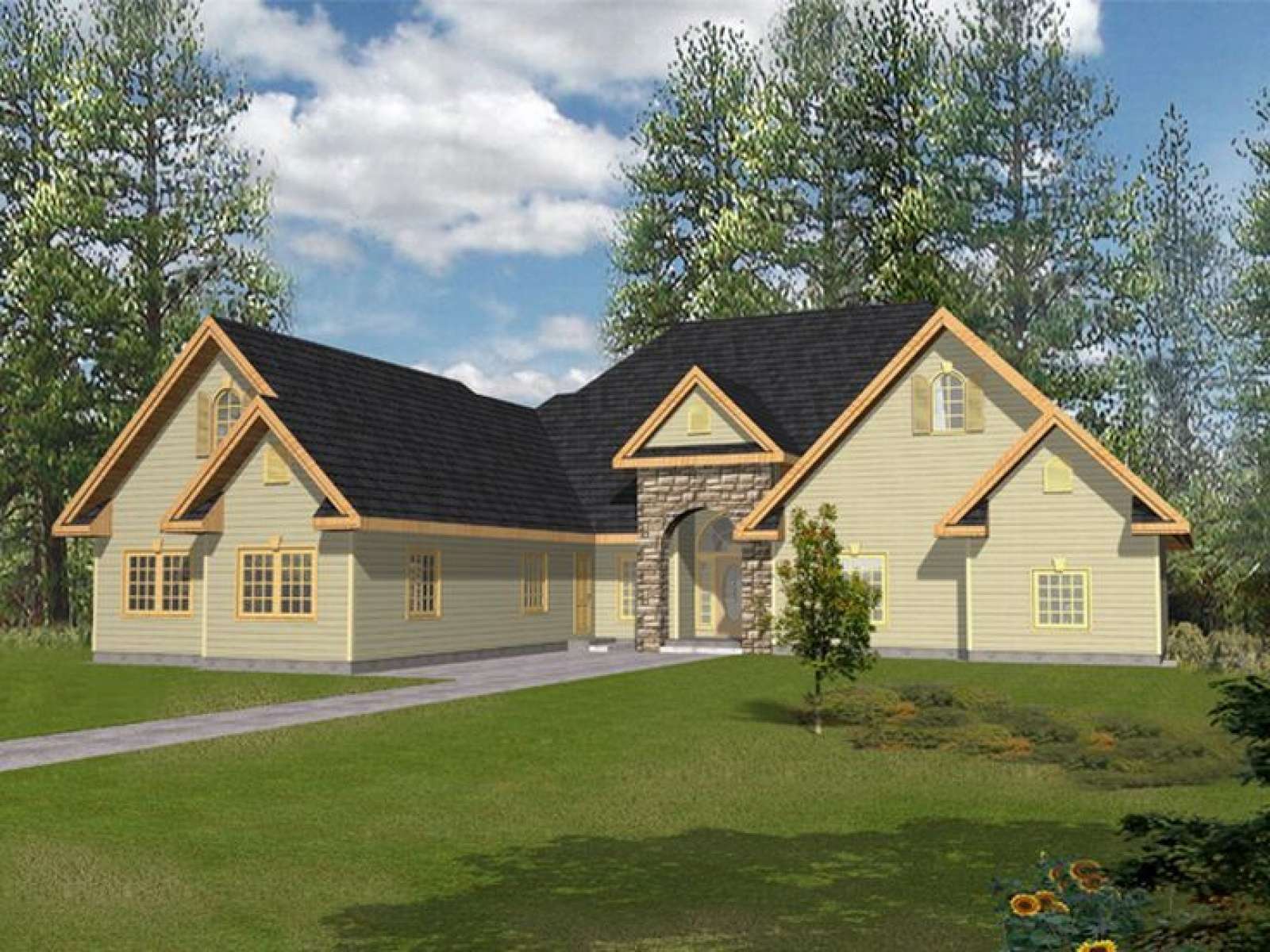

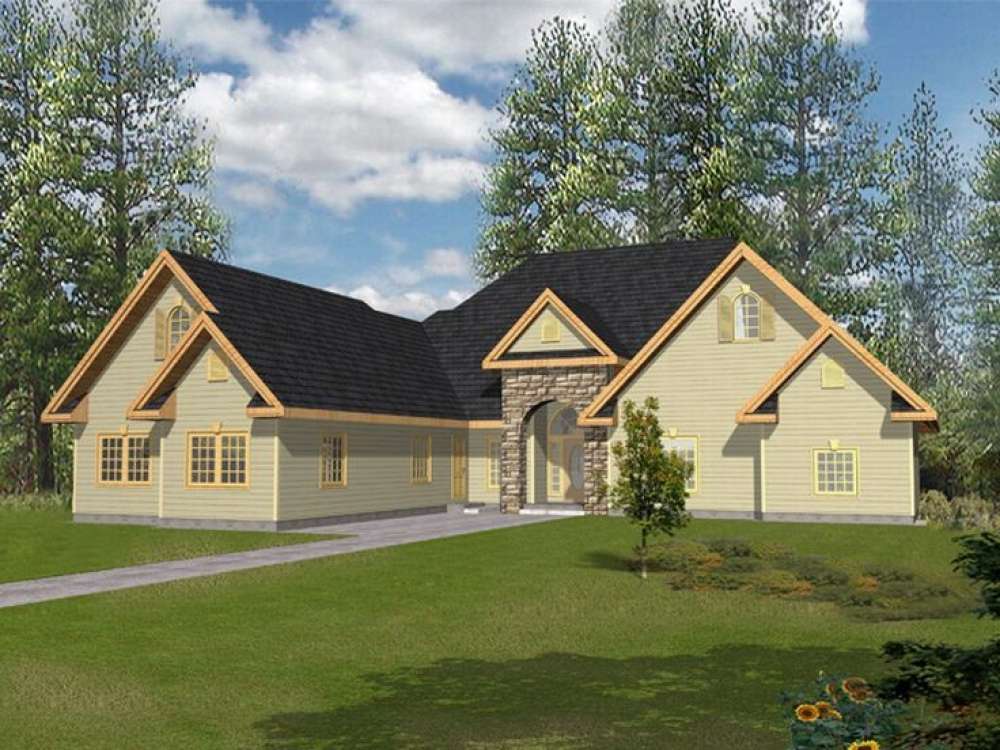

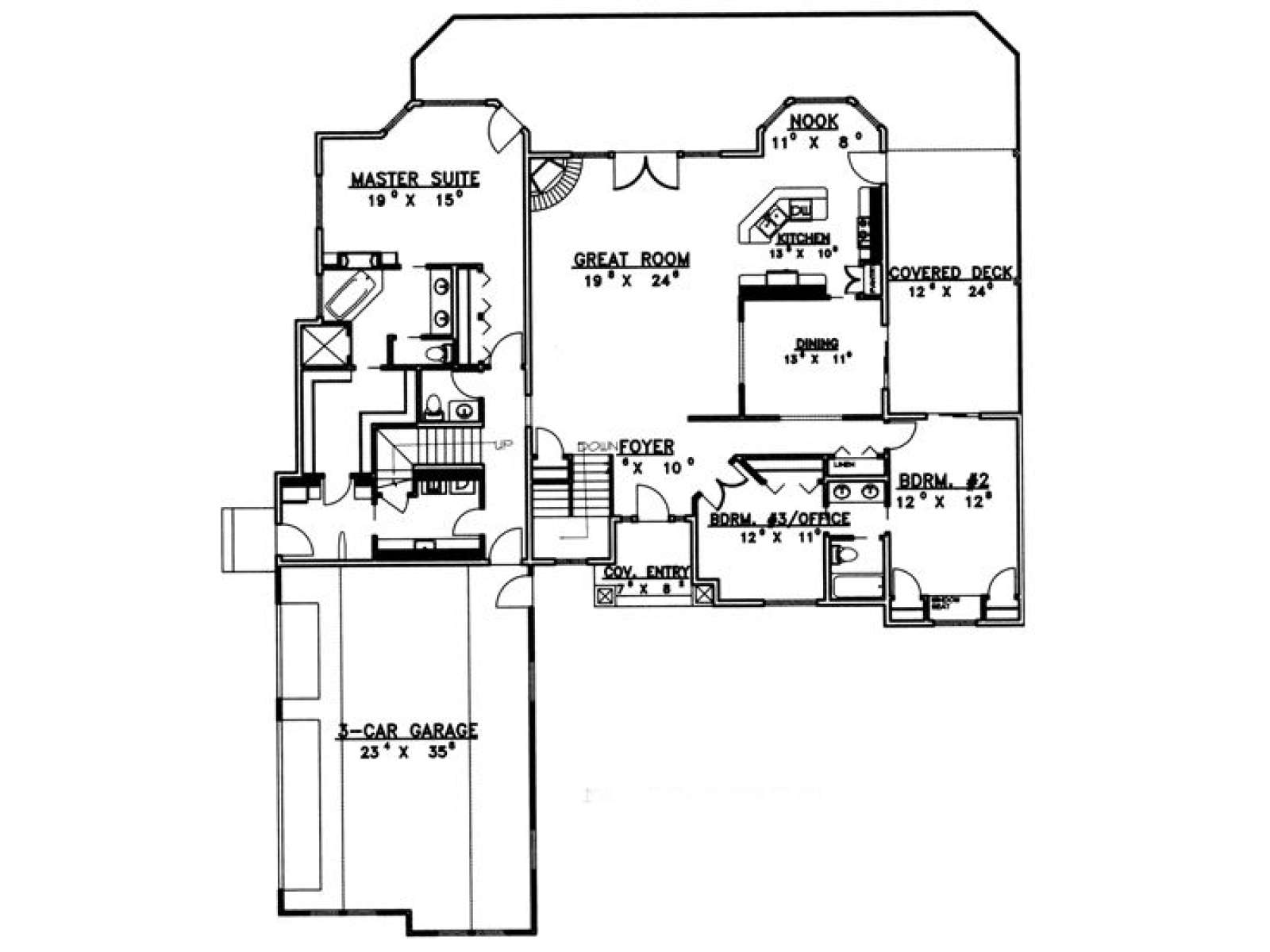

An arched entry and traditional styling grace the exterior of this ranch home plan. Inside, the open design promotes functionality. A Jack and Jill bath is tucked between Bedrooms 2 and 3 offering convenience. This split bedroom design ensures ultimate privacy to the master suite. A deluxe bath with angled tub and fireplace includes a large walk-in closet and private outdoor and laundry room access. Built on a walkout basement, this traditional house plan is ideal for a sloping lot. A three-car garage with plenty of attic storage above completes this family friendly single story home plan.
| Heated Square Feet | |
| First Floor | 2558 |
| Total | 2558 |
| Unheated Square Feet | |
| Bonus | 481 |
| Garage | 812 |
| Bedrooms | 3 |
| Full Bathrooms | 2 |
| Half Bathrooms | 1 |
| Width | 70 ft. 0 in. |
| Depth | 86 ft. 8 in. |
| Approximate Height | 32 ft. 3 in. |
| Ceiling Height | |
| First Floor | 10 ft. 0 in. |
| Lower Level | 9 ft. 0 in. |
| Roof Pitch | 12/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
| Special Features |
|
| Garage Features |
|
An arched entry and traditional styling grace the exterior of this ranch home plan. Inside, the open design promotes functionality. A Jack and Jill bath is tucked between Bedrooms 2 and 3 offering convenience. This split bedroom design ensures ultimate privacy to the master suite. A deluxe bath with angled tub and fireplace includes a large walk-in closet and private outdoor and laundry room access. Built on a walkout basement, this traditional house plan is ideal for a sloping lot. A three-car garage with plenty of attic storage above completes this family friendly single story home plan.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $30 | n/a | n/a | n/a |
| Priority 3 - 4 business days | n/a | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
