Carriage House Plan, 012G-0151

Plan 012G-0151
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

The listed overall depth includes the deck
The overall depth without the deck is 36’

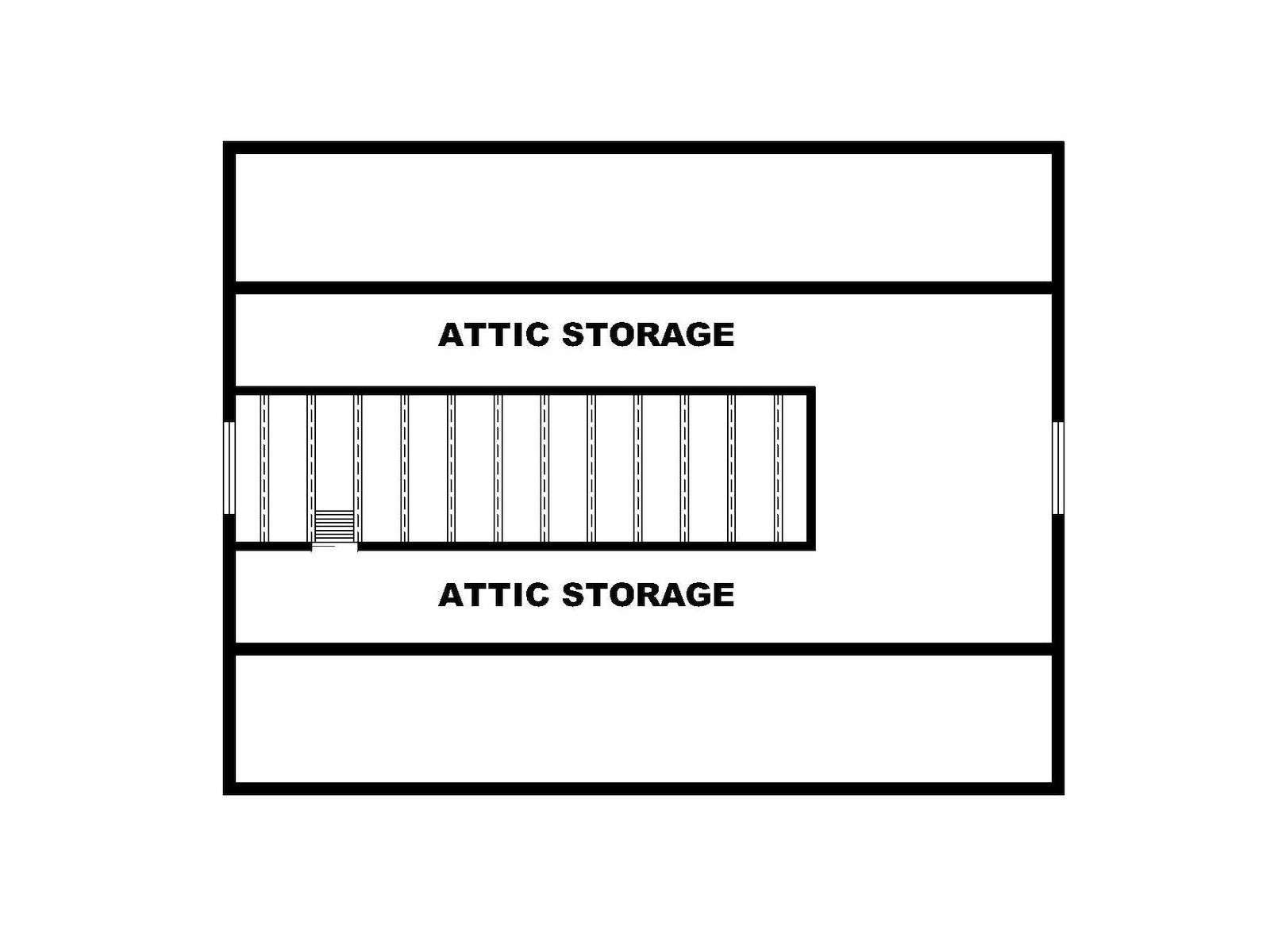

Third floor ceiling slopes up from 5’-6” to 7’



Heated Square Feet
First Floor 141

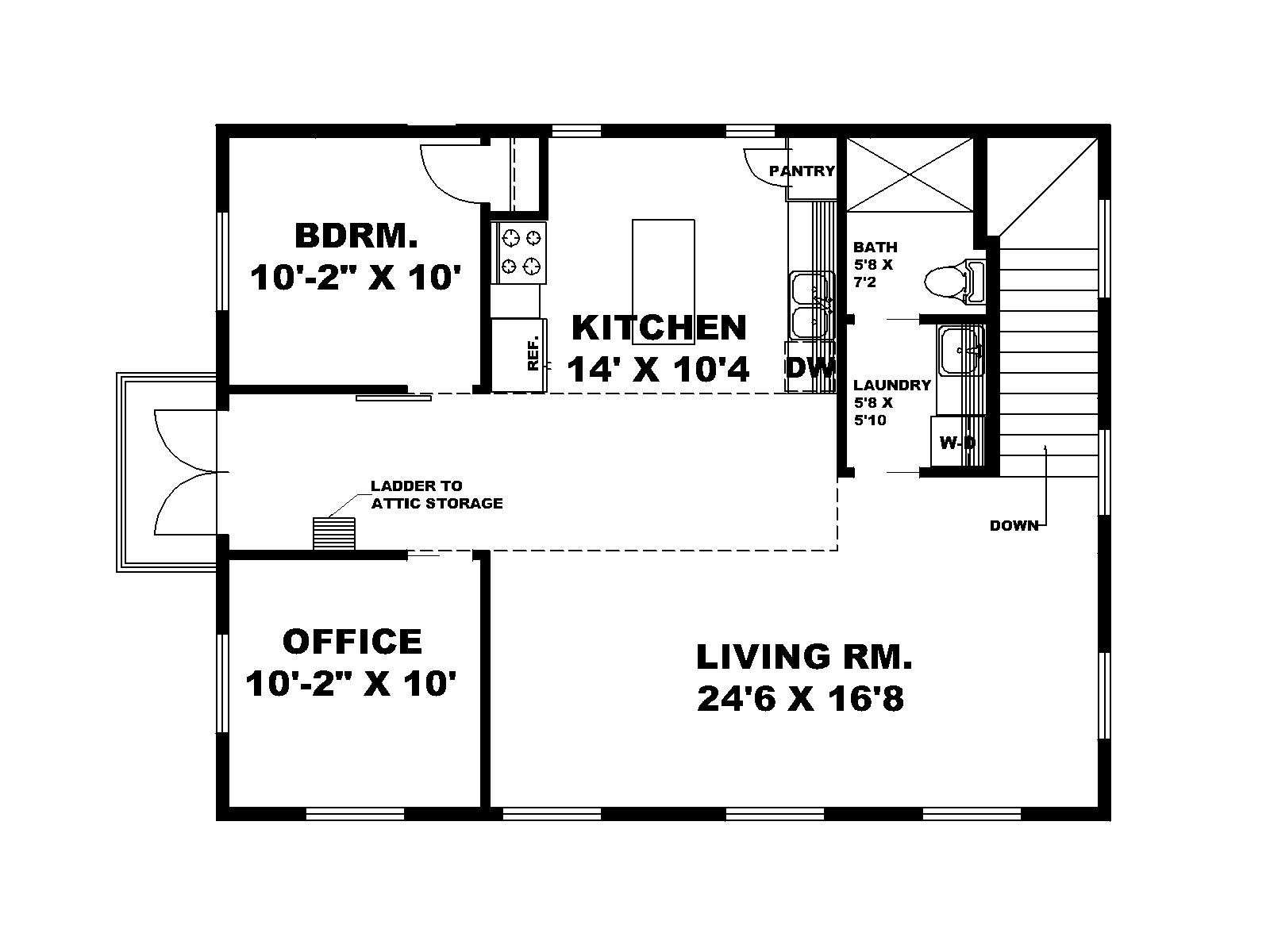

Second Floor 942
Total 1083
Unheated Square Feet

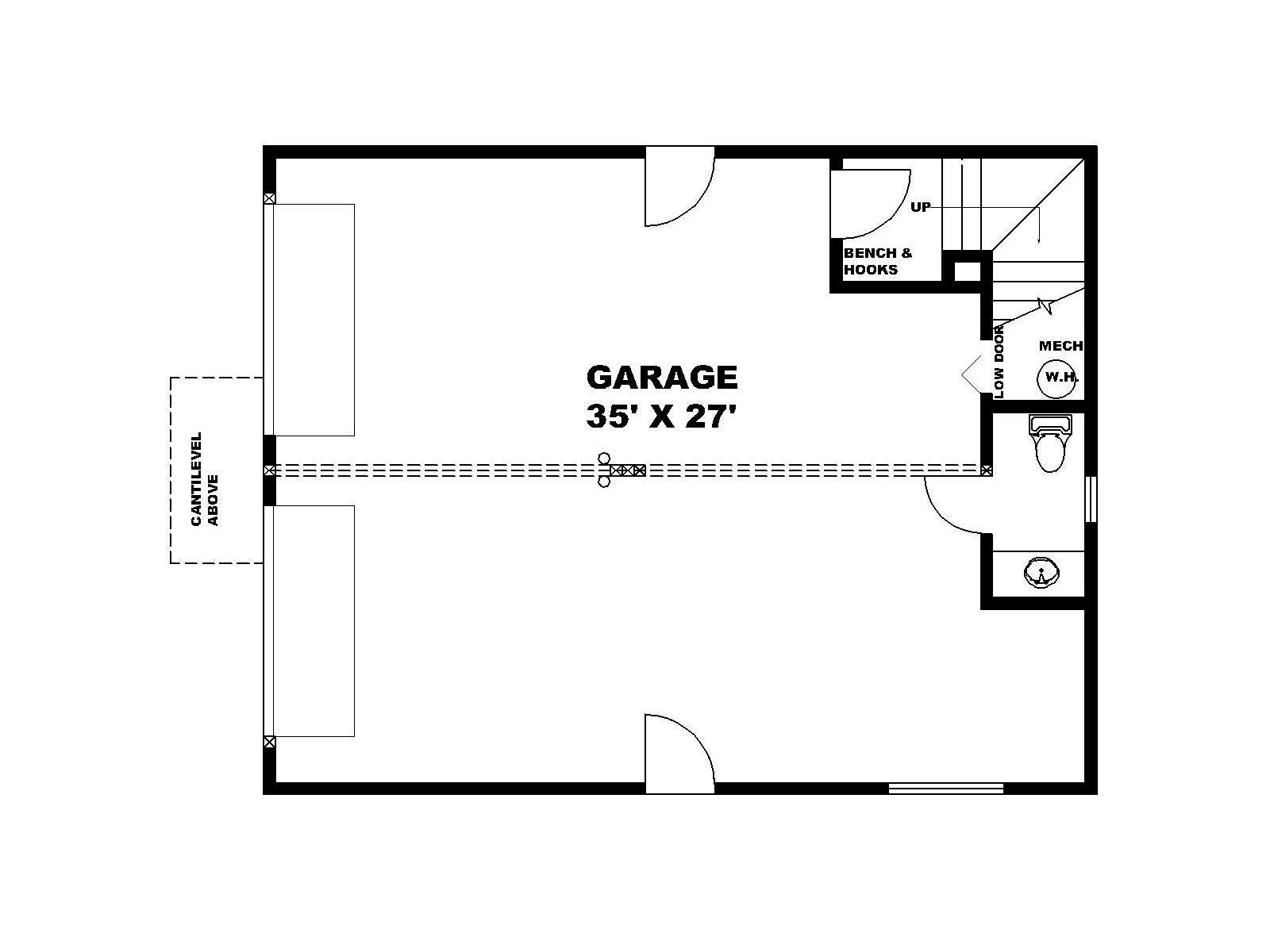

Garage 867
Storage 418
Bedrooms 1
Full Bathrooms 1
Half Bathrooms 1
Width 28 ft. 0 in.
Depth 40 ft. 0 in.
Approximate Height 29 ft. 2 in.
Ceiling Height
First Floor 9 ft. 1 in.
Second Floor 8 ft. 1 in.
Roof Pitch 4/12 Main
Roof Pitch 12/12 Other
Roof Framing
  • Truss
Garage Door Size(s) 10x8 (2)
Foundation Options
  • Slab
Exterior Wall Options
  • 2x6
Kitchen Features
  • Island
Interior Features
  • Den/office/study
  • Laundry
  • Open floor plan
Exterior Features
  • Balcony

The listed overall depth includes the deck
The overall depth without the deck is 36’
Third floor ceiling slopes up from 5’-6” to 7’



Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $30 n/a n/a n/a
Priority 3 - 4 business days n/a n/a n/a n/a
Express 1 - 2 business days n/a n/a n/a n/a
Info

There are no reviews

View more
Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$1,195.00

Additional Options

Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets are available for purchase within 90 days of the original house plan purchase. [less] [more]

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] [more]
