Affordable Home Plan, 002H-0017

Plan 002H-0017
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

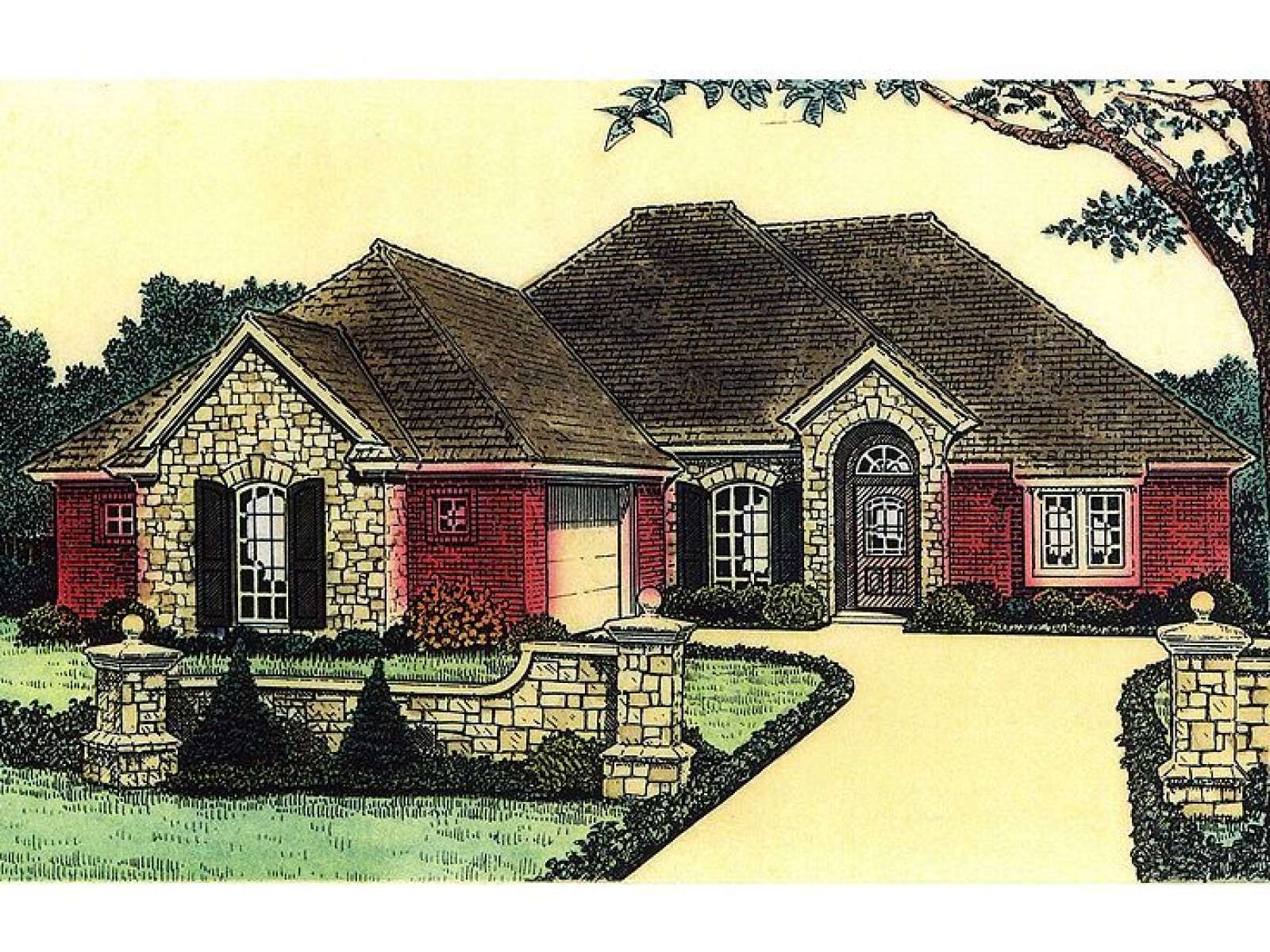

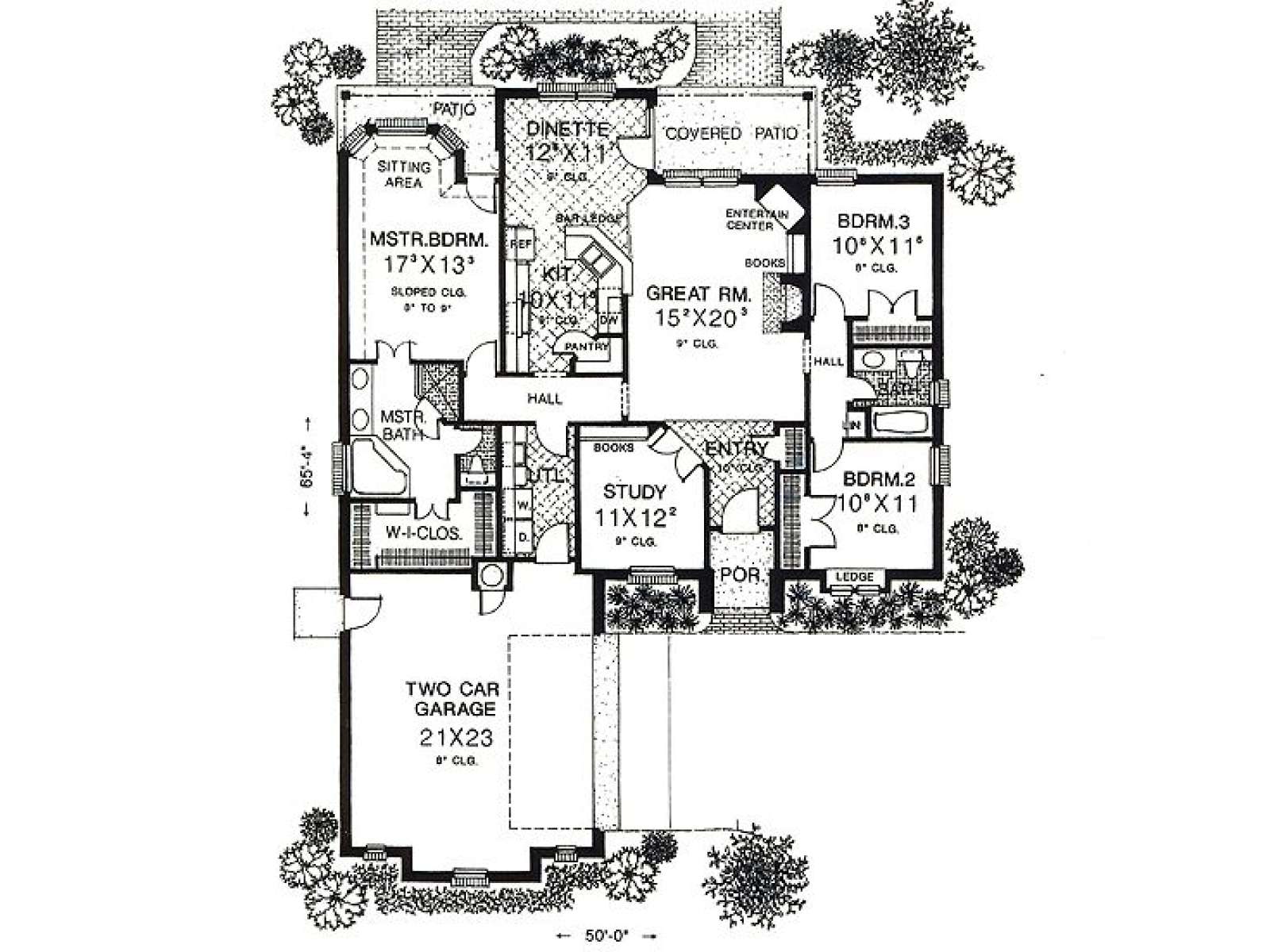

This small and affordable house plan is simple in design and packed with amenities. Decorative windows and entry provide a charming exterior. Built-ins in the study create an ideal space for a home office. The kitchen enjoys a walk-in pantry, serving bar and easy access to the covered patio. A center fireplace and built-in entertainment center accent the spacious great room. The master suite abounds with features including a sloped ceiling, sitting area and access to a private patio. This ranch home plan is one you’re sure to enjoy.

Heated Square Feet
First Floor 1760
Total 1760
Bedrooms 3
Full Bathrooms 2
Width 50 ft. 0 in.
Depth 65 ft. 4 in.
Approximate Height 23 ft. 0 in.
Ceiling Height
First Floor 8 ft. 0 in.
Roof Pitch 10/12 Main
Roof Framing
  • Stick
Foundation Options
  • Slab
Exterior Wall Options
  • 2x4
Kitchen Features
  • Eating/Snack bar
  • Walk-in Pantry
Bedroom Features
  • Sitting area
  • Walk-in closet
  • Split bedrooms
Interior Features
  • Laundry
  • Vaulted/volume ceiling
  • Den/office/study
  • Great room
Exterior Features
  • Covered front porch
  • Patio/Terrace/Lanai
Special Features
  • Fireplace/Woodstove
Garage Features
  • Two car
  • Side-entry

This small and affordable house plan is simple in design and packed with amenities. Decorative windows and entry provide a charming exterior. Built-ins in the study create an ideal space for a home office. The kitchen enjoys a walk-in pantry, serving bar and easy access to the covered patio. A center fireplace and built-in entertainment center accent the spacious great room. The master suite abounds with features including a sloped ceiling, sitting area and access to a private patio. This ranch home plan is one you’re sure to enjoy.

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $30 $70 n/a n/a
Priority 3 - 4 business days $45 $100 $70 n/a
Express 1 - 2 business days $65 n/a n/a n/a
Info

There are no reviews

View more
Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$1,185.00

Additional Options

Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are available for purchase within 90 days of the original purchase. [less] [more]
