Craftsman House Plan, 001H-0163
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

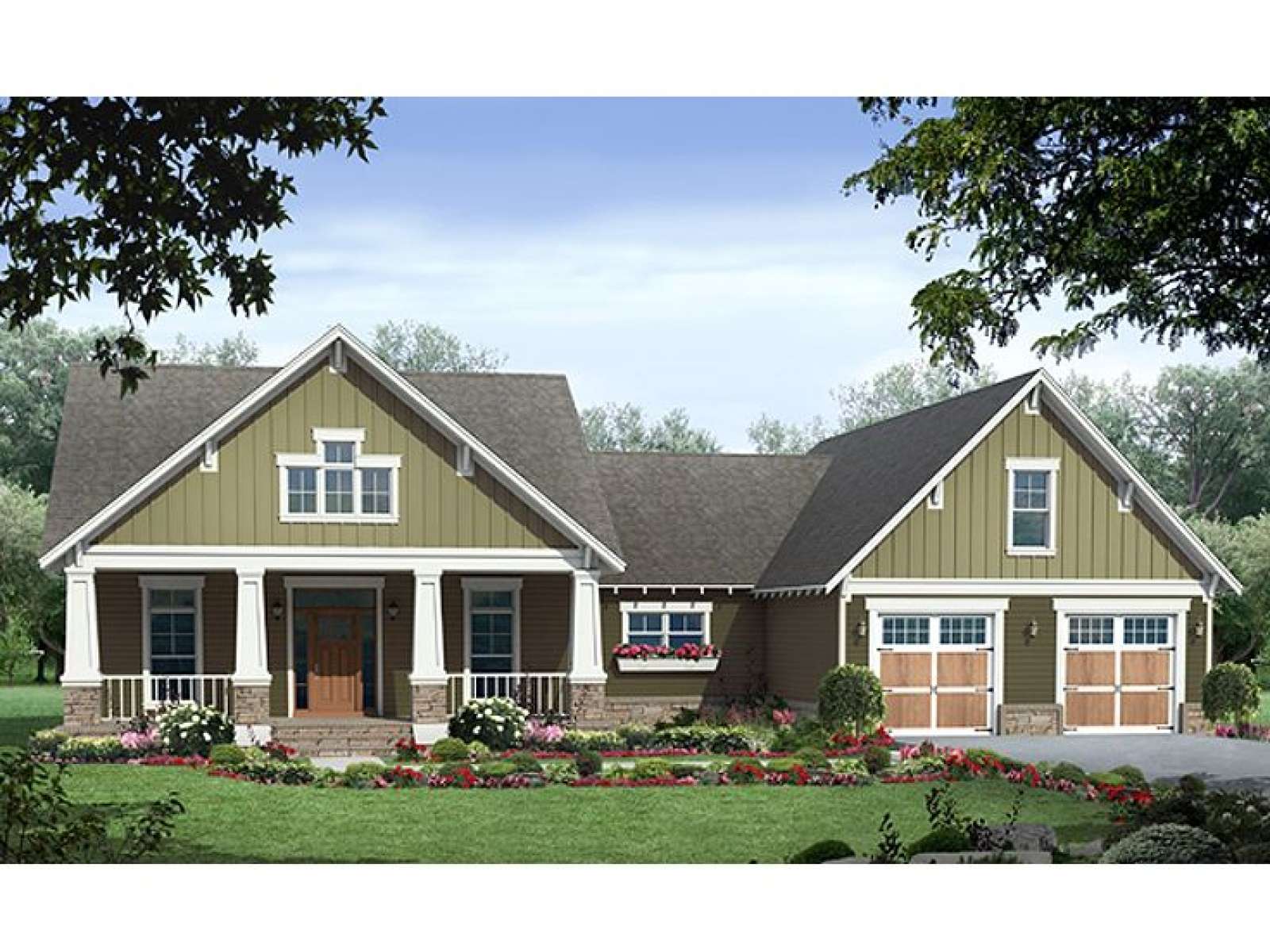

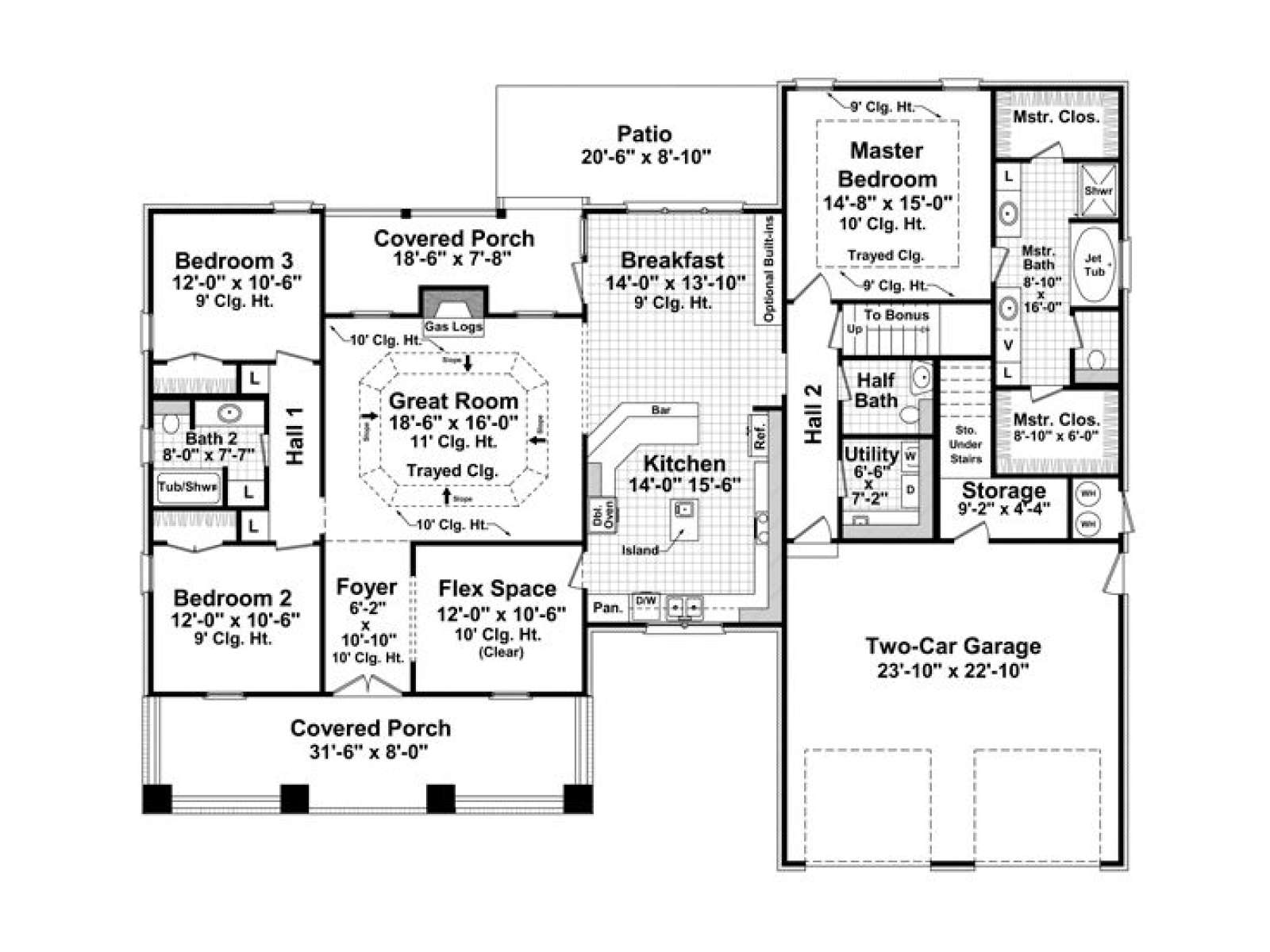

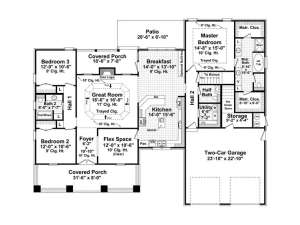

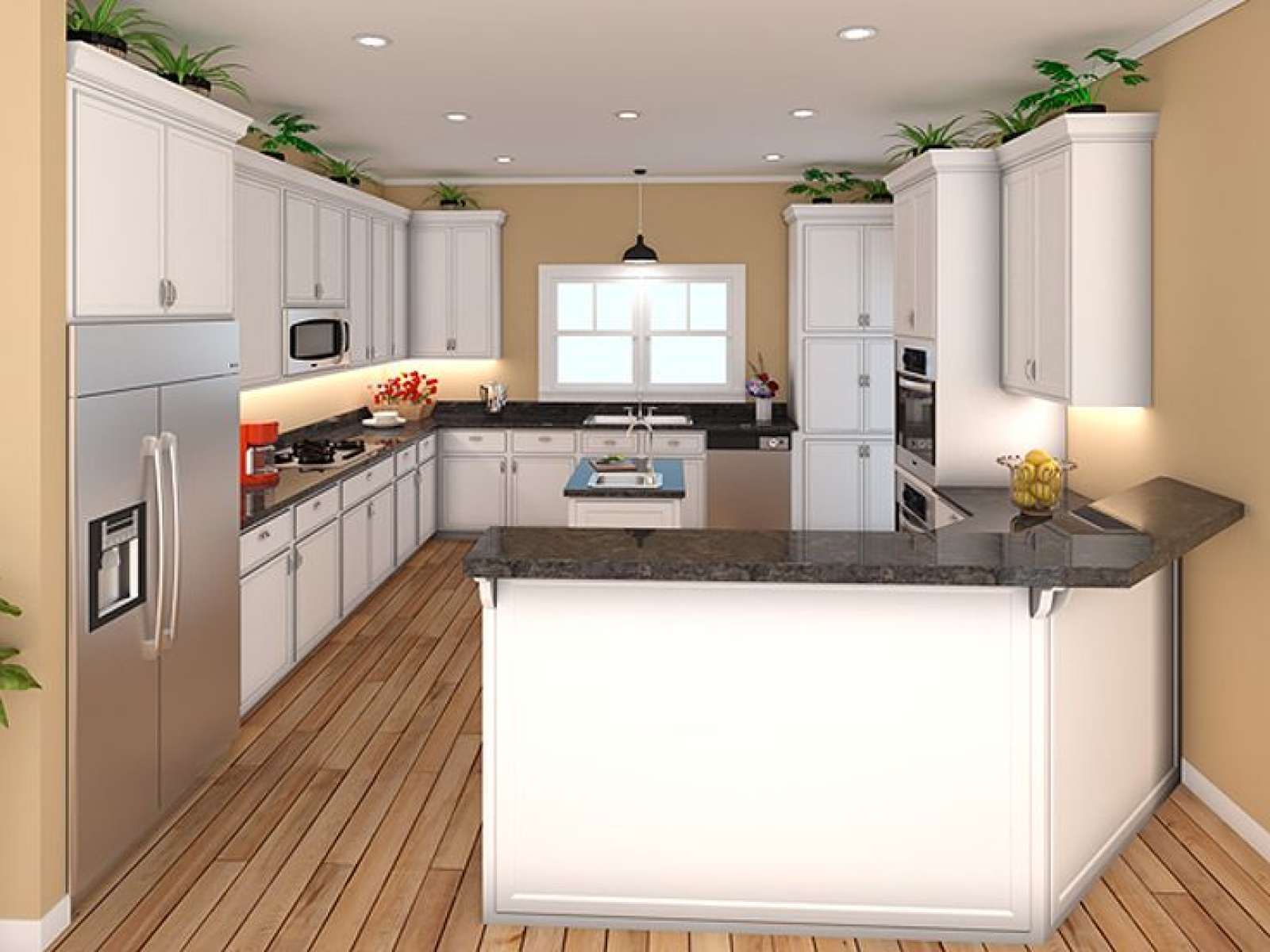

Flared porch columns atop stone bases and exposed rafter tails are just of few of the stylish details gracing the exterior of this Craftsman home plan. Double doors open from the covered front porch and quickly introduce the foyer with 10’ ceiling. To the right, the flex space is awaiting your creative touch, ideal for a home office or formal dining space. At the back of the home, the great room reveals a fanciful ceiling treatment and a gas log fireplace flanked with windows. The island kitchen and breakfast nook adjoin the main gathering space and feature a raised eating bar, pantry and access to the rear porch and patio. Just off the kitchen you’ll find the laundry room, convenient for throwing in a load of clothes while dinner is prepared. The two-car garage and storage space join forces with the utility room and half bath keeping things neat and tidy. At the back of the home, lavish amenities wait to pamper you in the luxurious master bedroom. Pay attention to the 10’ tray ceiling and the sumptuous bath outfitted with His and Her walk-in closets, window jet tub and dual vanities. On the other side of the home, two family bedrooms share a full bath. As your family grows or your lifestyle changes, finish the bonus room to suit your needs, perfect for a home theater, exercise room or hobby space. Stylish and comfortable, this Northwestern style ranch home plan will shine in any neighborhood!
See plan 001H-0170 for the version with a basement foundation.
| Heated Square Feet | |
| First Floor | 2067 |
| Total | 2067 |
| Unheated Square Feet | |

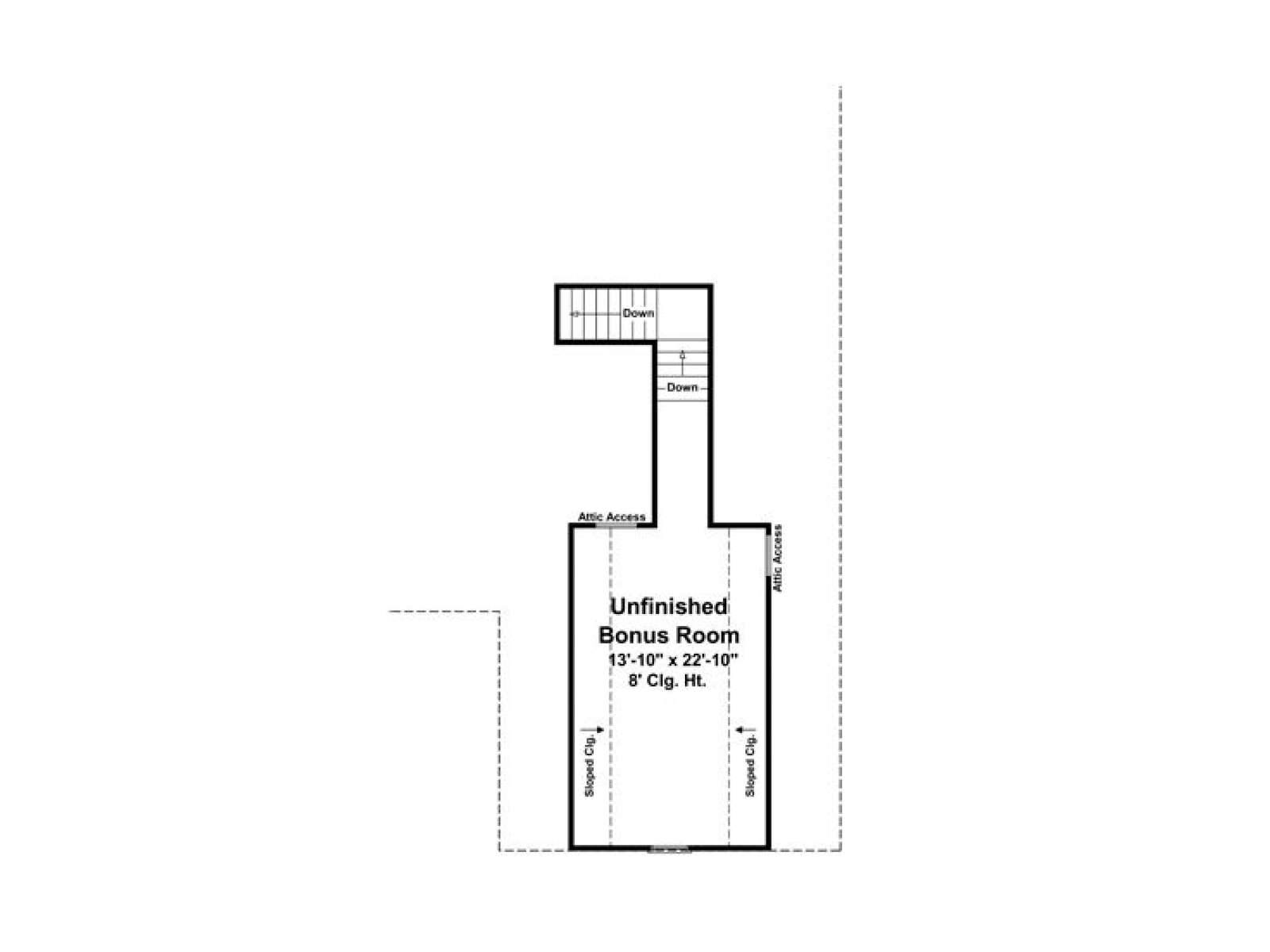

| Bonus | 379 |
| Garage | 699 |
| Porch(es) | 318 |
| Bedrooms | 3 |
| Full Bathrooms | 2 |
| Half Bathrooms | 1 |
| Width | 70 ft. 0 in. |
| Depth | 56 ft. 0 in. |
| Approximate Height | 24 ft. 3 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 8/12 Main |
| Roof Pitch | 12/12 Other |
| Roof Pitch | 10/12 Other |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
| Special Features |
|
| Garage Features |
|
Flared porch columns atop stone bases and exposed rafter tails are just of few of the stylish details gracing the exterior of this Craftsman home plan. Double doors open from the covered front porch and quickly introduce the foyer with 10’ ceiling. To the right, the flex space is awaiting your creative touch, ideal for a home office or formal dining space. At the back of the home, the great room reveals a fanciful ceiling treatment and a gas log fireplace flanked with windows. The island kitchen and breakfast nook adjoin the main gathering space and feature a raised eating bar, pantry and access to the rear porch and patio. Just off the kitchen you’ll find the laundry room, convenient for throwing in a load of clothes while dinner is prepared. The two-car garage and storage space join forces with the utility room and half bath keeping things neat and tidy. At the back of the home, lavish amenities wait to pamper you in the luxurious master bedroom. Pay attention to the 10’ tray ceiling and the sumptuous bath outfitted with His and Her walk-in closets, window jet tub and dual vanities. On the other side of the home, two family bedrooms share a full bath. As your family grows or your lifestyle changes, finish the bonus room to suit your needs, perfect for a home theater, exercise room or hobby space. Stylish and comfortable, this Northwestern style ranch home plan will shine in any neighborhood!
See plan 001H-0170 for the version with a basement foundation.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $35 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $50 | n/a | $70 | n/a |
| Express 1 - 2 business days | $70 | n/a | n/a | n/a |
