Traditional House Plan, 001H-0117
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

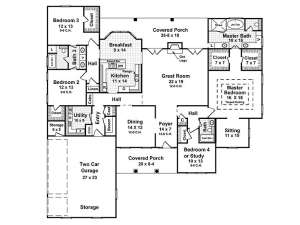

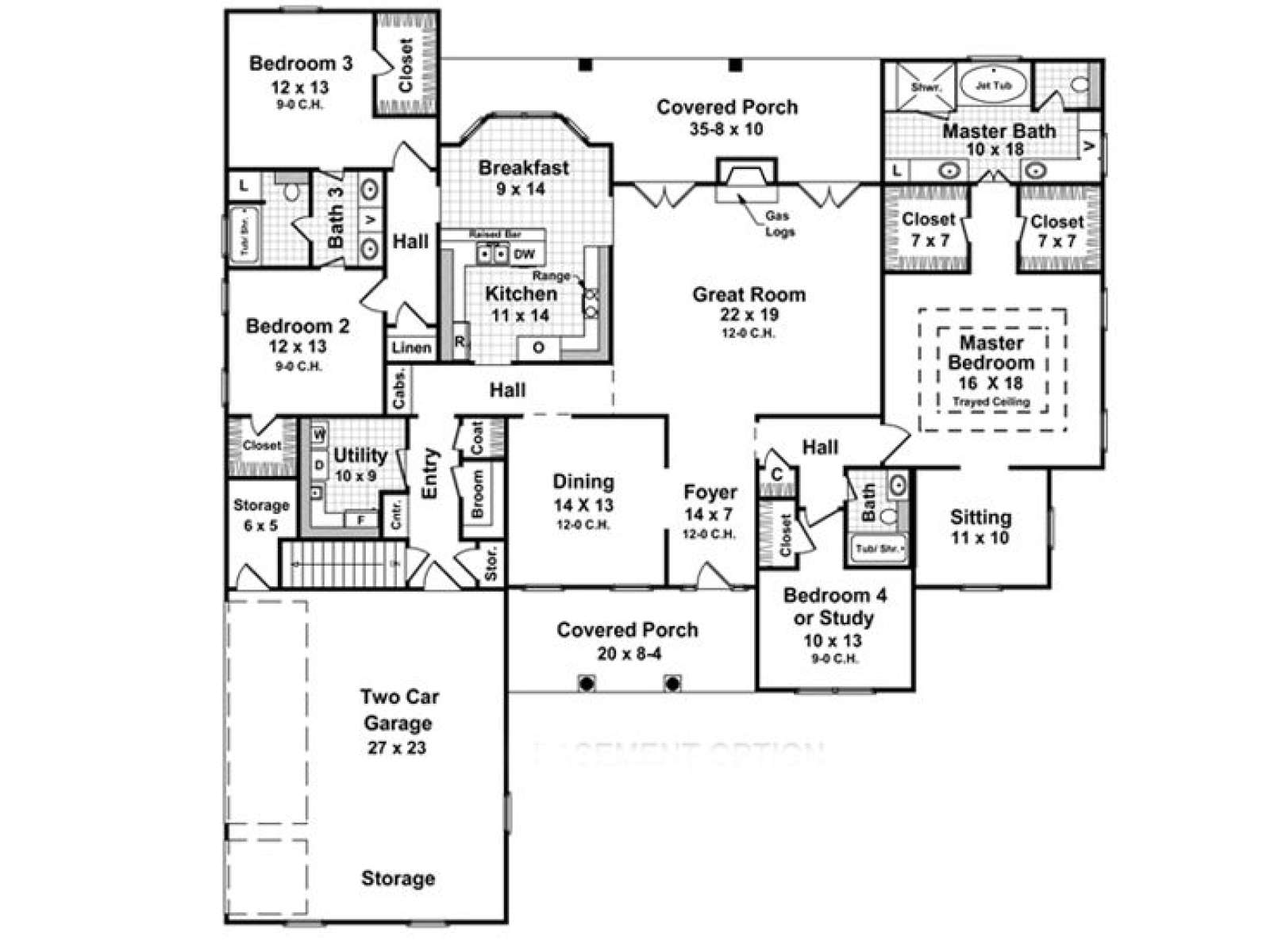

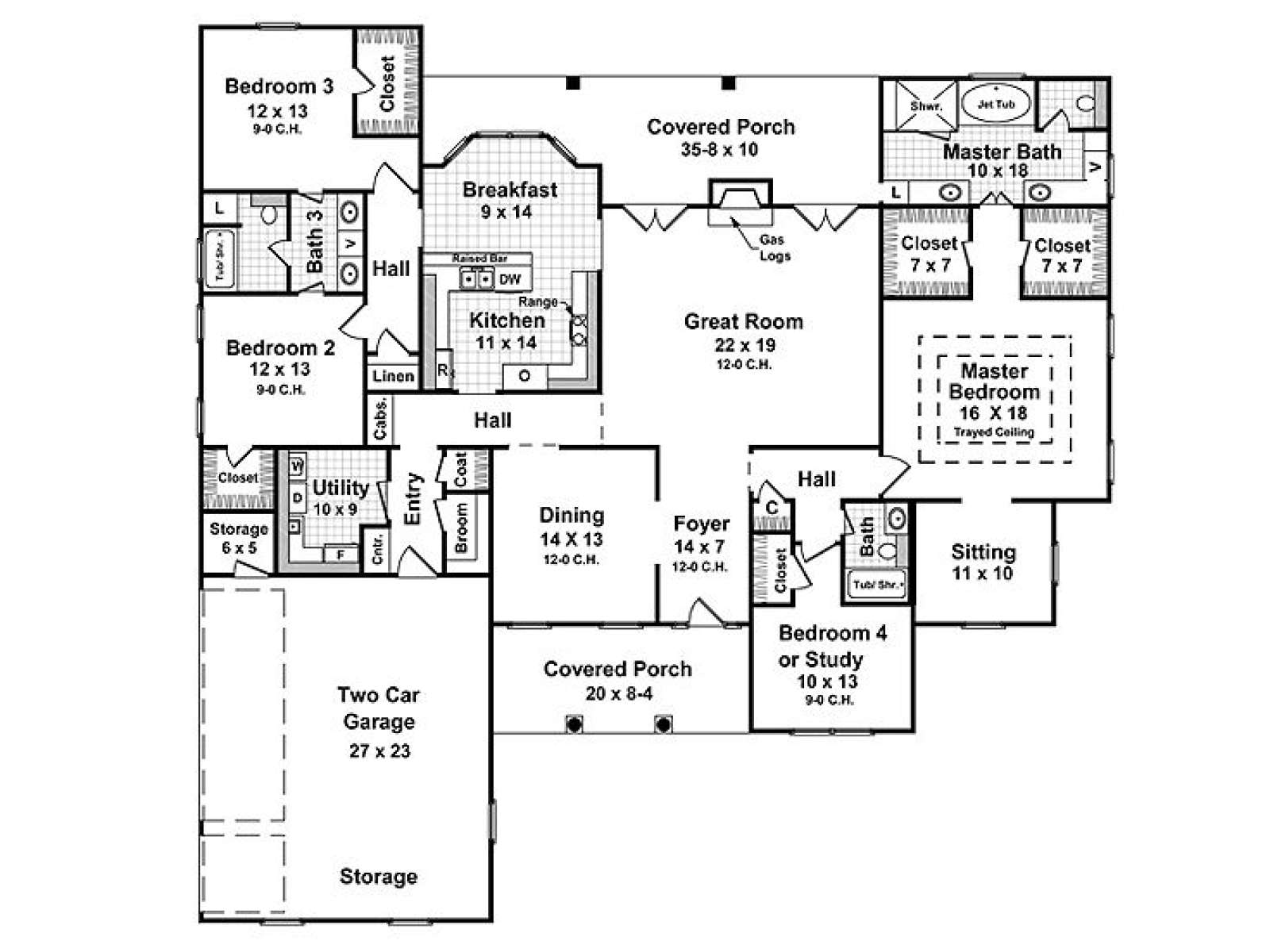

This traditional home plan features an open floor plan with a split-bedroom layout. Four bedrooms and three baths provide comfortable accommodations for everyone. The step saver kitchen enjoys a raised bar as it serves the bayed breakfast nook and formal dining room with ease. A 12’ ceiling tops the great room while a fireplace flanked by two double doors creates visual interest. Front and rear covered porches add usable living space, perfect for conversation with friends. Walk-in closets enhance every bedroom. Bedrooms 2 and 3 share a space-saving Jack and Jill bath complete with dual sinks, while Bedroom 4 sports a private bath. Teeming with amenities, your master suite is a lavish space showcasing a sitting room (ideal for a nursery), double walk-in closets, dual vanities, jet tub and separate shower. Complete with a 2-car garage and plenty of storage, you can’t go wrong with this ranch house plan.
| Heated Square Feet | |
| First Floor | 2805 |
| Total | 2805 |
| Unheated Square Feet | |
| Garage | 620 |
| Porch(es) | 450 |
| Storage | 28 |
| Bedrooms | 4 |
| Full Bathrooms | 3 |
| Width | 71 ft. 4 in. |
| Depth | 70 ft. 2 in. |
| Approximate Height | 23 ft. 8 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Roof Pitch | 10/12 Main |
| Roof Pitch | 3/12 Porch |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
| Special Features |
|
| Garage Features |
|
This traditional home plan features an open floor plan with a split-bedroom layout. Four bedrooms and three baths provide comfortable accommodations for everyone. The step saver kitchen enjoys a raised bar as it serves the bayed breakfast nook and formal dining room with ease. A 12’ ceiling tops the great room while a fireplace flanked by two double doors creates visual interest. Front and rear covered porches add usable living space, perfect for conversation with friends. Walk-in closets enhance every bedroom. Bedrooms 2 and 3 share a space-saving Jack and Jill bath complete with dual sinks, while Bedroom 4 sports a private bath. Teeming with amenities, your master suite is a lavish space showcasing a sitting room (ideal for a nursery), double walk-in closets, dual vanities, jet tub and separate shower. Complete with a 2-car garage and plenty of storage, you can’t go wrong with this ranch house plan.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $35 | $50 | n/a | n/a |
| Priority 3 - 4 business days | $45 | $90 | $60 | n/a |
| Express 1 - 2 business days | $60 | n/a | n/a | n/a |
