Ranch Home Plan, 001H-0046

Plan 001H-0046
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

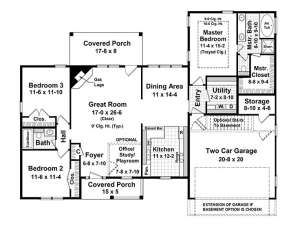

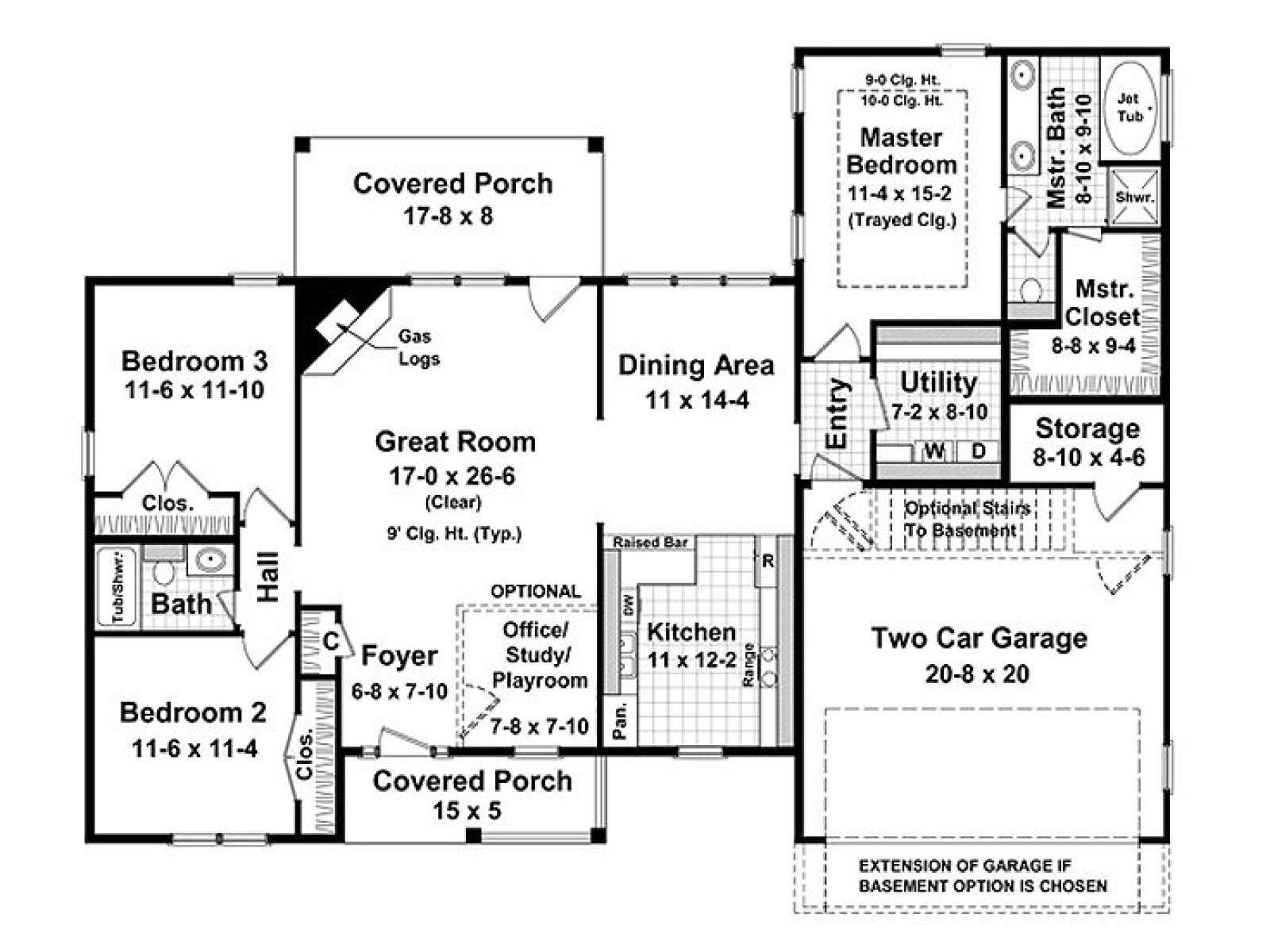

Traditional in design, this ranch house plan boasts beauty, great function, smart features and an economical design. Tiered gables and a blended brick and siding façade create welcoming curb appeal. As you step inside, you will notice the gas log fireplace highlighting the spacious great room. The rear wall features transoms above windows allowing plenty of light to enter the room. An optional flex space is provided to allow for that much-needed home office or other family need, such as a hobby room or playroom. Pleasing the family chef, the kitchen reveals a raised bar for conversation with friends while meals are prepared. Don’t miss the front and rear porches, ideal for outdoor relaxation, or the large utility/laundry area including plenty of space for folding and storing clothing and other goods. Isolated from the living areas and the other bedrooms, the private master suite will grab your attention with its salon bath sporting a soothing jet tub, a double bowl vanity and walk-in closet. Two family bedrooms are placed on the other side of the home and share a full bath. A storage area in the 2-car garage is a plus for those who always need more storage. Small and affordable, this country traditional design features an amenity-rich, split-bedroom plan with open living spaces.

Heated Square Feet
First Floor 1700
Total 1700
Unheated Square Feet
Garage 430
Porch(es) 216
Storage 44
Bedrooms 3
Full Bathrooms 2
Width 62 ft. 2 in.
Depth 45 ft. 8 in.
Approximate Height 21 ft. 0 in.
Ceiling Height
First Floor 9 ft. 0 in.
Roof Pitch 8/12 Main
Roof Framing
  • Stick
Foundation Options
  • Basement
  • Crawl Space
  • Slab
Exterior Wall Options
  • 2x6
Kitchen Features
  • Eating/Snack bar
Bedroom Features
  • Walk-in closet
  • Split bedrooms
Interior Features
  • Great room
  • Laundry
  • Open floor plan
Exterior Features

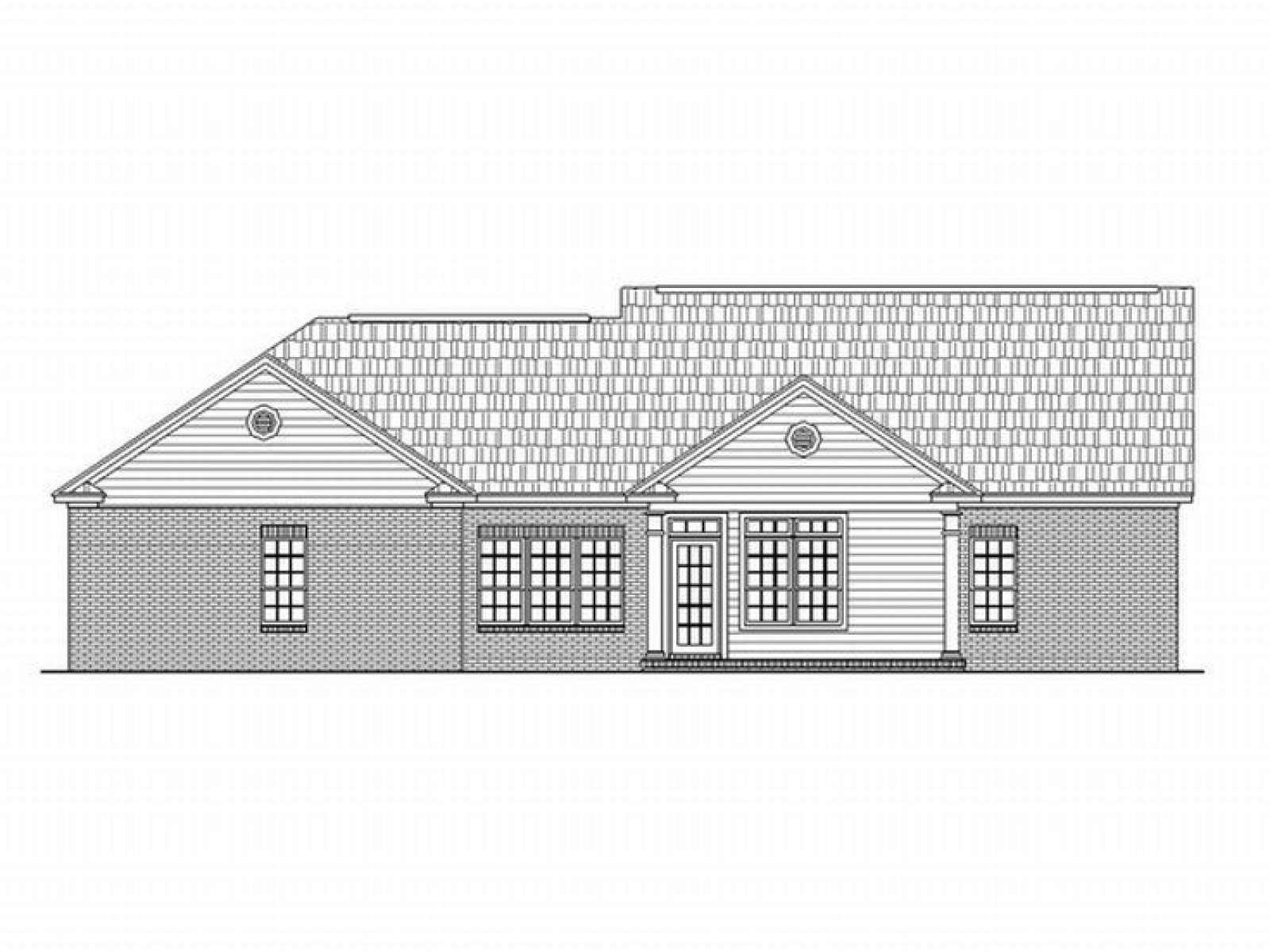

  • Covered rear porch
  • Covered front porch
Special Features
  • Fireplace/Woodstove
Garage Features
  • Two car
  • Front-entry
  • Workshop/storage

Traditional in design, this ranch house plan boasts beauty, great function, smart features and an economical design. Tiered gables and a blended brick and siding façade create welcoming curb appeal. As you step inside, you will notice the gas log fireplace highlighting the spacious great room. The rear wall features transoms above windows allowing plenty of light to enter the room. An optional flex space is provided to allow for that much-needed home office or other family need, such as a hobby room or playroom. Pleasing the family chef, the kitchen reveals a raised bar for conversation with friends while meals are prepared. Don’t miss the front and rear porches, ideal for outdoor relaxation, or the large utility/laundry area including plenty of space for folding and storing clothing and other goods. Isolated from the living areas and the other bedrooms, the private master suite will grab your attention with its salon bath sporting a soothing jet tub, a double bowl vanity and walk-in closet. Two family bedrooms are placed on the other side of the home and share a full bath. A storage area in the 2-car garage is a plus for those who always need more storage. Small and affordable, this country traditional design features an amenity-rich, split-bedroom plan with open living spaces.

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $35 $50 n/a n/a
Priority 3 - 4 business days $45 $90 $60 n/a
Express 1 - 2 business days $60 n/a n/a n/a
Info

There are no reviews

View more
Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$1,595.00

Additional Options

Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are available for purchase within 90 days of the original purchase. [less] [more]

A general listing of the quantities and sizes of materials needed for construction of your project. A general listing of the quantities and sizes of materials needed for construction of your project. This tool aids your builder in the estimating process. A material list cannot be sold without the simultaneous or prior purchase of a plan package of the same plan number. NOTE: Material lists only include materials for the base plan offered with the no charge foundation and wall framing options. The materials for alternate wall framing and foundation options available for an extra charge will not be included in the material list. [less] [more]

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] [more]
