065M-0010 | The House Plan Shop

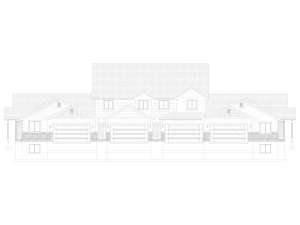

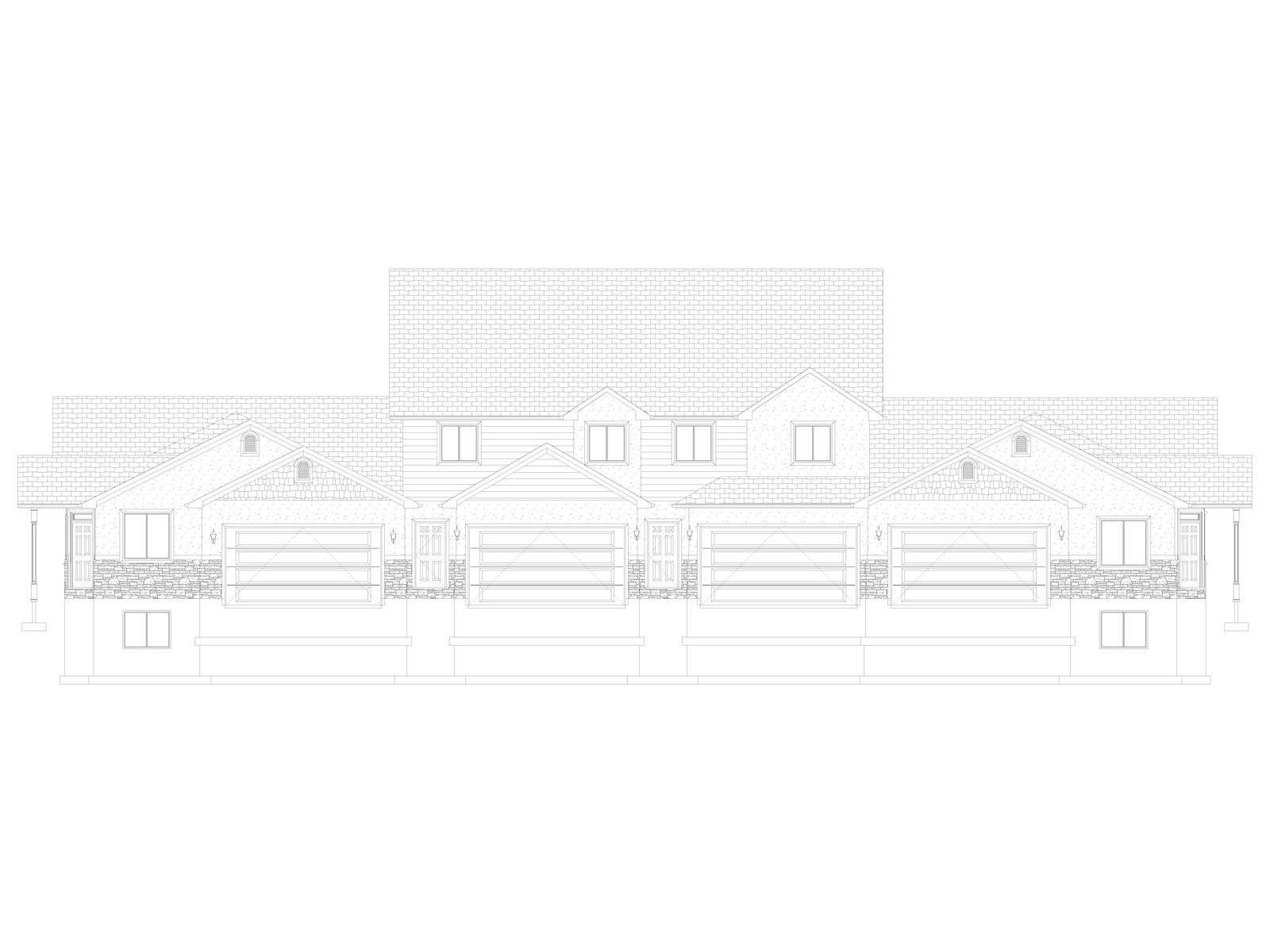

Traditional 4-Plex Plan, 065M-0010

Reverse All Images

More Images

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

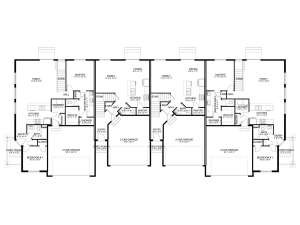

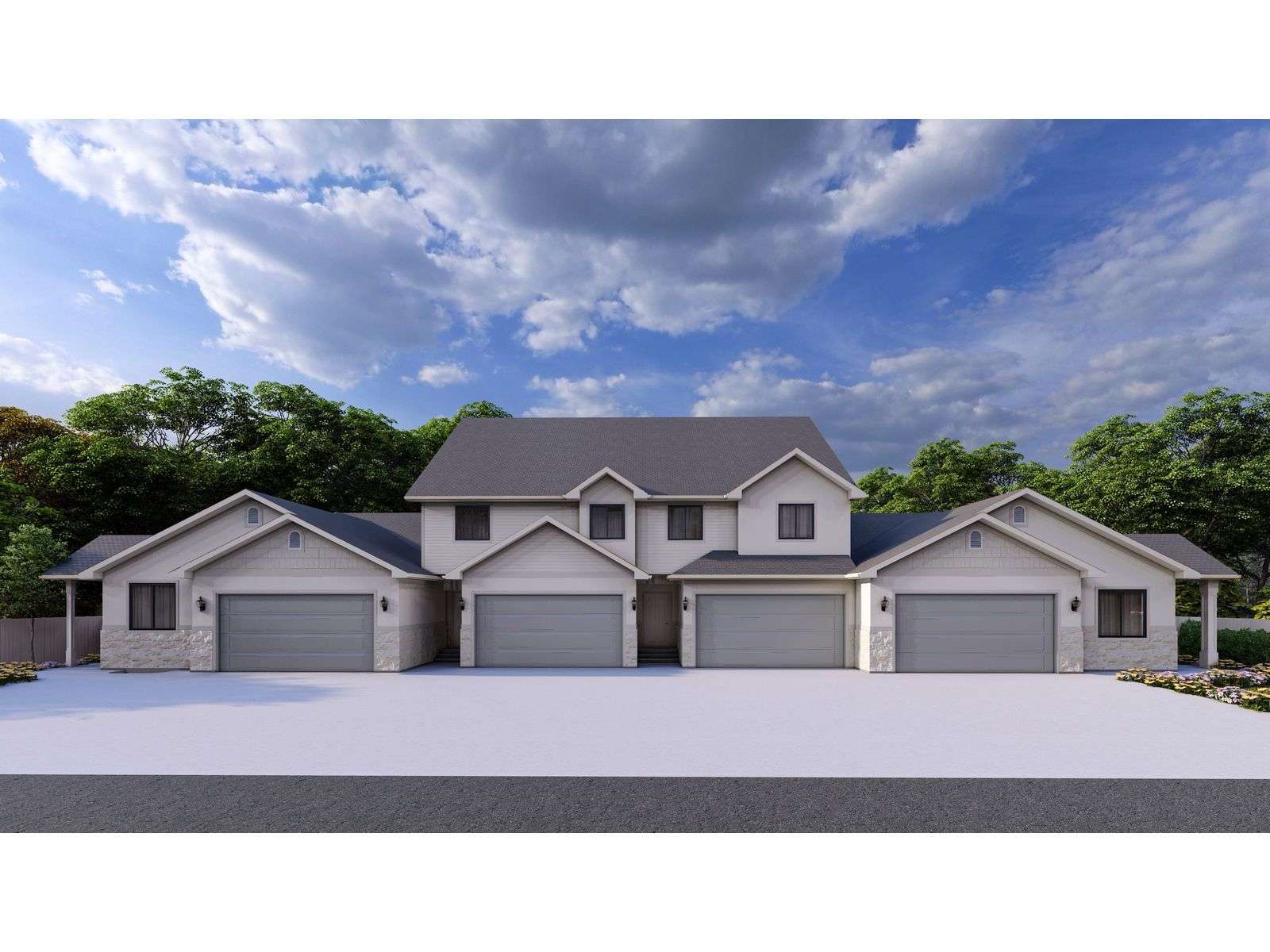

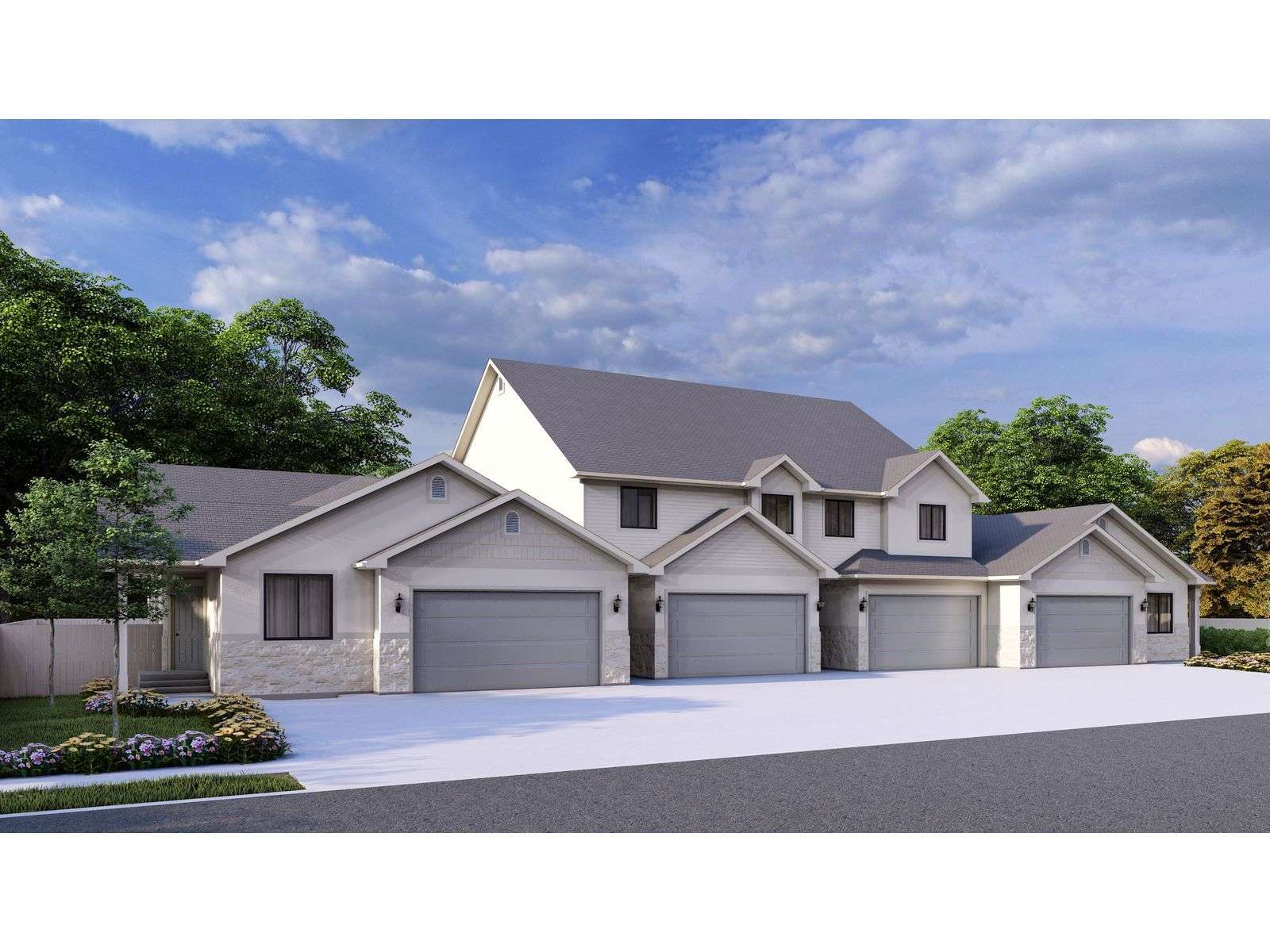

Jaen 4-Plex: 5,651 SF above ground, 10 bedrooms, 8 full baths, 4 half baths, and 4 two car garages.

Breakdown of plan qualities including square footage and rooms:
◘ End Units have 1,267 SF heated downstairs, 2 bedrooms, and 2 full baths. No second floor. Basement adds 1,271 SF, 1 bedroom, and 1 full bath. Garage adds 455 SF. Side porches are 68 SF each.

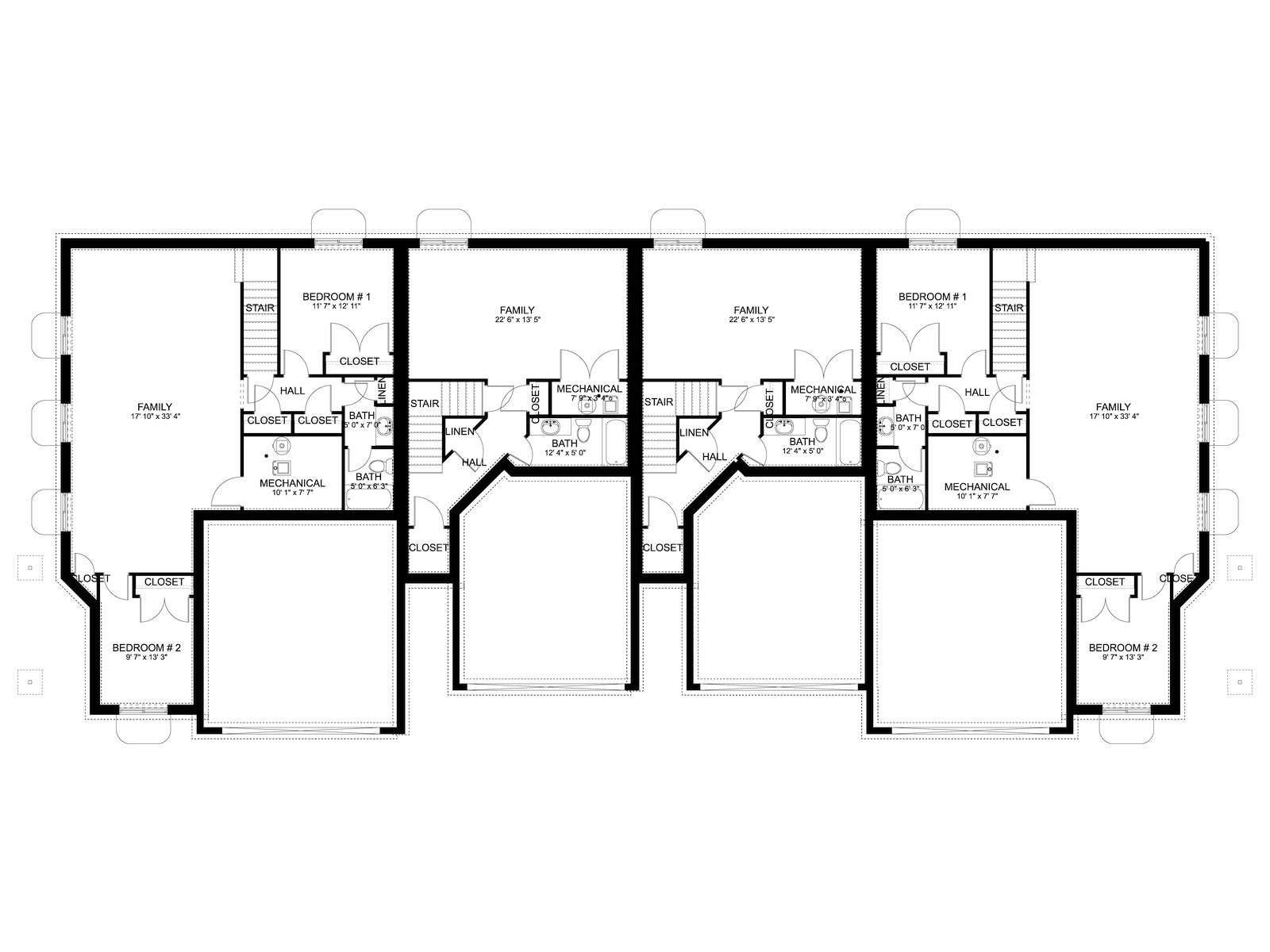

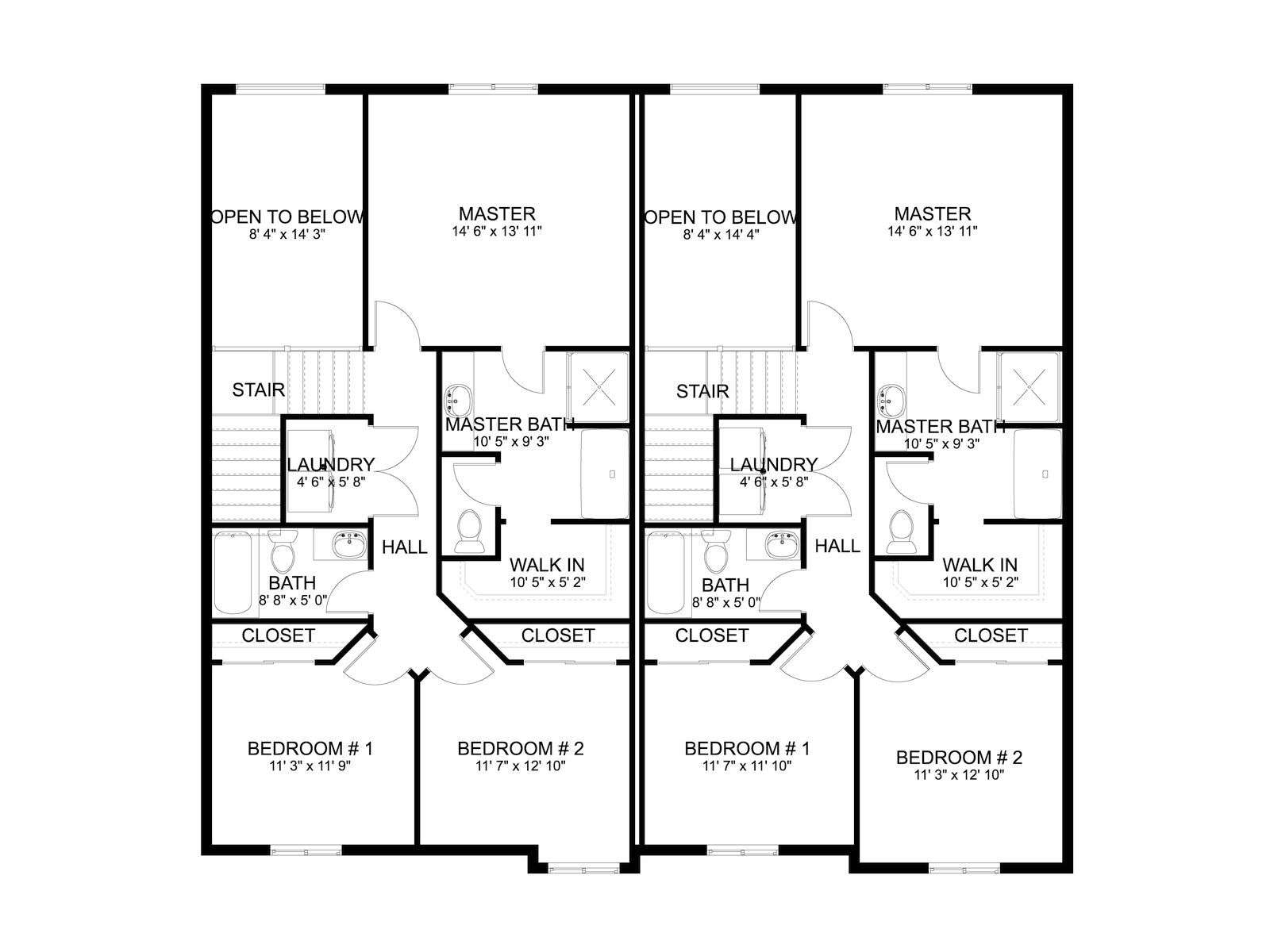

◘Center Units have 655 SF heated downstairs, no bedrooms, and 1 full bath. Second floor adds roughly 905 SF, 3 bedrooms, and 2 full baths. Basement adds 664 SF, 0 bedrooms, and 1 full bath. Garage adds 410 SF. Front porches are 35 SF each.

THE SQUARE FOOTAGE AND ROOM COUNTS BELOW DETAIL WHAT CAN BE FOUND IN ONE INDIVIDUAL CENTER UNIT.

Heated Square Feet
First Floor	655
Second Floor	899
Basement Level	664
Total	1554
Unheated Square Feet
Garage	410
Porch(es)	35
Bedrooms	3
Full Bathrooms	2
Width	118 ft. 2 in.
Depth	51 ft. 0 in.
Approximate Height	34 ft. 2 in.
Ceiling Height
First Floor	9 ft. 0 in.
Second Floor	8 ft. 0 in.
Lower Level	8 ft. 0 in.
Roof Pitch	8/12 Primary
Roof Pitch	7/12 Secondary
Roof Framing	Truss
Foundation Options	Basement Crawl Space Slab Walkout Basement
Exterior Wall Options	2x4 2x6

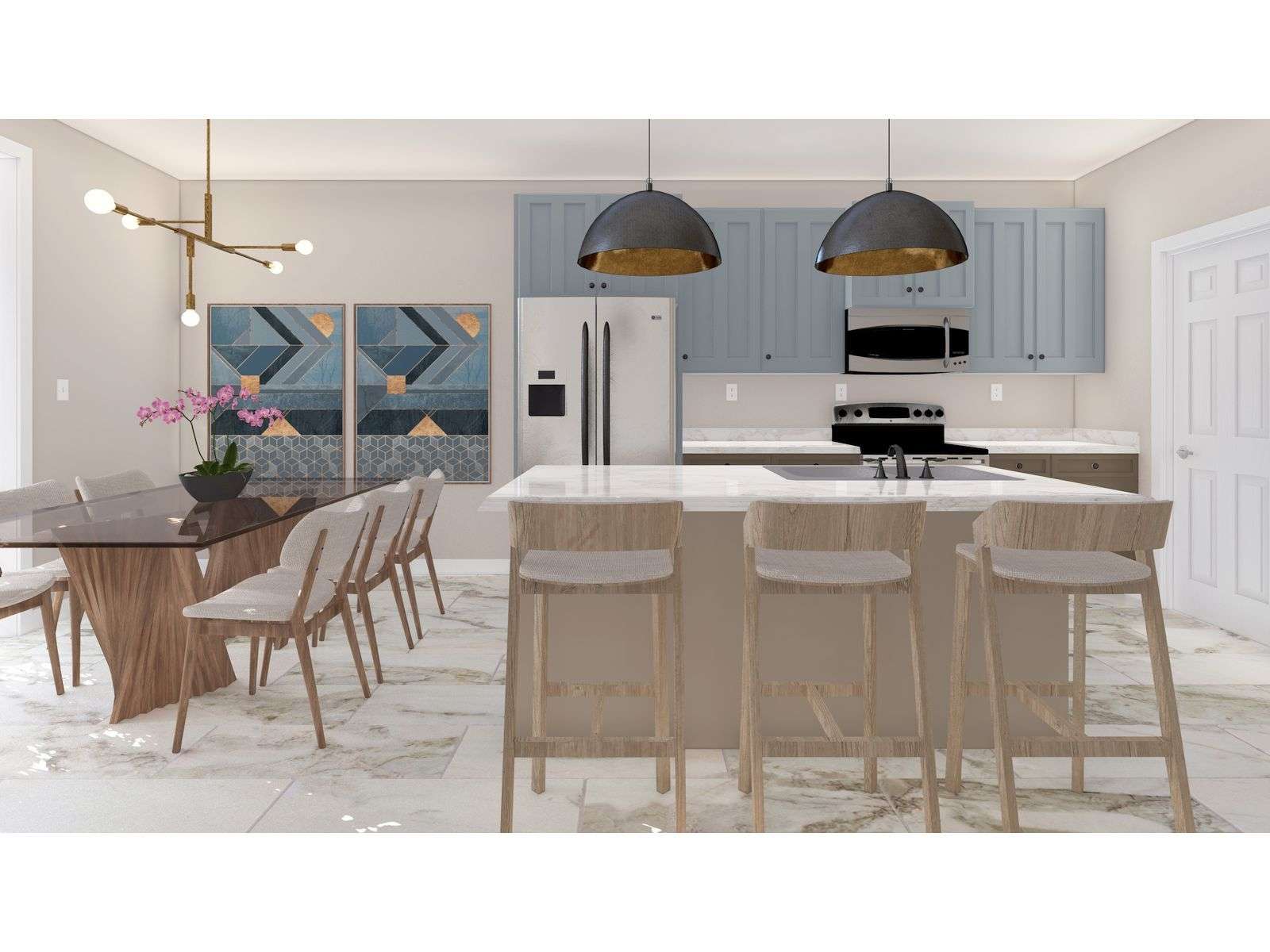

Kitchen Features	Eating/Snack bar Island
Bedroom Features	Upstairs master bedroom Walk-in closet
Interior Features	Family room Laundry Vaulted/volume ceiling Open floor plan
Exterior Features	Covered front porch Covered side porch
Garage Features	Front-entry Two car

Jaen 4-Plex: 5,651 SF above ground, 10 bedrooms, 8 full baths, 4 half baths, and 4 two car garages.

THE SQUARE FOOTAGE AND ROOM COUNTS BELOW DETAIL WHAT CAN BE FOUND IN ONE INDIVIDUAL CENTER UNIT.

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	$25	$45	n/a	n/a
Priority 3 - 4 business days	$40	$90	$55	n/a
Express 1 - 2 business days	$55	n/a	n/a	n/a

There are no reviews

Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

* See notes and purchase restrictions below

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Right Reading Reverse for 065M-0010: $295.00

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]

Attention:

No structural information is included with this design. We recommend using a local professional to size footings, rebar, headers, beams, etc.
