Duplex Plan, 027M-0089

Reverse All Images

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

Left Unit : ( 3 Bed , 1.5 Bath ) 1613 sf

Right Unit : ( 3 Bed , 1.5 Bath ) 1613 sf

Heated Square Feet

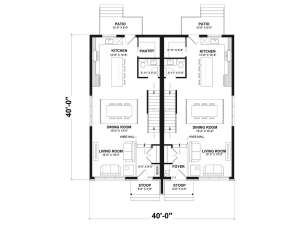

First Floor	1613

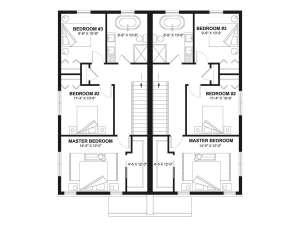

Second Floor	1613
Total	3226
Width	40 ft. 0 in.
Depth	40 ft. 4 in.
Approximate Height	29 ft. 6 in.
Ceiling Height
First Floor	8 ft. 0 in.
Second Floor	8 ft. 0 in.
Lower Level	8 ft. 0 in.
Roof Pitch	5/12 Primary

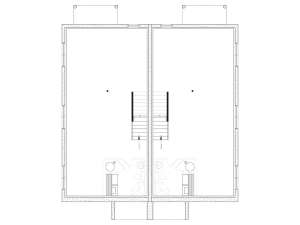

Foundation Options	Basement Crawl Space Slab Walkout Basement
Exterior Wall Options	2x6

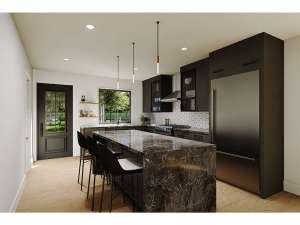

Kitchen Features	Eating/Snack bar Island Walk-in Pantry
Bedroom Features	Upstairs master bedroom Walk-in closet

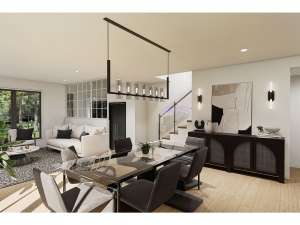

Interior Features	Family room Laundry
Exterior Features	Covered front porch Patio/Terrace/Lanai

Left Unit : ( 3 Bed , 1.5 Bath ) 1613 sf

Right Unit : ( 3 Bed , 1.5 Bath ) 1613 sf

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	n/a	n/a	n/a	n/a
Priority 3 - 4 business days	$20	$20	$75	n/a
Express 1 - 2 business days	n/a	n/a	n/a	n/a

There are no reviews

Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Additional Set for 027M-0089: $75.00 ea.

Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets are available for purchase within 90 days of the original house plan purchase. [less] …[more]

Material List for 027M-0089: $475.00

A general listing of the quantities and sizes of materials needed for construction of your project. A general listing of the quantities and sizes of materials needed for construction of your project. This tool aids your builder in the estimating process. A material list cannot be sold without the simultaneous or prior purchase of a plan package of the same plan number. NOTE: Material lists only include materials for the base plan offered with the no charge foundation and wall framing options. The materials for alternate wall framing and foundation options available for an extra charge will not be included in the material list. [less] …[more]

Right Reading Reverse for 027M-0089: $265.00

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]
