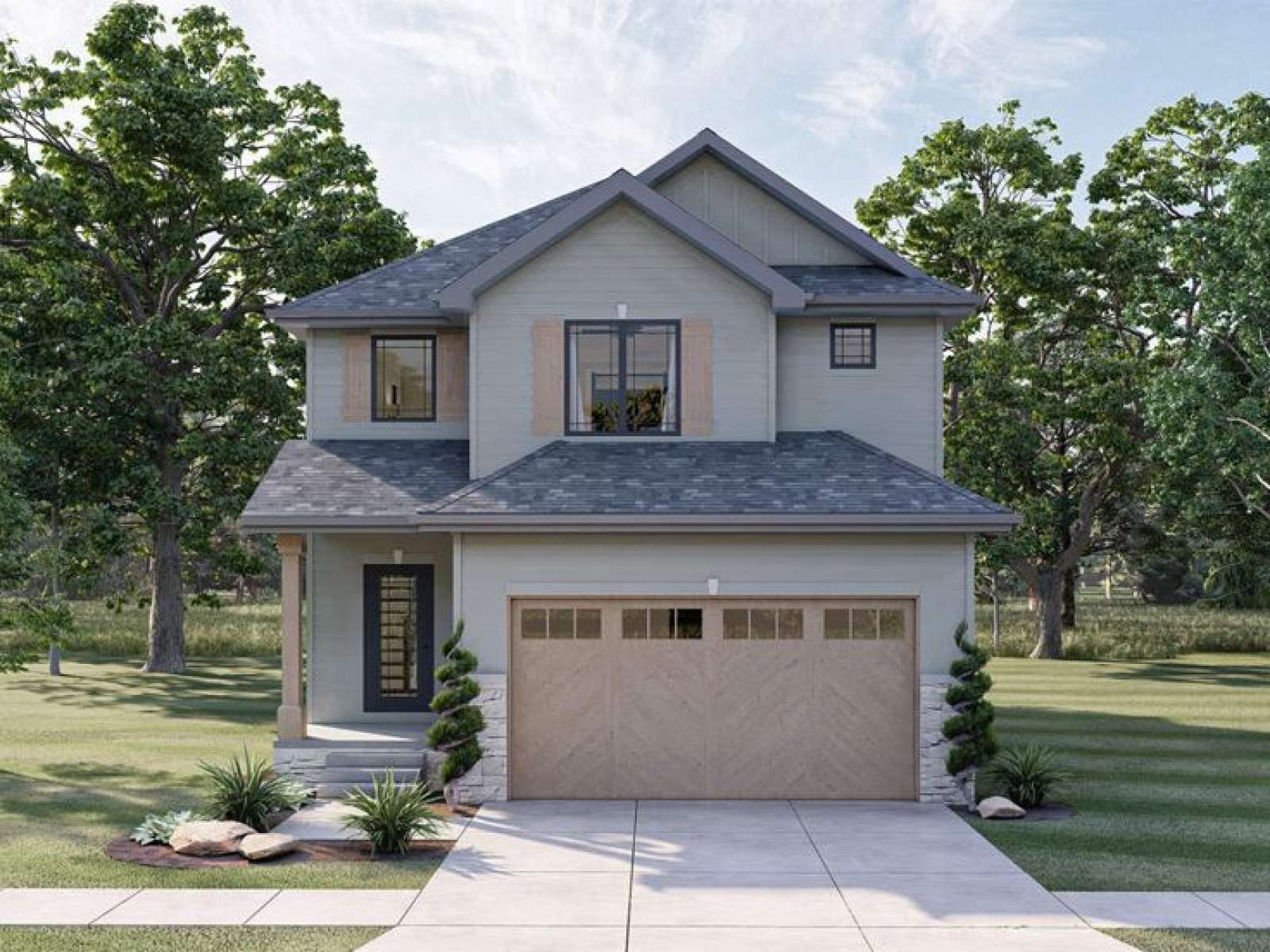

Narrow Lot House Plan, 050H-0109
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

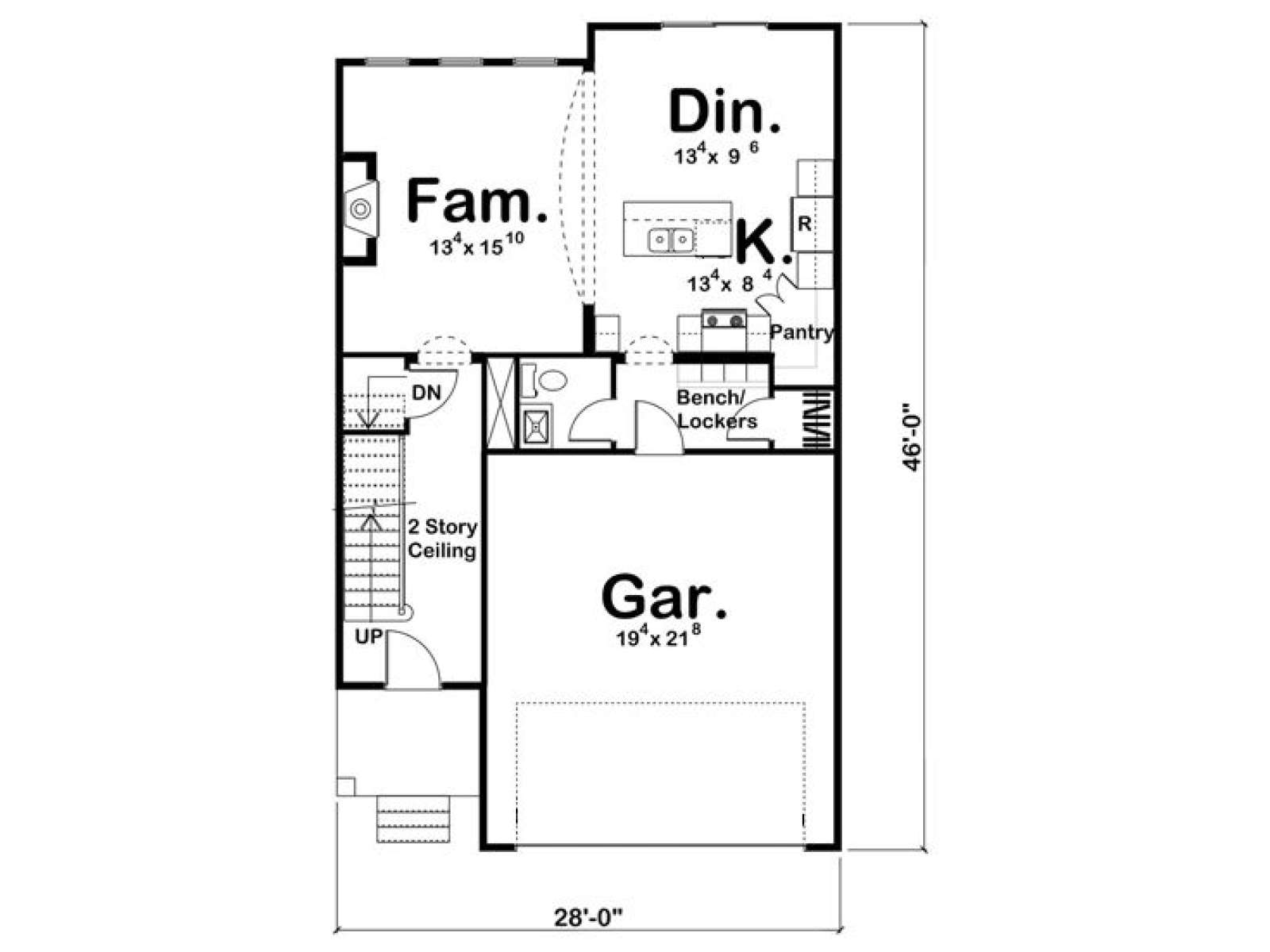

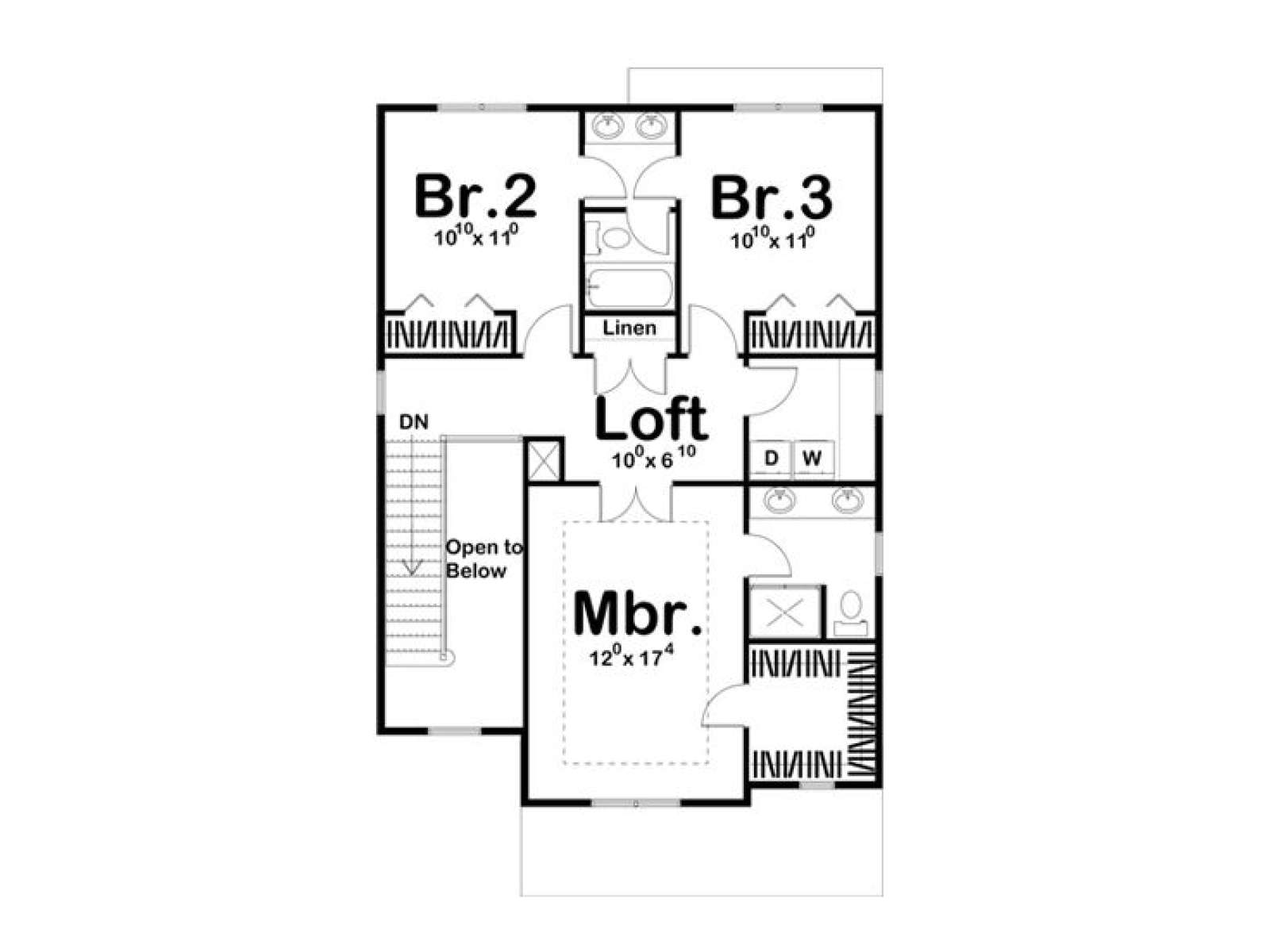

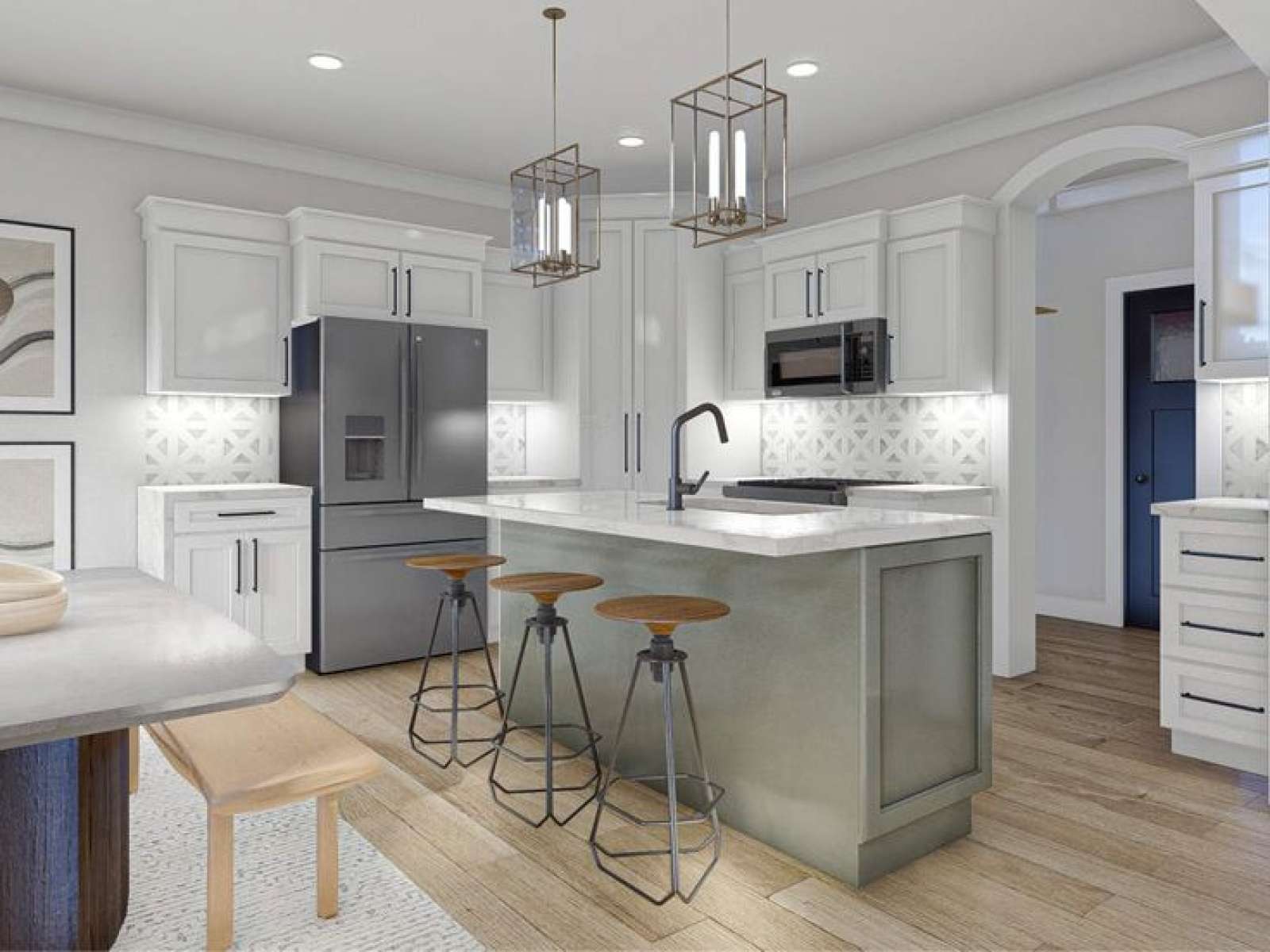

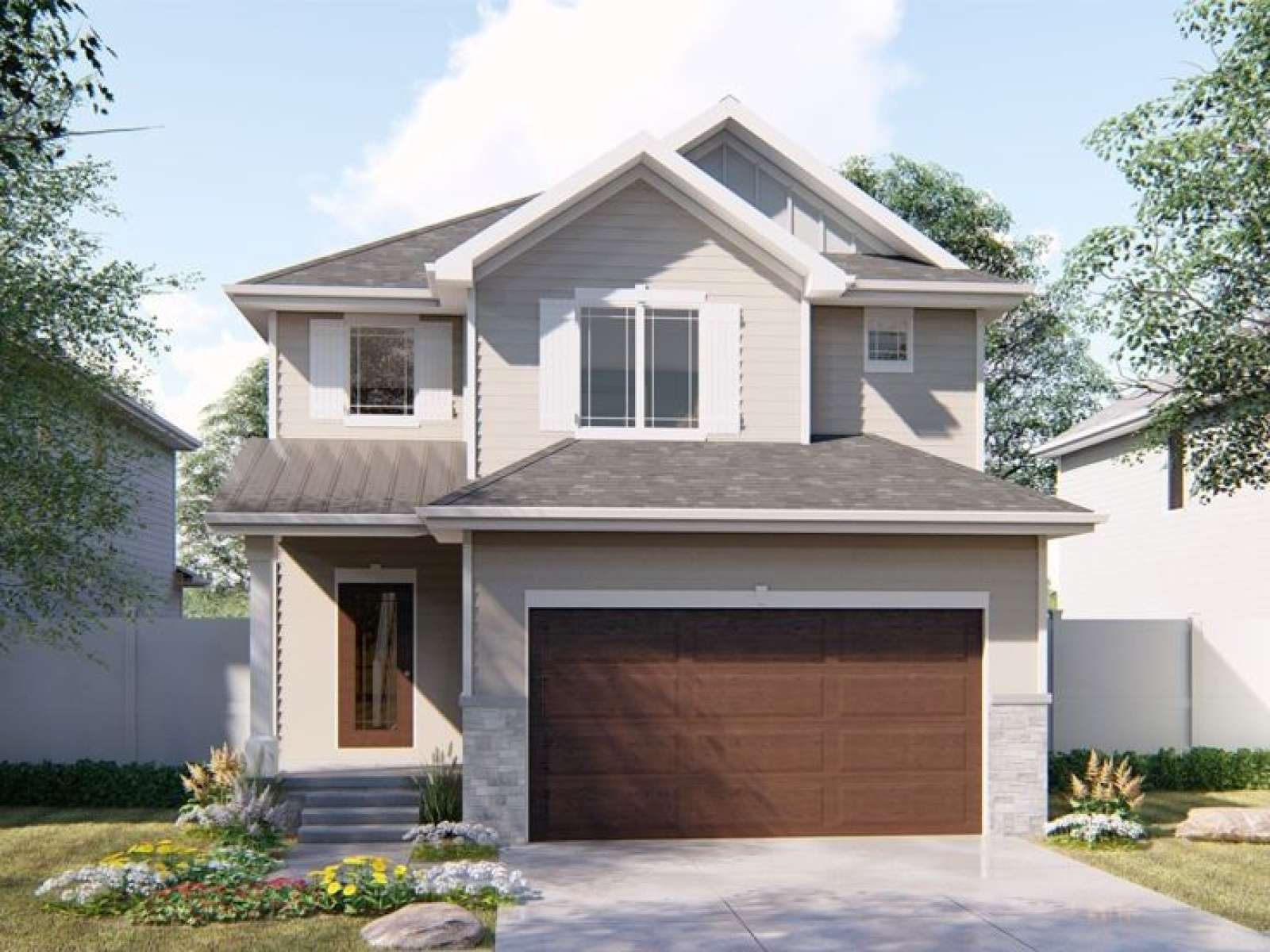

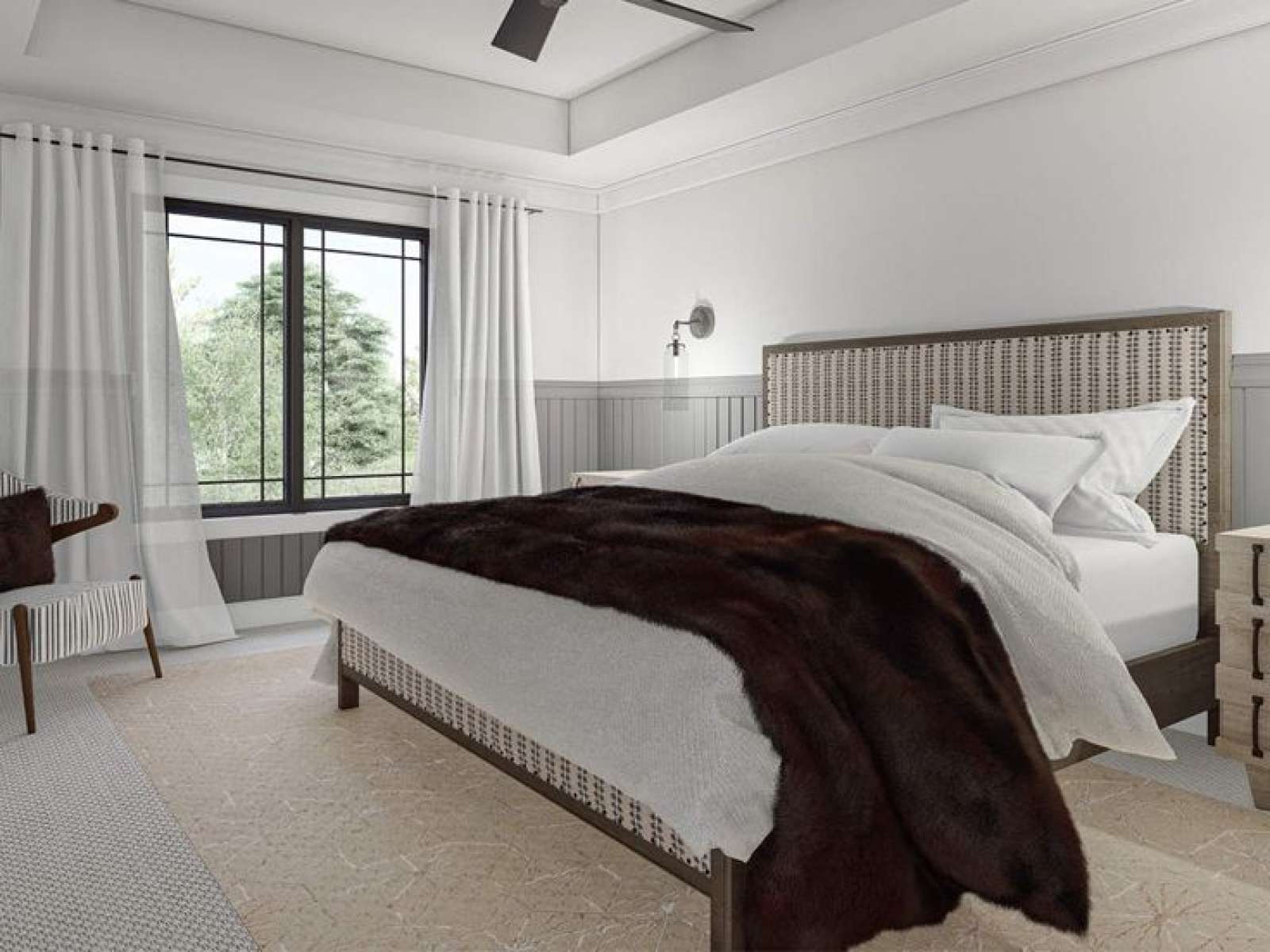

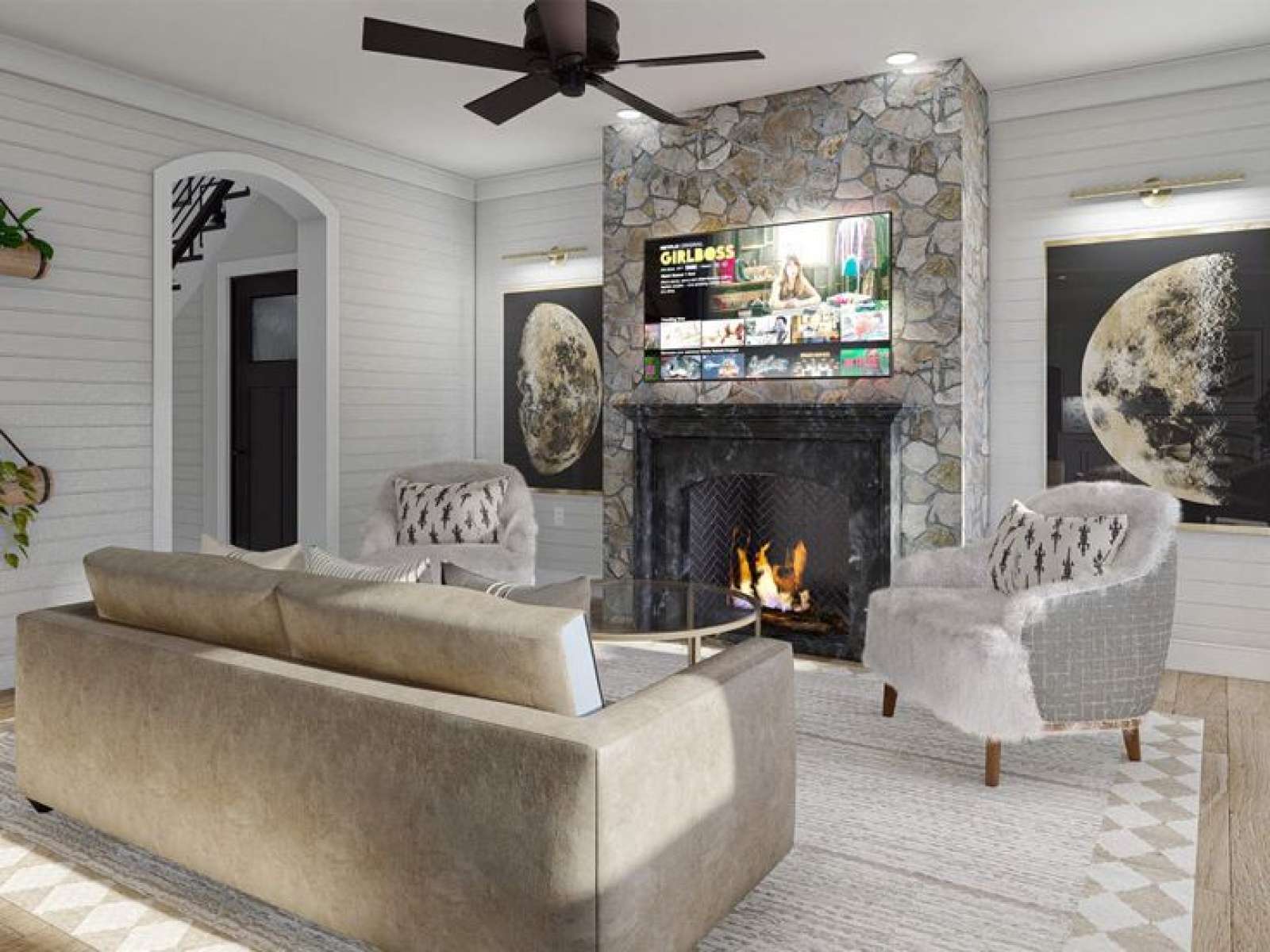

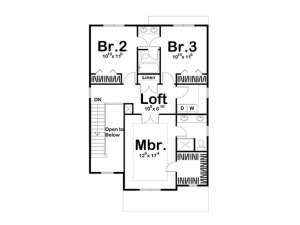

Small and affordable, this traditional house plan makes the most of a narrow lot and accommodates those building a on a budget. On the first floor, the common gathering areas work together creating an open and functional gathering area. Special features include a family room fireplace, island/snack bar combo in the kitchen, and a handy pantry. Don’t miss special features like the two-story ceiling gracing the main entry or the bench and lockers near the entry from the double garage. On the second floor, a loft directs traffic to three bedrooms. Your master bedroom showcases a double door entry, private bath, and walk-in closet. The children’s rooms share a convenient Jack and Jill bath. Pay attention to the laundry room conveniently located on the second floor. Thoughtfully designed, this two-story, narrow lot house plan makes an ideal starter home!
| Heated Square Feet | |
| First Floor | 733 |
| Second Floor | 912 |
| Total | 1645 |
| Unheated Square Feet | |
| Garage | 434 |
| Porch(es) | 49 |
| Bedrooms | 3 |
| Full Bathrooms | 2 |
| Half Bathrooms | 1 |
| Width | 28 ft. 0 in. |
| Depth | 46 ft. 0 in. |
| Approximate Height | 28 ft. 6 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 8/12 Main |
| Roof Pitch | 6/12 Secondary |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
| Special Features |
|
| Garage Features |
|
Small and affordable, this traditional house plan makes the most of a narrow lot and accommodates those building a on a budget. On the first floor, the common gathering areas work together creating an open and functional gathering area. Special features include a family room fireplace, island/snack bar combo in the kitchen, and a handy pantry. Don’t miss special features like the two-story ceiling gracing the main entry or the bench and lockers near the entry from the double garage. On the second floor, a loft directs traffic to three bedrooms. Your master bedroom showcases a double door entry, private bath, and walk-in closet. The children’s rooms share a convenient Jack and Jill bath. Pay attention to the laundry room conveniently located on the second floor. Thoughtfully designed, this two-story, narrow lot house plan makes an ideal starter home!
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $30 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $70 | n/a | $90 | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
