Multi-Family Home Plan, 027M-0084
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Multi-family house plan offers two units for family living with Unit A being slightly smaller than Unit B

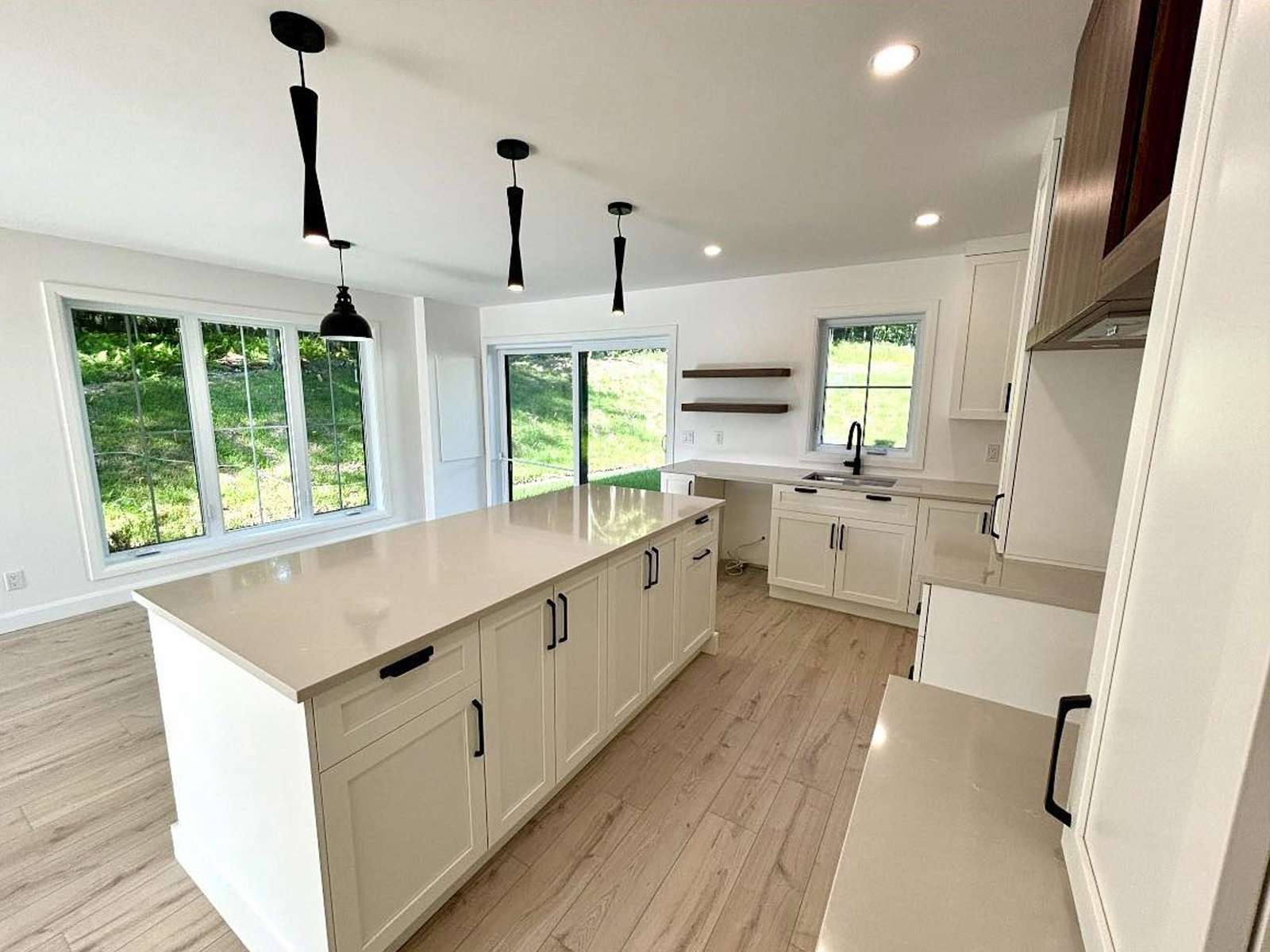

Open living areas are anchored by a kitchen island with eating bar

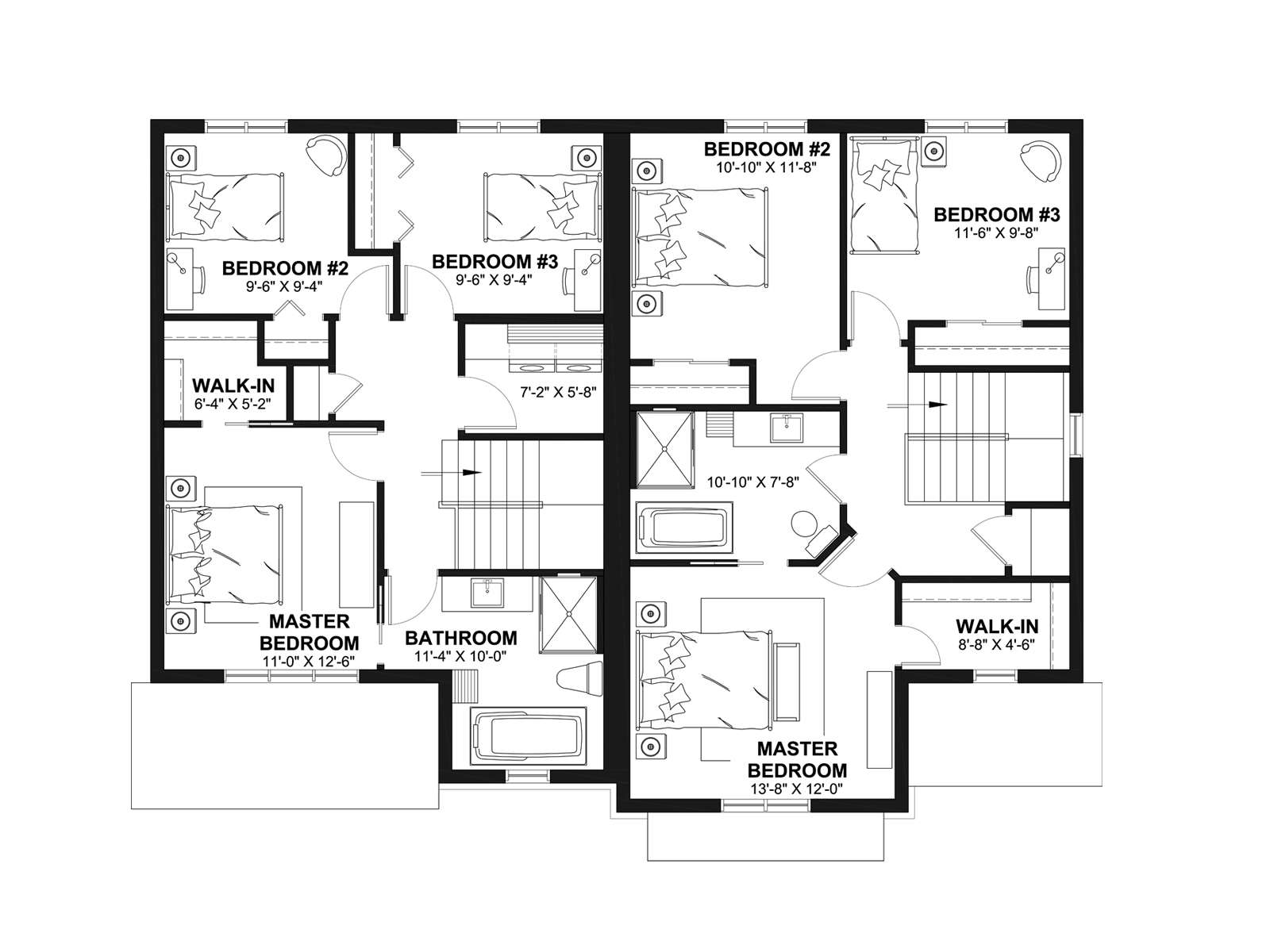

Three bedrooms and a full bath are positioned for privacy on the second floor

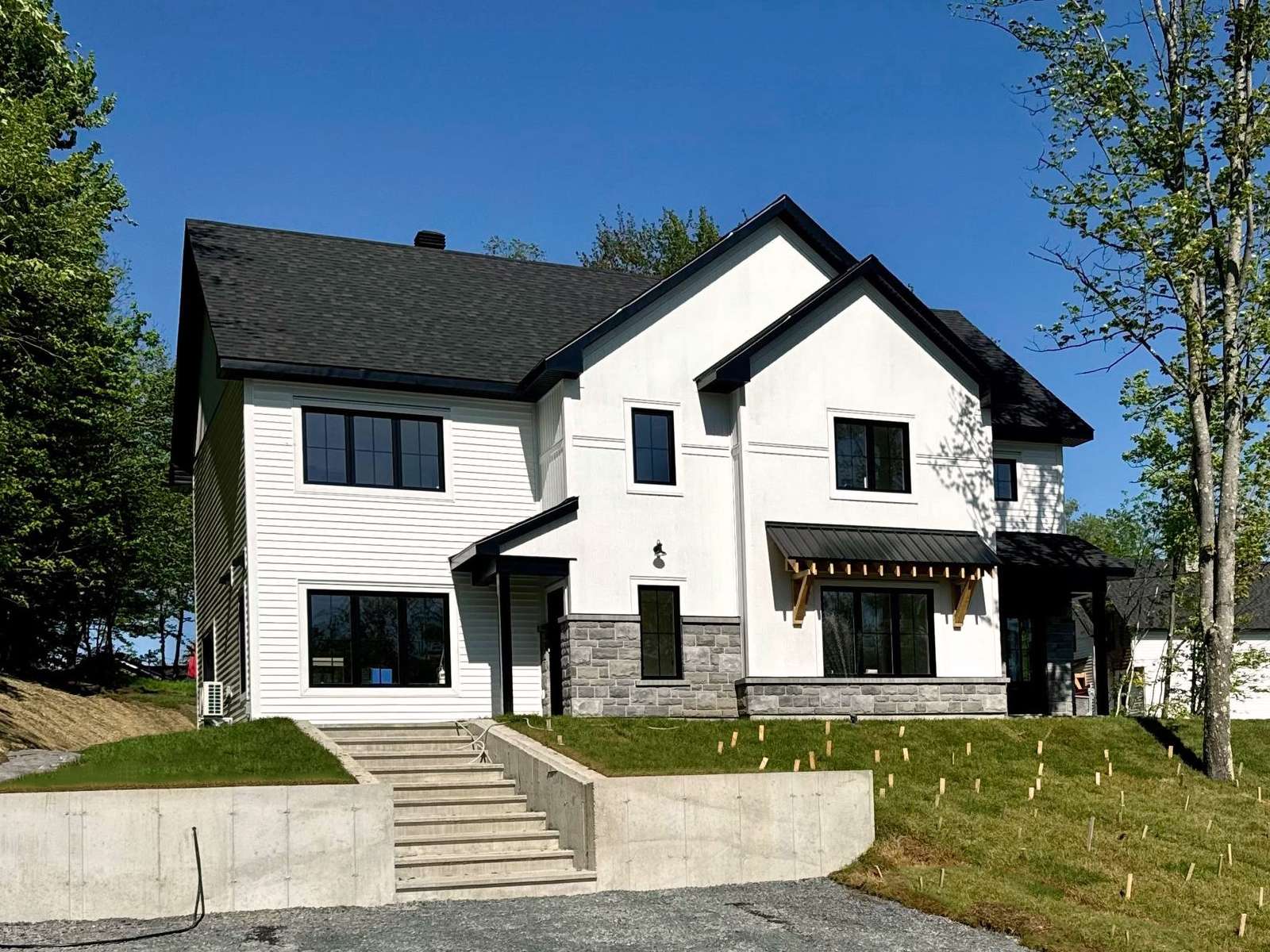

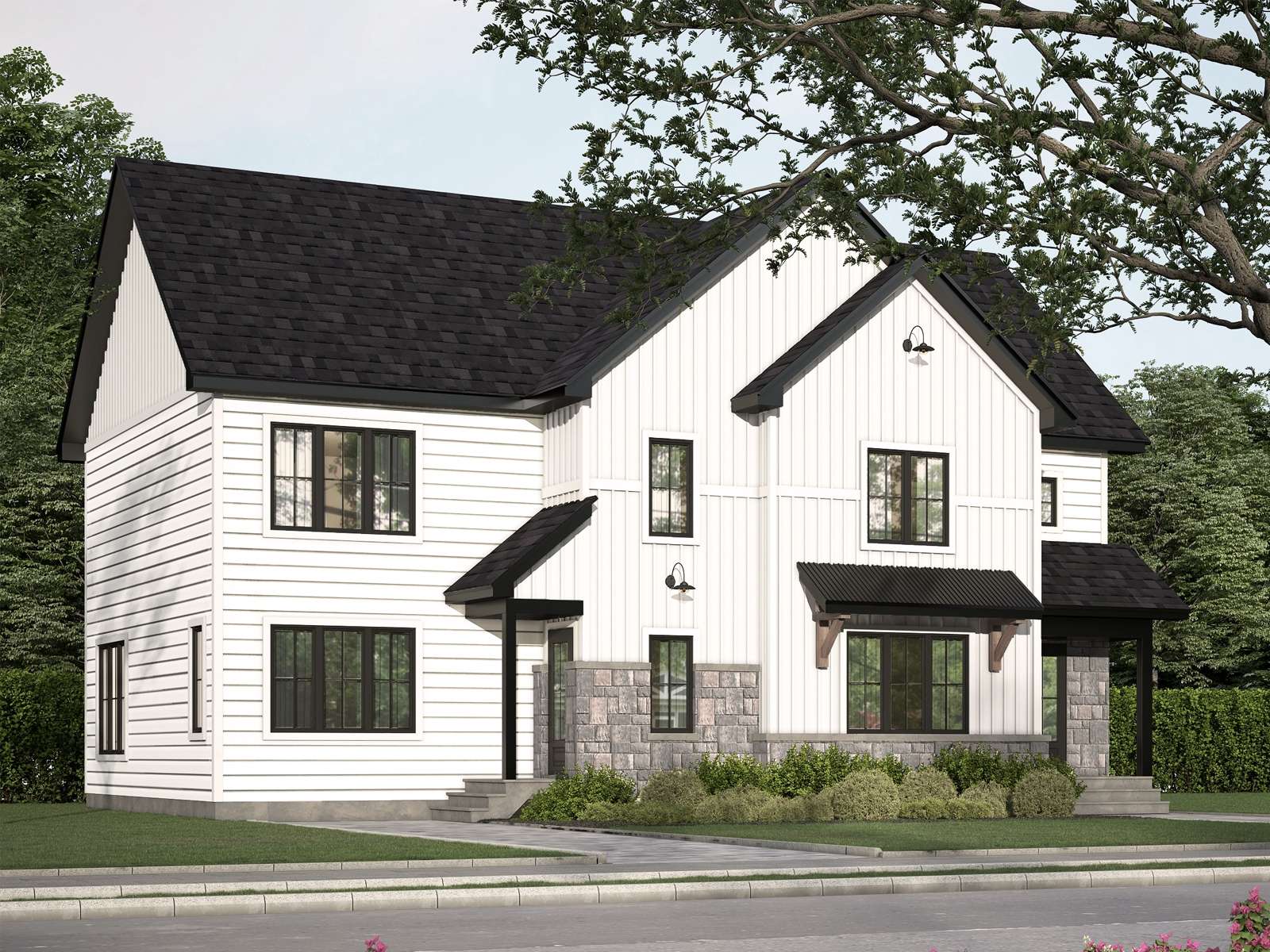

Thoughtful design gives this duplex home charming curb appeal

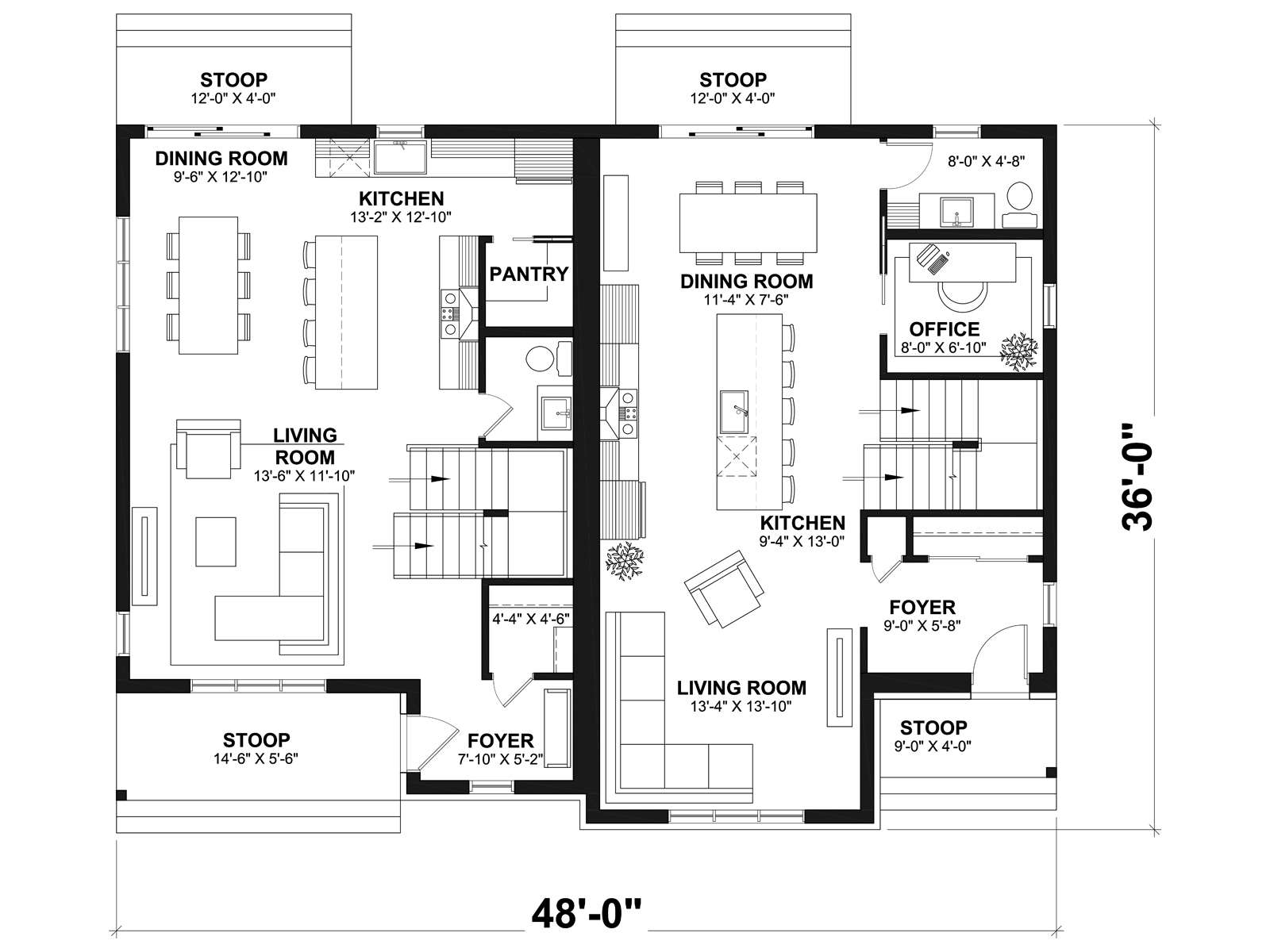

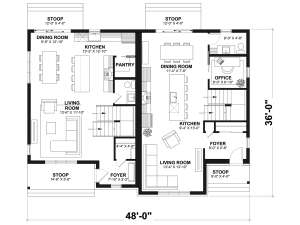

Unit A: 1st floor – 748 sf, 2nd Floor – 748 sf, Total – 1496 sf, 3 bedrooms, 1.5 bath
Unit B: 1st floor – 805 sf, 2nd Floor – 805 sf, Total – 1610 sf, 3 bedrooms, 1.5 baths
| Heated Square Feet | |
| First Floor | 1553 |
| Second Floor | 1553 |
| Total | 3106 |
| Width | 48 ft. 0 in. |
| Depth | 36 ft. 0 in. |
| Approximate Height | 30 ft. 0 in. |
| Ceiling Height | |
| First Floor | 8 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 8/12 Main |
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
Multi-family house plan offers two units for family living with Unit A being slightly smaller than Unit B
Open living areas are anchored by a kitchen island with eating bar
Three bedrooms and a full bath are positioned for privacy on the second floor
Thoughtful design gives this duplex home charming curb appeal
Unit A: 1st floor – 748 sf, 2nd Floor – 748 sf, Total – 1496 sf, 3 bedrooms, 1.5 bath
Unit B: 1st floor – 805 sf, 2nd Floor – 805 sf, Total – 1610 sf, 3 bedrooms, 1.5 baths
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | n/a | n/a | n/a | n/a |
| Priority 3 - 4 business days | $20 | $20 | $75 | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
