Affordable House Plan, 016H-0040
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

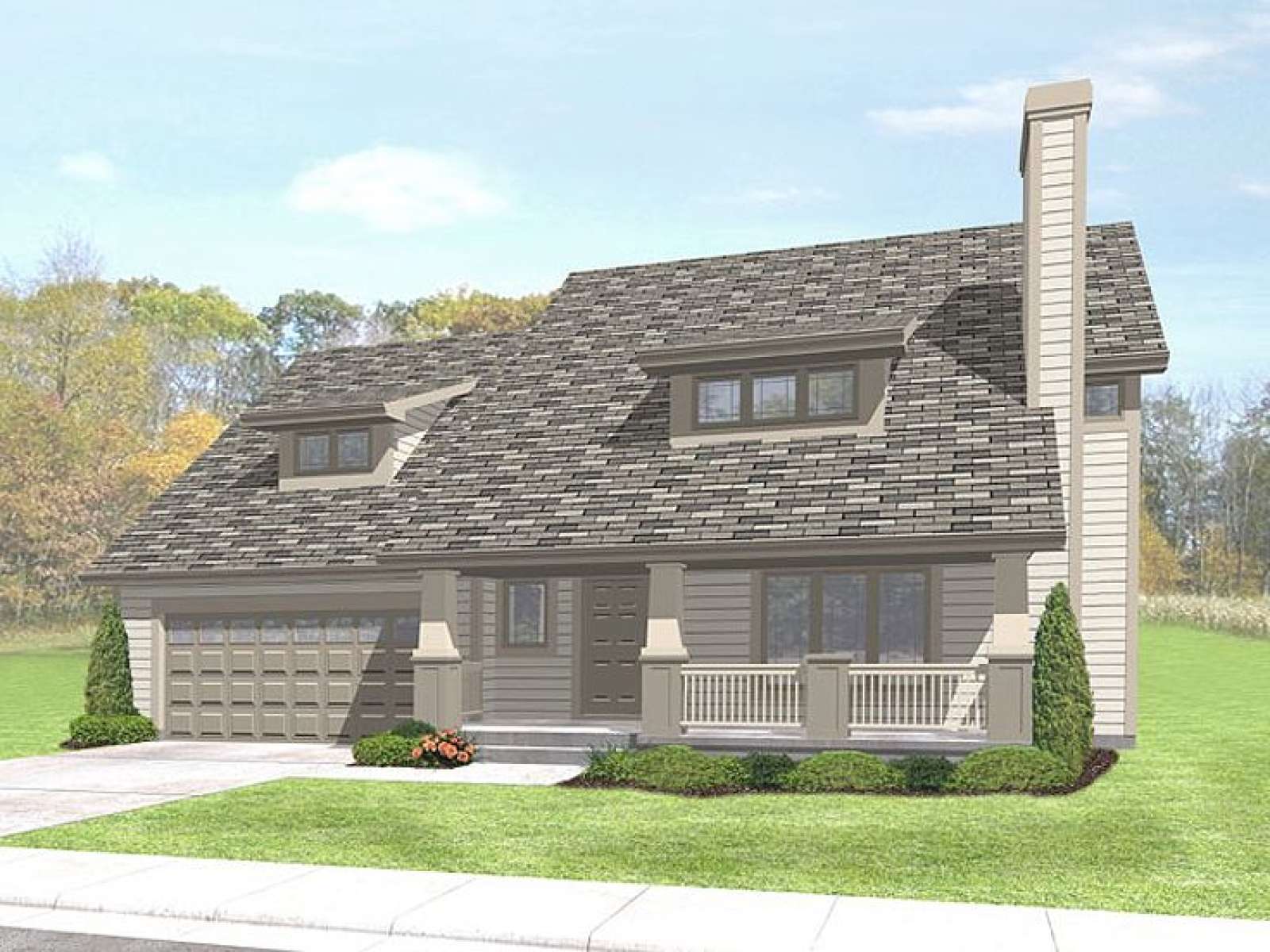

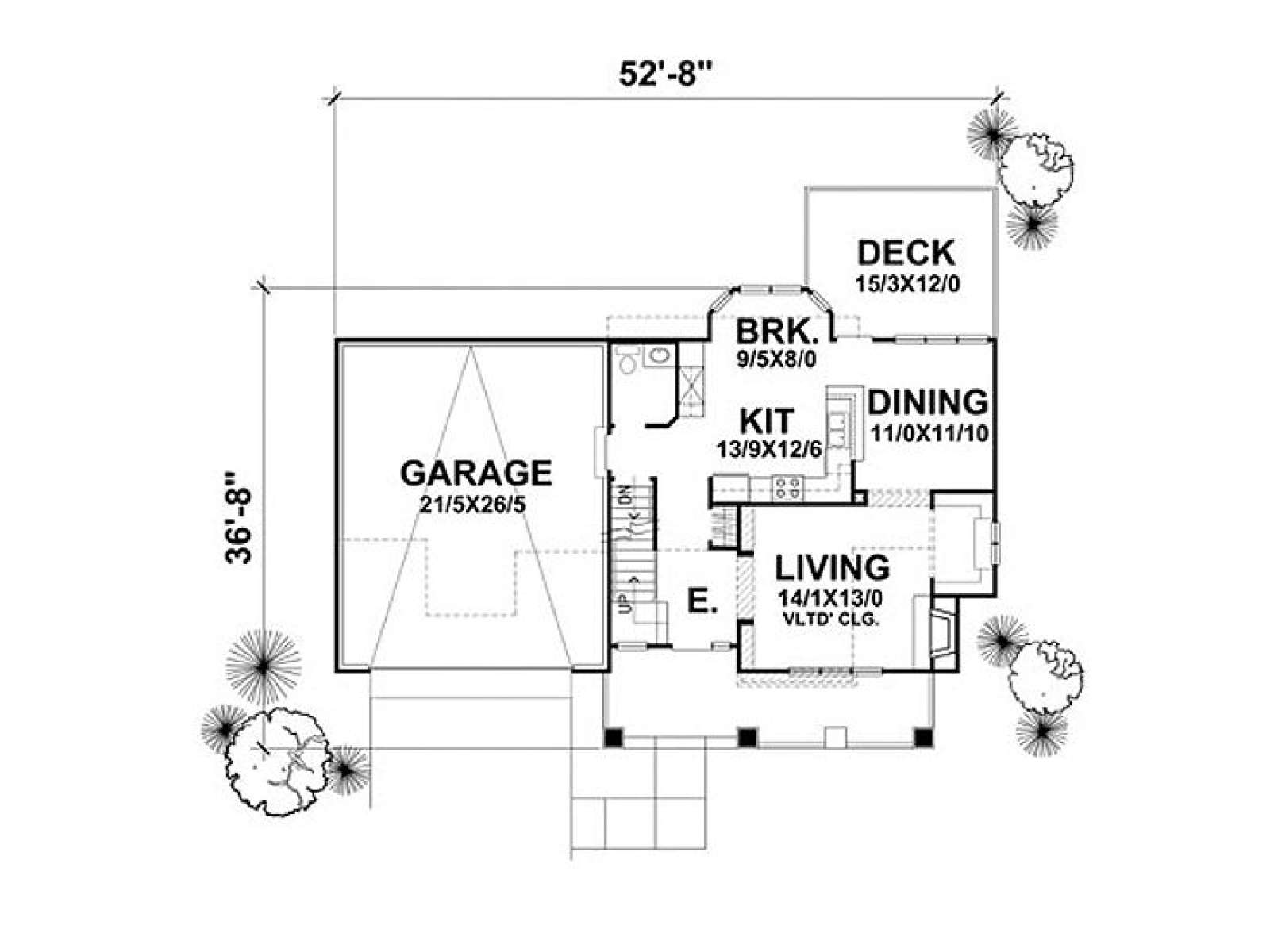

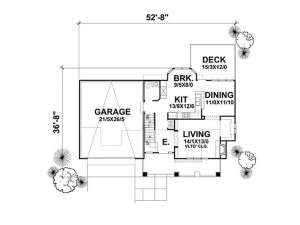

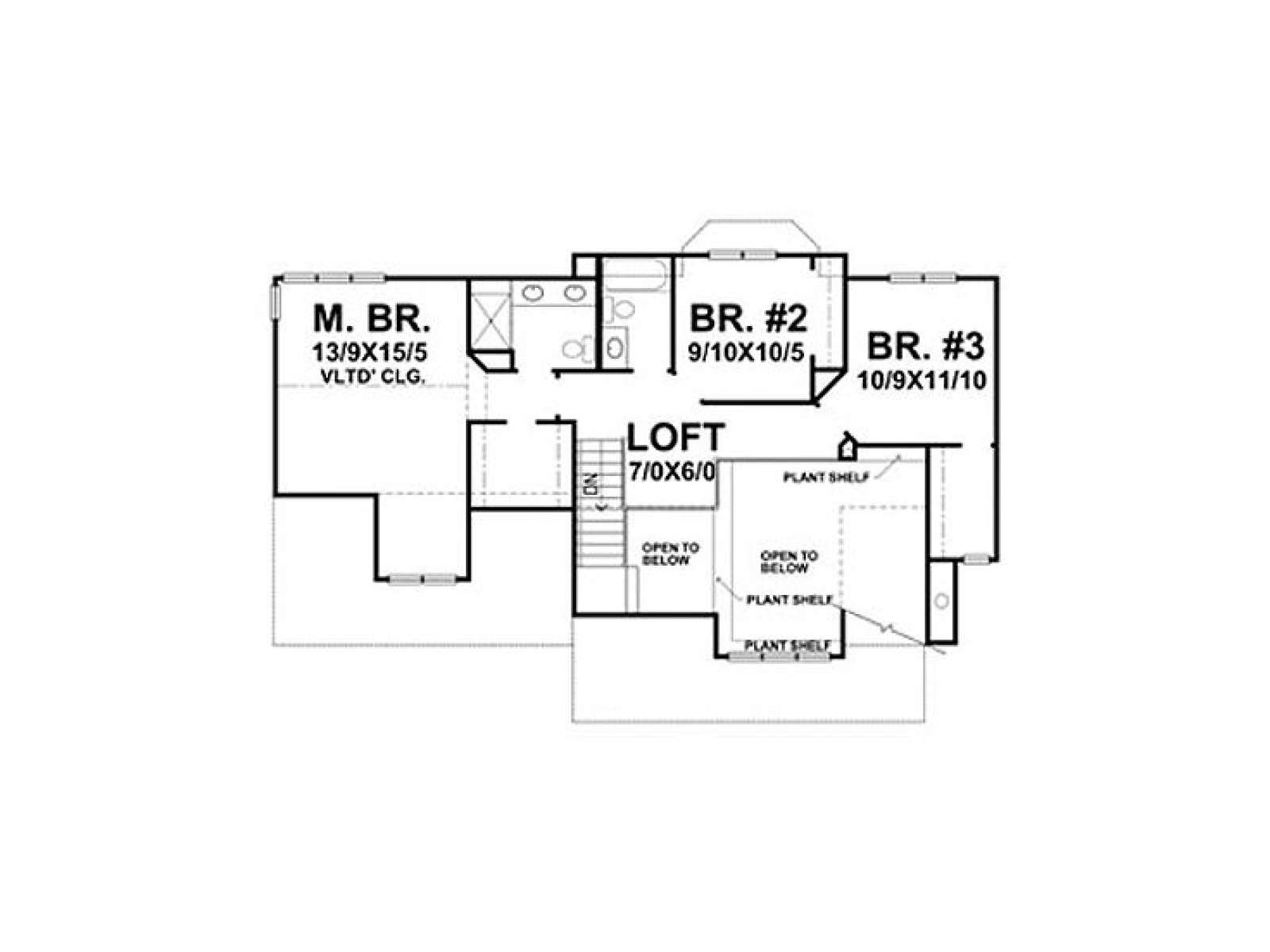

A covered front porch and shed dormers are the exterior highlights of this two-story home plan. A vaulted ceiling and warm fireplace in the living room create the ideal setting for socializing and relaxing. The bayed breakfast nook, dining area and kitchen combine for a casual dining space. All of the bedrooms enjoy the privacy of the second floor and overlook the living room from the loft above. A two-car garage completes this small and affordable house plan.
| Heated Square Feet | |
| First Floor | 823 |
| Second Floor | 904 |
| Total | 1727 |
| Bedrooms | 3 |
| Full Bathrooms | 2 |
| Width | 52 ft. 8 in. |
| Depth | 36 ft. 8 in. |
| Approximate Height | 28 ft. 9 in. |
| Ceiling Height | |
| First Floor | 8 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | Main 10/12 |
| Roof Pitch | Dormers 4/12 |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
| Special Features |
|
| Garage Features |
|
A covered front porch and shed dormers are the exterior highlights of this two-story home plan. A vaulted ceiling and warm fireplace in the living room create the ideal setting for socializing and relaxing. The bayed breakfast nook, dining area and kitchen combine for a casual dining space. All of the bedrooms enjoy the privacy of the second floor and overlook the living room from the loft above. A two-car garage completes this small and affordable house plan.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | n/a | n/a | n/a | n/a |
| Priority 3 - 4 business days | n/a | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
