Luxury House Plan, 040H-0080

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

Decorative arches, a stucco finish, and a cement tile roof combine unveiling this extravagant and luxurious Mediterranean house plan. Large, gently curved windows flood the living spaces with sunlight beneath high coffered and beamed ceilings. The secluded master suite is well appointed with a garden, double shower. Two more bedrooms, a loft recreation area, a study with bath and access to the lanai and an oversized three-car garage provide plenty of room for the entire family. Special extras include a great room fireplace, kitchen island and snack bar and summer kitchen. Family-friendly and functional, this two-story, luxury home plan is ready to serve your family.
First floor exterior wall is designed with CMU framing.
The second floor has a combination of CMU and 2x4 framing.

Heated Square Feet

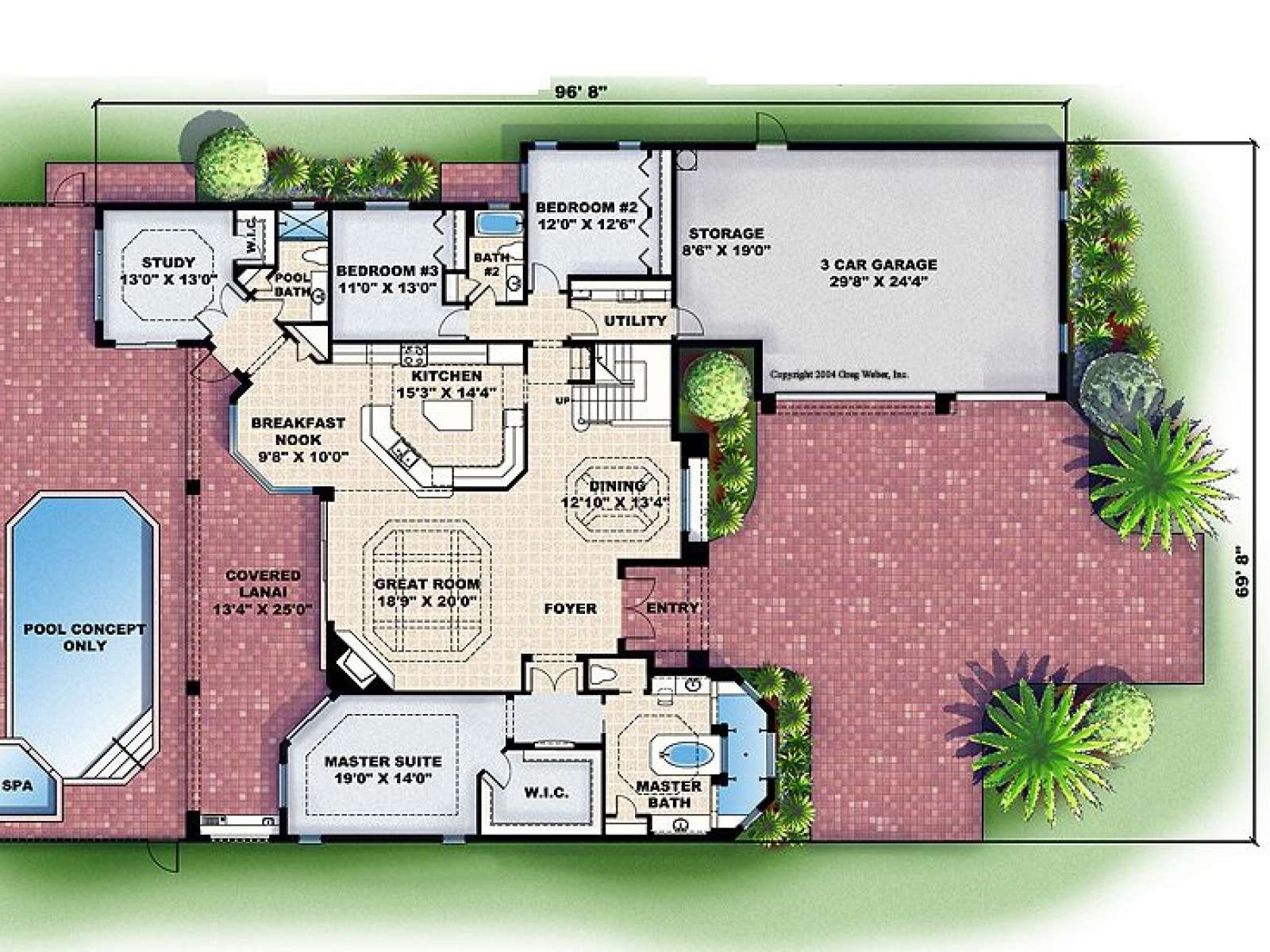

First Floor	2951

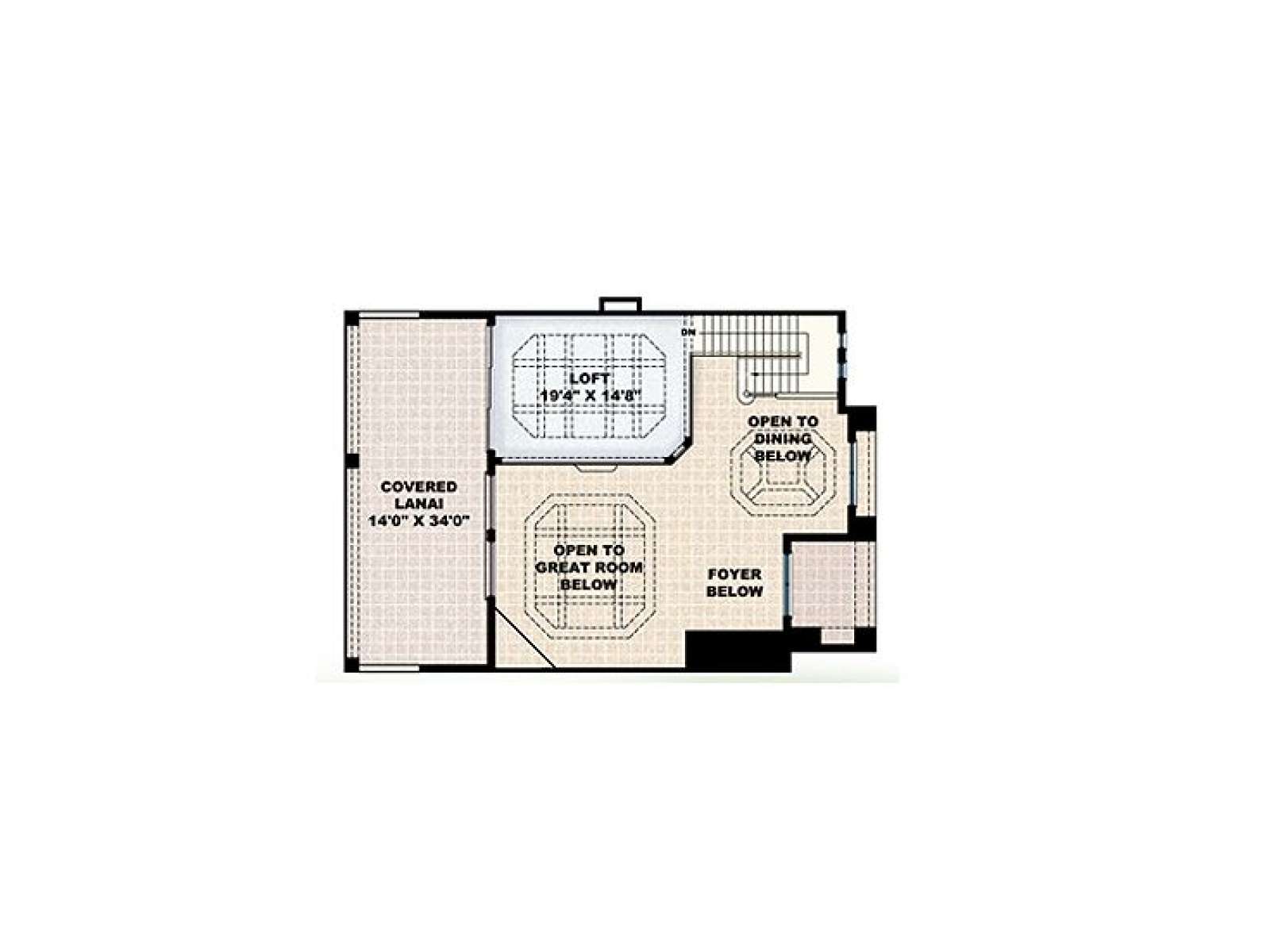

Second Floor	299
Total	3250
Unheated Square Feet
Garage	955
Patio/Terrace/Lanai	499
Porch(es)	80
Bedrooms	3
Full Bathrooms	3
Width	69 ft. 8 in.
Depth	96 ft. 8 in.
Approximate Height	29 ft. 11 in.
Roof Pitch	5/12 Main
Roof Framing	Truss
Foundation Options	Slab
Exterior Wall Options	CMU

Kitchen Features	Breakfast area/nook Island Eating/Snack bar
Bedroom Features	Walk-in closet Main floor master bedroom Split bedrooms
Interior Features	Great room Laundry Loft/balcony Open floor plan Vaulted/volume ceiling Den/office/study
Exterior Features	Covered front porch Patio/Terrace/Lanai
Special Features	Fireplace/Woodstove
Garage Features	Three car+ Side-entry Workshop/storage

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	n/a	n/a	n/a	n/a
Priority 3 - 4 business days	n/a	n/a	n/a	n/a
Express 1 - 2 business days	n/a	n/a	n/a	n/a

There are no reviews

Add your review

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Right Reading Reverse for Plan 040H-0080: $350.00

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]

Purchase Restrictions:

NOTE: This plan is not available for construction in Lee or Collier County, FL.
