Affordable Home Plan, 016H-0029
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

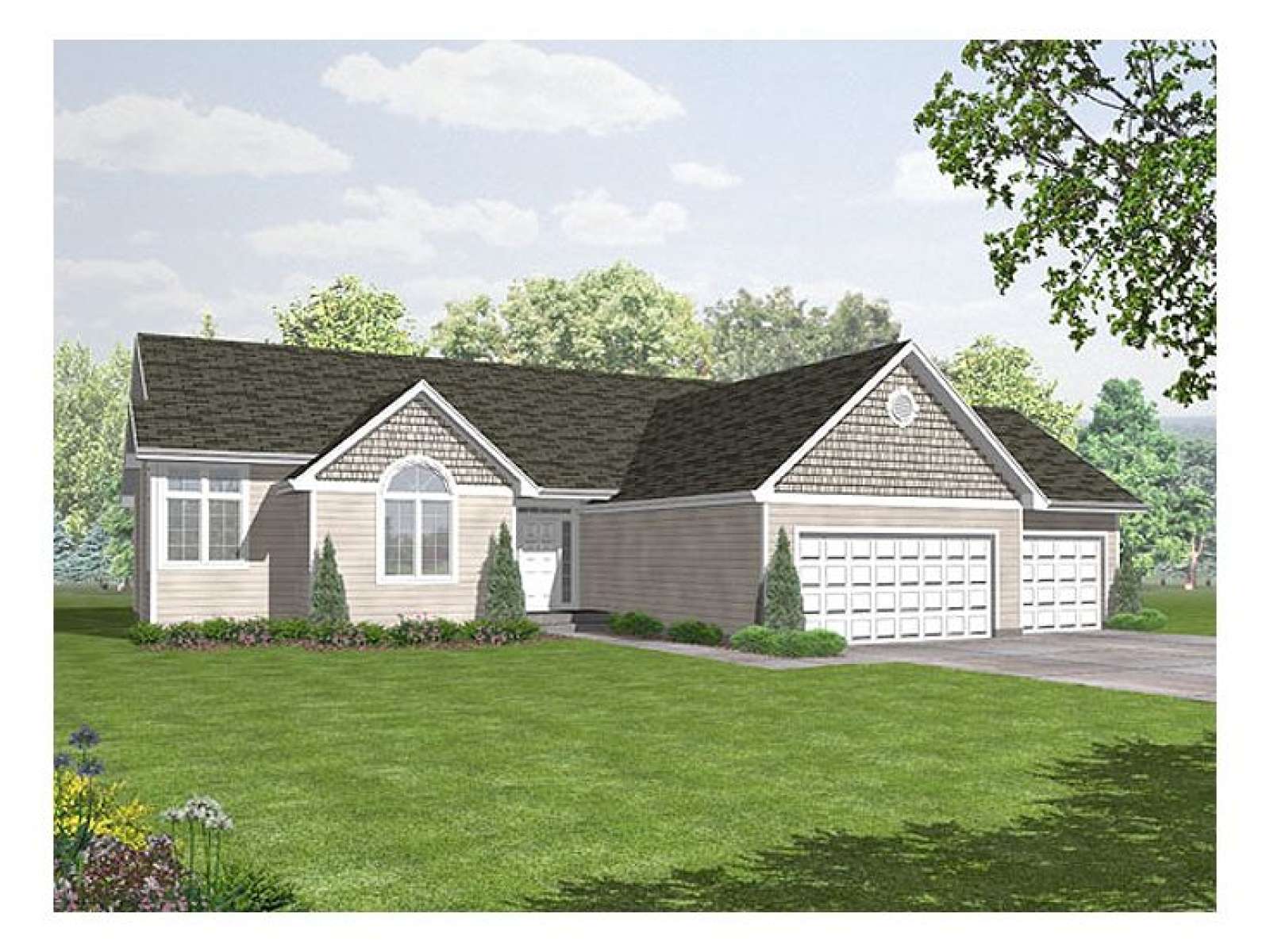

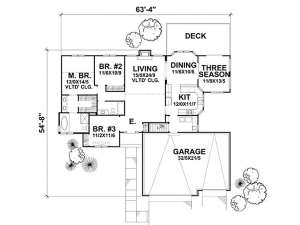

The front facing gables highlighting the exterior of this traditional ranch home plan make it stand out among other home plans. Inside, a vaulted living room enjoys a cozy fireplace flanked with windows. The efficient U-shaped kitchen serves the bayed dining room with ease, while the nearby utility room makes multi-tasking a breeze. Plenty of windows brighten the three season room, which opens to the rear deck. A vaulted ceiling and deluxe bath complement the master bedroom. The secondary bedrooms share a hall bathroom. A three-car garage completes this small and affordable house plan.
| Heated Square Feet | |
| First Floor | 1612 |
| Total | 1612 |
| Bedrooms | 3 |
| Full Bathrooms | 2 |
| Width | 64 ft. 4 in. |
| Depth | 54 ft. 8 in. |
| Approximate Height | 22 ft. 0 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Roof Pitch | Main 8/12 |
| Roof Pitch | Front Gable 10/12 |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
| Special Features |
|
| Garage Features |
|
The front facing gables highlighting the exterior of this traditional ranch home plan make it stand out among other home plans. Inside, a vaulted living room enjoys a cozy fireplace flanked with windows. The efficient U-shaped kitchen serves the bayed dining room with ease, while the nearby utility room makes multi-tasking a breeze. Plenty of windows brighten the three season room, which opens to the rear deck. A vaulted ceiling and deluxe bath complement the master bedroom. The secondary bedrooms share a hall bathroom. A three-car garage completes this small and affordable house plan.
